1-31 — AIR DUCT (#67506) — 73 parça

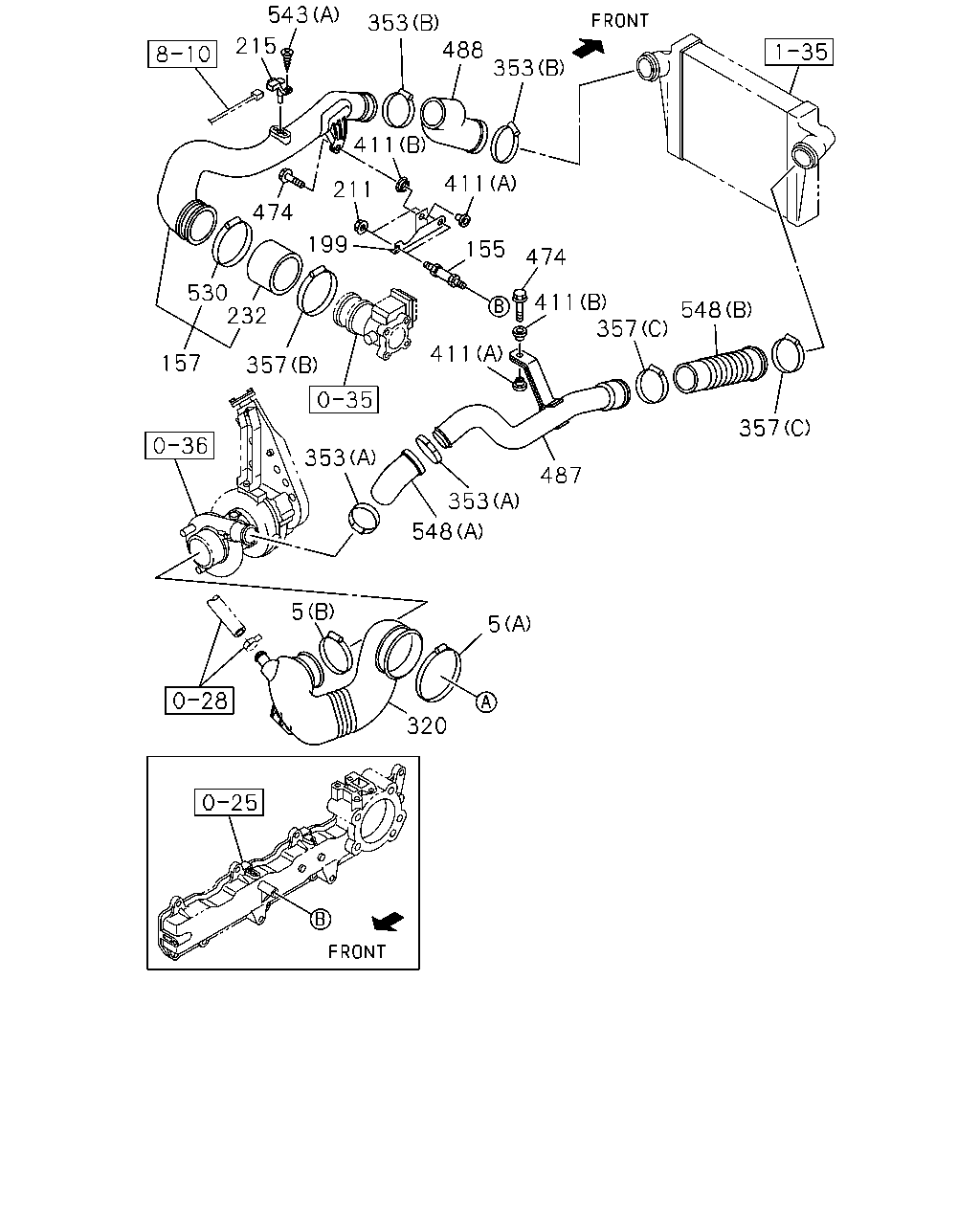

çizim 92128
543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 357 353 487 353 548 5 5 320
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0803-0810
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 0811-
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0803-0812
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 0803-
157 PIPE; AIR 8-98010-719-3 01 1 0803-
199 BRACKET; PIPE 8-97385-293-1 01 1 0803-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-
215 SENSOR; MAP 8-98009-418-0 01 1 0803-
232 HOSE; CONN 8-98067-929-0 01 1 0803-
320 HOSE; CONN,ACL 8-98010-643-3 01 1 0803-
353 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 02 1 0803-0811
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 0812-
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 0803-
357 CLIP; RUBBER HOSE
(B) ID=77-95 		1-09707-198-0 01 1 0803-0810
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 0811-
357 CLIP; RUBBER HOSE
(C) ID=58-76 		1-09707-203-0 02 1 0803-0811
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 0803-
411 RUBBER; CUSHION
(A) 		8-94395-766-0 02 1 0803-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 0803-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 0803-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98038-759-3 01 1 0803-
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 0803-
530 CLAMP; AIR DUCT 8-98068-074-0 01 1 0803-0805
530 CLAMP; AIR DUCT
ID=77-95 		1-09707-198-0 01 1 0806-0810
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 0811-
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0803-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0803-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 0803-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 0803-

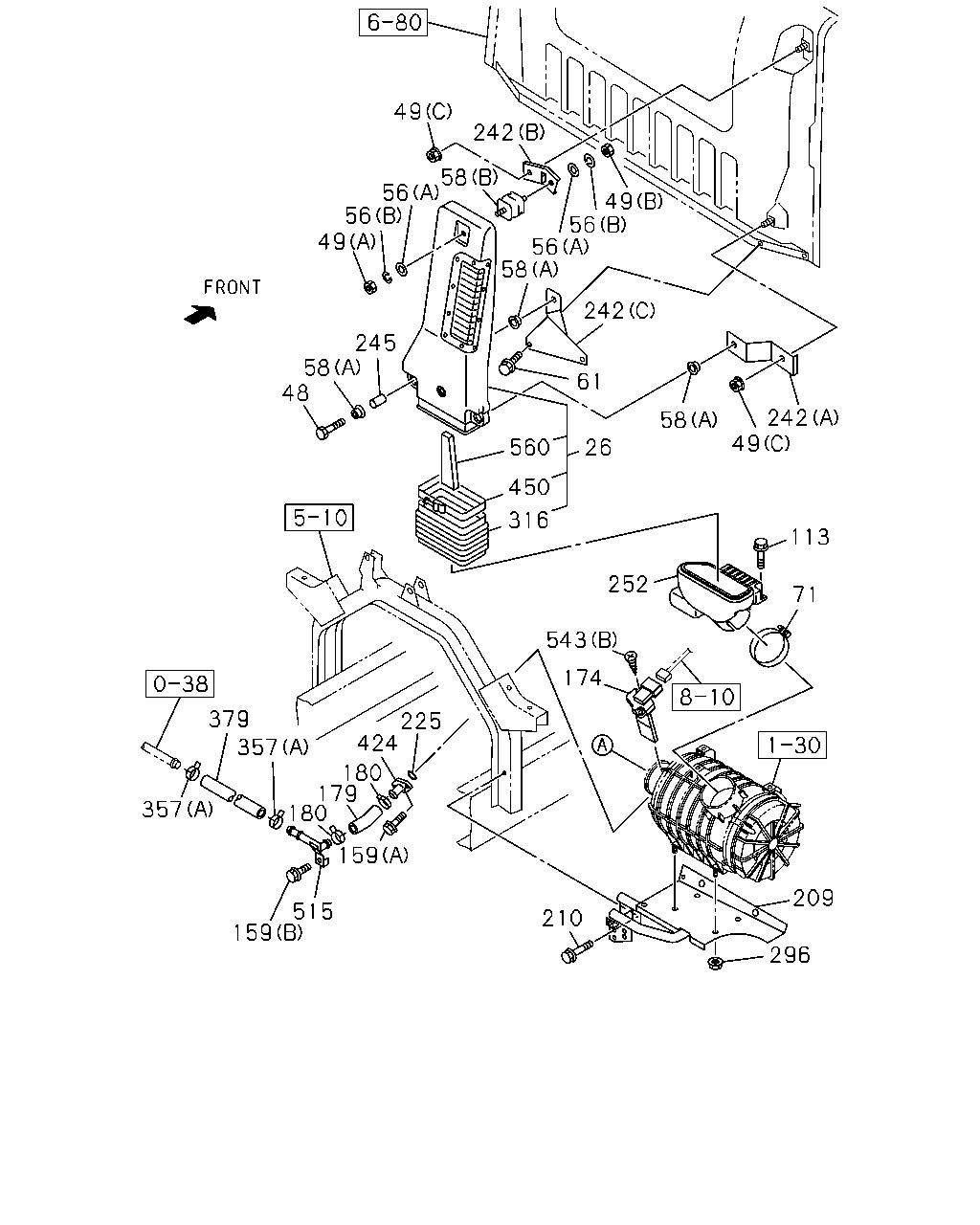

çizim 194122
49 242 58 56 56 49 49 56 56 58 242 245 61 58 48 242 49 58 26 560 450 316 113 252 71 543 174 379 225 424 357 180 179 180 357 159 209 515 159 210 296
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 0803-
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 0803-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0803-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0803-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0803-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0803-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0803-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0803-
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0803-0810
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0803-0807
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808-
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0803-0812
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 0803-
159 BOLT; AIR PIPE
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0803-
159 BOLT; AIR PIPE
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0803-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0803-
179 HOSE; AIR INT 8-98063-233-0 01 1 0803-
180 CLIP; AIR INT HOSE
ID=24 		8-98025-921-0 02 1 0803-
209 BRACKET; ACL 8-98010-343-4 01 1 0803-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0803-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0803-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0803-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0803-
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0803-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0803-
252 DUCT; AIR INT 8-98095-778-0 01 1 0803-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0803-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
357 CLIP; RUBBER HOSE
(B) ID=77-95 		1-09707-198-0 01 1 0803-0810
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 0811-
357 CLIP; RUBBER HOSE
(C) ID=58-76 		1-09707-203-0 02 1 0803-0811
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 0803-
379 HOSE; RUBBER 8-98062-621-1 01 1 0803-
424 PIPE; AIR,INL 8-98081-835-0 01 1 0803-
450 CLAMP; HOSE 9-09915-504-1 01 1 0803-
515 PIPE; AIR,SUCTION 8-98061-569-1 01 1 0803-
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0803-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0803-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0803-
