1-01 — ACCELERATOR PEDAL AND CONTROL
(#67502) — 22 parça
◀

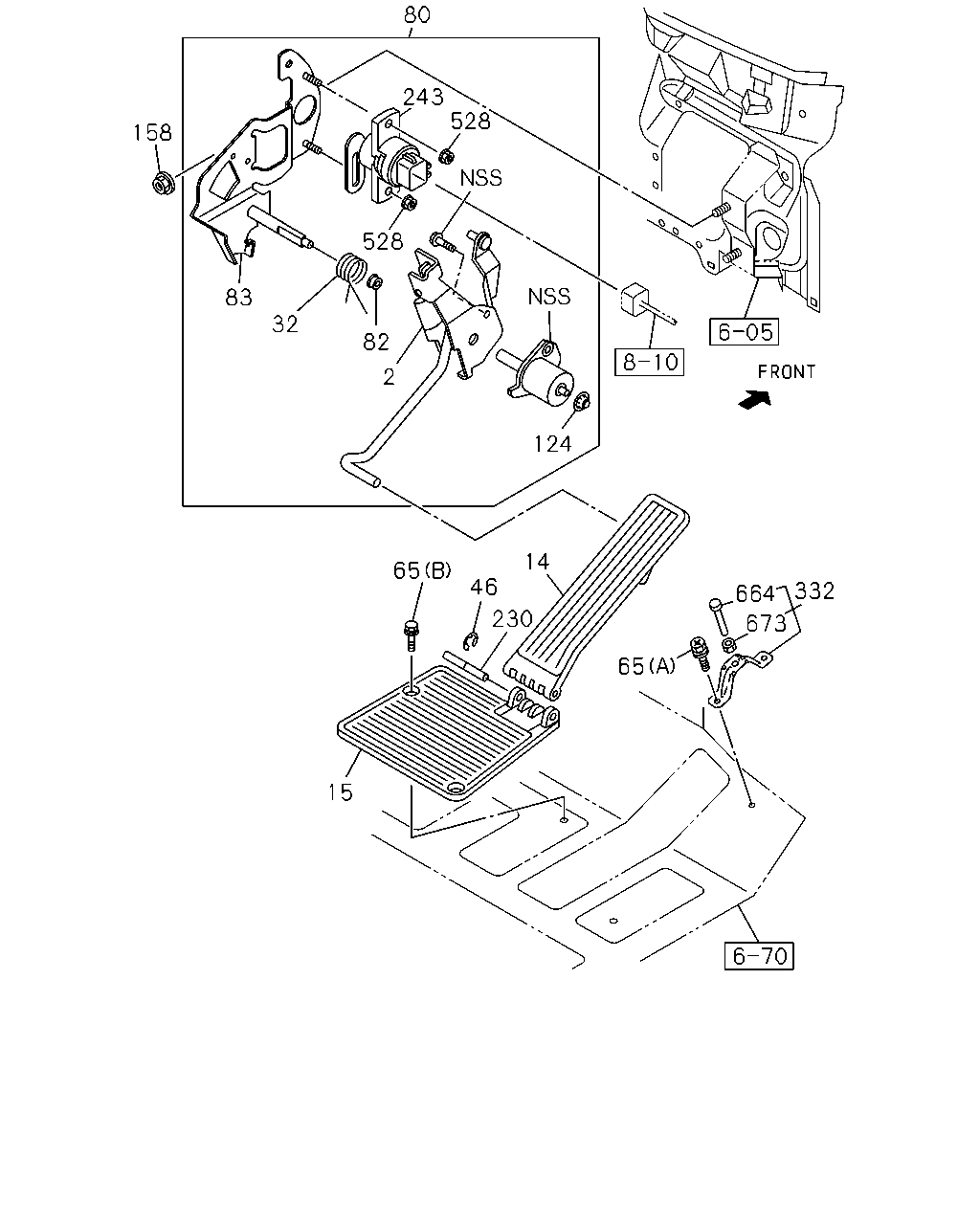

[101A] NO.1 (19 parça)
[101A] NO.2 (3 parça)
▶
80
243
528
528
158
83
32
82
2
124
14
46
65
230
15
65
664
332
673
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
8-98049-120-1
01
1
0803-
14
PAD; PEDAL,ACCEL
8-98089-176-0
01
1
0803-
15
STAND; HEEL,ACCEL PEDAL
8-98089-191-1
01
1
0803-
32
SPRING; RETURN,ACCEL PEDAL
8-98031-665-0
01
1
0803-
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
0803-
65
BOLT
(B) M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0803-
65
BOLT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0803-
80
LINK ASM; ENG CONT
8-98038-418-4
01
1
0803-
82
BUSHING; ENG CONT LVR
8-97581-053-0
01
1
0803-
83
BRACKET; CONT LINK
8-98020-217-0
01
1
0803-
124
NUT; LEVER
ID=7.9 PUSH NUT
8-94368-617-0
01
1
0803-
158
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0803-
230
PIN; JOINT,ACCEL PEDAL TO BRKT
8-98089-193-0
01
1
0803-
243
SENSOR; ACCEL
8-97602-416-0
01
1
0803-0908
243
SENSOR; ACCEL
8-98131-263-0
01
1
0909-
332
BRACKET; ACCEL PEDAL STOPPER
8-98011-468-2
01
1
0803-
528
NUT; ACCEL SENSOR
M5
8-94169-022-0
02
1
0803-
664
BOLT; STOPPER
M8X40
0-20850-840-0
01
1
0803-
673
NUT; STOPPER
M8
0-91110-508-0
01
1
0803-
262
773
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
170
KNOB
8-98013-420-0
01
1
0803-
262
SWITCH; ACCEL,IDLE
8-98013-418-0
01
1
0803-
773
HOLDER; ACCEL PEDAL
8-97352-127-0
01
1
0803-
