◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#675) — 20 parça

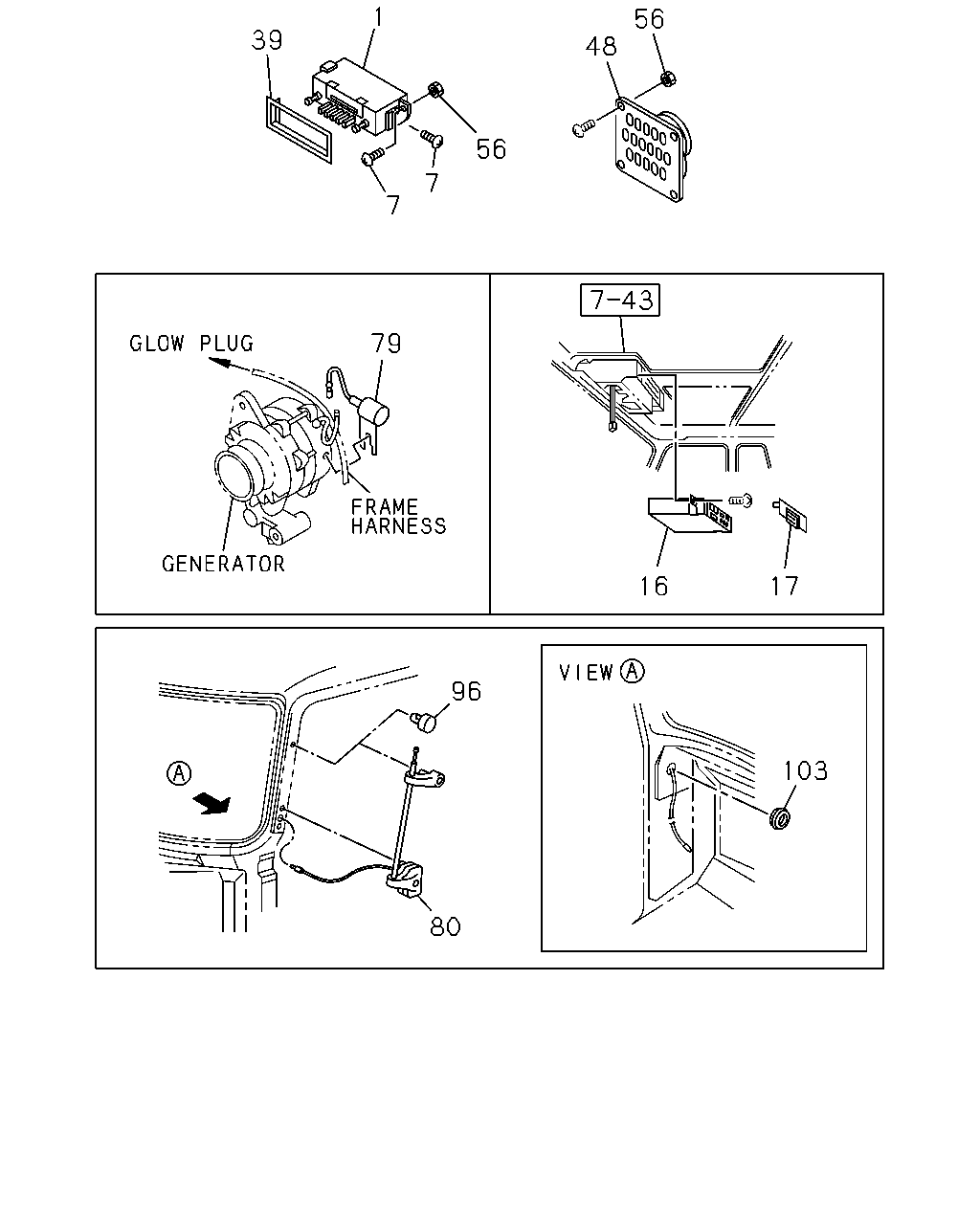

çizim 92182
39 1 56 48 56 7 7 79 16 17 103 96 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-036-0 01 1 9202- ● ●
7 SCREW; RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9202- ● ●
7 SCREW; RADIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9202- ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-84120-032-1 01 1 9202- ● ●
17 ATTACH KIT; CASSETTE
RADIO AM & TAPE PLAYER(UM1) 		1-84125-015-0 01 1 9202- ● ●
39 ESCUTCHEON
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84119-034-1 01 1 9202- ● ●
39 ESCUTCHEON
EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84125-007-2 01 1 9202- ● ●
48 SPEAKER; AUDIO
RADIO AM & TAPE PLAYER(UM1) 		1-84114-044-0 02 1 9202- ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) 		1-84114-044-0 01 1 9202- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-049-0 02 1 9202- ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-09984-118-0 04 1 9202- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-09984-118-0 04 1 9202- ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) 		1-09984-118-0 02 1 9202- ● ●
79 CONDENSER; RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84132-004-0 01 1 9202-9204 ● ●
80 ANTENNA
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84115-052-1 01 1 9202- ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-052-1 01 1 9202- ●
96 PLUG; ANTENNA HOLE
EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-09983-094-0 03 1 9202- ● ●
103 GROMMET; ANTENNA HOLE,FRT
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) ID=10 OD=42 T=5 		1-09983-111-0 01 1 9202- ● ●
103 GROMMET; ANTENNA HOLE,FRT
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> ID=10 OD=42 T=5 		1-09983-111-0 01 1 9202- ●
103 GROMMET; ANTENNA HOLE,FRT
EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-09983-097-0 01 1 9202- ● ●
