0-40 — FUEL INJECTION SYSTEM (#67490) — 103 parça

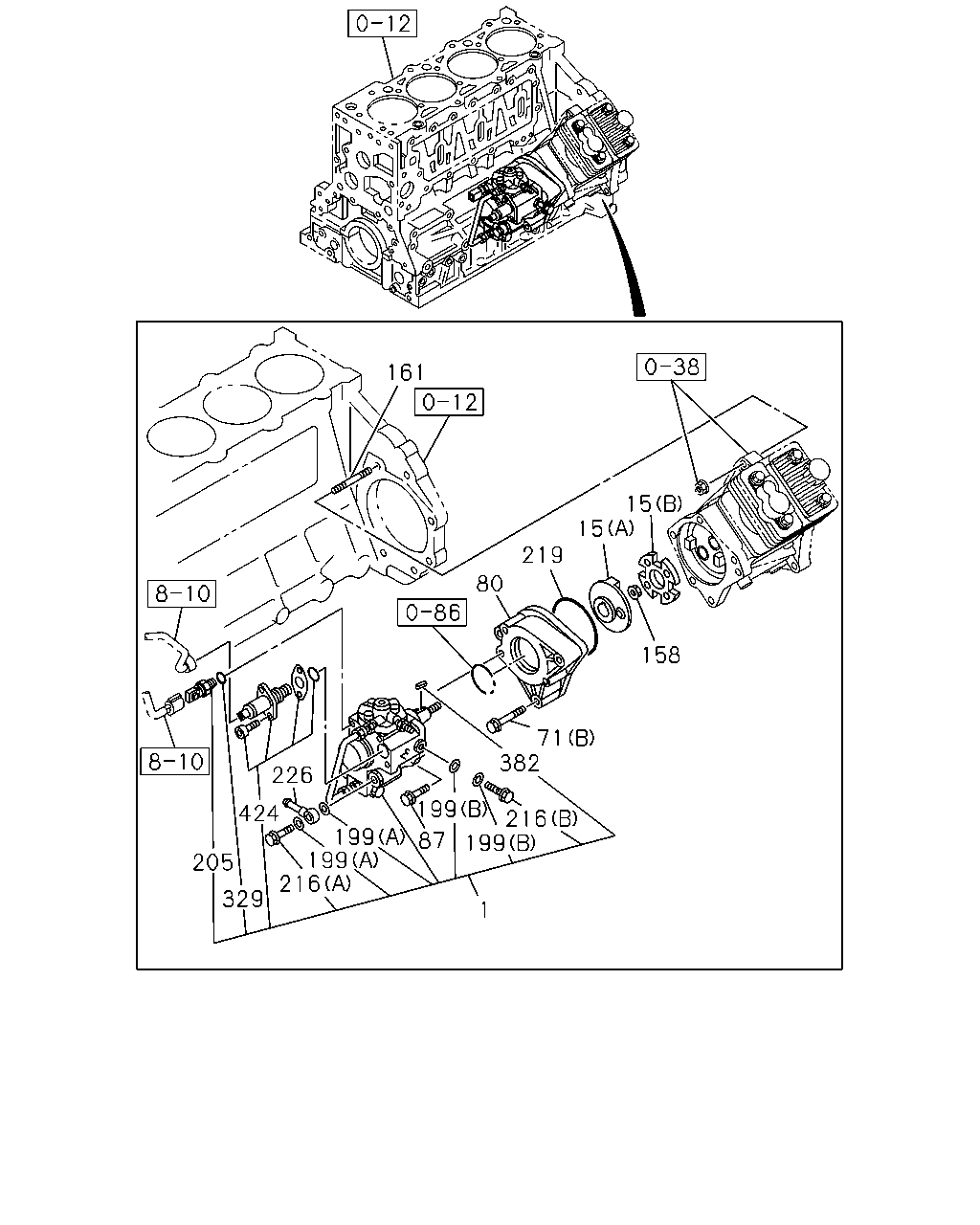

çizim 62620
161 15 15 219 80 158 71 382 226 199 424 216 199 199 199 216 87 205 329 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 0803-
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. (A) 		8-97306-054-0 01 1 0803-
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. (B) 		8-97306-059-1 01 1 0803-
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 0803-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0803-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0803-
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0803-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 0803-
80 BRACKET; PUMP 8-98061-699-0 01 1 0803-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 0803-
87 BOLT; PUMP
M8X40 FLANGE 		0-28650-840-0 02 1 0803-
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 0803-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0803-0910
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0911-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0803-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0803-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0803-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0803-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0803-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0803-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 0803-
226 PIPE; FUEL 8-97353-682-0 01 1 0803-0808
226 PIPE; FUEL 8-98126-332-0 01 1 0809-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0803-1201
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0803-1201
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202-
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0803-0905
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0906-

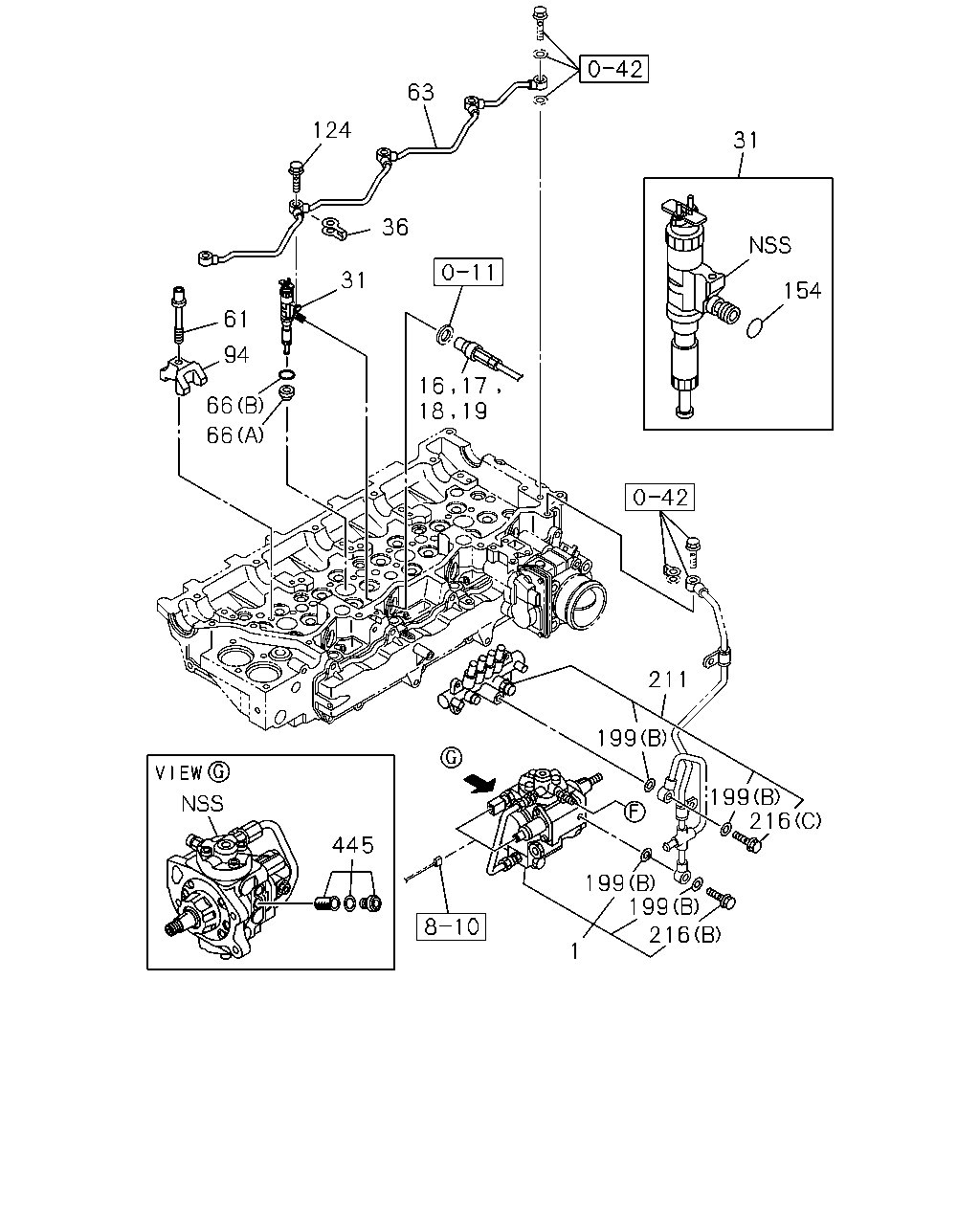

çizim 63373
63 124 31 36 31 154 61 94 66 66 211 199 199 216 445 199 199 216 1 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97386-557-5 01 1 0803-
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0803-1102
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0803-1102
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0803-1102
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0803-1102
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 0803-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-97600-925-0 04 1 0803-0908
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-98065-992-0 04 1 0909-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0803-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0803-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 0803-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0803-0909
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0803-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0803-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 04 1 0803-1106
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1107-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0803-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0803-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0803-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0803-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0803-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0803-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 0803-

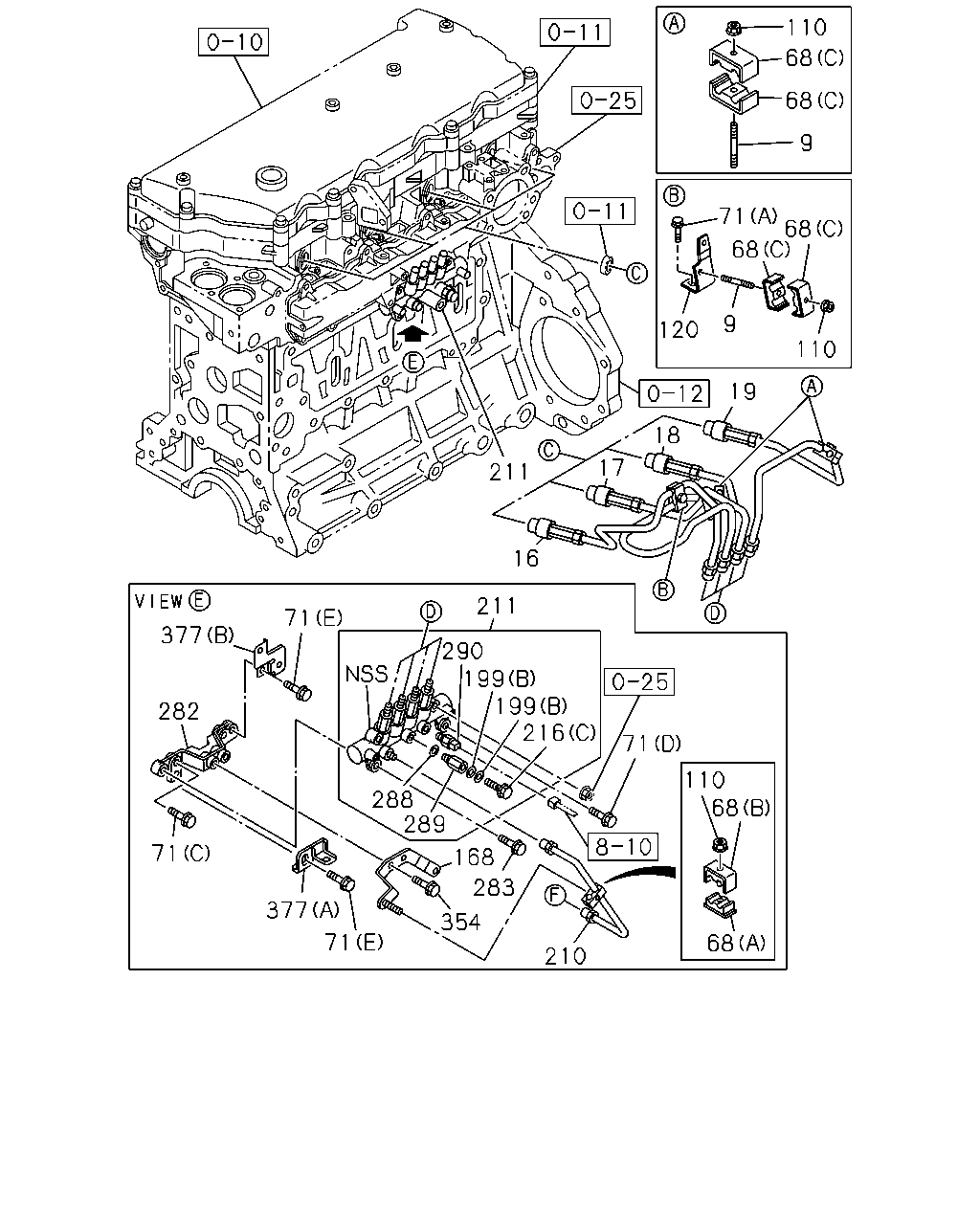

çizim 194115
110 68 68 9 71 68 68 9 120 110 19 18 17 211 16 211 71 377 290 199 199 216 282 71 110 68 288 289 71 168 283 377 354 71 68 210
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 0803-
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 0803-
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0803-1102
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0803-1102
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0803-1102
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0803-1102
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-
68 CLIP; INJ PIPE
(A) 		8-97330-118-3 01 1 0803-
68 CLIP; INJ PIPE
(B) 		8-97330-119-3 01 1 0803-
68 CLIP; INJ PIPE
(C) 		8-98039-293-0 06 1 0803-1405
68 CLIP; INJ PIPE
(C) 		8-98148-996-2 06 1 1406-
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 0803-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0803-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0803-
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0803-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 0803-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 0803-
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 0803-
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 0803-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0803-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0803-
210 PIPE; INJ,C/R 8-97376-779-0 01 1 0803-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 0803-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0803-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0803-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0803-
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0803-1005
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1006-
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 0803-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0803-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0803-
290 SENSOR; PRESS 8-97318-684-0 01 1 0803-0809
290 SENSOR; PRESS 8-98119-790-0 01 1 0810-
354 BOLT; FUEL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0803-
377 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0910-
377 BRACKET; HARNESS
(A) 		8-97310-438-1 01 1 0803-
