Isuzu WW
▶
TRUCKS
▶
FRR
▶
11138 - FRR RHD EUROPE EURO4 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶
0-12 — CYLINDER BLOCK
(#67473) — 46 parça
◀

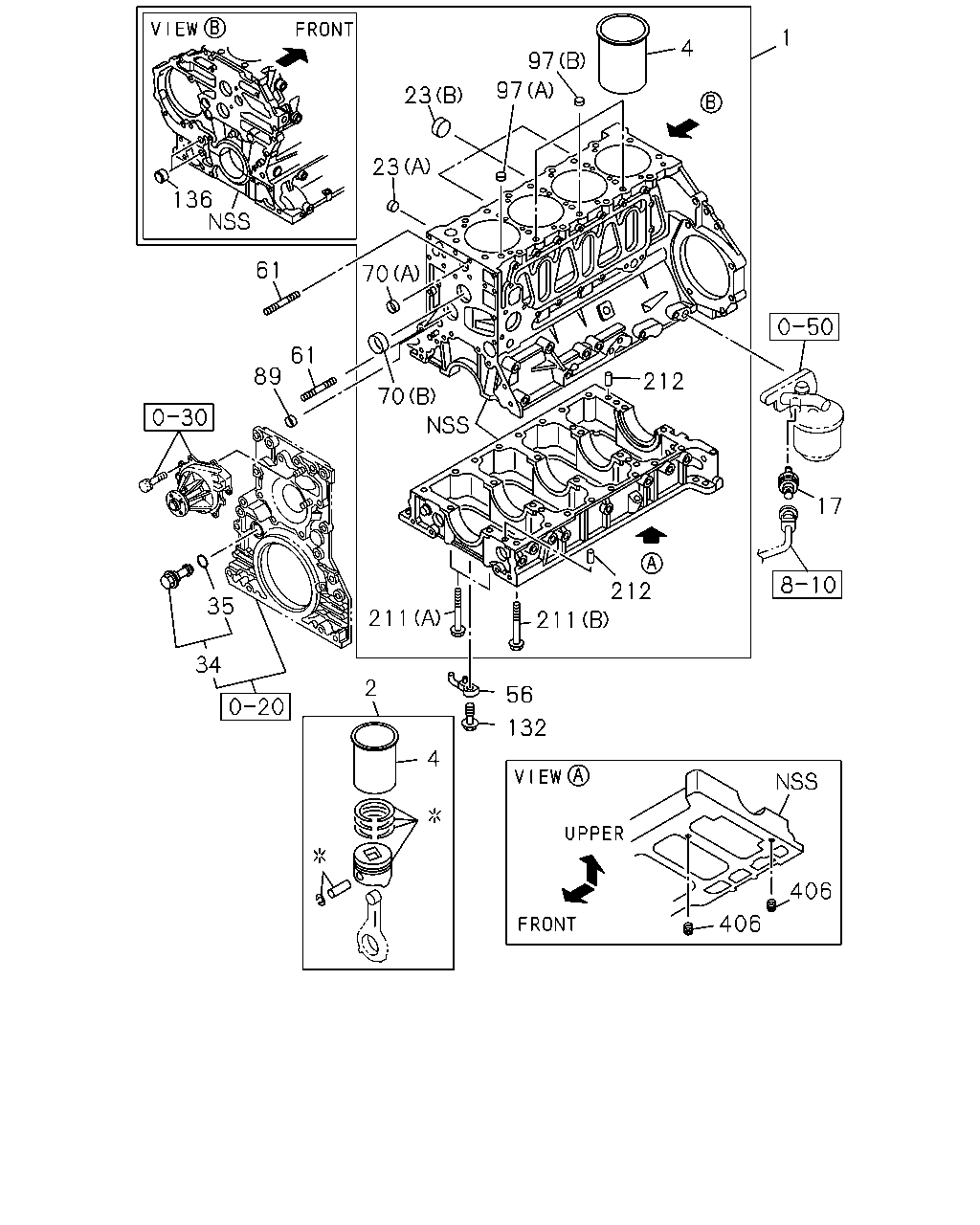

[012A] BLOCK ASM AND LINER SET (32 parça)
[012A] OTHER PARTS (14 parça)
▶
1
4
97
97
23
23
136
61
70
61
89
212
70
17
212
35
211
211
34
2
56
132
4
406
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-98046-721-3
01
1
0803-1209
1
BLOCK ASM; CYL
8-98204-529-0
01
1
1210-1405
1
BLOCK ASM; CYL
8-98204-528-0
01
1
1406-
2
LINER SET; ENG CYL
GRADE=1X
1-87813-119-6
04
1
0803-1405
2
LINER SET; ENG CYL
GRADE=1X
1-87814-726-0
04
1
1406-
2
LINER SET; ENG CYL
GRADE=3X
1-87813-120-6
04
1
0803-1405
2
LINER SET; ENG CYL
GRADE=3X
1-87814-727-0
04
1
1406-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON
8-98014-046-1
04
1
0803-1405
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON
8-94391-602-1
04
1
1406-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON
8-98014-047-1
04
1
0803-1405
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON
8-94391-603-1
04
1
1406-
17
SWITCH; OIL PRESSURE
8-97176-230-0
01
1
0803-
23
CUP; SEALING,C/BL FRT & RR
(A) OD=25
1-09600-016-0
01
1
0803-
23
CUP; SEALING,C/BL FRT & RR
(B) OD=45
8-97036-550-1
03
1
0803-
34
VALVE; OIL RELIEF
8-97328-859-0
01
1
0803-
35
GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3
8-94173-412-0
01
1
0803-
56
JET; OIL,PISTON COOLING
8-98020-649-0
04
1
0803-1007
56
JET; OIL,PISTON COOLING
8-98173-342-0
04
1
1008-
61
PIN; STRAIGHT
L=22
8-94483-674-0
04
1
0803-
70
CUP; SEALING,FRT & RR
(A) OD=25
1-09600-016-0
01
1
0803-
70
CUP; SEALING,FRT & RR
(B) OD=40
8-97096-824-0
04
1
0803-
89
CUP; SEALING,OIL GALLERY
OD=20
9-11129-128-0
03
1
0803-
97
CUP; SEALING
(A) OD=16
5-11129-006-0
01
1
0803-
97
CUP; SEALING
(C) OD=12
8-97036-335-1
01
1
0803-
97
CUP; SEALING
(B) OD=22
8-97209-609-0
03
1
0803-
132
VALVE; CHECK,OIL
M10X18.5
8-97329-618-0
04
1
0803-
136
BUSHING; DRIVE SHAFT,OIL PUMP
8-94393-596-1
02
1
0803-0812
136
BUSHING; DRIVE SHAFT,OIL PUMP
8-98091-566-0
02
1
0901-
211
BOLT; CRANKCASE
(B) M10X82
8-94399-553-2
17
1
0803-
211
BOLT; CRANKCASE
(A) M14X115 W/FLANGE
8-97077-638-0
10
1
0803-
212
PIN; CRANKCASE
OD=10 L=20
8-97135-423-0
02
1
0803-
406
PLUG; CRANK CASE
PT3/8
5-09605-005-0
02
1
0803-

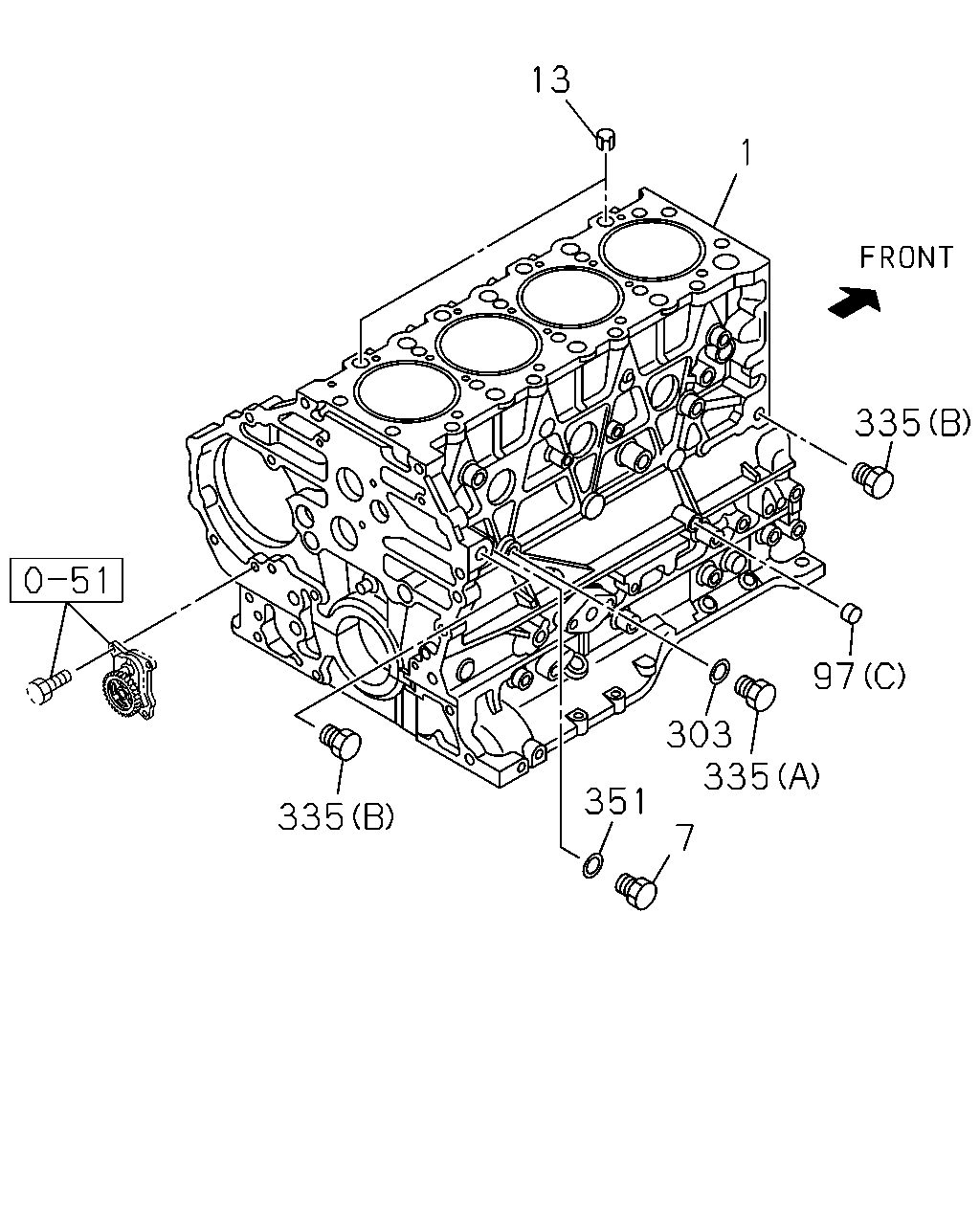

13
1
335
97
303
335
351
335
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-98046-721-3
01
1
0803-1209
1
BLOCK ASM; CYL
8-98204-529-0
01
1
1210-1405
1
BLOCK ASM; CYL
8-98204-528-0
01
1
1406-
7
PLUG; WATER DRAIN
M10X10
8-97352-537-0
01
1
0803-
13
DOWEL; C/BL TO HD
OD=18.15
8-94399-688-1
02
1
0803-
97
CUP; SEALING
(A) OD=16
5-11129-006-0
01
1
0803-
97
CUP; SEALING
(C) OD=12
8-97036-335-1
01
1
0803-
97
CUP; SEALING
(B) OD=22
8-97209-609-0
03
1
0803-
303
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
01
1
0803-1312
303
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
335
PLUG; C/BL,SIDE
(B) M14X16.5
8-97329-617-0
02
1
0803-
335
PLUG; C/BL,SIDE
(A) M14X18
0-20801-418-0
01
1
0803-0805
335
PLUG; C/BL,SIDE
(A) M14X18
8-98038-403-0
01
1
0806-
351
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
0803-
