◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#67467) — 181 parça

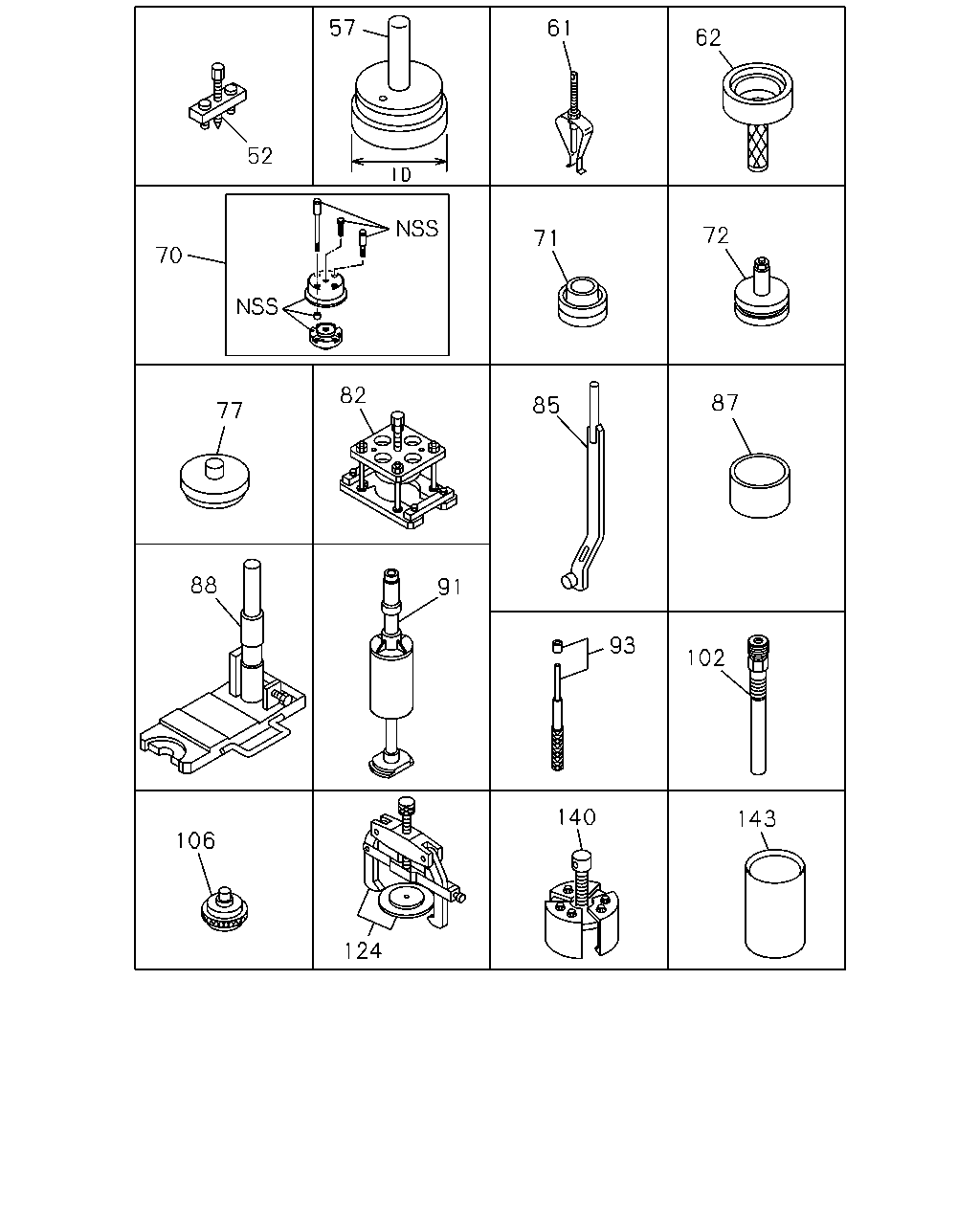

çizim 14293
57 61 62 52 72 71 70 82 87 85 77 88 91 93 102 140 143 106 124
BalonParca AdiParca NoAdetTipApplied Date A B
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 0806- ● ●
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 0806- ● ●
57 TOOL; SETTING CRANK GEAR
ID=165.8 		1-85221-075-0 01 1 0806- ● ●
61 PULLER ASM; PILOT BRG 1-85220-028-0 01 1 0806- ● ●
62 TOOL ASM; SETTING WEAR RING 1-85221-079-0 01 1 0806- ● ●
70 TOOL; SETTING,OIL SEAL 8-98194-607-0 01 1 1109- ● ●
71 TOOL; SETTING,OIL SEAL,FRT 1-85220-029-0 01 1 0806-1108 ● ●
72 TOOL; SETTING,OIL SEAL,RR 1-85220-030-0 01 1 0806-1108 ● ●
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 0806- ● ●
82 PULLER ASM; CR/SHF GEAR 1-85210-051-0 01 1 0806- ● ●
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 0806- ● ●
87 TOOL; PISTON 1-85221-082-0 01 1 0806- ● ●
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 0806- ● ●
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 0806- ● ●
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0806- ● ●
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 0806- ● ●
106 TOOL; SETTING PILOT BRG 1-85221-080-0 01 1 0806- ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0806- ● ●
140 REMOVER; WEAR RING 1-85210-053-0 01 1 0806- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0806-1101 ● ●

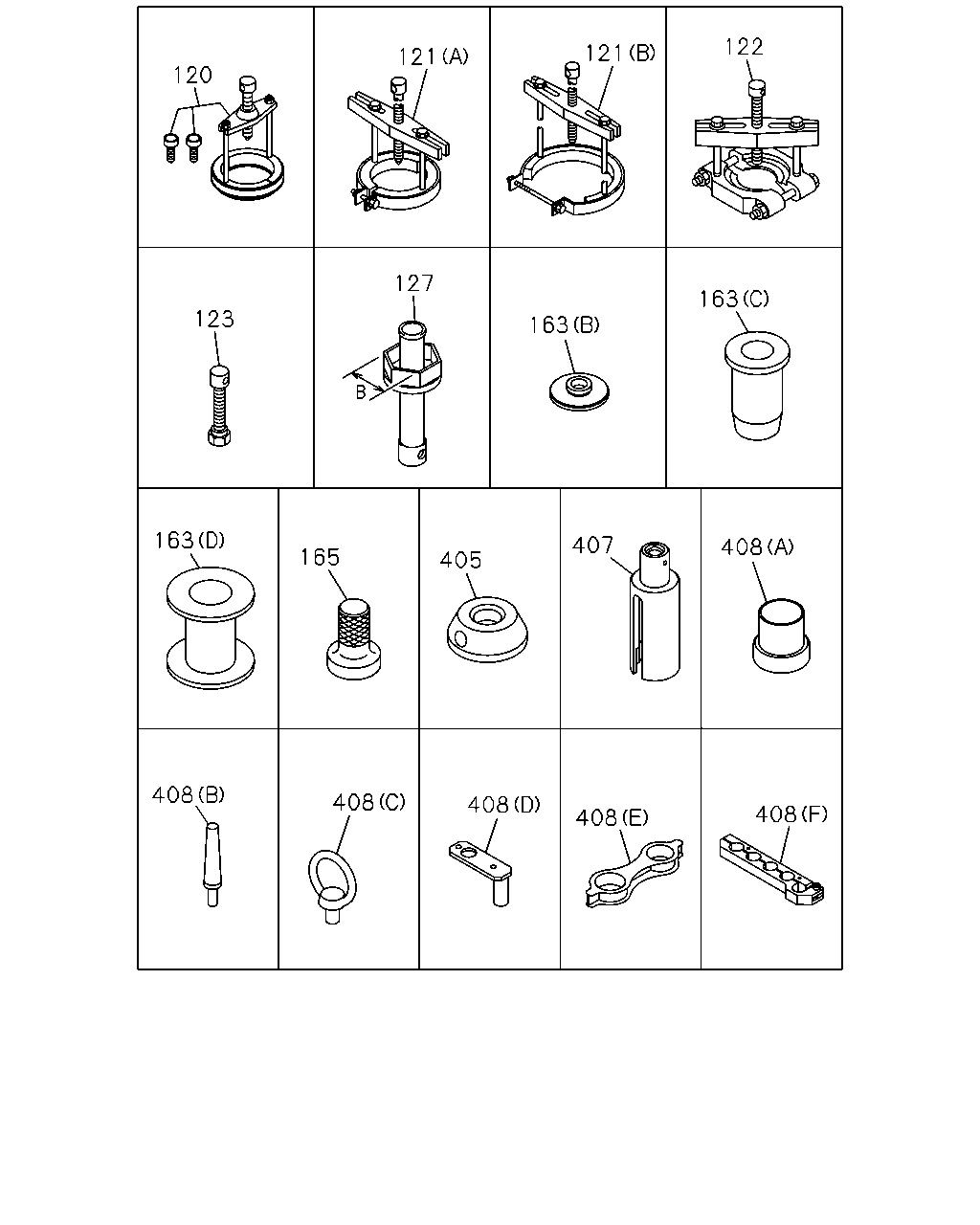

çizim 14406
120 121 121 122 123 127 163 163 163 165 405 407 408 408 408 408 408 408
BalonParca AdiParca NoAdetTipApplied Date A B
120 PULLER ASM; MAIN REAR BRG
MAL6R M/T<Y2J> L=285 		9-85210-184-0 01 1 1102-1112 ●
120 PULLER ASM; MAIN REAR BRG
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> L=285 		9-85210-184-0 01 1 1201- ●
121 PULLER ASM; COUNTER REAR
MJT7U M/T<Y4X> (B) 		1-85210-069-0 01 1 1201- ●
121 PULLER ASM; COUNTER REAR
MJT7U M/T<Y4X> (A) OD=146 		1-85210-074-0 01 1 1201- ●
122 PULLER ASM; COUNTER FRT
MAL6R M/T<Y2J> 		9-85210-195-0 01 1 1102-1112 ●
122 PULLER ASM; COUNTER FRT
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		9-85210-195-0 01 1 1201- ●
123 PULLER; SPEEDOMETER BUSHING
MAL6R M/T<Y2J> 		9-85210-091-0 01 1 1102-1112 ●
123 PULLER; SPEEDOMETER BUSHING
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		9-85210-091-0 01 1 1201- ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1102- ● ●
163 TOOL; SETTING
MAL6R M/T<Y2J> (C) L=195 		1-85221-162-1 01 1 1102-1112 ●
163 TOOL; SETTING
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (C) L=195 		1-85221-162-1 01 1 1201- ●
163 TOOL; SETTING
MAL6R M/T<Y2J> (D) L=150 		1-85221-163-0 01 1 1102-1112 ●
163 TOOL; SETTING
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (D) L=150 		1-85221-163-0 01 1 1201- ●
163 TOOL; SETTING
MJT7U M/T<Y4X> (B) OD=150 		1-85221-167-0 01 1 1201- ●
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 0910- ● ●
165 SETTING TOOL; PTO
MJT7U M/T<Y4X> 		1-85221-177-0 01 1 1201- ●
405 GUIDE; COUNTER
MJT7U M/T<Y4X> 		1-85221-264-0 01 1 1201- ●
407 SOCKET; SW
MJT7U M/T<Y4X> 		1-85221-267-1 01 1 1201- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T<Y4X> (D) 		1-85221-257-0 01 1 1201- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T<Y4X> (E) 		1-85221-259-0 01 1 1201- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T<Y4X> (F) 		1-85221-260-0 01 1 1201- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T<Y4X> (C) 		1-85221-262-0 02 1 1201- ●
408 TOOL; SETTING,SHIFT ASSISTER
MAL6R M/T<Y2J> (A) 		1-85221-268-0 01 1 1102-1112 ●
408 TOOL; SETTING,SHIFT ASSISTER
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) 		1-85221-268-0 01 1 1201- ●
408 TOOL; SETTING,SHIFT ASSISTER
MAL6R M/T<Y2J> (B) 		1-85221-269-0 01 1 1102-1112 ●
408 TOOL; SETTING,SHIFT ASSISTER
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) 		1-85221-269-0 01 1 1201- ●

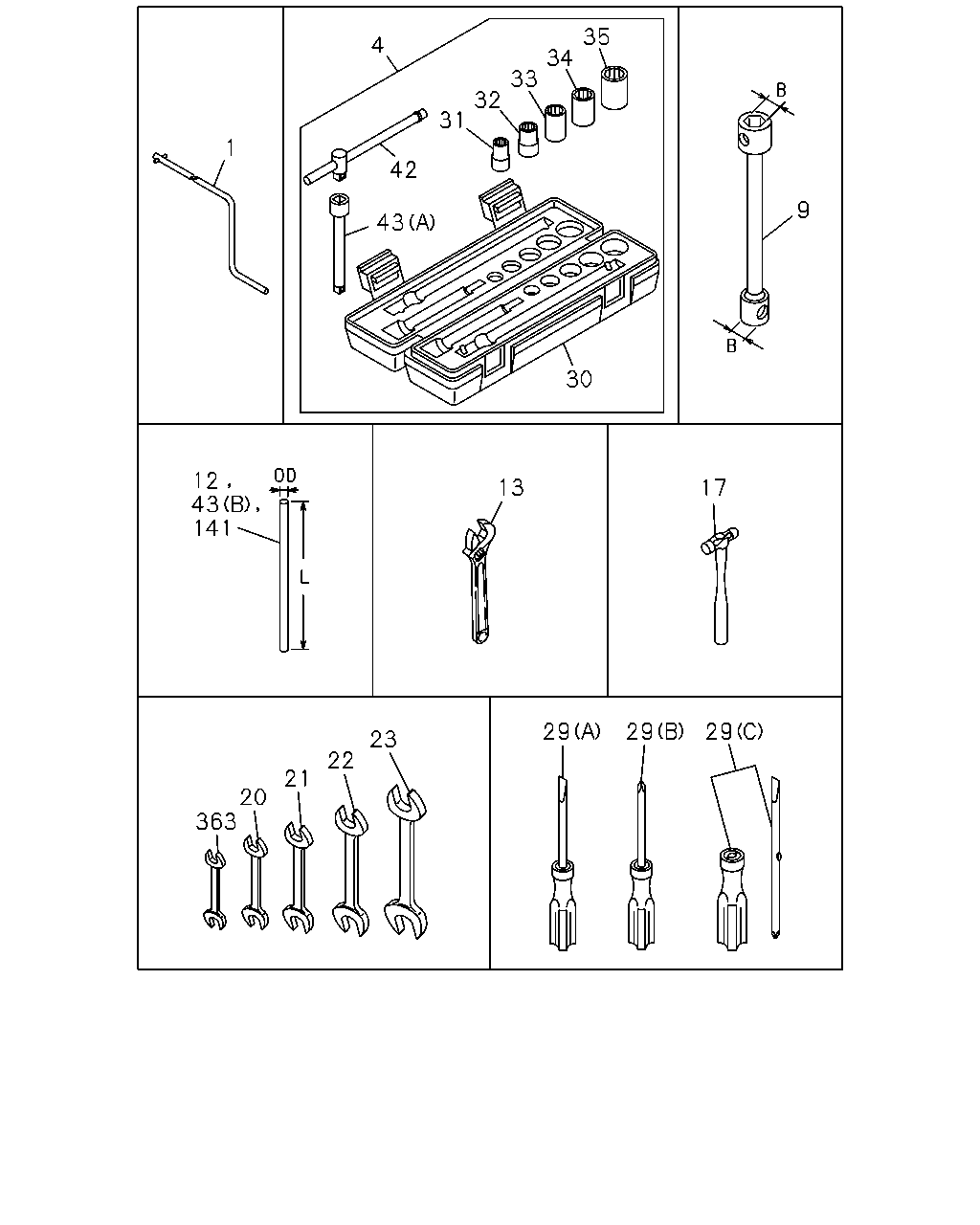

çizim 14490
9 30 35 34 33 32 31 4 42 43 1 12 43 141 13 17 29 29 29 23 22 21 20 363
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-019-0 01 1 0908- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0806-0907 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0806-0907 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0908- ● ●
4 WRENCH KIT; SOCKET
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85000-491-0 01 1 1210- ●
4 WRENCH KIT; SOCKET
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85000-491-0 01 1 1210- ●
4 WRENCH KIT; SOCKET
TOOL B KIT<SL1> 		1-85000-491-0 01 1 0806-1101 ● ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> B=41X21 L=440 THA 		1-85113-015-1 01 1 1210- ●
9 WRENCH; WHEEL PIN
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> B=41X21 L=440 THA 		1-85113-015-1 01 1 1210- ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=41X21 L=440 THA 		1-85113-015-1 01 1 0806-1101 ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> B=33X30 L=450 		1-85111-033-1 01 1 1102-1112 ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> EXC. DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> B=33X30 L=450 		1-85111-033-1 01 1 1102-1112 ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC, RR 22.5X7.50-8STUD<SKW> B=33X30 L=450 		1-85111-033-1 01 1 1201- ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> EXC. DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> B=33X30 L=450 		1-85111-033-1 01 1 1201- ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 1210-1501 ●
12 HANDLE; WRENCH,WHEEL PIN
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 1210-1501 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502- ●
12 HANDLE; WRENCH,WHEEL PIN
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502- ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0806-1101 ● ●
13 WRENCH; MONKEY
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 1210-1407 ●
13 WRENCH; MONKEY
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 1210-1407 ●
13 WRENCH; MONKEY
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> L=255 THA 		8-98270-303-0 01 1 1408- ●
13 WRENCH; MONKEY
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> L=255 THA 		8-98270-303-0 01 1 1408- ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 THA 		1-85117-002-1 01 1 0806-1010 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 1011-1101 ● ●
17 HAMMER
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		9-85121-406-0 01 1 1210- ●
17 HAMMER
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		9-85121-406-0 01 1 1210- ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0806-1101 ● ●
20 WRENCH; 10X12
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 1210- ●
20 WRENCH; 10X12
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 1210- ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0806-1101 ● ●
21 WRENCH; 14X17
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 1210- ●
21 WRENCH; 14X17
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 1210- ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0806-1101 ● ●
22 WRENCH; 19X22
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 1210- ●
22 WRENCH; 19X22
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 1210- ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0806-1101 ● ●
23 WRENCH; 24X27
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 1210- ●
23 WRENCH; 24X27
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 1210- ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0806-1101 ● ●
29 DRIVER; SCREW
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 1210- ●
29 DRIVER; SCREW
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 1210- ●
29 DRIVER; SCREW
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 1210- ●
29 DRIVER; SCREW
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 1210- ●
29 DRIVER; SCREW
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 1210- ●
29 DRIVER; SCREW
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 1210- ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 0806-1101 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0806-1101 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 0806-1101 ● ●
30 BOX; SOCKET WRENCH
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85000-492-0 01 1 1210- ●
30 BOX; SOCKET WRENCH
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85000-492-0 01 1 1210- ●
30 BOX; SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-492-0 01 1 0806-1101 ● ●
31 WRENCH; 12
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85000-495-0 01 1 1210- ●
31 WRENCH; 12
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85000-495-0 01 1 1210- ●
31 WRENCH; 12
TOOL B KIT<SL1> 		1-85000-495-0 01 1 0806-1101 ● ●
32 WRENCH; 14
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85000-496-0 01 1 1210- ●
32 WRENCH; 14
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85000-496-0 01 1 1210- ●
32 WRENCH; 14
TOOL B KIT<SL1> 		1-85000-496-0 01 1 0806-1101 ● ●
33 WRENCH; 17
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85000-497-0 01 1 1210- ●
33 WRENCH; 17
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85000-497-0 01 1 1210- ●
33 WRENCH; 17
TOOL B KIT<SL1> 		1-85000-497-0 01 1 0806-1101 ● ●
34 WRENCH; 19
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85000-498-0 01 1 1210- ●
34 WRENCH; 19
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85000-498-0 01 1 1210- ●
34 WRENCH; 19
TOOL B KIT<SL1> 		1-85000-498-0 01 1 0806-1101 ● ●
35 WRENCH; 22
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85000-499-0 01 1 1210- ●
35 WRENCH; 22
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85000-499-0 01 1 1210- ●
35 WRENCH; 22
TOOL B KIT<SL1> 		1-85000-499-0 01 1 0806-1101 ● ●
42 HANDLE; SLIDING
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85000-500-0 01 1 1210- ●
42 HANDLE; SLIDING
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85000-500-0 01 1 1210- ●
42 HANDLE; SLIDING
TOOL B KIT<SL1> 		1-85000-500-0 01 1 0806-1101 ● ●
43 BAR; EXTENSION,SOCKET WRENCH
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> (A) 		1-85000-501-0 01 1 1210- ●
43 BAR; EXTENSION,SOCKET WRENCH
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> (A) 		1-85000-501-0 01 1 1210- ●
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> (A) 		1-85000-501-0 01 1 0806-1101 ● ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0806-0910 ● ●
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0806- ● ●
363 WRENCH; OPEN END 8X10
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 8X10 THA 		0-95902-508-0 01 1 1210- ●
363 WRENCH; OPEN END 8X10
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 8X10 THA 		0-95902-508-0 01 1 1210- ●
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 THA 		0-95902-508-0 01 1 0806-1101 ● ●
çizim 14501
125 126 115 129 130 151 135 144 158 163 156 153 154 162 160 162 161 164
BalonParca AdiParca NoAdetTipApplied Date A B
115 PLIER
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> THA 		5-85171-002-0 01 1 1210-1410 ●
115 PLIER
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> THA 		5-85171-002-0 01 1 1210-1410 ●
115 PLIER
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> THA 		8-98282-845-0 01 1 1411- ●
115 PLIER
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> THA 		8-98282-845-0 01 1 1411- ●
115 PLIER
TOOL B KIT<SL1> THA 		5-85171-002-0 01 1 0806-1101 ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0806- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0806- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0806- ● ●
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0806- ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0806- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0806-1101 ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0806- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0806- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0806- ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0806- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0806-0909 ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0806- ● ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0806-0909 ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0806- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0806- ● ●
163 TOOL; SETTING
MAL6R M/T<Y2J> (C) L=195 		1-85221-162-1 01 1 1102-1112 ●
163 TOOL; SETTING
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (C) L=195 		1-85221-162-1 01 1 1201- ●
163 TOOL; SETTING
MAL6R M/T<Y2J> (D) L=150 		1-85221-163-0 01 1 1102-1112 ●
163 TOOL; SETTING
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (D) L=150 		1-85221-163-0 01 1 1201- ●
163 TOOL; SETTING
MJT7U M/T<Y4X> (B) OD=150 		1-85221-167-0 01 1 1201- ●
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 0910- ● ●
164 GUIDE; SNAP RING PILOT BRG 1-85176-001-0 01 1 0910- ● ●

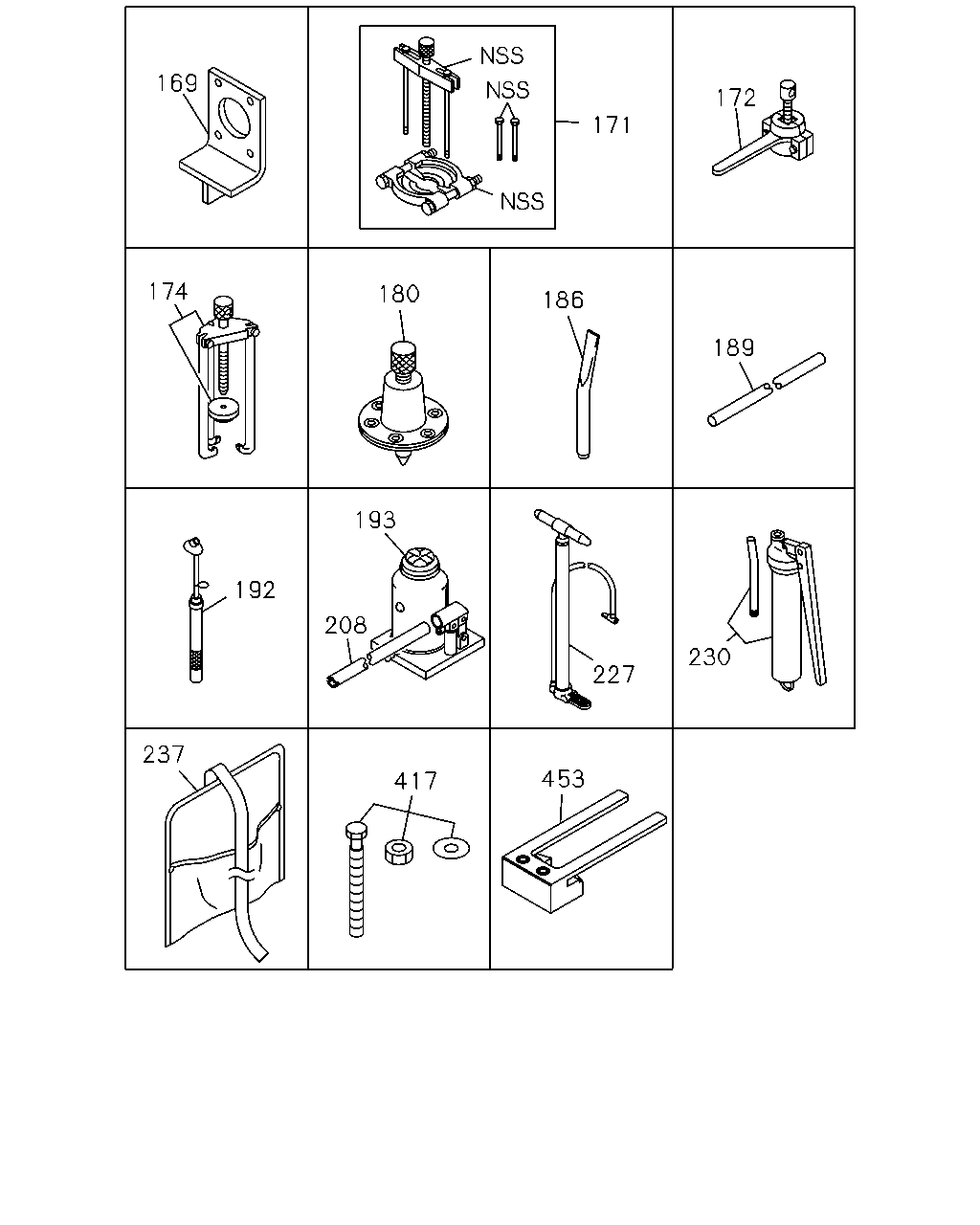

çizim 14557
169 172 171 174 180 186 189 193 192 208 230 227 237 453 417
BalonParca AdiParca NoAdetTipApplied Date A B
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0806- ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0806- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0806- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0806- ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0806-1101 ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0806- ● ●
189 TUBE; AIR BREATHER
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 1210- ●
189 TUBE; AIR BREATHER
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 1210- ●
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 0806-1101 ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0806- ● ●
193 JACK ASM
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 1210- ●
193 JACK ASM
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 1210- ●
193 JACK ASM
TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 0806-1101 ● ●
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 THA 		1-85515-009-0 01 1 0806-1107 ● ●
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 		8-98181-437-0 01 1 1108- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0806- ● ●
230 PUMP; GREASE
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85556-007-5 01 1 1210- ●
230 PUMP; GREASE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85556-007-5 01 1 1210- ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-4 01 1 0806-1101 ● ●
230 PUMP; GREASE
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85556-007-4 01 1 1102-1112 ●
230 PUMP; GREASE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85556-007-4 01 1 1102-1112 ●
230 PUMP; GREASE
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> 		1-85556-007-4 01 1 1201-1207 ●
230 PUMP; GREASE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> 		1-85556-007-4 01 1 1201-1207 ●
237 BAG; TOOL
WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> TOOL B KIT<SL1> THA 		8-97917-409-1 01 1 1210- ●
237 BAG; TOOL
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> TOOL B KIT<SL1> THA 		8-97917-409-1 01 1 1210- ●
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 1201- ● ●
237 BAG; TOOL
TOOL B KIT<SL1> THA 		8-97917-409-1 01 1 0806-1101 ● ●
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0806- ● ●
453 TOOL; SETTING,COUPLING 8-97620-813-0 01 1 0806- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
