8-60 — HEATER UNIT; FRONT (#67460) — 68 parça

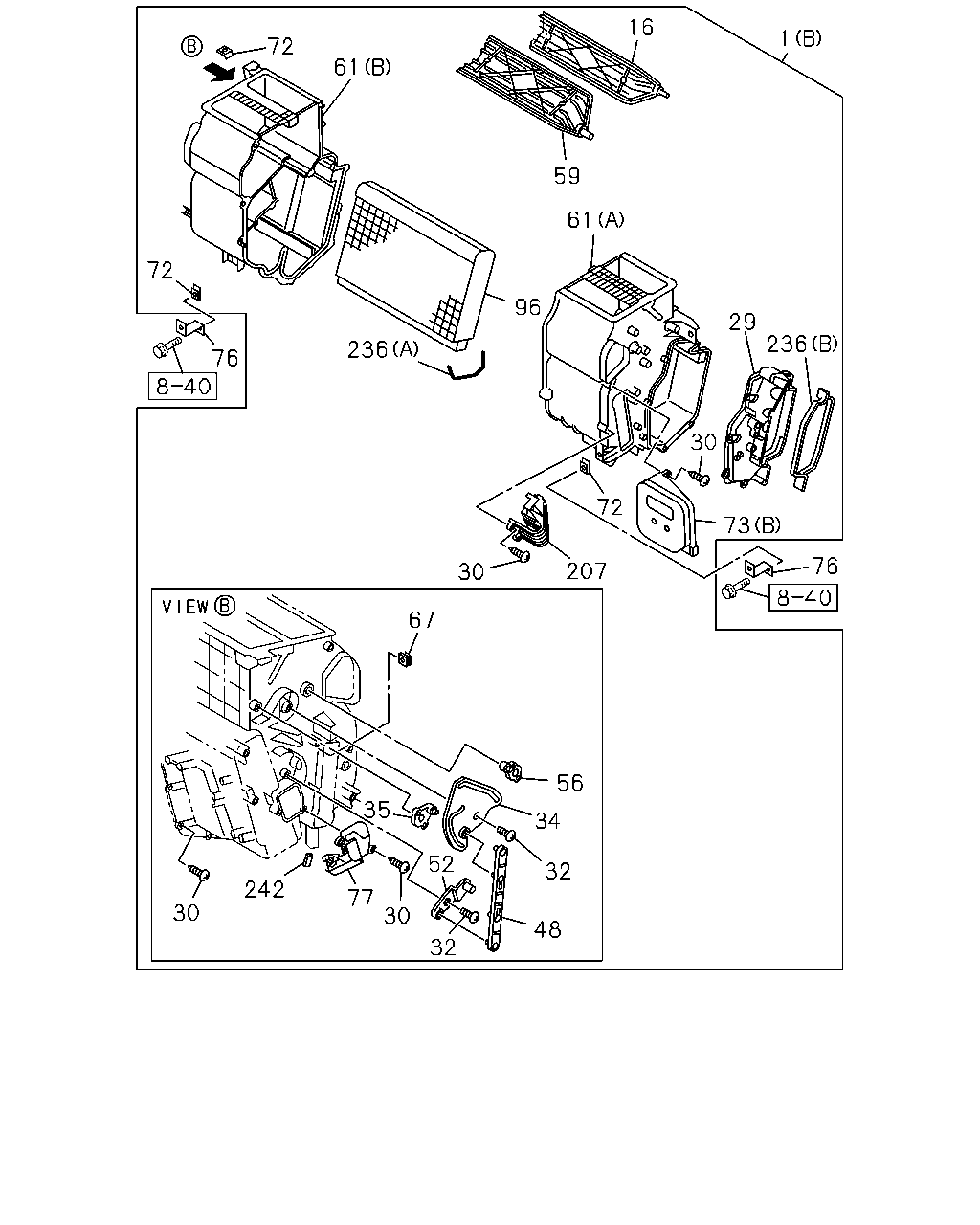

çizim 141121
16 1 72 61 59 61 72 96 29 236 236 76 30 72 73 76 207 30 67 56 35 34 52 32 242 77 30 30 48 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98057-980-2 01 1 0806- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-757-1 01 1 0806-1301 ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98214-400-1 01 1 1302- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-387-0 01 1 0806- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1302- ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98074-119-0 01 1 0806-1301 ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-119-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 0806- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 25 1 0806-1301 ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 		8-98047-416-0 02 1 0806- ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-389-0 01 1 0806- ● ●
35 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-392-0 01 1 0806- ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-391-0 01 1 0806- ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-390-0 01 1 0806- ● ●
56 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-393-0 01 1 0806- ● ●
59 SHUTTER; HTR UNIT,SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-386-0 01 1 0806- ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98077-422-0 01 1 0806- ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-423-0 01 1 0806- ● ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-417-0 01 1 0806- ● ●
72 NUT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 		8-98047-428-0 03 1 0806- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98077-420-0 01 1 0806- ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-419-0 01 1 0806-1301 ● ●
76 BRACKET; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98009-742-1 02 1 0806- ● ●
77 COVER; HTR CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-414-0 01 1 0806- ● ●
96 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-815-0 01 1 0806-1301 ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-379-0 01 1 0806-1301 ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-379-0 01 1 1302- ● ●
236 GASKET; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98047-420-0 01 1 0806- ● ●
236 GASKET; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98047-421-0 01 1 0806- ● ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-816-0 01 1 0806-1411 ● ●

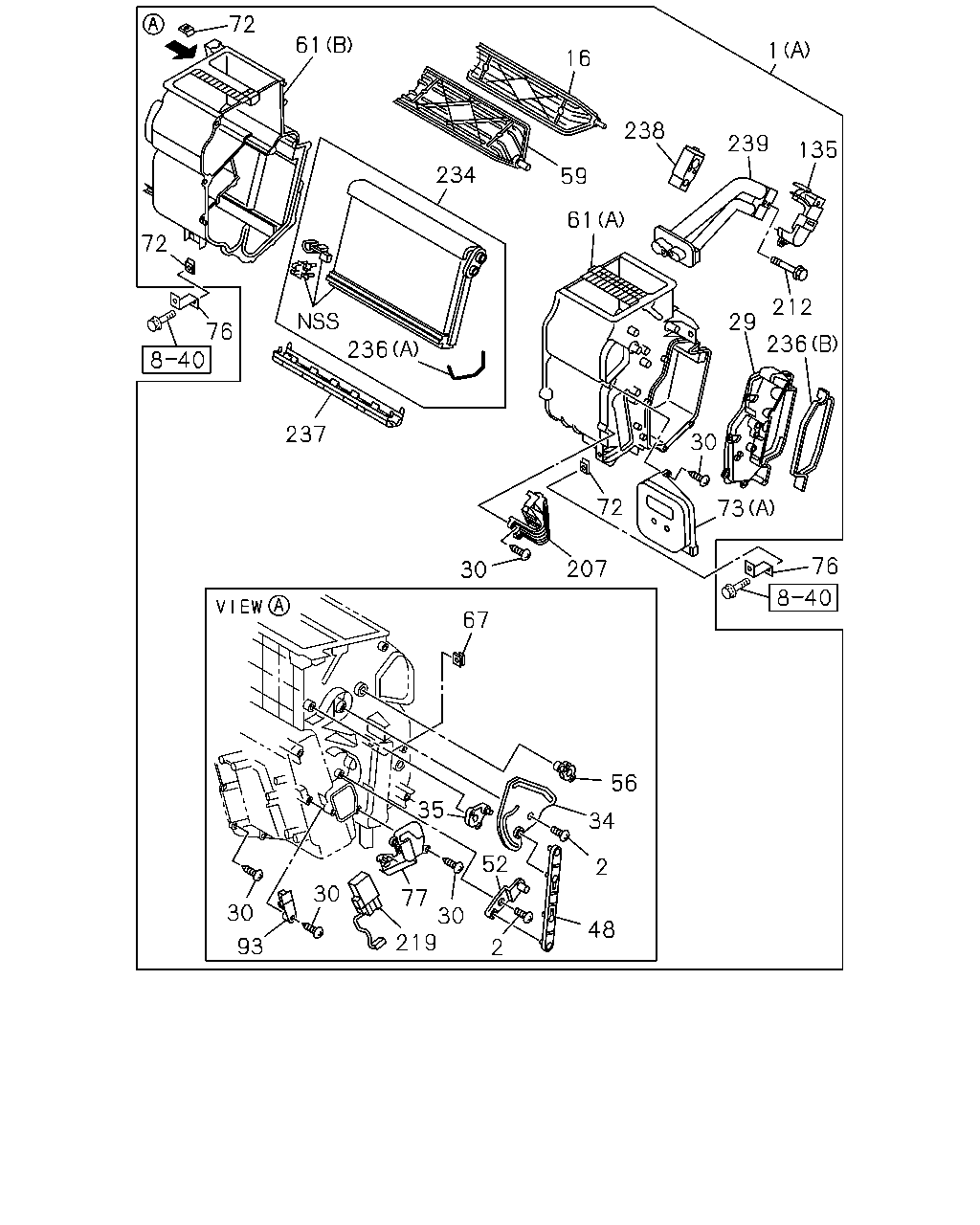

çizim 193988
72 61 1 16 238 239 135 234 59 61 72 212 29 76 236 236 30 237 72 73 76 207 30 67 56 35 34 52 2 30 77 30 30 219 48 93 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98057-980-2 01 1 0806- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-757-1 01 1 0806-1301 ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98214-400-1 01 1 1302- ● ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 		8-98047-416-0 02 1 0806- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-387-0 01 1 0806- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1302- ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98074-119-0 01 1 0806-1301 ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-119-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 0806- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 25 1 0806-1301 ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-389-0 01 1 0806- ● ●
35 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-392-0 01 1 0806- ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-391-0 01 1 0806- ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-390-0 01 1 0806- ● ●
56 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-393-0 01 1 0806- ● ●
59 SHUTTER; HTR UNIT,SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-386-0 01 1 0806- ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98077-422-0 01 1 0806- ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-423-0 01 1 0806- ● ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-417-0 01 1 0806- ● ●
72 NUT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 		8-98047-428-0 03 1 0806- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98077-420-0 01 1 0806- ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-419-0 01 1 0806-1301 ● ●
76 BRACKET; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98009-742-1 02 1 0806- ● ●
77 COVER; HTR CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-414-0 01 1 0806- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-427-0 01 1 0806- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-384-0 01 1 0806- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-379-0 01 1 0806-1301 ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-379-0 01 1 1302- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X61 		8-98047-415-0 02 1 0806- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98064-733-0 01 1 0806- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-116-1 01 1 0806- ● ●
236 GASKET; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98047-420-0 01 1 0806- ● ●
236 GASKET; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98047-421-0 01 1 0806- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-382-0 01 1 0806- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-383-0 01 1 0806- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-115-0 01 1 0806- ● ●
