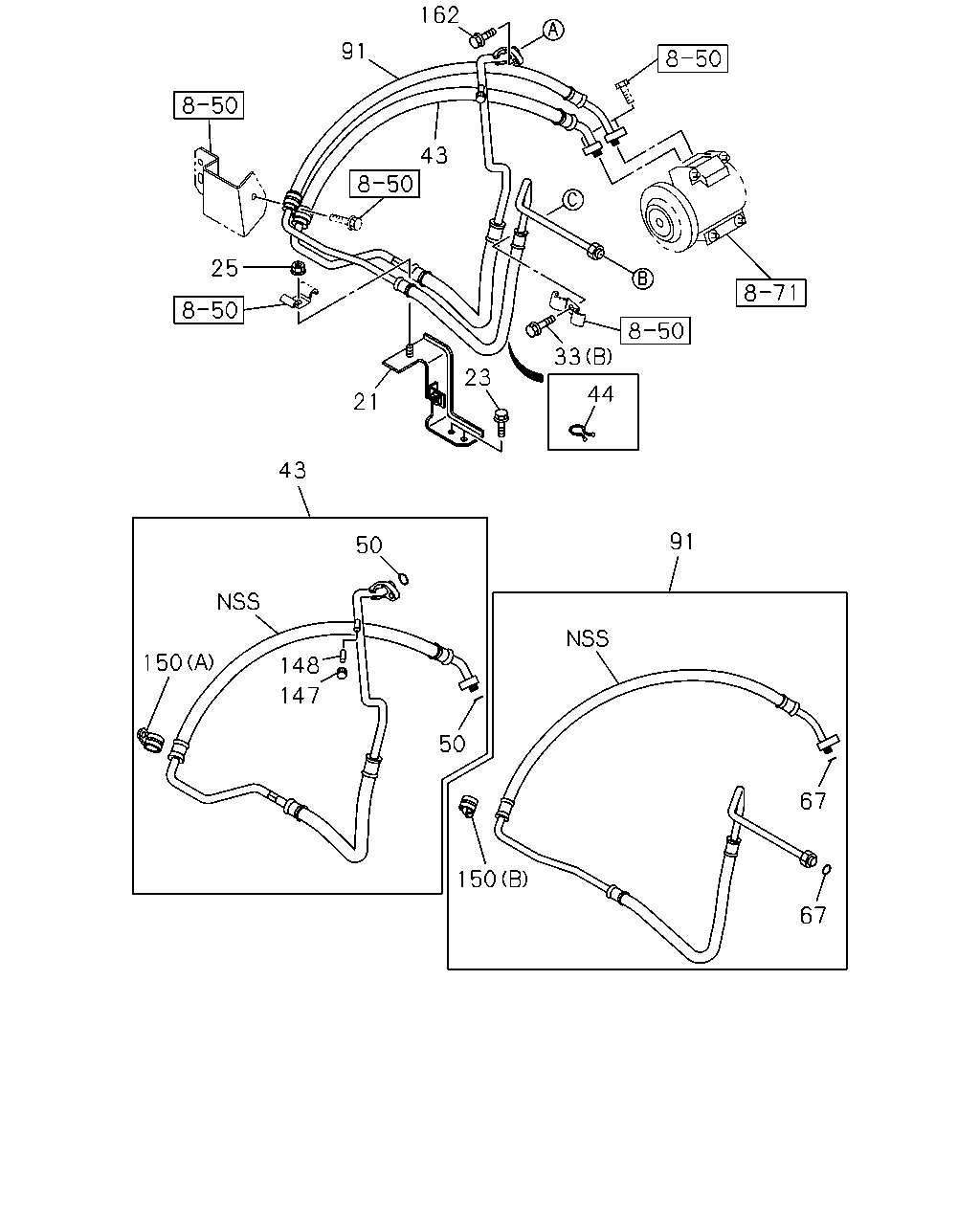

8-52 — PIPING; AIR CONDITIONING (#67459) — 29 parça

162 91 43 25 33 23 44 21 43 91 50 150 148 147 50 67 150 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98114-846-0	01	1	1211-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98114-846-0	01	1	0806-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA	0-28650-820-0	02	1	0806-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA	0-91180-108-0	01	1	0806-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0806-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0806-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98052-619-1	01	1	0806-	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=30	8-94315-423-0	01	1	0806-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=14.5 THA	8-97095-908-0	02	1	0806-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=11.7 THA	8-97095-907-0	02	1	0806-	●	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98052-620-1	01	1	0806-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK L THA	1-83539-331-0	01	1	0806-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97095-909-0	01	1	0806-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	1-83574-249-0	01	1	0806-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	1-83574-264-0	01	1	0806-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE THA	0-28650-625-0	01	1	0806-	●	●

27 158 174 116 33 116 158 171 156 27 27 202 33 12 158 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98052-610-0	01	1	0806-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0806-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0806-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0806-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0806-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	0806-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=7.4 THA	8-97095-906-0	02	1	0806-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=11.7 THA	8-97095-907-0	01	1	0806-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98151-702-0	01	1	0806-	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE THA	0-28050-625-0	03	1	0806-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK H THA	8-97095-911-0	01	1	0806-	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98041-330-0	01	1	0806-	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	1-83564-391-0	01	1	0806-	●	●
