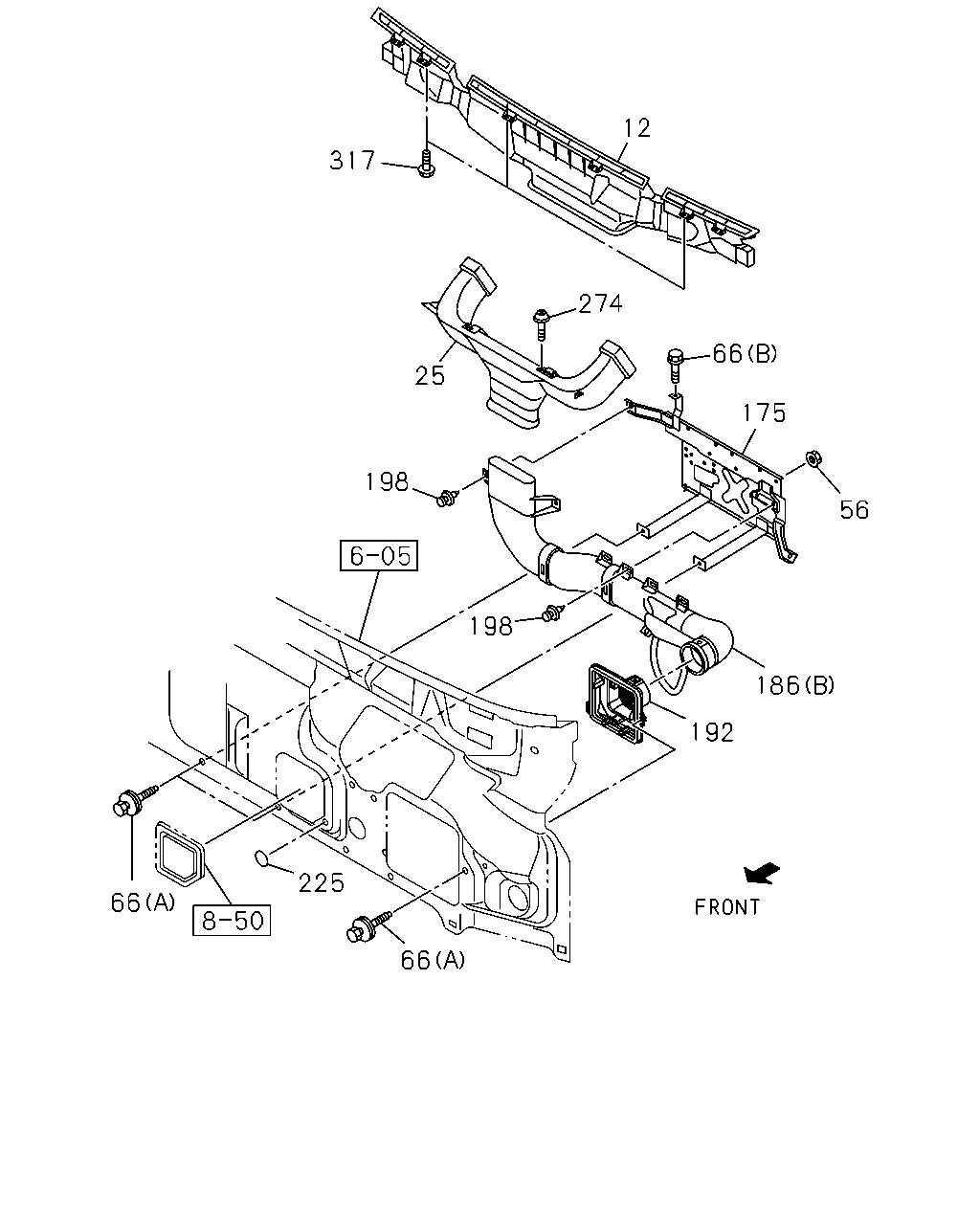

8-40 — HEATER SYSTEM (#67457) — 62 parça

12 317 274 66 25 175 198 56 198 186 192 225 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0806-	●	●
25	DUCT; CENTER EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98102-121-0	01	1	0806-1101	●	●
56	NUT; INL DUCT EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA	0-91180-106-0	01	1	0806-1101	●	●
66	BOLT; DUCT EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0806-1101	●	●
66	BOLT; DUCT EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0806-1101	●	●
175	BRACKET; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98095-350-4	01	1	0806-0908	●	●
175	BRACKET; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98140-759-0	01	1	0909-1101	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-97585-489-4	01	1	0806-1410	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98285-574-0	01	1	1411-	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98035-579-2	01	1	0806-1007	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98174-737-0	01	1	1008-1410	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98285-571-0	01	1	1411-	●	●
186	DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	8-98102-128-2	01	1	0806-1101	●	●
192	DUCT; RAM AIR EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98090-393-2	01	1	0806-1101	●	●
198	CLIP; DUCT EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98056-059-0	05	1	0806-1101	●	●
225	SEAL; WATER EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK THA	1-76798-019-0	01	1	0806-1301	●	●
225	SEAL; WATER EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65> OD=25 BLACK THA	1-76798-019-0	01	1	1302-	●	●
274	SCREW; VENT DUCT EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0806-1101	●	●
317	SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0806-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0806-	●	●

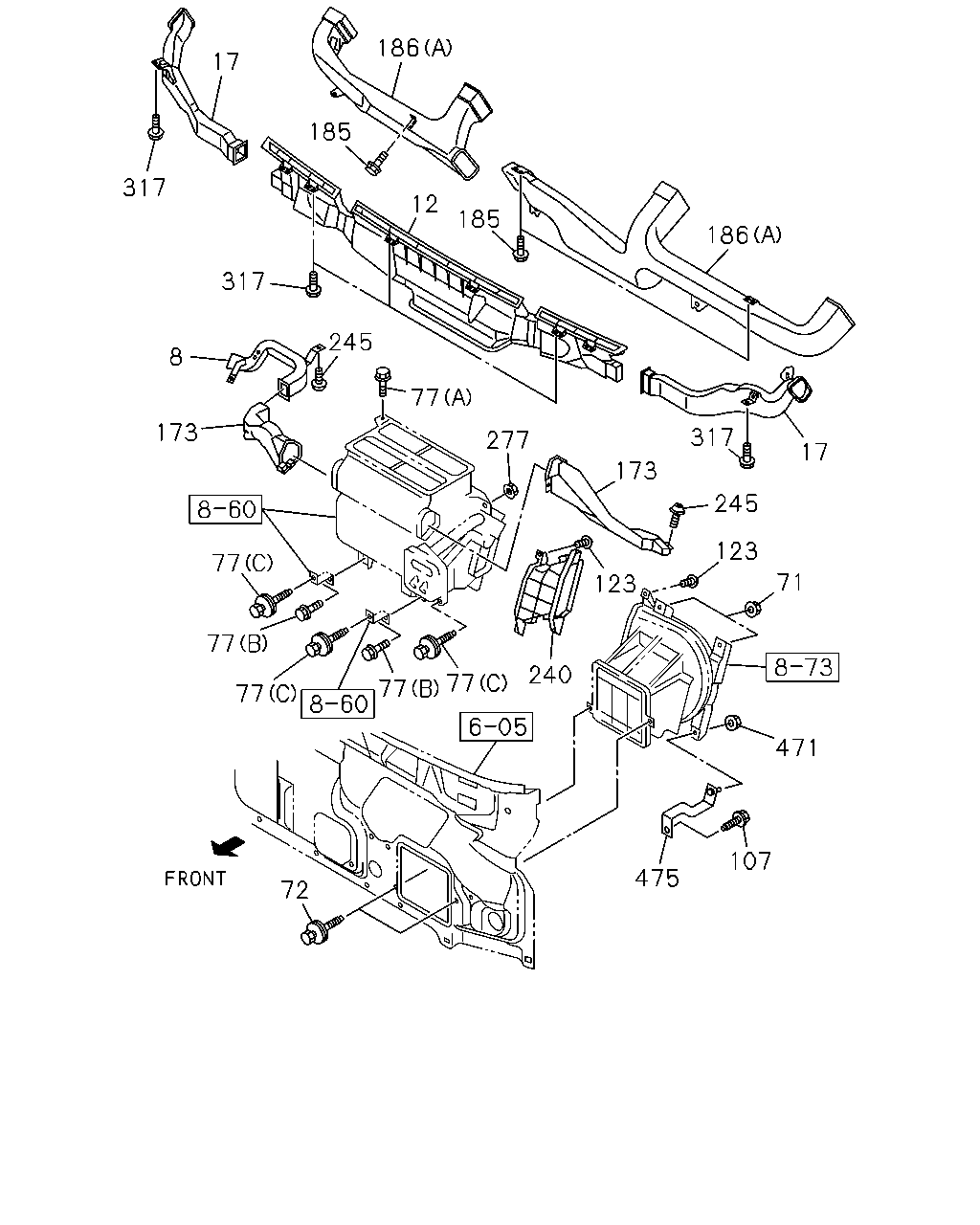

186 17 185 317 12 185 186 317 245 8 77 173 317 277 17 173 245 123 77 71 123 77 240 77 77 77 471 475 72 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97585-499-1	01	1	0806-0910	●	●
8	DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-97585-499-1	01	1	0911-1410	●	●
8	DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98290-098-0	01	1	1411-	●	●
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0806-	●	●
17	NOZZLE; DEFROSTER,SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98040-013-1	01	1	0806-	●	●
17	NOZZLE; DEFROSTER,SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98040-018-1	01	1	0806-	●	●
71	NUT; BLOWER UNIT TO DASH AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA	0-91180-106-0	02	1	0806-	●	●
72	BOLT; BLOWER UNIT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0806-	●	●
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0806-1301	●	●
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1302-	●	●
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0806-	●	●
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0806-	●	●
107	BOLT; STAY,HTR UNIT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0806-	●	●
123	SCREW; DUCT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0806-	●	●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97585-506-2	01	1	0806-0910	●	●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-97585-506-2	01	1	0911-	●	●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98036-922-2	01	1	0806-0910	●	●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98036-922-2	01	1	0911-1410	●	●
173	DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98290-097-0	01	1	1411-	●	●
185	SCREW; VENT DUCT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0806-1008	●	●
185	SCREW; VENT DUCT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1009-	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-97585-489-4	01	1	0806-1410	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98285-574-0	01	1	1411-	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98035-579-2	01	1	0806-1007	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98174-737-0	01	1	1008-1410	●	●
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)	8-98285-571-0	01	1	1411-	●	●
186	DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)	8-98102-128-2	01	1	0806-1101	●	●
240	DUCT; AIR,HTR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98041-402-1	01	1	0806-	●	●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98056-059-0	03	1	0806-0910	●	●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98056-059-0	03	1	0911-1410	●	●
245	CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98056-059-0	04	1	1411-	●	●
277	NUT; HTR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA	0-91180-106-0	01	1	0806-	●	●
317	SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0806-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0806-	●	●
471	NUT; BLOWER AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA	0-91180-106-0	01	1	0806-	●	●
475	BRACKET; BLOWER AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98043-500-1	01	1	0806-	●	●

223 50 476 206 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR	8-98080-998-1	01	1	0807-0910	●	●
50	VALVE ASM; HTR THA	8-97925-112-0	01	1	0911-	●	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0806-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0806-	●	●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98041-758-0	01	1	0806-	●	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0806-	●	●
