Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#67456) — 265 parça

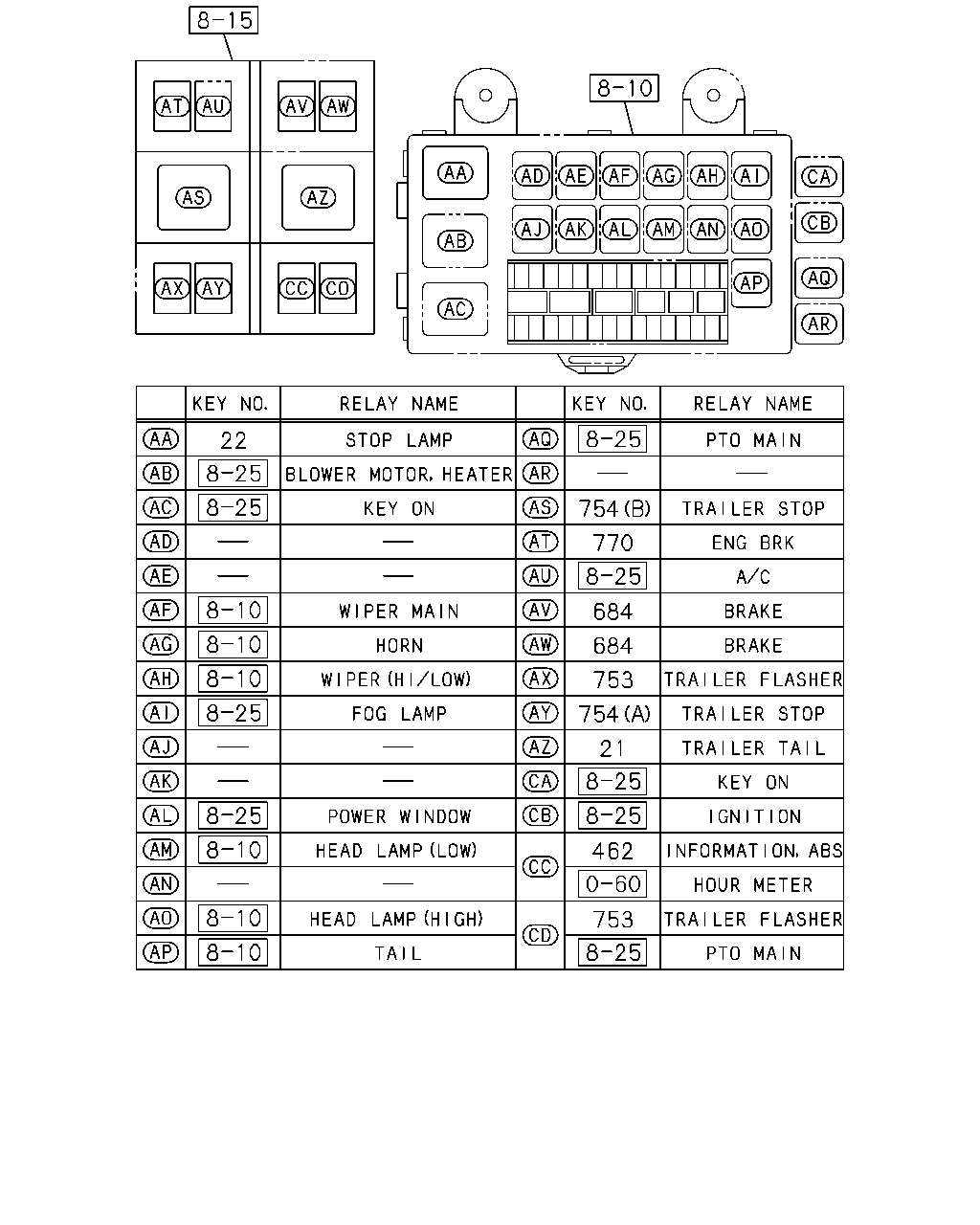

22 754 770 684 684 753 754 21 462 753

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0806-0807	●	●
21	RELAY; TRAILER TAIL KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO<SV1> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-0901	●
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-0901		●
21	RELAY; TRAILER TAIL EXC. ENGINE REAR PTO<SV1> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0902-1112	●
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0902-1112		●
21	RELAY; TRAILER TAIL MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1201-	●
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	1201-		●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0806-	●	●
462	RELAY; INFORMATION,ABS ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-		●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC THA	8-97173-035-1	02	1	0902-		●
753	RELAY; TRAILER FLASHER 24V 10A PANASONIC THA	8-97173-035-1	01	1	0806-0901		●
753	RELAY; TRAILER FLASHER 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-1212		●
753	RELAY; TRAILER FLASHER ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-1212		●
753	RELAY; TRAILER FLASHER ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC THA	8-97173-035-1	02	1	1301-		●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0806-0807	●	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0808-0808		●
754	RELAY; TRAILER STOP KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0809-0901	●
754	RELAY; TRAILER STOP KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0809-0901	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0809-0901		●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0809-0901		●
754	RELAY; TRAILER STOP EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-0902	●
754	RELAY; TRAILER STOP EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-0902	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-0902		●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-0902		●
754	RELAY; TRAILER STOP EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-1112	●
754	RELAY; TRAILER STOP EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-1112	●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-1112		●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0902-1112		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1201-	●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1201-	●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1201-		●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1201-		●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0806-0807	●	●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0808-0808		●
754	RELAY; TRAILER STOP KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO<SV1> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-0901	●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-0901		●
754	RELAY; TRAILER STOP EXC. ENGINE REAR PTO<SV1> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0902-1112	●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0902-1112		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1201-	●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1201-		●
770	RELAY; ENG BRK 24V 10A PANASONIC THA	8-97173-035-1	01	1	0806-	●	●

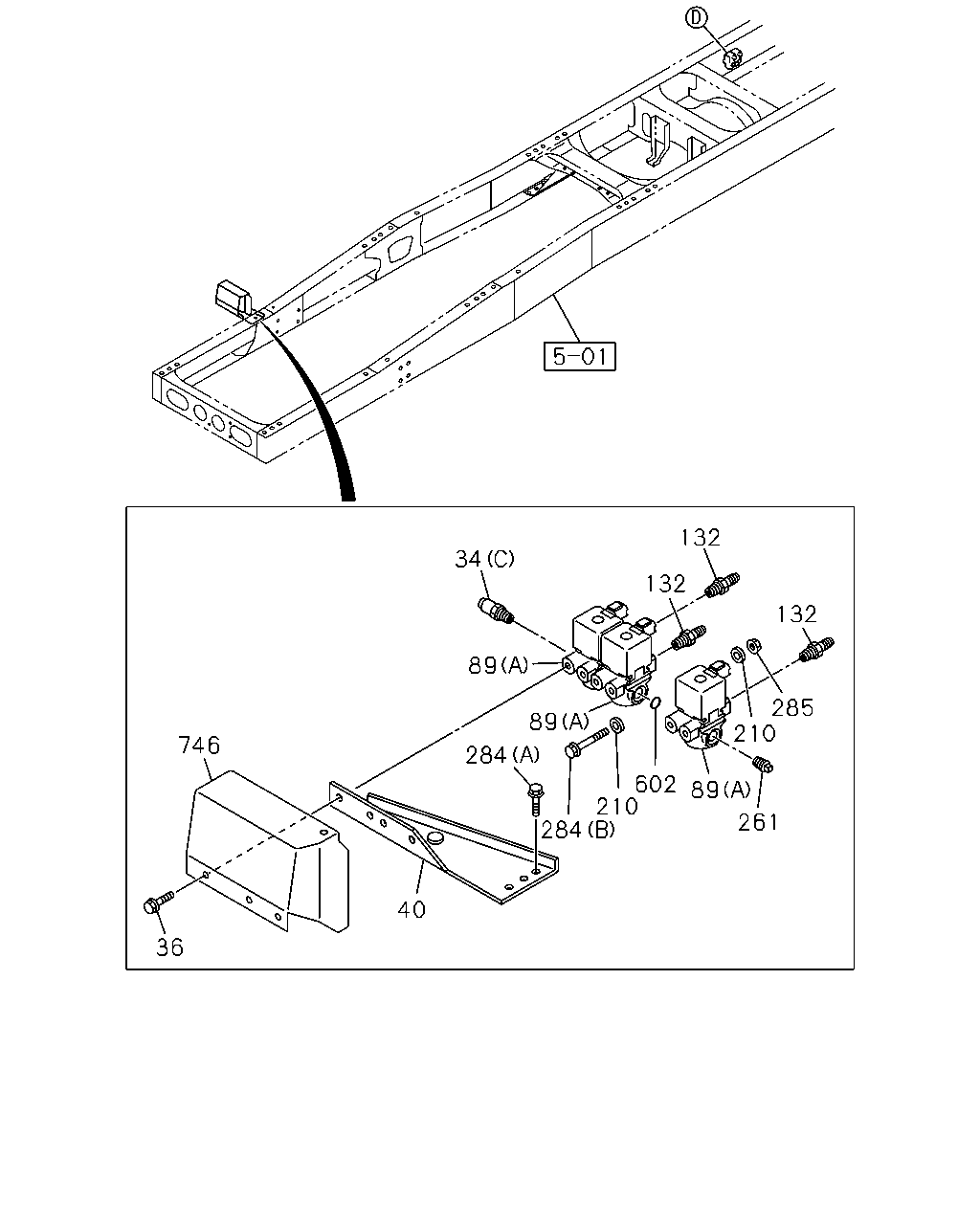

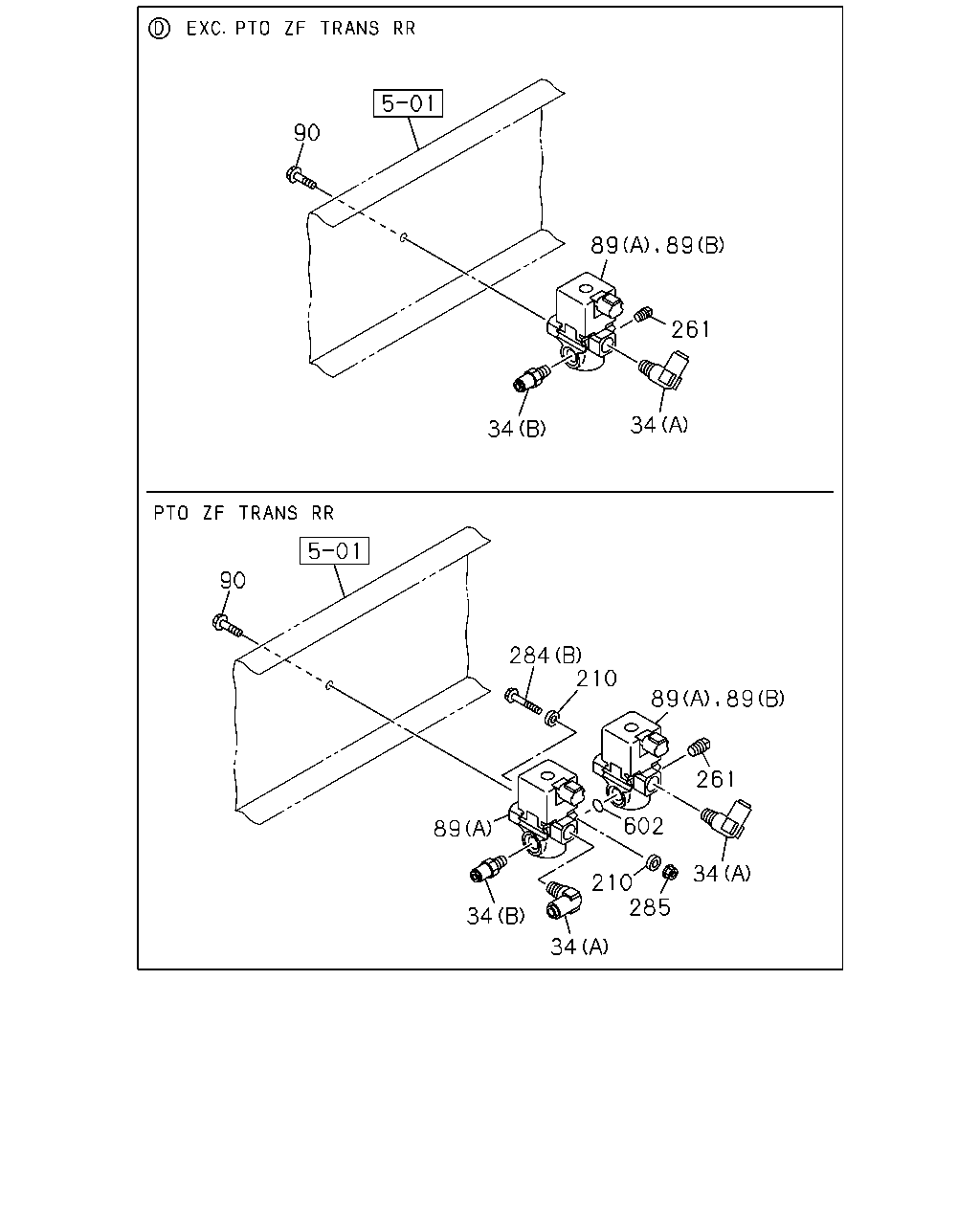

34 132 132 132 285 89 89 284 210 89 602 261 210 284 746 36 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1206-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1206-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	1206-	●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1206-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1206-		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0806-0905	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0806-0905		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0906-1112	●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1201-1204	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1201-1204		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0806-0905	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0806-0905		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0906-1101	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	1102-1204	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN6 & R1/4 STRAIGHT THA	1-09661-069-0	01	1	0806-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	0806-0905	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	0906-1101	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1102-1112	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1201-1204	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1201-1204		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0806-0905	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0906-1101	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE THA	0-28650-820-0	04	1	0806-	●	●
40	BRACKET; MAG VLV THA	8-98100-335-0	01	1	0806-	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82563-871-2	01	1	1206-	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	1206-		●
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	0806-0905	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0806-0905		●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	0906-1112	●	●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82563-871-2	01	1	1201-1204	●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	1201-1204		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	03	1	0806-	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	02	1	0806-0905	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	02	1	0906-1112	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82563-871-2	02	1	1201-1204	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	02	1	1201-1204		●
132	CONNECTOR; OUTLET,MAG VLV M12 & PT1/4 STRAIGHT THA	1-09650-074-1	03	1	0806-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	1-82569-266-0	02	1	1206-	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	1206-		●
210	WASHER; PL,BRKT THA	1-82569-266-0	04	1	0806-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	0806-0905	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	0906-1112	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	1-82569-266-0	02	1	1201-1204	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	1201-1204		●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0806-0811	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0812-0905	●	●
261	PLUG; MAG VLV EXC. PTO ZF TRANS RR<BDM> PT1/4 THA	9-99204-513-0	01	1	0812-0905	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0812-0905		●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0906-1101	●	●
261	PLUG; MAG VLV EXC. PTO ZF TRANS RR<BDM> PT1/4 THA	9-99204-513-0	01	1	0906-1101	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1102-1204	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1205-1205	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1206-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR<BDM> PT1/4 THA	9-99204-513-0	01	1	0806-0905	●
261	PLUG; MAG VLV PTO ZF TRANS RR<BDM> PT1/4 THA	9-99204-513-0	01	1	0906-1101	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	1206-	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	1206-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE THA	0-28050-650-0	02	1	0806-	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE THA	0-28650-830-0	02	1	0806-	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	0806-0905	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	0906-1112	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	1201-1204	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	1201-1204		●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M6 FLANGE THA	0-91180-106-0	01	1	1206-	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1206-		●
285	NUT; MAG VLV M6 FLANGE THA	0-91180-106-0	02	1	0806-	●	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	0806-0905	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	0906-1112	●	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M6 FLANGE THA	0-91180-106-0	01	1	1201-1204	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1201-1204		●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=16.8 THA	9-09565-117-0	01	1	1206-	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	1206-		●
602	GASKET; MAG VLV ID=16.8 THA	9-09565-117-0	02	1	0806-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	0806-0905	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	0906-1112	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=16.8 THA	9-09565-117-0	01	1	1201-1204	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	1201-1204		●
746	COVER; NOISE,MAG VLV	8-98096-340-0	01	1	0806-	●	●

531 115 769

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0806-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-0	01	1	0806-1101	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1102-	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0806-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC THA	8-97173-035-1	01	1	0806-	●	●

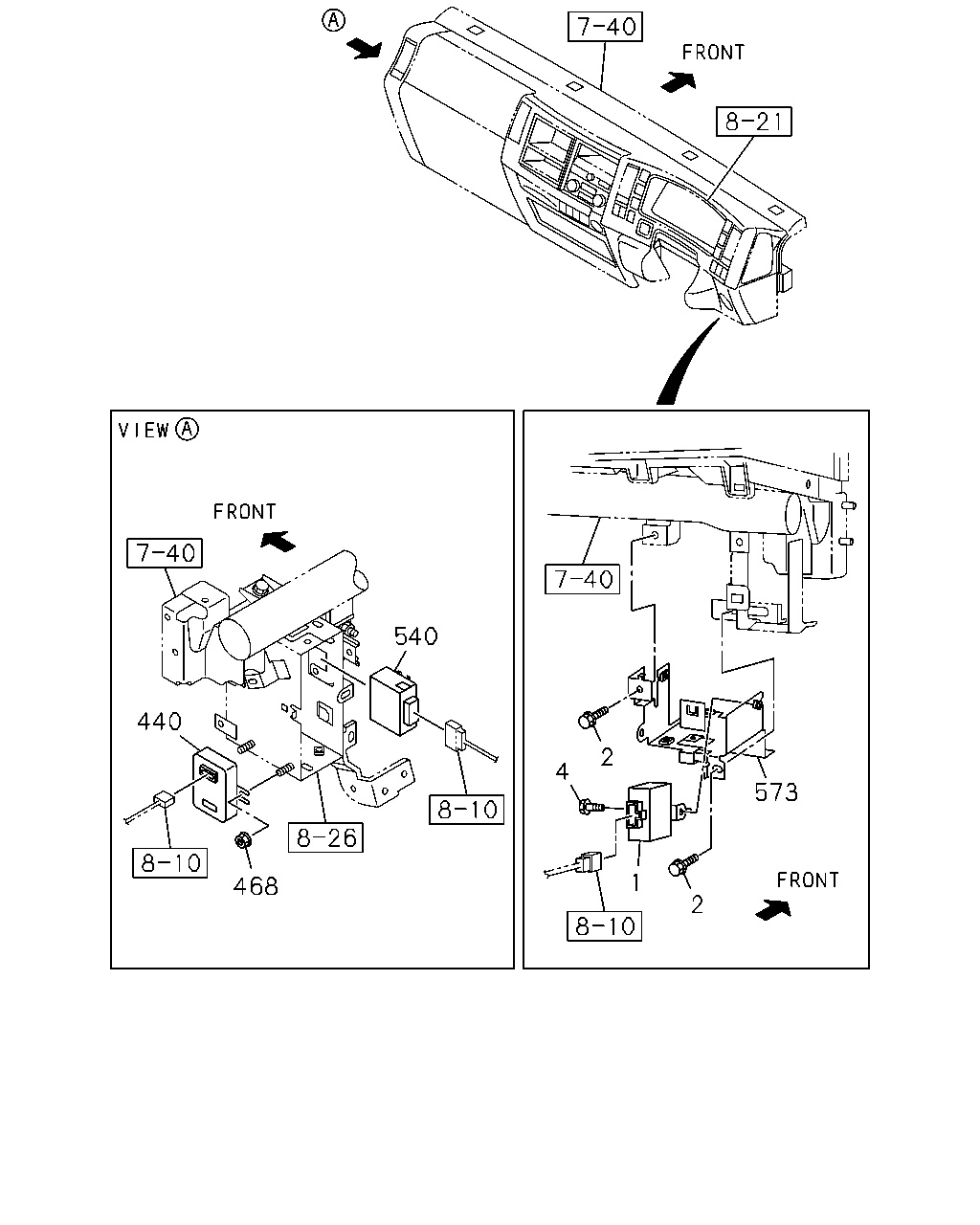

540 440 2 4 573 1 468 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0806-	●
1	UNIT; FLASHER	8-97613-970-1	01	1	0806-		●
2	BOLT; FLASHER UNIT M6X16 FLANGE THA	0-28650-616-0	02	1	0806-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE THA	0-28050-616-0	01	1	0806-	●	●
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM<BFA>	1-81510-701-0	01	1	0902-		●
468	NUT; MODULE ANTILOCK BRAKE SYSTEM<BFA> M6 FLANGE THA	0-91180-106-0	02	1	0902-		●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0806-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0806-	●	●

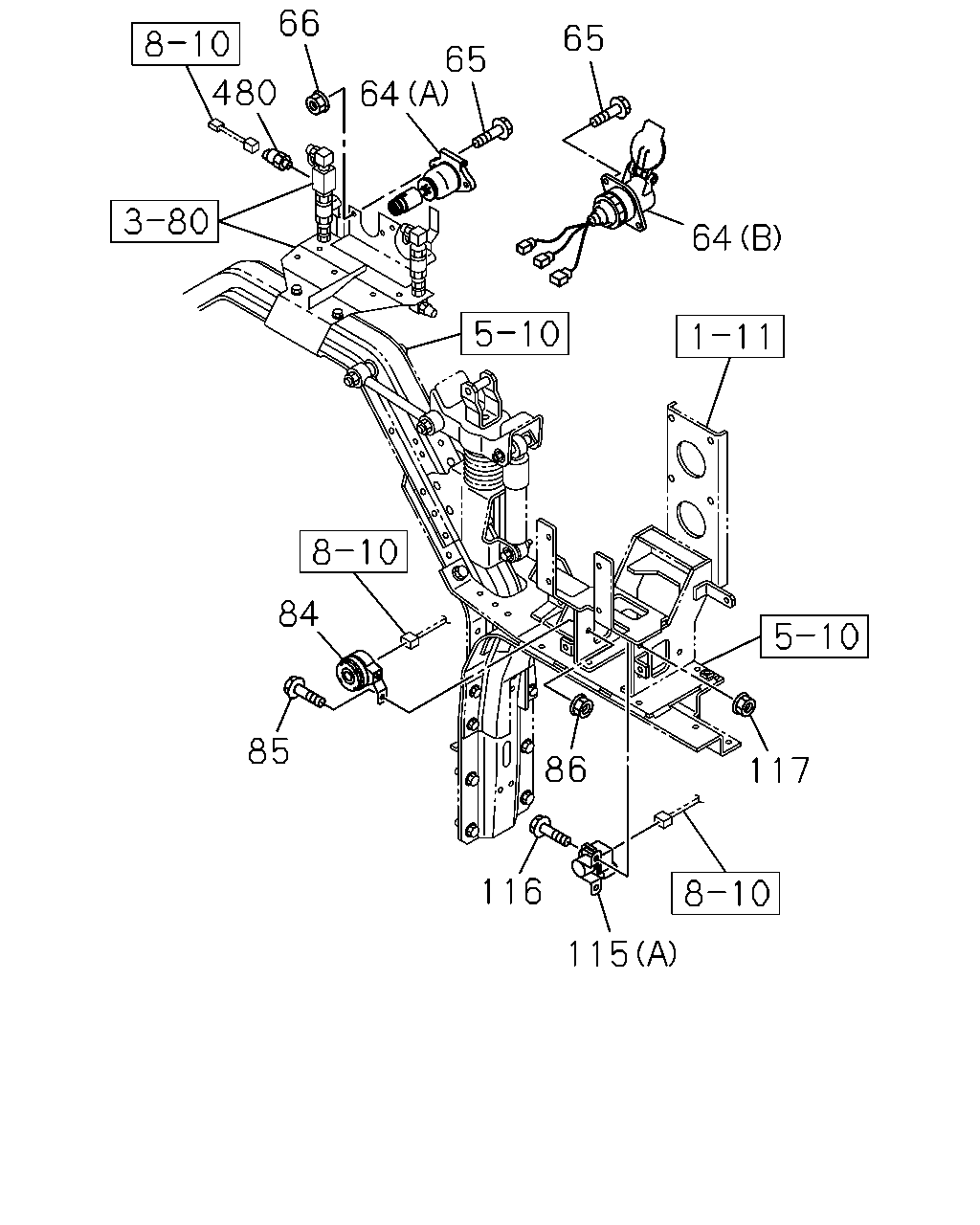

66 65 65 480 64 64 84 85 86 117 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	0806-		●
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM<BFA> (B) L=860	1-82699-449-2	01	1	0902-1008		●
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM<BFA> (B) L=860	8-98172-008-0	01	1	1009-		●
65	BOLT; SOCKET FIX M8X25 FLANGE THA	0-28650-825-0	02	1	0806-0901		●
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA	0-28650-825-0	02	1	0902-		●
65	BOLT; SOCKET FIX M8X25 FLANGE THA	0-28650-825-0	02	1	0902-		●
66	NUT; SOCKET FIX M8 FLANGE THA	0-91180-108-0	02	1	0806-0901		●
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	02	1	0902-		●
66	NUT; SOCKET FIX M8 FLANGE THA	0-91180-108-0	02	1	0902-		●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0806-1101	●	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> METRO DENSO	8-98069-860-0	01	1	1102-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE THA	0-28650-820-0	01	1	0806-1101	●	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M8X20 FLANGE THA	0-28650-820-0	01	1	1102-	●	●
86	NUT; BUZZER M8 FLANGE THA	0-91180-108-0	01	1	0806-1101	●	●
86	NUT; BUZZER AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M8 FLANGE THA	0-91180-108-0	01	1	1102-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0806-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-0	01	1	0806-1101	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1102-	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X25 FLANGE THA	0-28650-825-0	02	1	1309-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE THA	0-28650-820-0	02	1	0806-1101	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 FLANGE THA	0-28650-820-0	02	1	1102-	●	●
117	NUT; RELAY FIX M8 FLANGE THA	0-91180-108-0	02	1	0806-1101	●	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE THA	0-91180-108-0	02	1	1102-	●	●
480	SWITCH; TRAILER COCK STAMP 2.2	8-98010-858-0	01	1	0806-		●

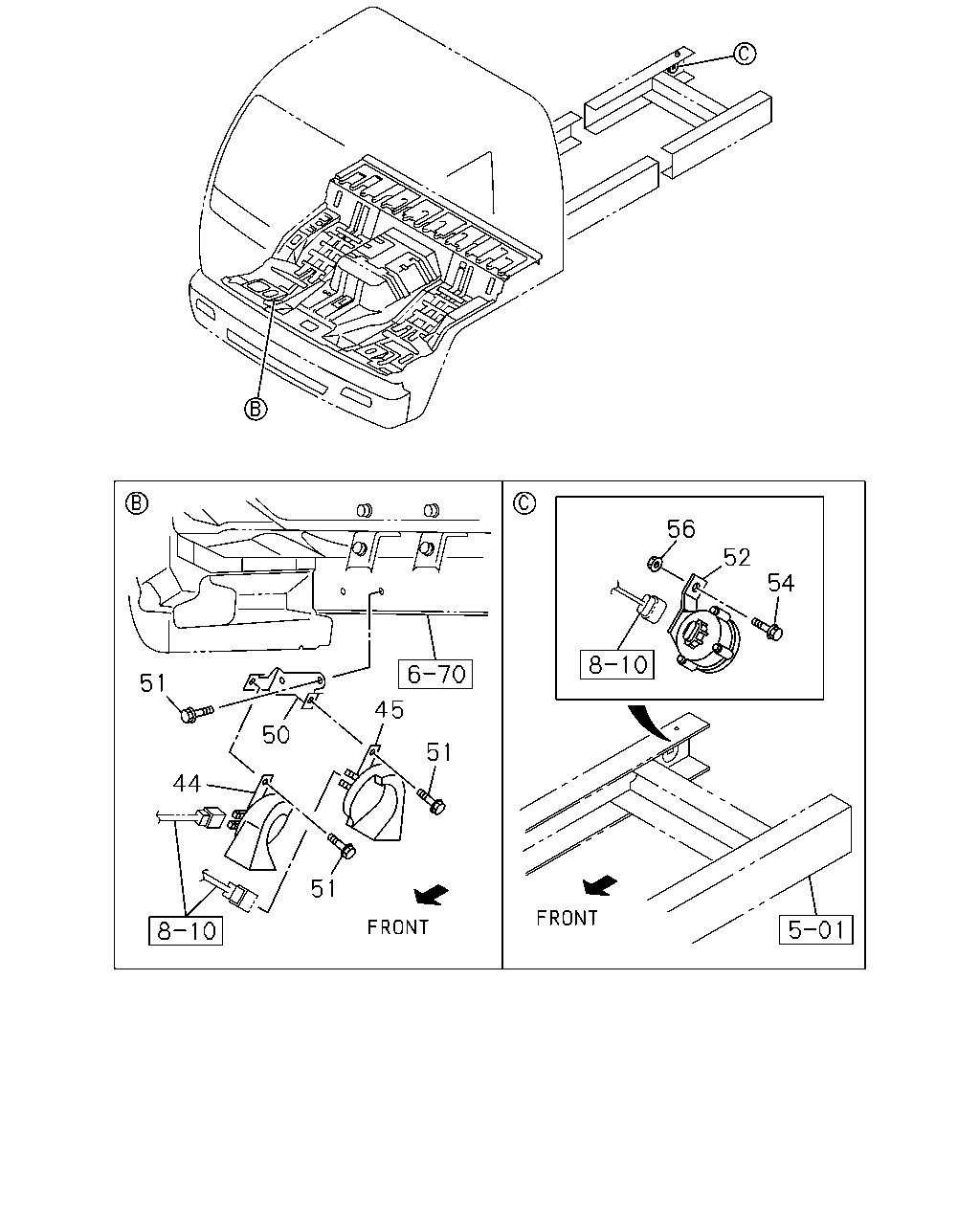

56 52 54 51 45 50 51 44 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-98022-022-0	01	1	0806-1003	●	●
44	HORN; HIGH NOTE EXC. VIN MODEL YEAR 2010<VZA>	8-98022-022-0	01	1	1004-1006	●	●
44	HORN; HIGH NOTE	8-98022-022-0	01	1	1007-1101	●	●
45	HORN; LOW NOTE	8-98022-023-0	01	1	1102-1112	●	●
45	HORN; LOW NOTE THA	8-97925-172-0	01	1	1109-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	0806-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1004-1006	●	●
51	BOLT; HORN TO BRKT EXC. VIN MODEL YEAR 2010<VZA> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1004-1006	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0806-1003	●	●
51	BOLT; HORN TO BRKT VIN MODEL YEAR 2010<VZA> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1004-1006	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1007-1101	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1102-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	0806-	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE THA	0-28651-030-0	01	1	0806-1101		●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE THA	0-28651-030-0	01	1	1102-1111	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE THA	0-28651-030-0	01	1	1112-		●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE THA	0-91180-210-0	01	1	0806-1101		●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE THA	0-91180-210-0	01	1	1102-1111	●	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE THA	0-91180-210-0	01	1	1112-		●

90 89 89 261 34 34 90 284 210 89 89 261 602 34 210 285 34 34 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1206-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1206-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	1206-	●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1206-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1206-		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0806-0905	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0806-0905		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0906-1112	●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1201-1204	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1201-1204		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0806-0905	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0806-0905		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0906-1101	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	1102-1204	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN6 & R1/4 STRAIGHT THA	1-09661-069-0	01	1	0806-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	0806-0905	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	0906-1101	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1102-1112	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1201-1204	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1201-1204		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0806-0905	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0906-1101	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82563-871-2	01	1	1206-	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	1206-		●
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	0806-0905	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0806-0905		●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	0906-1112	●	●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82563-871-2	01	1	1201-1204	●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	1201-1204		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	03	1	0806-	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	02	1	0806-0905	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	02	1	0906-1112	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-82563-871-2	02	1	1201-1204	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	02	1	1201-1204		●
90	BOLT; MAG VLV EXC. PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	02	1	1102-1112	●	●
90	BOLT; MAG VLV EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X25 FLANGE THA	0-28650-825-0	02	1	1201-	●
90	BOLT; MAG VLV EXC. PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	02	1	1201-		●
90	BOLT; MAG VLV M8X25 FLANGE THA	0-28650-825-0	02	1	0806-1101	●	●
90	BOLT; MAG VLV PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	03	1	1102-1112	●	●
90	BOLT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X25 FLANGE THA	0-28650-825-0	03	1	1201-	●
90	BOLT; MAG VLV PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	03	1	1201-		●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	1-82569-266-0	02	1	1206-	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	1206-		●
210	WASHER; PL,BRKT THA	1-82569-266-0	04	1	0806-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	0806-0905	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	0906-1112	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	1-82569-266-0	02	1	1201-1204	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	1201-1204		●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0806-0811	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0812-0905	●	●
261	PLUG; MAG VLV EXC. PTO ZF TRANS RR<BDM> PT1/4 THA	9-99204-513-0	01	1	0812-0905	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0812-0905		●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0906-1101	●	●
261	PLUG; MAG VLV EXC. PTO ZF TRANS RR<BDM> PT1/4 THA	9-99204-513-0	01	1	0906-1101	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1102-1204	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1205-1205	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1206-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR<BDM> PT1/4 THA	9-99204-513-0	01	1	0806-0905	●
261	PLUG; MAG VLV PTO ZF TRANS RR<BDM> PT1/4 THA	9-99204-513-0	01	1	0906-1101	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	1206-	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	1206-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE THA	0-28050-650-0	02	1	0806-	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE THA	0-28650-830-0	02	1	0806-	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	0806-0905	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	0906-1112	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	1201-1204	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE THA	0-28050-650-0	01	1	1201-1204		●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M6 FLANGE THA	0-91180-106-0	01	1	1206-	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1206-		●
285	NUT; MAG VLV M6 FLANGE THA	0-91180-106-0	02	1	0806-	●	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	0806-0905	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	0906-1112	●	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M6 FLANGE THA	0-91180-106-0	01	1	1201-1204	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1201-1204		●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=16.8 THA	9-09565-117-0	01	1	1206-	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	1206-		●
602	GASKET; MAG VLV ID=16.8 THA	9-09565-117-0	02	1	0806-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	0806-0905	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	0906-1112	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=16.8 THA	9-09565-117-0	01	1	1201-1204	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	1201-1204		●

584 744 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
584	SENSOR; PRESSURE (B)	8-97177-549-0	01	1	0806-1204	●	●
584	SENSOR; PRESSURE (B)	8-98214-375-0	01	1	1205-	●	●
584	SENSOR; PRESSURE (B)	8-98214-375-0	01	1	1205-	●	●
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	0806-	●	●
744	NUT; SENSOR M6 FLANGE THA	0-91180-106-0	02	1	0806-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
