Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#67455) — 284 parça

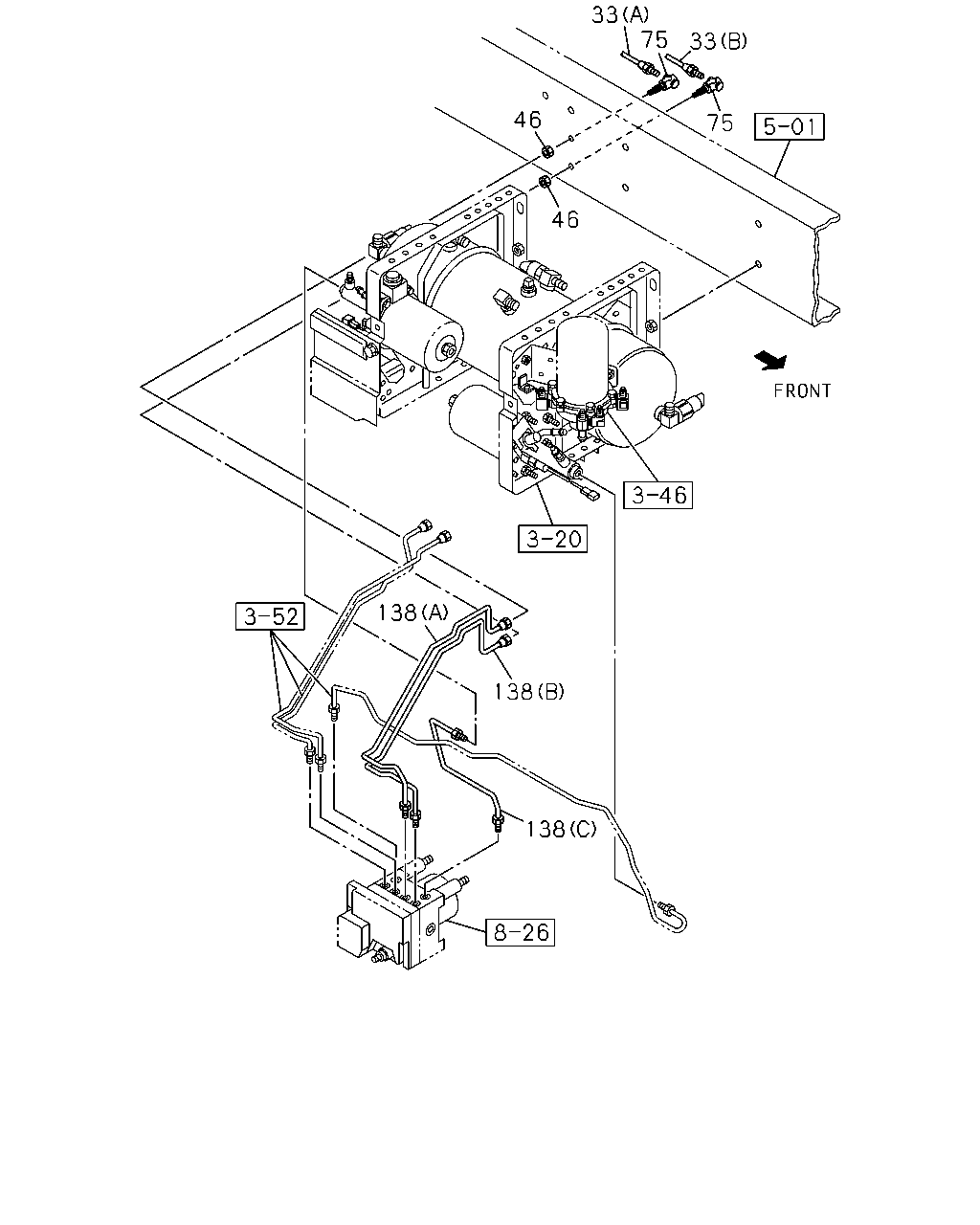

33 75 33 46 75 46 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH LINE L=1073	8-98123-537-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) LH LINE L=1099	8-98123-538-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1024	8-98091-666-0	01	1	0803-0803
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1055	8-98116-678-0	01	1	0804-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (B) RH LINE L=1055	8-98116-678-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1023	8-98072-731-0	01	1	0803-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1023	8-98072-731-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1100	8-98091-665-0	01	1	0803-0803
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1126	8-98116-677-0	01	1	0804-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) LH LINE L=1126	8-98116-677-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1083	8-98072-730-0	01	1	0803-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1083	8-98072-730-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1622	8-98069-807-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1578	8-98069-808-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) (A) LH LINE L=2124	8-98076-347-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2078	8-98076-348-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) (A) LH LINE L=2822	8-98069-815-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778	8-98069-816-0	01	1	0803-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0803-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	0803-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=497	8-98108-125-0	01	1	0803-

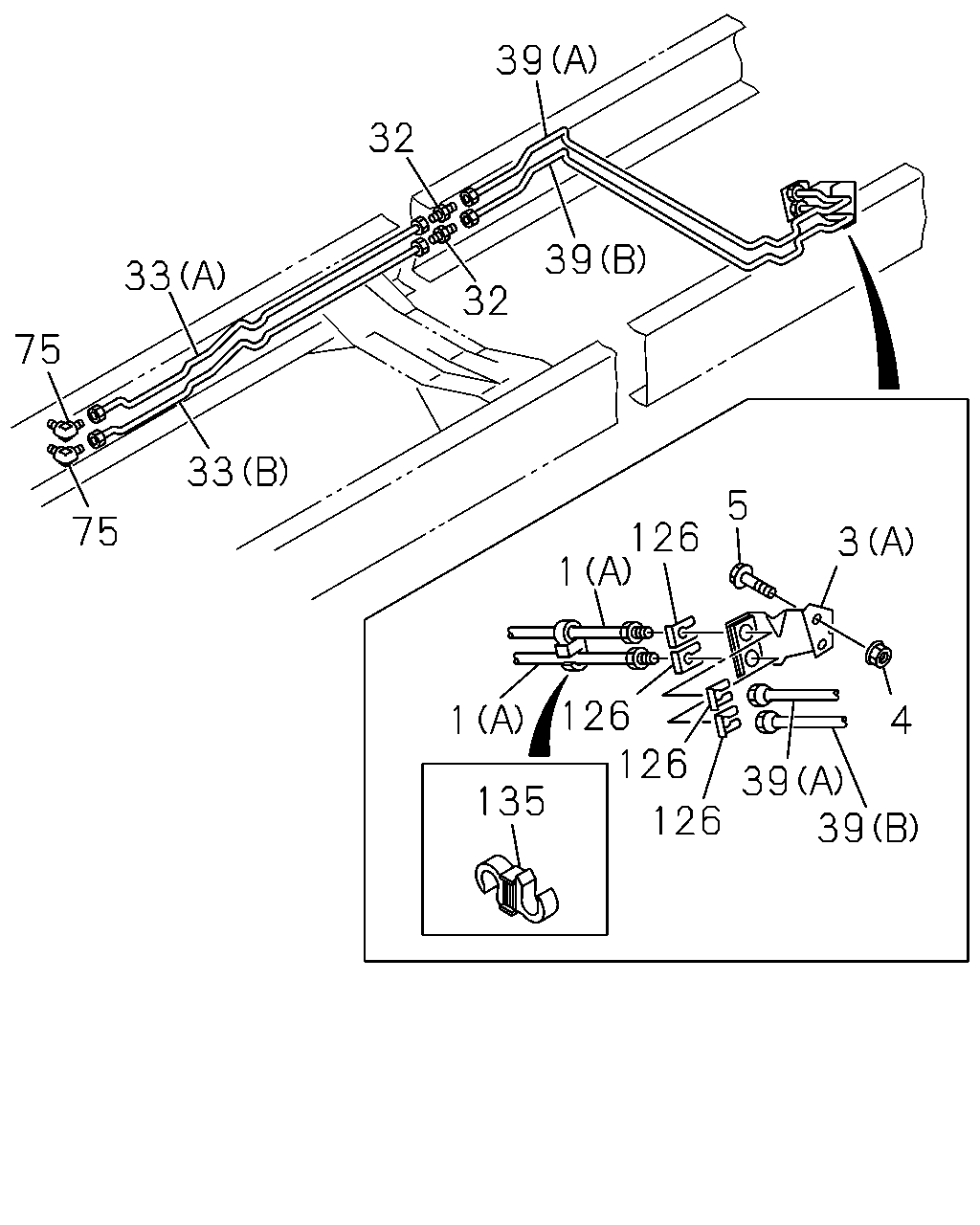

39 32 39 33 32 75 33 5 75 126 3 1 126 126 1 4 39 39 135 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480	8-98172-789-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520	8-98175-918-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320	8-98067-397-0	02	1	0803-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	0803-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	0803-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98182-778-0	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98175-942-0	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK (A)	8-98065-999-2	01	1	0803-1011
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98065-999-2	01	1	1012-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0803-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	0804-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	0803-0803
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	0804-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH LINE L=1073	8-98123-537-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) LH LINE L=1099	8-98123-538-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1024	8-98091-666-0	01	1	0803-0803
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1055	8-98116-678-0	01	1	0804-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (B) RH LINE L=1055	8-98116-678-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1023	8-98072-731-0	01	1	0803-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1023	8-98072-731-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1100	8-98091-665-0	01	1	0803-0803
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1126	8-98116-677-0	01	1	0804-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) LH LINE L=1126	8-98116-677-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1083	8-98072-730-0	01	1	0803-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1083	8-98072-730-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1622	8-98069-807-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1578	8-98069-808-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) (A) LH LINE L=2124	8-98076-347-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2078	8-98076-348-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) (A) LH LINE L=2822	8-98069-815-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778	8-98069-816-0	01	1	0803-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2126	8-98182-774-0	01	1	1012-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2100	8-98175-941-0	01	1	1012-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (A) L=1772	8-98106-486-0	01	1	0803-
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=1710	8-98106-485-0	01	1	0803-1011
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=1710	8-98106-485-0	01	1	1012-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	0803-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	0803-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	0803-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	0803-
135	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5) ID=10 & 10	1-09709-277-1	01	1	0803-

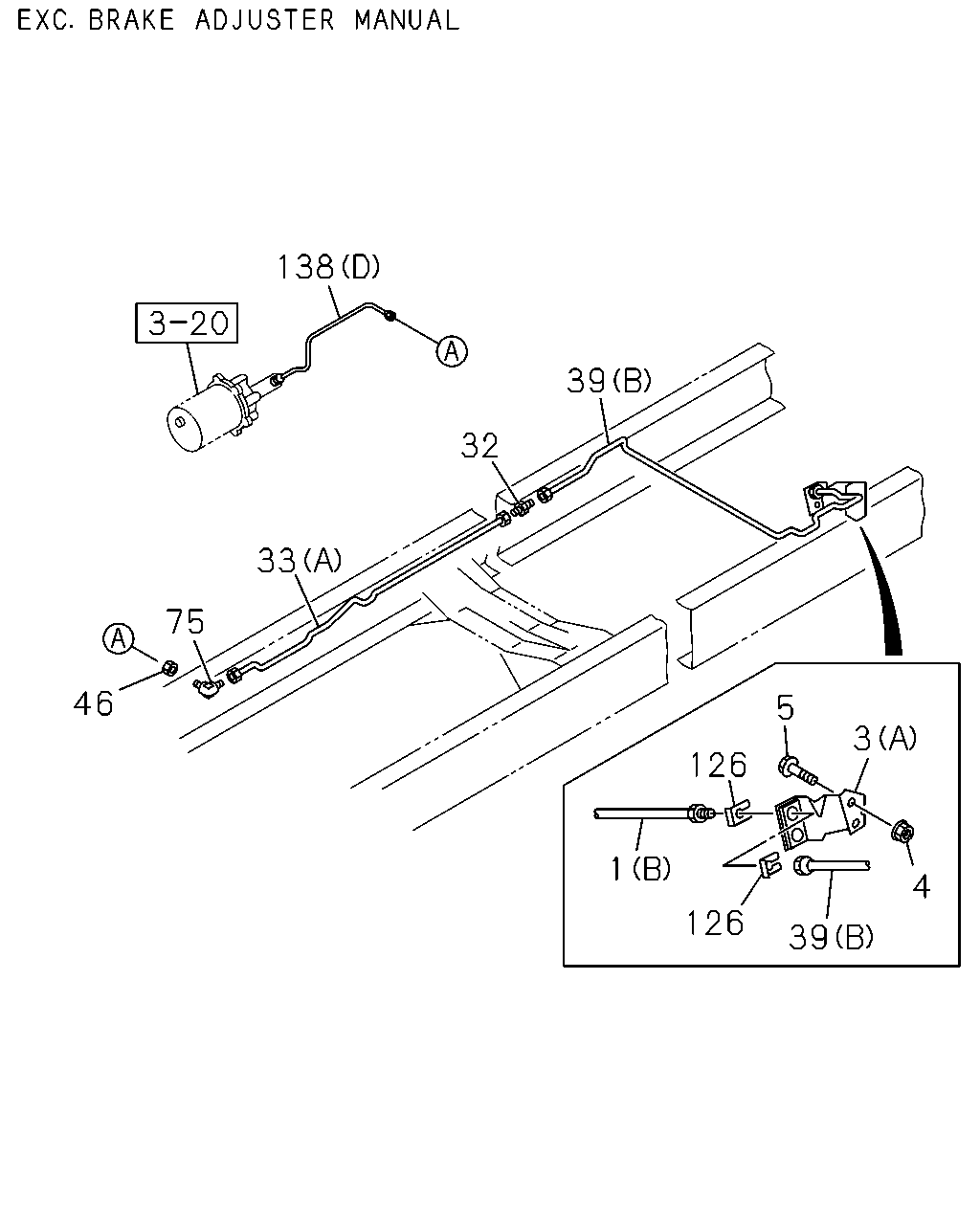

138 39 32 33 75 46 5 39 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480	8-98172-789-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520	8-98175-918-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320	8-98067-397-0	02	1	0803-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	0803-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	0803-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98182-778-0	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98175-942-0	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK (A)	8-98065-999-2	01	1	0803-1011
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98065-999-2	01	1	1012-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0803-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	0804-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	0803-0803
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	0804-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH LINE L=1073	8-98123-537-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) LH LINE L=1099	8-98123-538-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1024	8-98091-666-0	01	1	0803-0803
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1055	8-98116-678-0	01	1	0804-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (B) RH LINE L=1055	8-98116-678-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1023	8-98072-731-0	01	1	0803-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1023	8-98072-731-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1100	8-98091-665-0	01	1	0803-0803
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1126	8-98116-677-0	01	1	0804-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) LH LINE L=1126	8-98116-677-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1083	8-98072-730-0	01	1	0803-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1083	8-98072-730-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1622	8-98069-807-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1578	8-98069-808-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) (A) LH LINE L=2124	8-98076-347-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2078	8-98076-348-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) (A) LH LINE L=2822	8-98069-815-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778	8-98069-816-0	01	1	0803-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2126	8-98182-774-0	01	1	1012-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2100	8-98175-941-0	01	1	1012-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (A) L=1772	8-98106-486-0	01	1	0803-
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=1710	8-98106-485-0	01	1	0803-1011
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=1710	8-98106-485-0	01	1	1012-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0803-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	0803-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=497	8-98108-125-0	01	1	0803-

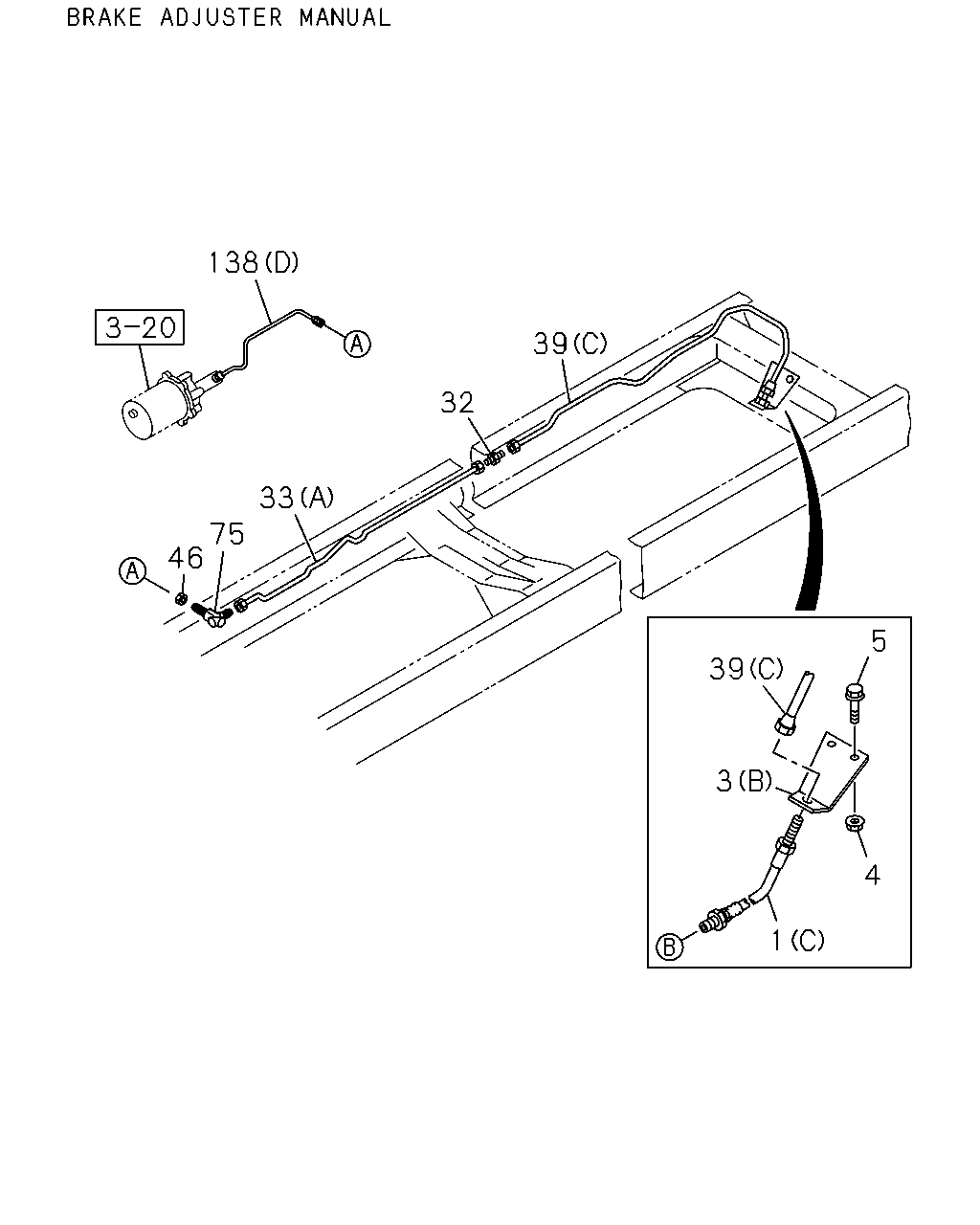

138 39 32 33 75 46 5 3 126 1 4 126 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480	8-98172-789-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520	8-98175-918-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320	8-98067-397-0	02	1	0803-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	0803-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	0803-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98182-778-0	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98175-942-0	01	1	1012-
3	BRACKET; FLEX HOSE,RR BRK (A)	8-98065-999-2	01	1	0803-1011
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	8-98065-999-2	01	1	1012-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0803-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	0804-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	0803-0803
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	0804-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (B) RH LINE L=1073	8-98123-537-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) LH LINE L=1099	8-98123-538-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1024	8-98091-666-0	01	1	0803-0803
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1055	8-98116-678-0	01	1	0804-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (B) RH LINE L=1055	8-98116-678-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1023	8-98072-731-0	01	1	0803-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1023	8-98072-731-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1100	8-98091-665-0	01	1	0803-0803
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1126	8-98116-677-0	01	1	0804-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) LH LINE L=1126	8-98116-677-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1083	8-98072-730-0	01	1	0803-0808
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1083	8-98072-730-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1622	8-98069-807-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1578	8-98069-808-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) (A) LH LINE L=2124	8-98076-347-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2078	8-98076-348-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) (A) LH LINE L=2822	8-98069-815-0	01	1	0803-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2778	8-98069-816-0	01	1	0803-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2126	8-98182-774-0	01	1	1012-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) BRAKE ADJUSTER MANUAL<BJR> (C) L=2100	8-98175-941-0	01	1	1012-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (A) L=1772	8-98106-486-0	01	1	0803-
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=1710	8-98106-485-0	01	1	0803-1011
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=1710	8-98106-485-0	01	1	1012-
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0803-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	0803-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	0803-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	0803-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	0803-
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=497	8-98108-125-0	01	1	0803-

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE	8-98029-680-0	01	1	1410-1410

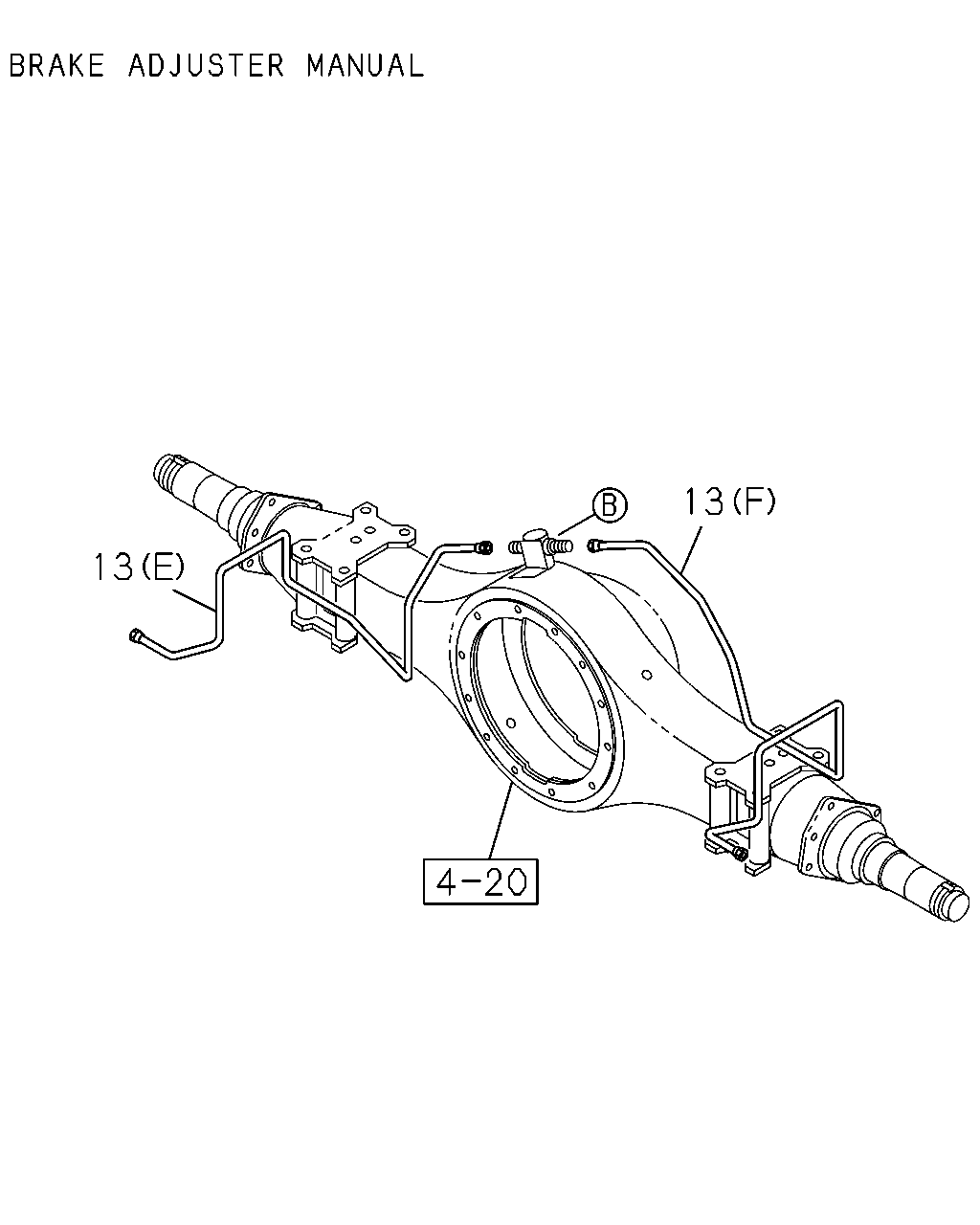

13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> (F) RH LINE L=675	1-47427-105-0	01	1	1012-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> (E) LH LINE L=847	1-47427-106-0	01	1	1012-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030	8-98281-559-0	01	1	1410-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98059-741-0	01	1	0809-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98059-742-0	01	1	0809-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE L=1115	8-98071-761-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115	8-98071-761-0	01	1	1012-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE L=738	8-98071-762-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738	8-98071-762-0	01	1	1012-
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98073-530-0	01	1	0803-0803
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98107-928-0	01	1	0804-0804
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (B) RH LINE	8-98107-928-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98107-928-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (B) RH LINE	8-98107-928-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98107-928-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98073-531-0	01	1	0803-0803
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98107-929-0	01	1	0804-0804
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (A) LH LINE	8-98107-929-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98107-929-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (A) LH LINE	8-98107-929-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98107-929-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0805-0805

13 106 106 13 126 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

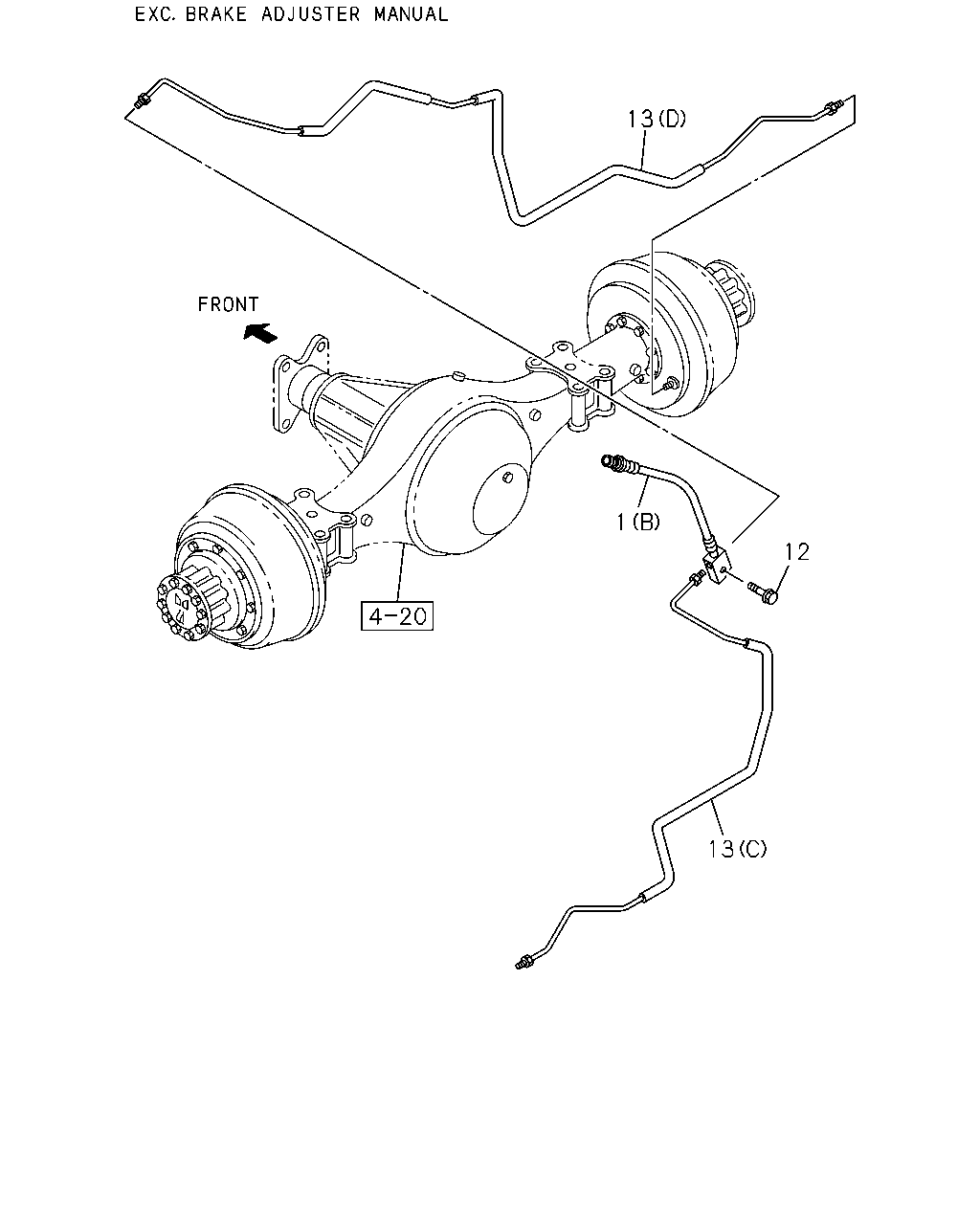

1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480	8-98172-789-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520	8-98175-918-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320	8-98067-397-0	02	1	0803-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	0803-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	0803-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1012-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> (F) RH LINE L=675	1-47427-105-0	01	1	1012-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> (E) LH LINE L=847	1-47427-106-0	01	1	1012-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030	8-98281-559-0	01	1	1410-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98059-741-0	01	1	0809-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98059-742-0	01	1	0809-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE L=1115	8-98071-761-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115	8-98071-761-0	01	1	1012-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE L=738	8-98071-762-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738	8-98071-762-0	01	1	1012-
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98073-530-0	01	1	0803-0803
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98107-928-0	01	1	0804-0804
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (B) RH LINE	8-98107-928-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98107-928-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (B) RH LINE	8-98107-928-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98107-928-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98073-531-0	01	1	0803-0803
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98107-929-0	01	1	0804-0804
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (A) LH LINE	8-98107-929-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98107-929-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (A) LH LINE	8-98107-929-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98107-929-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0805-0805

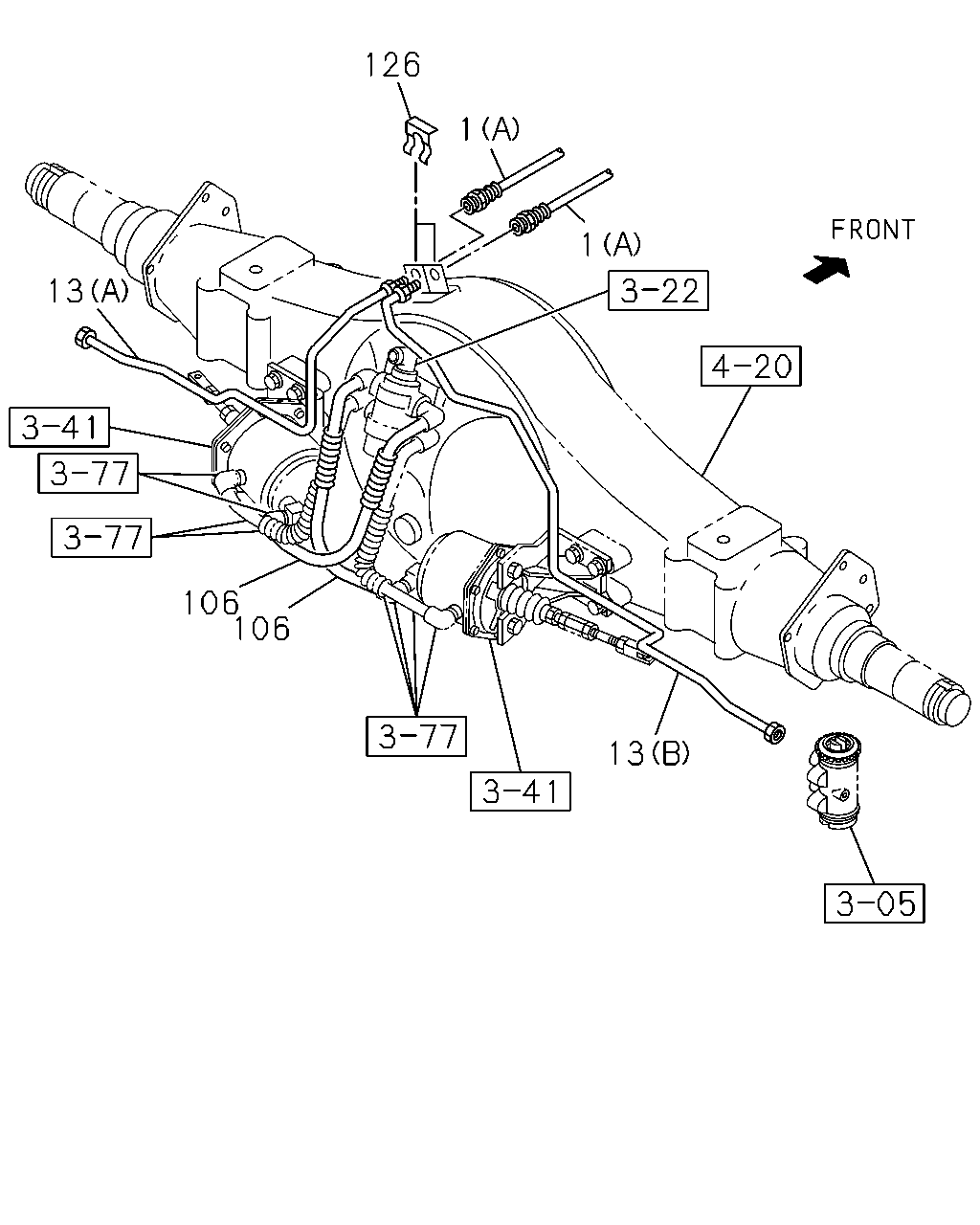

106	TUBE; NYLON	8-98061-971-0	02	1	0803-0808
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	0809-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	0803-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	0803-

13 1 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480	8-98172-789-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520	8-98175-918-0	01	1	1012-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) (A) L=320	8-98067-397-0	02	1	0803-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	0803-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	0803-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1012-
12	BOLT; FLEX HOSE TO RR AXLE EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	0902-1011
12	BOLT; FLEX HOSE TO RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	1012-
12	BOLT; FLEX HOSE TO RR AXLE EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	0803-0803
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> (F) RH LINE L=675	1-47427-105-0	01	1	1012-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> (E) LH LINE L=847	1-47427-106-0	01	1	1012-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030	8-98281-559-0	01	1	1410-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98059-741-0	01	1	0809-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98059-742-0	01	1	0809-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE L=1115	8-98071-761-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115	8-98071-761-0	01	1	1012-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE L=738	8-98071-762-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738	8-98071-762-0	01	1	1012-
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98073-530-0	01	1	0803-0803
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98107-928-0	01	1	0804-0804
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (B) RH LINE	8-98107-928-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98107-928-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (B) RH LINE	8-98107-928-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98107-928-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98073-531-0	01	1	0803-0803
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98107-929-0	01	1	0804-0804
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (A) LH LINE	8-98107-929-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98107-929-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) (A) LH LINE	8-98107-929-0	01	1	0806-0808
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98107-929-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	0805-0805
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	0805-0805

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
