3-52 — BRAKE PIPING; OIL,FRONT (#67454) — 79 parça

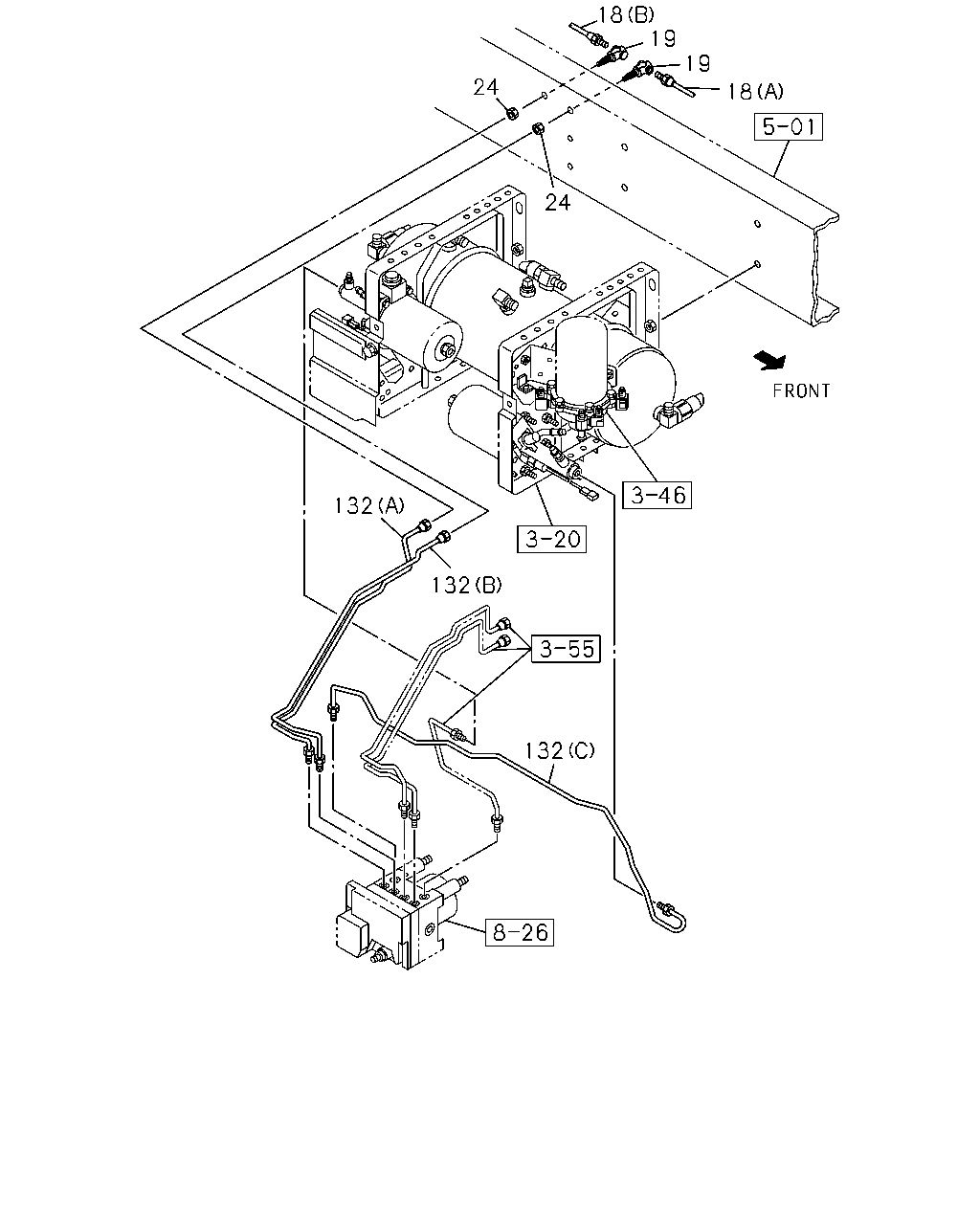

18 19 18 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=3162	8-98113-896-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3122	8-98078-160-0	01	1	0803-0803
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122	8-98078-160-0	01	1	0803-
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5)	8-98113-738-0	01	1	0803-
19	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	0803-0803
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	0803-
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0803-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0803-0803
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=621	8-98011-941-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0804-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0803-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0803-
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1464	8-98113-766-0	01	1	0803-0811
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	0812-
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0803-0803

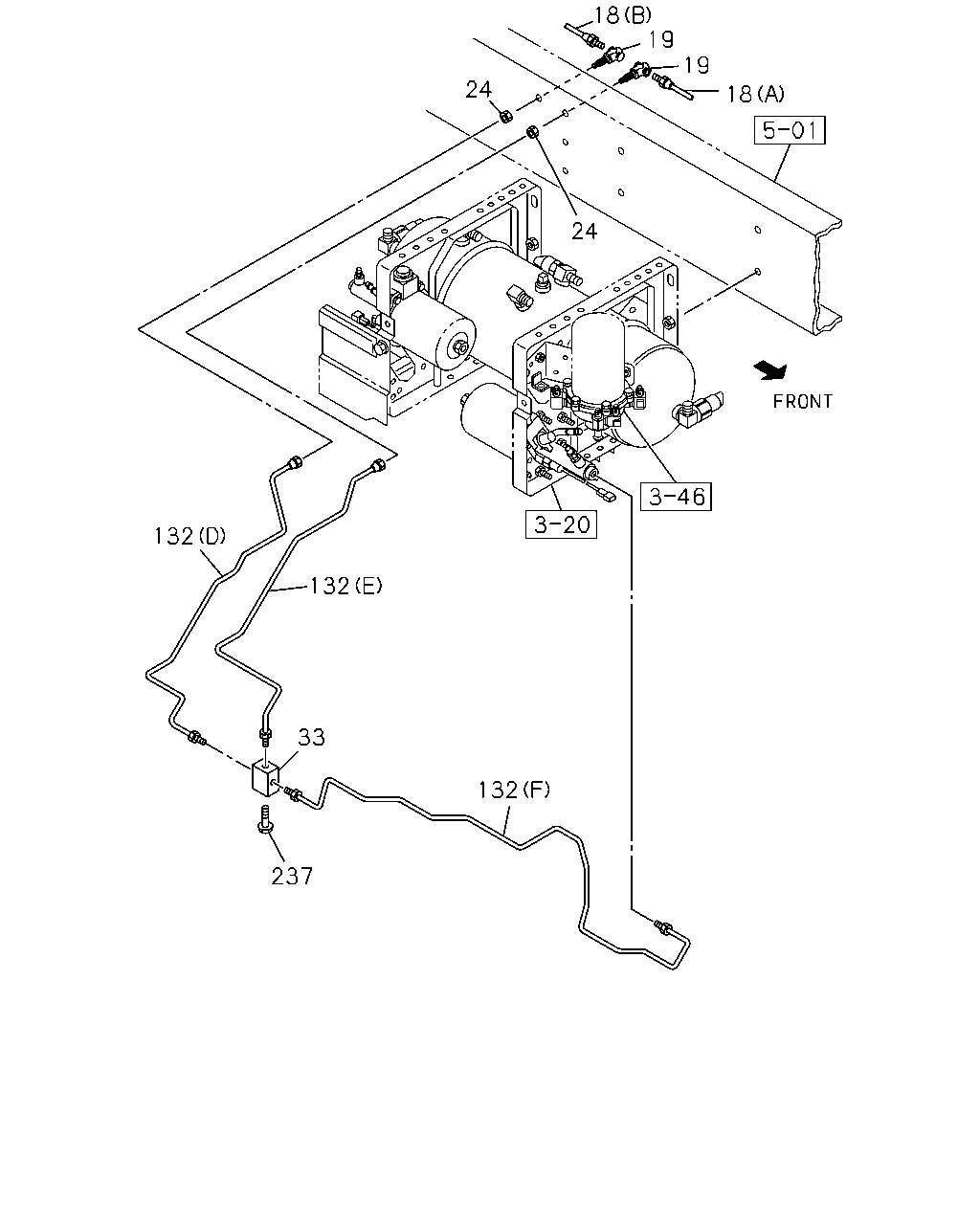

18 19 19 24 18 24 132 132 33 132 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=3162	8-98113-896-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3122	8-98078-160-0	01	1	0803-0803
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122	8-98078-160-0	01	1	0803-
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5)	8-98113-738-0	01	1	0803-
19	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	0803-0803
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	0803-
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0803-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0803-0803
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-
33	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5)	8-97314-636-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=621	8-98011-941-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0804-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0803-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0803-
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1464	8-98113-766-0	01	1	0803-0811
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	0812-
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0803-0803
237	BOLT; UNION EXC. ANTI LOCK BRAKE(JE5) M8X10 FLANGE	0-28050-810-0	01	1	0803-0803

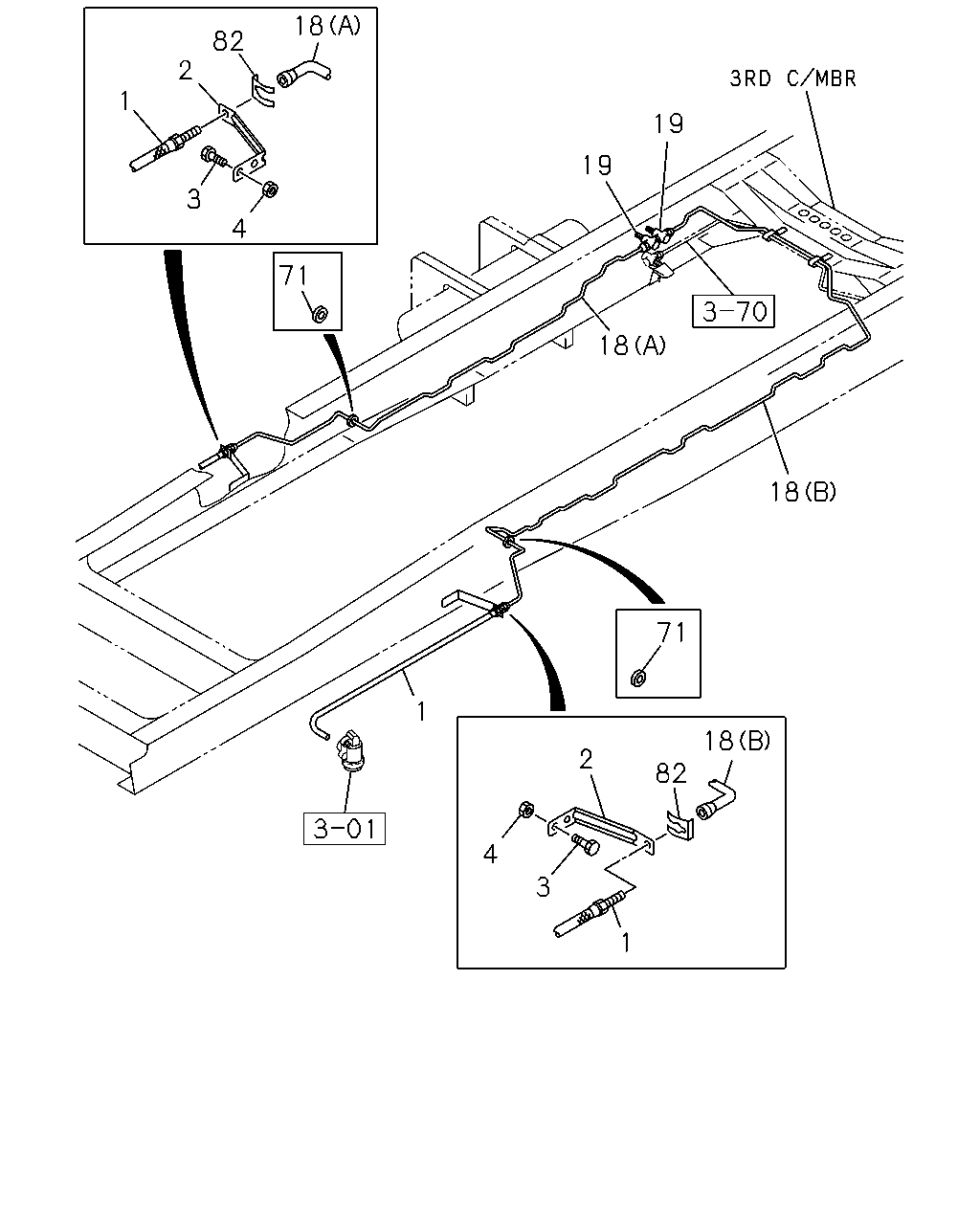

18 82 2 1 19 19 3 4 71 18 18 71 1 18 2 82 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	02	1	1012-
1	HOSE; FLEX,FRT BRK L=640	8-98085-202-0	02	1	0803-1011
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=640	8-98085-202-0	02	1	1012-1109
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98202-875-0	02	1	1110-1211
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98232-626-0	02	1	1212-
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-947-1	02	1	0803-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X20 FLANGE	0-28650-820-0	02	1	0803-0805
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0803-0805
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0806-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0907-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-0803
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=3162	8-98113-896-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3122	8-98078-160-0	01	1	0803-0803
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122	8-98078-160-0	01	1	0803-
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5)	8-98113-738-0	01	1	0803-
19	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	0803-0803
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	0803-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0803-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0803-

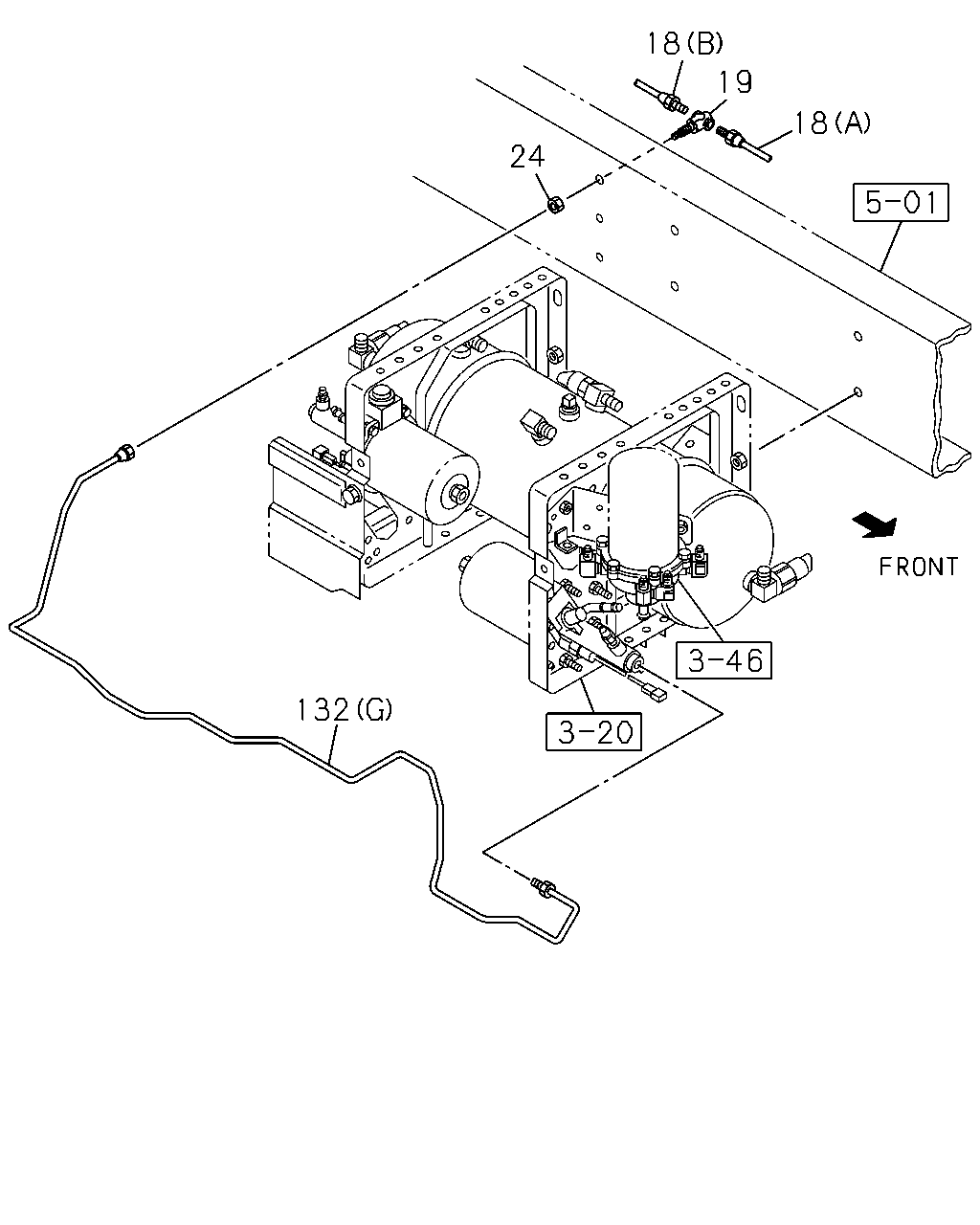

18 19 19 24 18 24 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=3162	8-98113-896-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3122	8-98078-160-0	01	1	0803-0803
18	PIPE; OIL,UNION TO FRT FLEX HOSE ANTI LOCK BRAKE(JE5) (B) LH LINE L=3122	8-98078-160-0	01	1	0803-
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5)	8-98113-738-0	01	1	0803-
19	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	0803-0803
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	0803-
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	0803-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0803-0803
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	0803-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=621	8-98011-941-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=625	8-98116-095-0	01	1	0804-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	0803-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	0803-
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662	8-98057-350-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1464	8-98113-766-0	01	1	0803-0811
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (G) L=1467	8-98135-796-0	01	1	0812-
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (F) L=886	8-98084-323-0	01	1	0803-0803
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662	8-98095-078-0	01	1	0803-0803
