Sayfa 3-46 - Isuzu EPC

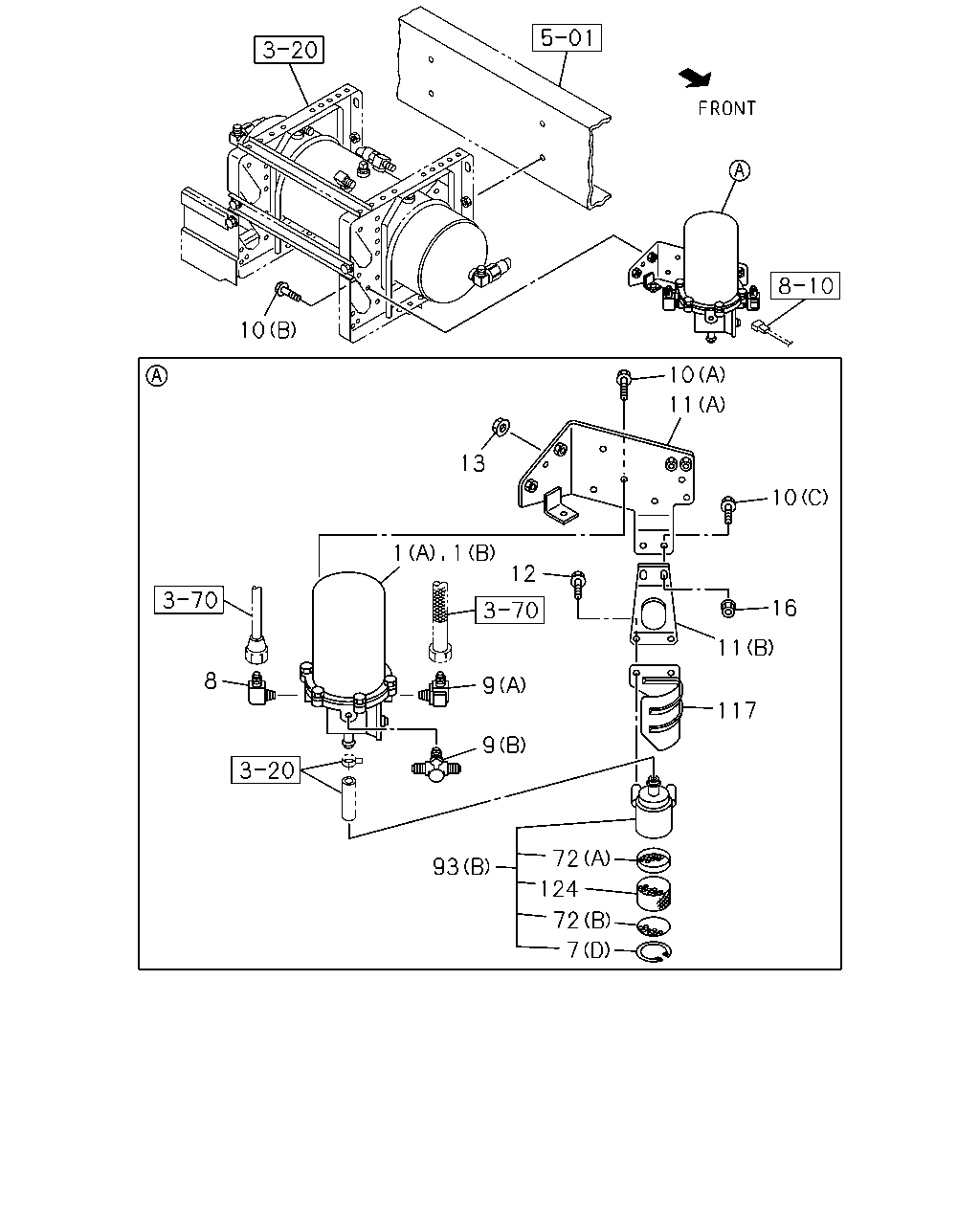

3-46 — AIR DRYER (#67453) — 384 parça

10 10 11 13 10 1 1 12 16 11 8 9 117 9 72 93 124 72 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-210-1	01	1	0809-1107
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48190-210-1	01	1	1108-
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48190-215-1	01	1	0809-1107
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48190-215-1	01	1	1108-
1	DRYER; AIR EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48190-369-2	01	1	0809-1107
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-48190-369-2	01	1	1108-1211
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	8-98225-289-0	01	1	1212-
1	DRYER; AIR (A)	1-48190-370-2	01	1	0803-0808
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-48190-370-2	01	1	0809-1107
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48190-370-2	01	1	1108-1211
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-285-0	01	1	1212-
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-403-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-403-0	01	1	1108-
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (C)	1-48199-520-0	02	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1108-
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-529-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1108-
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-579-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1108-
8	CONNECTOR; OUT,AIR DRYER TIRE INFLATOR DEVICE<SG4>	1-09656-676-0	01	1	0803-0811
8	CONNECTOR; OUT,AIR DRYER EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4>	1-09656-676-0	01	1	0812-1107
8	CONNECTOR; OUT,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09656-676-0	01	1	1108-
8	CONNECTOR; OUT,AIR DRYER M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0803-0803
8	CONNECTOR; OUT,AIR DRYER EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0803-0811
8	CONNECTOR; OUT,AIR DRYER EURO4 SPECIFICATION<NT4> EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0812-1107
8	CONNECTOR; OUT,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0812-1107
8	CONNECTOR; OUT,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1108-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1108-
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0809-1107
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1108-
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0809-1107
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1108-
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0803-0808
9	CONNECTOR; PIPE,AIR DRYER EURO4 SPECIFICATION<NT4> (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0809-1107
9	CONNECTOR; PIPE,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1108-
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	0810-1107
10	BOLT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE	0-28051-020-0	03	1	1108-
10	BOLT; AIR DRYER (B) M8X20 FLANGE	0-28050-820-0	02	1	0803-0808
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M8X20 FLANGE	0-28050-820-0	02	1	0809-0811
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28050-820-0	02	1	0809-0811
10	BOLT; AIR DRYER (B) M8X20 FLANGE	0-28050-820-0	02	1	0812-1005
10	BOLT; AIR DRYER (B) M8X20 FLANGE	0-28050-820-0	02	1	1006-
10	BOLT; AIR DRYER (A) M10X25 FLANGE	0-28051-025-0	03	1	0803-0808
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X25 FLANGE	0-28051-025-0	03	1	0809-0809
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (A) M10X25 FLANGE	0-28051-025-0	03	1	0809-0809
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (A) M10X25 FLANGE	0-28051-025-0	03	1	0810-1107
10	BOLT; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE	0-28051-025-0	03	1	1108-
10	BOLT; AIR DRYER (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0803-0808
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0809-1107
10	BOLT; AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	1108-
10	BOLT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	1108-
11	BRACKET; AIR DRYER (B)	8-98039-092-0	01	1	0803-0808
11	BRACKET; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	8-98039-092-0	01	1	0809-1107
11	BRACKET; AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	8-98039-092-0	01	1	1108-
11	BRACKET; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98039-092-0	01	1	1108-
11	BRACKET; AIR DRYER (A)	8-98044-548-3	01	1	0803-0808
11	BRACKET; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98044-548-4	01	1	0809-1107
11	BRACKET; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	8-98044-548-4	01	1	0809-1107
11	BRACKET; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	8-98044-548-4	01	1	1108-
11	BRACKET; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98044-548-4	01	1	1108-
12	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-0808
12	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-1107
12	BOLT; BRKT BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1108-
12	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	02	1	1108-
13	NUT; AIR DRYER M8 FLANGE	0-91180-108-0	02	1	0803-0808
13	NUT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	02	1	0809-0811
13	NUT; AIR DRYER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-0811
13	NUT; AIR DRYER M8 FLANGE	0-91180-108-0	02	1	0812-1005
13	NUT; AIR DRYER M8 FLANGE	0-91180-108-0	02	1	1006-
16	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0808
16	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-1107
16	NUT; BRKT BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1108-
16	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1108-
72	PLATE; FILTER,AIR DRYER (A)	1-48199-585-0	01	1	0803-0808
72	PLATE; FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-585-0	01	1	0809-1107
72	PLATE; FILTER,AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-48199-585-0	01	1	1108-
72	PLATE; FILTER,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-585-0	01	1	1108-
72	PLATE; FILTER,AIR DRYER (B)	1-48199-602-0	01	1	0803-0808
72	PLATE; FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-602-0	01	1	0809-1107
72	PLATE; FILTER,AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-48199-602-0	01	1	1108-
72	PLATE; FILTER,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-602-0	01	1	1108-
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	0803-0808
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-619-0	01	1	0809-1107
93	SILENCER; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-619-0	01	1	1108-
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0803-0808
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-581-0	01	1	0809-1107
93	SILENCER; AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-48199-581-0	01	1	1108-
93	SILENCER; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-581-0	01	1	1108-
117	COVER; SILENCER	8-98065-972-1	01	1	0803-0808
117	COVER; SILENCER EURO4 SPECIFICATION<NT4>	8-98065-972-1	01	1	0809-1107
117	COVER; SILENCER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>	8-98065-972-1	01	1	1108-
117	COVER; SILENCER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>	8-98065-972-1	01	1	1108-
124	FILTER; SILENCER	1-48199-465-0	01	1	0803-0808
124	FILTER; SILENCER EURO4 SPECIFICATION<NT4>	1-48199-465-0	01	1	0809-1107
124	FILTER; SILENCER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>	1-48199-465-0	01	1	1108-
124	FILTER; SILENCER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-465-0	01	1	1108-

1 1 81 84 84 75 76 109 7 93 78 5 84 112 7 111 110 113 114 70 65 7 7 104 104 68 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-210-1	01	1	0809-1107
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48190-210-1	01	1	1108-
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48190-215-1	01	1	0809-1107
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48190-215-1	01	1	1108-
1	DRYER; AIR EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48190-369-2	01	1	0809-1107
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-48190-369-2	01	1	1108-1211
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	8-98225-289-0	01	1	1212-
1	DRYER; AIR (A)	1-48190-370-2	01	1	0803-0808
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-48190-370-2	01	1	0809-1107
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48190-370-2	01	1	1108-1211
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-285-0	01	1	1212-
5	HEATER ASM; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-085-0	01	1	0809-1107
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	01	1	1108-
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0803-0808
5	HEATER ASM; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-530-0	01	1	0809-1107
5	HEATER ASM; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1108-
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-403-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-403-0	01	1	1108-
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (C)	1-48199-520-0	02	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1108-
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-529-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1108-
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-579-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1108-
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0809-1107
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1108-
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0803-0808
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> (A)	1-48199-517-0	01	1	0809-1107
65	BOLT; PURGE VLV EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1108-
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-408-0	01	1	0809-1107
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-408-0	01	1	1108-
68	BODY; VALVE (A)	1-48199-515-0	01	1	0803-0808
68	BODY; VALVE EURO4 SPECIFICATION<NT4> (A)	1-48199-515-0	01	1	0809-1107
68	BODY; VALVE EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1108-
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0809-1107
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1108-
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0803-0808
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-504-0	01	1	0809-1107
70	VALVE; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1108-
75	COVER; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	0809-1107
75	COVER; CASE,AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	0809-1107
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	1108-
75	COVER; CASE,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>	1-48199-395-0	01	1	1108-
75	COVER; CASE,AIR DRYER	1-48199-427-0	01	1	0803-0808
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-427-0	01	1	0809-1107
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4>	1-48199-427-0	01	1	0809-1107
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-427-0	01	1	1108-
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-427-0	01	1	1108-
76	BOLT; COVER,AIR DRYER	1-48199-412-0	04	1	0803-0808
76	BOLT; COVER,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-412-0	04	1	0809-1107
76	BOLT; COVER,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-412-0	04	1	1108-
78	BOLT; OIL FILTER,AIR DRYER	1-48199-417-0	04	1	0803-0808
78	BOLT; OIL FILTER,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-417-0	04	1	0809-1107
78	BOLT; OIL FILTER,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-417-0	04	1	1108-
81	BOLT; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-365-0	06	1	0809-1107
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-365-0	06	1	1108-
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0803-0808
81	BOLT; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-436-0	06	1	0809-1107
81	BOLT; CASE,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-436-0	06	1	0809-1107
81	BOLT; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-436-0	06	1	1108-
81	BOLT; CASE,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-436-0	06	1	1108-
84	SPRING; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48199-396-0	01	1	0809-1107
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48199-396-0	01	1	0809-1107
84	SPRING; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48199-396-0	01	1	1108-
84	SPRING; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (C)	1-48199-396-0	01	1	1108-
84	SPRING; AIR DRYER (A)	1-48199-425-0	01	1	0803-0808
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-425-0	01	1	0809-1107
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-48199-425-0	01	1	0809-1107
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48199-425-0	01	1	1108-
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-425-0	01	1	1108-
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0803-0808
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-523-0	01	1	0809-1107
84	SPRING; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1108-
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	0803-0808
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-619-0	01	1	0809-1107
93	SILENCER; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-619-0	01	1	1108-
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0803-0808
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-581-0	01	1	0809-1107
93	SILENCER; AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-48199-581-0	01	1	1108-
93	SILENCER; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-581-0	01	1	1108-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	01	1	1212-
104	GASKET (A)	1-48199-495-0	01	1	0803-0808
104	GASKET EURO4 SPECIFICATION<NT4> (A)	1-48199-495-0	01	1	0809-1107
104	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-495-0	01	1	1108-1211
104	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1212-
104	GASKET (B)	1-48199-496-0	02	1	0803-0808
104	GASKET EURO4 SPECIFICATION<NT4> (B)	1-48199-496-0	02	1	0809-1107
104	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1108-1211
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1212-
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	0803-0808
109	STOPPER; CHECK VALVE EURO4 SPECIFICATION<NT4>	1-48199-539-0	01	1	0809-1107
109	STOPPER; CHECK VALVE EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-539-0	01	1	1108-
110	NUT; CAP	1-48199-527-0	01	1	0803-0808
110	NUT; CAP EURO4 SPECIFICATION<NT4>	1-48199-527-0	01	1	0809-1107
110	NUT; CAP EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-527-0	01	1	1108-
111	PLATE; GOVERNOR	1-48199-526-0	01	1	0803-0808
111	PLATE; GOVERNOR EURO4 SPECIFICATION<NT4>	1-48199-526-0	01	1	0809-1107
111	PLATE; GOVERNOR EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-526-0	01	1	1108-
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	0803-0808
112	SCREW & SPRING ASM; AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-524-0	01	1	0809-1107
112	SCREW & SPRING ASM; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-524-0	01	1	1108-
113	STEM; EXHAUST	1-48199-522-0	01	1	0803-0808
113	STEM; EXHAUST EURO4 SPECIFICATION<NT4>	1-48199-522-0	01	1	0809-1107
113	STEM; EXHAUST EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-522-0	01	1	1108-
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	0803-0808
114	PISTON ASM; GOVERNOR EURO4 SPECIFICATION<NT4>	1-48199-521-0	01	1	0809-1107
114	PISTON ASM; GOVERNOR EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-521-0	01	1	1108-

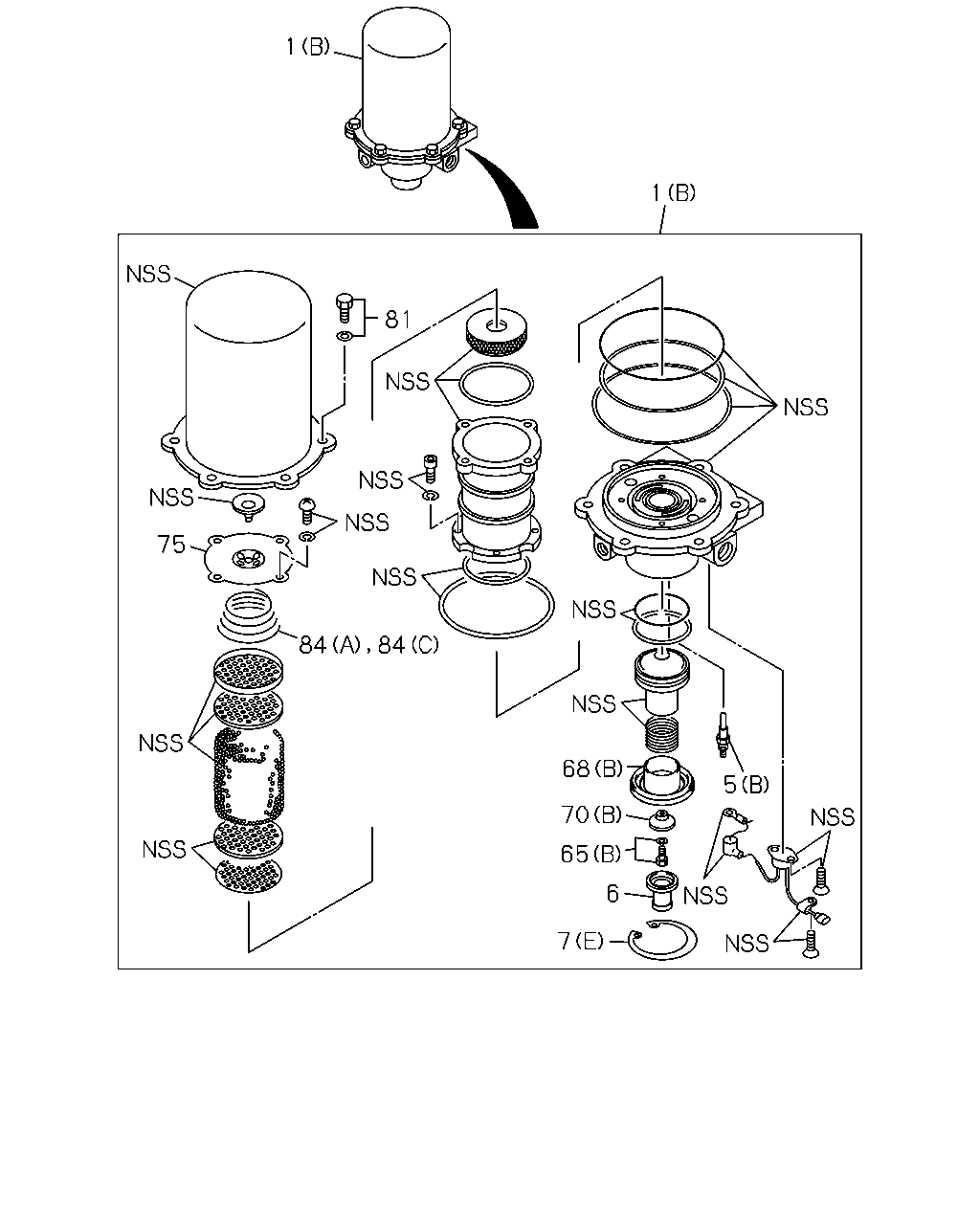

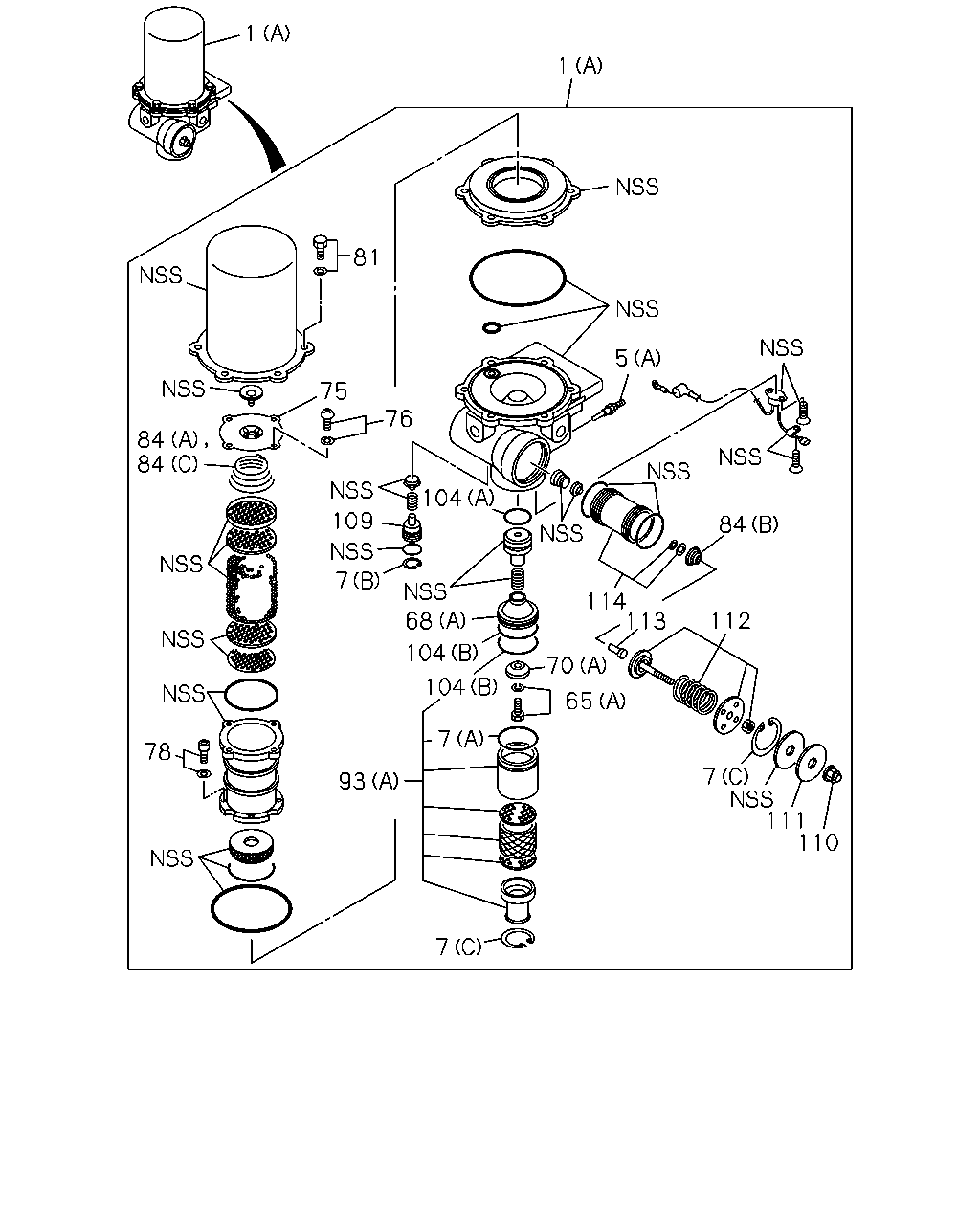

1 1 81 75 84 84 68 5 70 65 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-210-1	01	1	0809-1107
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48190-210-1	01	1	1108-
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48190-215-1	01	1	0809-1107
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48190-215-1	01	1	1108-
1	DRYER; AIR EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48190-369-2	01	1	0809-1107
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-48190-369-2	01	1	1108-1211
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	8-98225-289-0	01	1	1212-
1	DRYER; AIR (A)	1-48190-370-2	01	1	0803-0808
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-48190-370-2	01	1	0809-1107
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48190-370-2	01	1	1108-1211
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98225-285-0	01	1	1212-
5	HEATER ASM; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-085-0	01	1	0809-1107
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-085-0	01	1	1108-
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0803-0808
5	HEATER ASM; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-530-0	01	1	0809-1107
5	HEATER ASM; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-530-0	01	1	1108-
6	COVER; EXH,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-404-0	01	1	0809-1107
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-404-0	01	1	1108-
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-403-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	1-48199-403-0	01	1	1108-
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-47769-017-0	01	1	1108-
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (C)	1-48199-520-0	02	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48199-520-0	02	1	1108-
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-529-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-529-0	01	1	1108-
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0803-0808
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-579-0	01	1	0809-1107
7	RING; SNAP,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-579-0	01	1	1108-
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0809-1107
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1108-
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0803-0808
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> (A)	1-48199-517-0	01	1	0809-1107
65	BOLT; PURGE VLV EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1108-
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-408-0	01	1	0809-1107
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-408-0	01	1	1108-
68	BODY; VALVE (A)	1-48199-515-0	01	1	0803-0808
68	BODY; VALVE EURO4 SPECIFICATION<NT4> (A)	1-48199-515-0	01	1	0809-1107
68	BODY; VALVE EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1108-
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0809-1107
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1108-
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0803-0808
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-504-0	01	1	0809-1107
70	VALVE; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1108-
75	COVER; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	0809-1107
75	COVER; CASE,AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	0809-1107
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	1108-
75	COVER; CASE,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>	1-48199-395-0	01	1	1108-
75	COVER; CASE,AIR DRYER	1-48199-427-0	01	1	0803-0808
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-427-0	01	1	0809-1107
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4>	1-48199-427-0	01	1	0809-1107
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-427-0	01	1	1108-
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-427-0	01	1	1108-
81	BOLT; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-365-0	06	1	0809-1107
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-365-0	06	1	1108-
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0803-0808
81	BOLT; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-436-0	06	1	0809-1107
81	BOLT; CASE,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-436-0	06	1	0809-1107
81	BOLT; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T>	1-48199-436-0	06	1	1108-
81	BOLT; CASE,AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T>	1-48199-436-0	06	1	1108-
84	SPRING; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48199-396-0	01	1	0809-1107
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48199-396-0	01	1	0809-1107
84	SPRING; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48199-396-0	01	1	1108-
84	SPRING; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (C)	1-48199-396-0	01	1	1108-
84	SPRING; AIR DRYER (A)	1-48199-425-0	01	1	0803-0808
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-425-0	01	1	0809-1107
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-48199-425-0	01	1	0809-1107
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48199-425-0	01	1	1108-
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-425-0	01	1	1108-
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0803-0808
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-523-0	01	1	0809-1107
84	SPRING; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-523-0	01	1	1108-

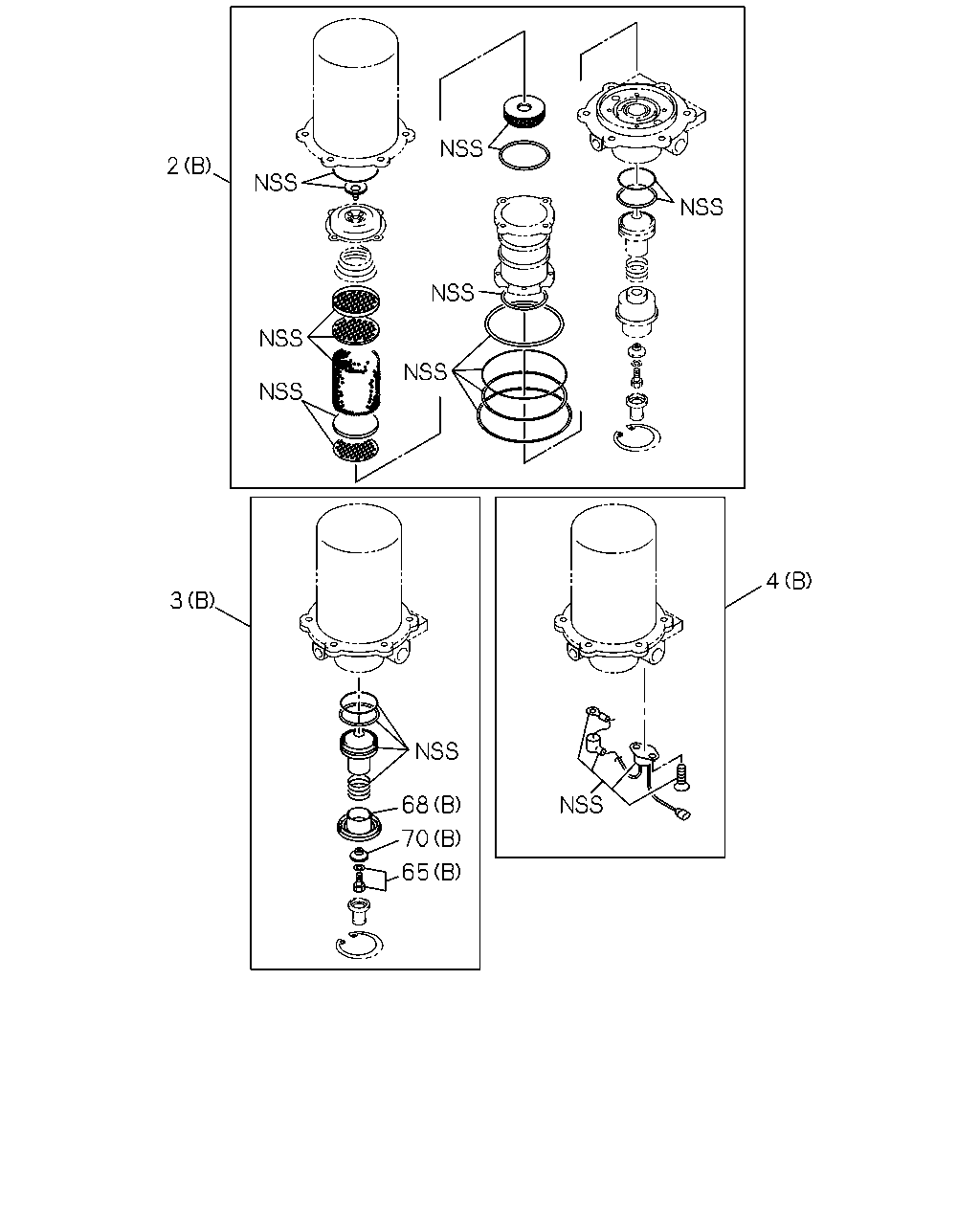

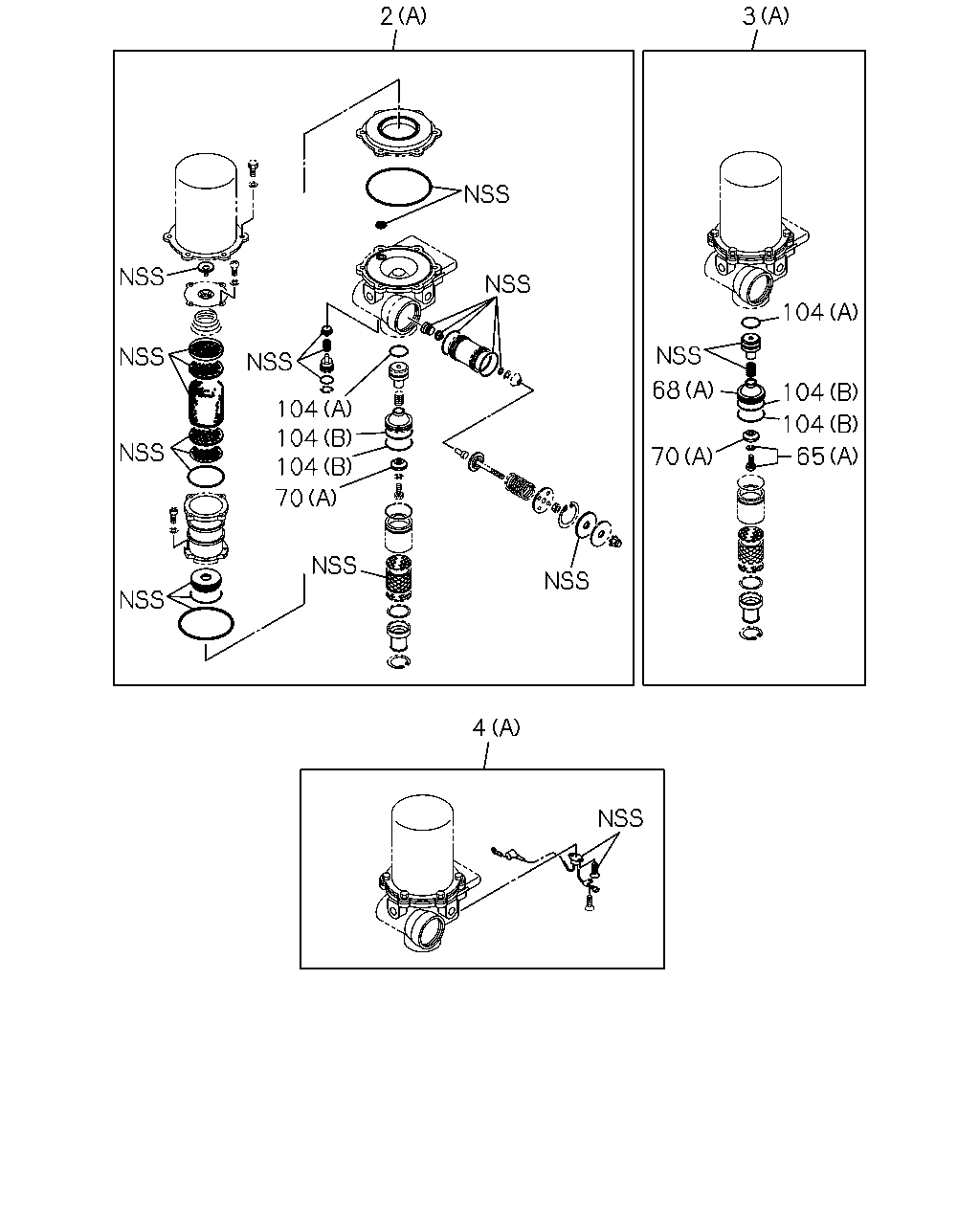

2 3 104 68 104 104 104 104 104 65 70 70 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-217-0	01	1	0809-1107
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-217-0	01	1	1108-
2	REPAIR KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-194-0	01	1	0809-1107
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-194-0	01	1	1108-
2	REPAIR KIT; AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-85576-456-0	01	1	0809-1107
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-85576-456-0	01	1	1108-1211
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	8-98226-326-0	01	1	1212-
2	REPAIR KIT; AIR DRYER (A)	1-85576-457-0	01	1	0803-0808
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-85576-457-0	01	1	0809-1107
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-457-0	01	1	1108-1211
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-323-0	01	1	1212-
3	PISTON KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-193-0	01	1	0809-1107
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-193-0	01	1	1108-
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0803-0808
3	PISTON KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-85576-383-0	01	1	0809-1107
3	PISTON KIT; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-383-0	01	1	1108-1211
3	PISTON KIT; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1212-
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-218-0	01	1	0809-1107
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-218-0	01	1	1108-
4	THERMOSTAT KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-213-0	01	1	0809-1107
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-213-0	01	1	1108-
4	THERMOSTAT KIT; AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-85576-386-0	01	1	0809-1107
4	THERMOSTAT KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-85576-386-0	01	1	1108-
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-443-0	01	1	0803-0808
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-85576-443-0	01	1	0809-1107
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-443-0	01	1	1108-
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0809-1107
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1108-
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0803-0808
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> (A)	1-48199-517-0	01	1	0809-1107
65	BOLT; PURGE VLV EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1108-
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-408-0	01	1	0809-1107
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-408-0	01	1	1108-
68	BODY; VALVE (A)	1-48199-515-0	01	1	0803-0808
68	BODY; VALVE EURO4 SPECIFICATION<NT4> (A)	1-48199-515-0	01	1	0809-1107
68	BODY; VALVE EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1108-
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0809-1107
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1108-
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0803-0808
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-504-0	01	1	0809-1107
70	VALVE; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1108-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	01	1	1212-
104	GASKET (A)	1-48199-495-0	01	1	0803-0808
104	GASKET EURO4 SPECIFICATION<NT4> (A)	1-48199-495-0	01	1	0809-1107
104	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-495-0	01	1	1108-1211
104	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-321-0	01	1	1212-
104	GASKET (B)	1-48199-496-0	02	1	0803-0808
104	GASKET EURO4 SPECIFICATION<NT4> (B)	1-48199-496-0	02	1	0809-1107
104	GASKET EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1108-1211
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48199-496-0	02	1	1212-

2 4 3 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-217-0	01	1	0809-1107
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-217-0	01	1	1108-
2	REPAIR KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-194-0	01	1	0809-1107
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-194-0	01	1	1108-
2	REPAIR KIT; AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-85576-456-0	01	1	0809-1107
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-85576-456-0	01	1	1108-1211
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	8-98226-326-0	01	1	1212-
2	REPAIR KIT; AIR DRYER (A)	1-85576-457-0	01	1	0803-0808
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-85576-457-0	01	1	0809-1107
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-457-0	01	1	1108-1211
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-323-0	01	1	1212-
3	PISTON KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-193-0	01	1	0809-1107
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-193-0	01	1	1108-
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0803-0808
3	PISTON KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-85576-383-0	01	1	0809-1107
3	PISTON KIT; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-383-0	01	1	1108-1211
3	PISTON KIT; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-322-0	01	1	1212-
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-218-0	01	1	0809-1107
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-85576-218-0	01	1	1108-
4	THERMOSTAT KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-213-0	01	1	0809-1107
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-85576-213-0	01	1	1108-
4	THERMOSTAT KIT; AIR DRYER EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-85576-386-0	01	1	0809-1107
4	THERMOSTAT KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A)	1-85576-386-0	01	1	1108-
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-443-0	01	1	0803-0808
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A)	1-85576-443-0	01	1	0809-1107
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-85576-443-0	01	1	1108-
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0809-1107
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-393-0	01	1	1108-
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0803-0808
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> (A)	1-48199-517-0	01	1	0809-1107
65	BOLT; PURGE VLV EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-517-0	01	1	1108-
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-408-0	01	1	0809-1107
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-408-0	01	1	1108-
68	BODY; VALVE (A)	1-48199-515-0	01	1	0803-0808
68	BODY; VALVE EURO4 SPECIFICATION<NT4> (A)	1-48199-515-0	01	1	0809-1107
68	BODY; VALVE EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-515-0	01	1	1108-
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0809-1107
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B)	1-48199-105-0	01	1	1108-
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0803-0808
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-504-0	01	1	0809-1107
70	VALVE; AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48199-504-0	01	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
