Isuzu WW
▶
TRUCKS
▶
FRR
▶
11120 - FRR-L EU2/4 EXC.SPAC
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#67449) — 69 parça
◀

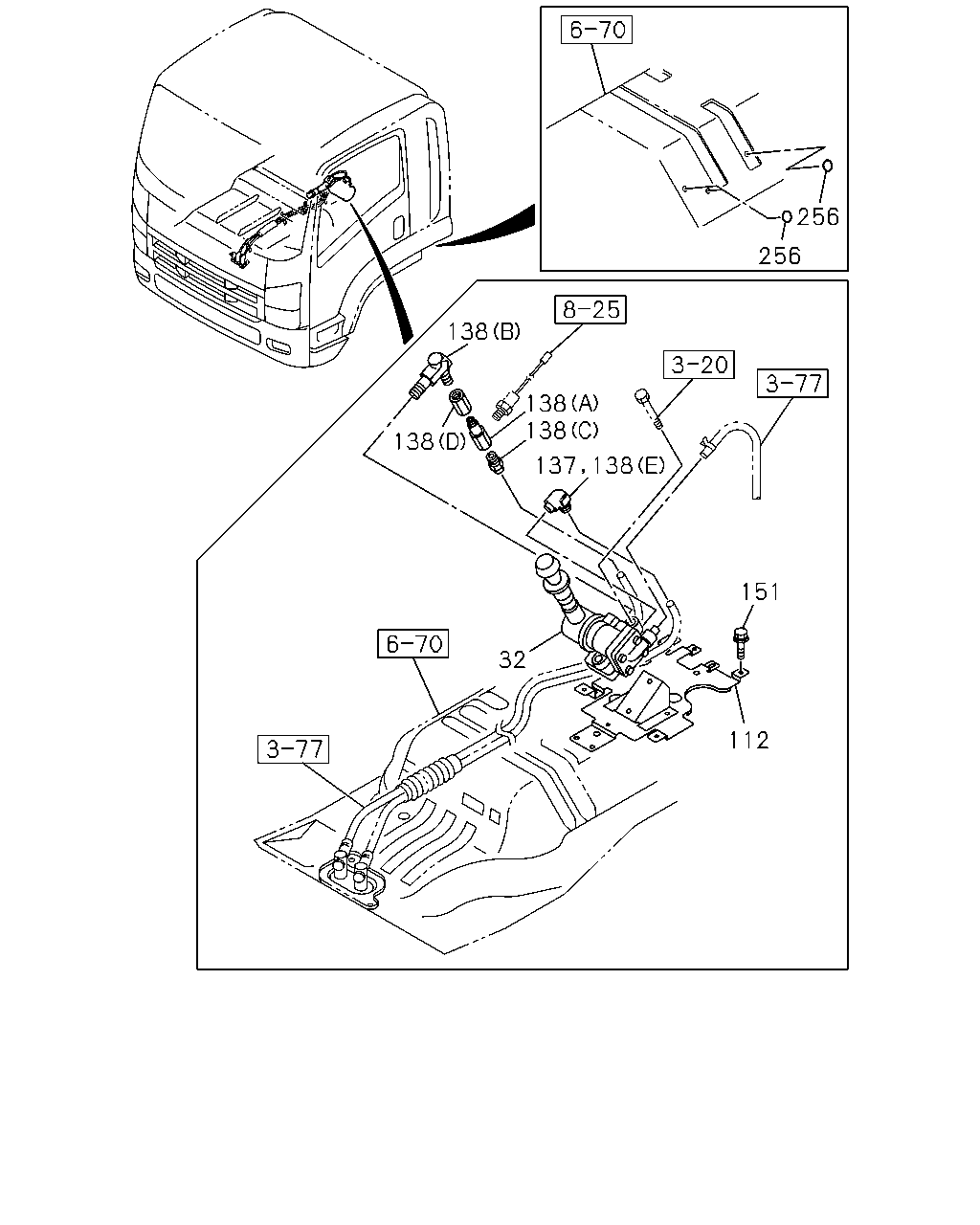

[326A] FIXING (19 parça)
[326A] COMPONENT AND REPAIR KIT (50 parça)
▶
256
256
138
138
138
138
151
32
112
137
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0803-0808
32
VALVE; BRK,HAND CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48460-306-0
01
1
0809-
112
BRACKET; CONT VLV
8-98098-703-0
01
1
0803-0808
112
BRACKET; CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98098-703-0
01
1
0809-
137
CONNECTOR; SUPPLY
DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0803-0808
137
CONNECTOR; SUPPLY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0809-1101
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1102-
138
CONNECTOR; DELIVERY
(B) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
0803-0808
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
0809-
138
CONNECTOR; DELIVERY
(A) PT1/4X3 3WAY
1-09660-335-1
01
1
0803-0808
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4X3 3WAY
1-09660-335-1
01
1
0809-
138
CONNECTOR; DELIVERY
(D) M20 & RC1/4 STRAIGHT
1-09660-880-0
01
1
0803-0808
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M20 & RC1/4 STRAIGHT
1-09660-880-0
01
1
0809-
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0803-0808
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0809-
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
0803-0808
151
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16
0-52000-616-0
04
1
0809-
256
SEAL
OD=25 BLACK
1-76798-019-0
10
1
0803-0808
256
SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK
1-76798-019-0
10
1
0809-
51
32
52
53
54
55
54
36
37
34
38
39
40
41
42
43
35
3
44
46
50
48
49
45
47
164
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
0803-0808
3
REPAIR KIT; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-096-0
01
1
0809-
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0803-0808
32
VALVE; BRK,HAND CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48460-306-0
01
1
0809-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0803-0808
34
SHIM; CAM HOLDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-055-0
AR
1
0809-
35
HOLDER; CAM
1-48469-054-0
01
1
0803-0808
35
HOLDER; CAM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-054-0
01
1
0809-
36
RING; CAM
1-48469-056-0
01
1
0803-0808
36
RING; CAM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-056-0
01
1
0809-
37
GUIDE; CAM RING
1-48469-058-0
01
1
0803-0808
37
GUIDE; CAM RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-058-0
01
1
0809-
38
SEAT; EXH VLV
1-48469-057-0
01
1
0803-0808
38
SEAT; EXH VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-057-0
01
1
0809-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0803-0808
39
SPRING; RETURN,CAM RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-063-0
01
1
0809-
40
RING; SNAP
1-48469-067-0
01
1
0803-0808
40
RING; SNAP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-067-0
01
1
0809-
41
SEAT; FEED VLV
1-48469-066-0
01
1
0803-0808
41
SEAT; FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-066-0
01
1
0809-
42
VALVE; FEED
1-48469-065-0
01
1
0803-0808
42
VALVE; FEED
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-065-0
01
1
0809-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0803-0808
43
PISTON; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-064-0
01
1
0809-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
0803-0808
44
RING; SNAP,FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-068-0
02
1
0809-
45
SPRING; FEED VLV
1-48469-070-0
01
1
0803-0808
45
SPRING; FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-070-0
01
1
0809-
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
0803-0808
46
SPRING; MAIN,PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-089-0
01
1
0809-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0803-0808
47
SHIM; MAIN SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-072-0
AR
1
0809-
48
WASHER; COVER
1-48469-091-0
04
1
0803-0808
48
WASHER; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-091-0
04
1
0809-
49
SCREW; COVER
1-48469-092-0
04
1
0803-0808
49
SCREW; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-092-0
04
1
0809-
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
0803-0808
50
COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-090-0
01
1
0809-
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
0803-0808
51
HANDLE ASM; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-122-0
01
1
0809-
52
SCREW; HANDLE
1-48469-062-0
01
1
0803-0808
52
SCREW; HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-062-0
01
1
0809-
53
WASHER; HANDLE
1-48469-061-0
01
1
0803-0808
53
WASHER; HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-061-0
01
1
0809-
54
SEAT; SPRING
1-48469-082-0
02
1
0803-0808
54
SEAT; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-082-0
02
1
0809-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0803-0808
55
SPRING; RETURN,HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-059-0
01
1
0809-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0803-0808
164
GREASE; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-084-0
01
1
0809-
