3-22 — AIR CONTROL PARTS (#67448) — 148 parça

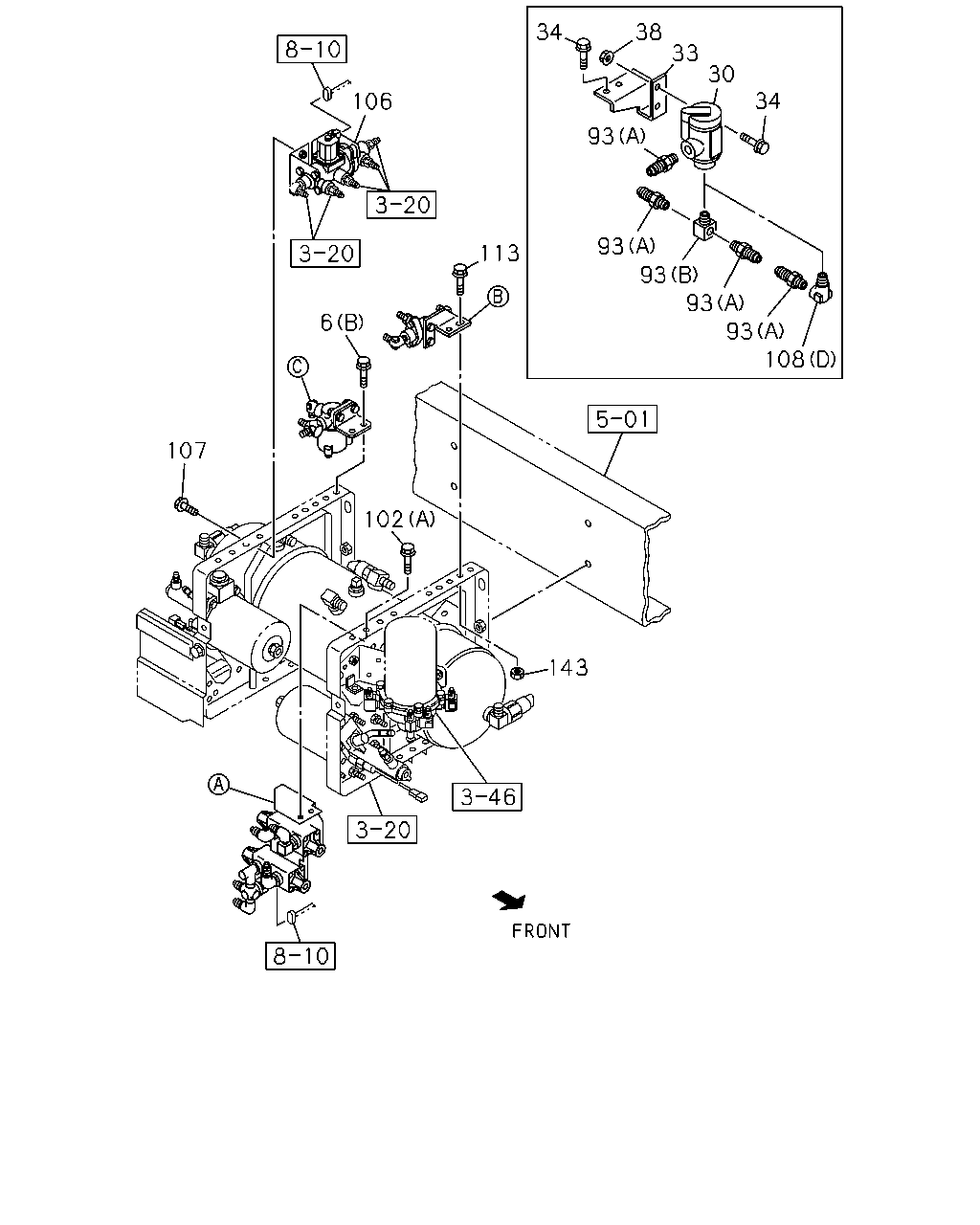

çizim 115709
34 38 33 30 34 106 93 93 113 93 93 93 6 108 107 102 143
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0803-
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
30 GOVERNOR; AIR CONT
EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 0812-1107
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1108-
33 BRACKET; GOV,AIR CONT
EURO2 SPECIFICATION<NT2> 		8-98133-401-0 01 1 0812-1107
33 BRACKET; GOV,AIR CONT
TURBO - CONVENTIONAL<Q5T> 		8-98133-401-0 01 1 1108-
34 BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 0812-1107
34 BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 0812-1107
34 BOLT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1108-
34 BOLT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1108-
38 NUT; BRKT,GOV
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 0812-1107
38 NUT; BRKT,GOV
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1108-
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0812-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1108-
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (B) 		1-09660-363-0 01 1 0812-1008
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1009-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY 		8-98166-517-0 01 1 1108-
93 CONNECTOR; GOV
EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0812-1107
93 CONNECTOR; GOV
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1108-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0803-
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0803-
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 0803-
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 0812-1107
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1108-
108 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0809-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0808
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0803-0808
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0809-
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0803-0808
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0809-
108 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0809-
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0809-
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0803-0808
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0809-
113 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE 		0-28650-820-0 02 1 0803-
143 NUT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0803-
çizim 116903
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV
EURO2 SPECIFICATION<NT2> 		1-85576-467-0 01 1 0812-1107
240 REPAIR KIT; AIR CONT GOV
TURBO - CONVENTIONAL<Q5T> 		1-85576-467-0 01 1 1108-

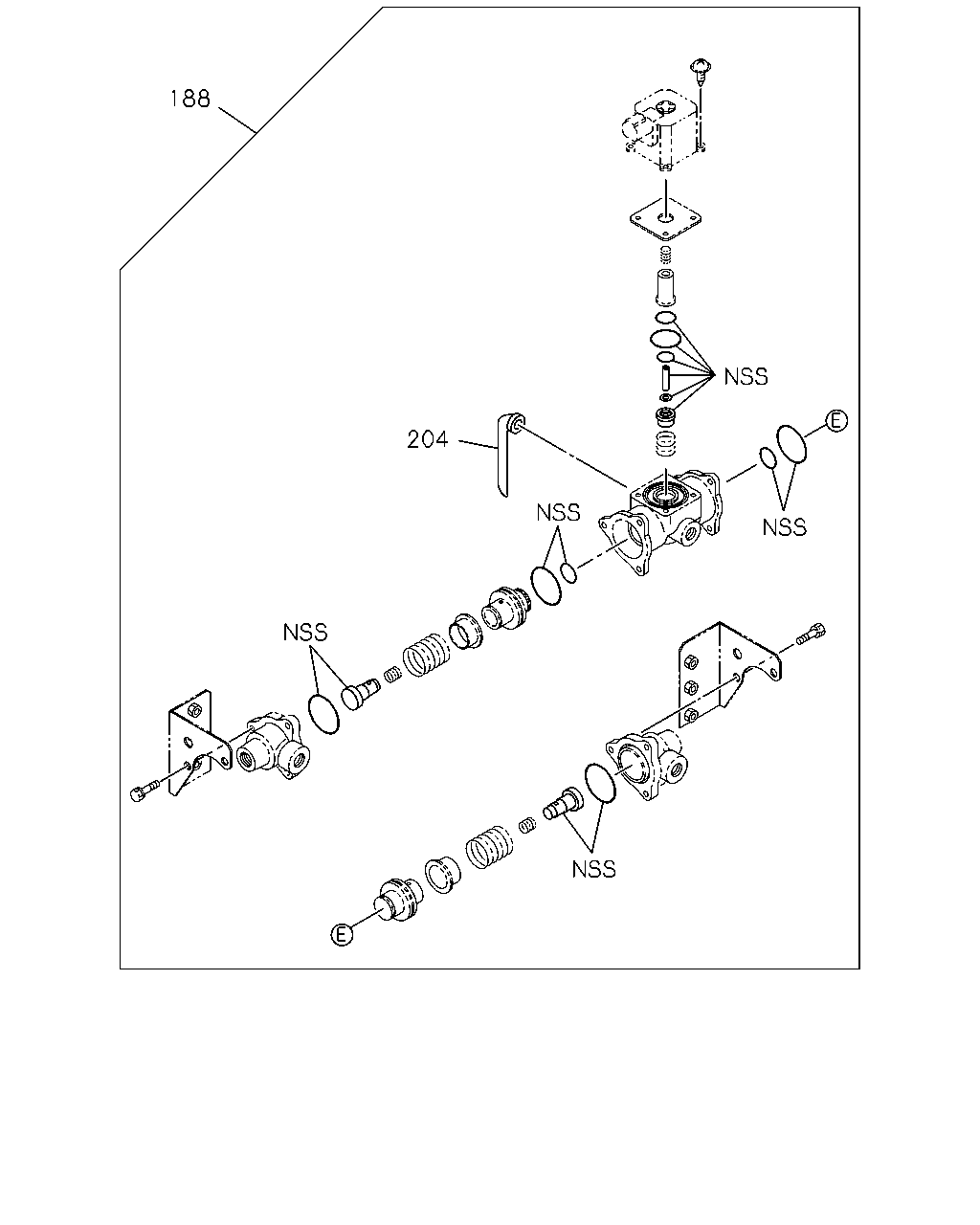

çizim 117081
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 0803-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0803-
çizim 117151
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0803-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0803-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0803-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0803-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0803-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0803-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0803-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0803-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0803-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0803-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0803-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0803-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0803-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0803-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0803-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0803-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0803-

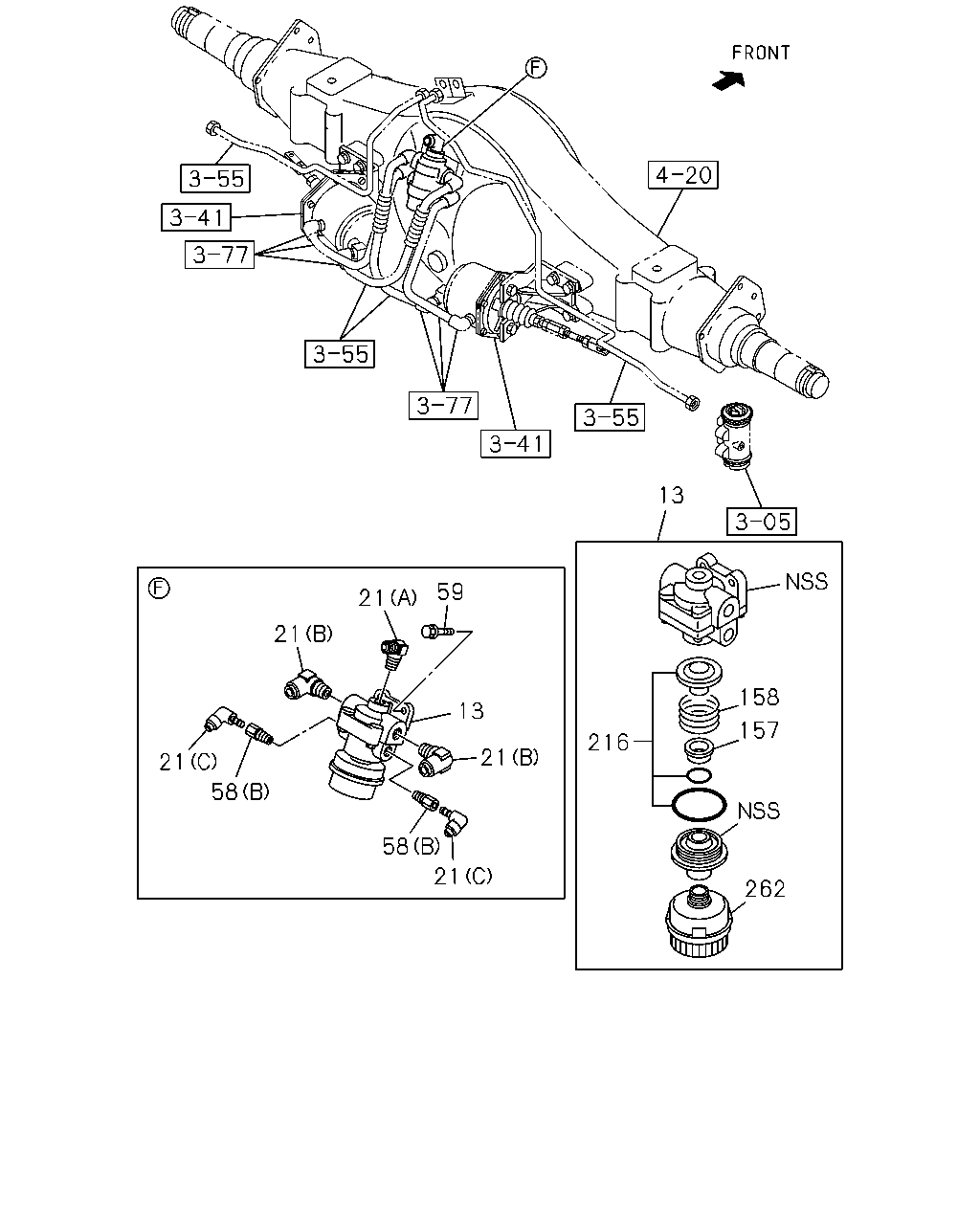

çizim 117197
13 158 157 262 216 21 13 59 21 21 58 21 21 58
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE
BRAKE REGULATION ECE(TDV) 		1-48410-781-2 01 1 0803-0808
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) 		1-48410-781-2 01 1 0809-
13 VALVE ASM; QUICK RELEASE
EXC. BRAKE REGULATION ECE(TDV) 		1-48410-783-0 01 1 0803-0808
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) 		1-48410-783-0 01 1 0809-
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0803-0808
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0809-
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0803-0808
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-
21 CONNECTOR; QUICK RELEASE VLV
(C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 0803-0808
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 0809-
58 ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
58 ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98035-011-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (D) 		1-09656-704-0 01 1 1204-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0803-
58 ADAPTER
(B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0803-0808
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0809-
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0808
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0906
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28050-820-0 02 1 0907-
157 RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) 		1-48419-036-0 01 1 0810-
158 SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) 		9-48419-003-0 01 1 0810-
216 REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) 		1-85579-062-0 01 1 0810-
262 SILENCER; RELAY VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) 		1-48219-149-0 01 1 0810-
çizim 193031
259
BalonParca AdiParca NoAdetTipApplied Date
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) 		1-85576-381-0 01 1 0803-

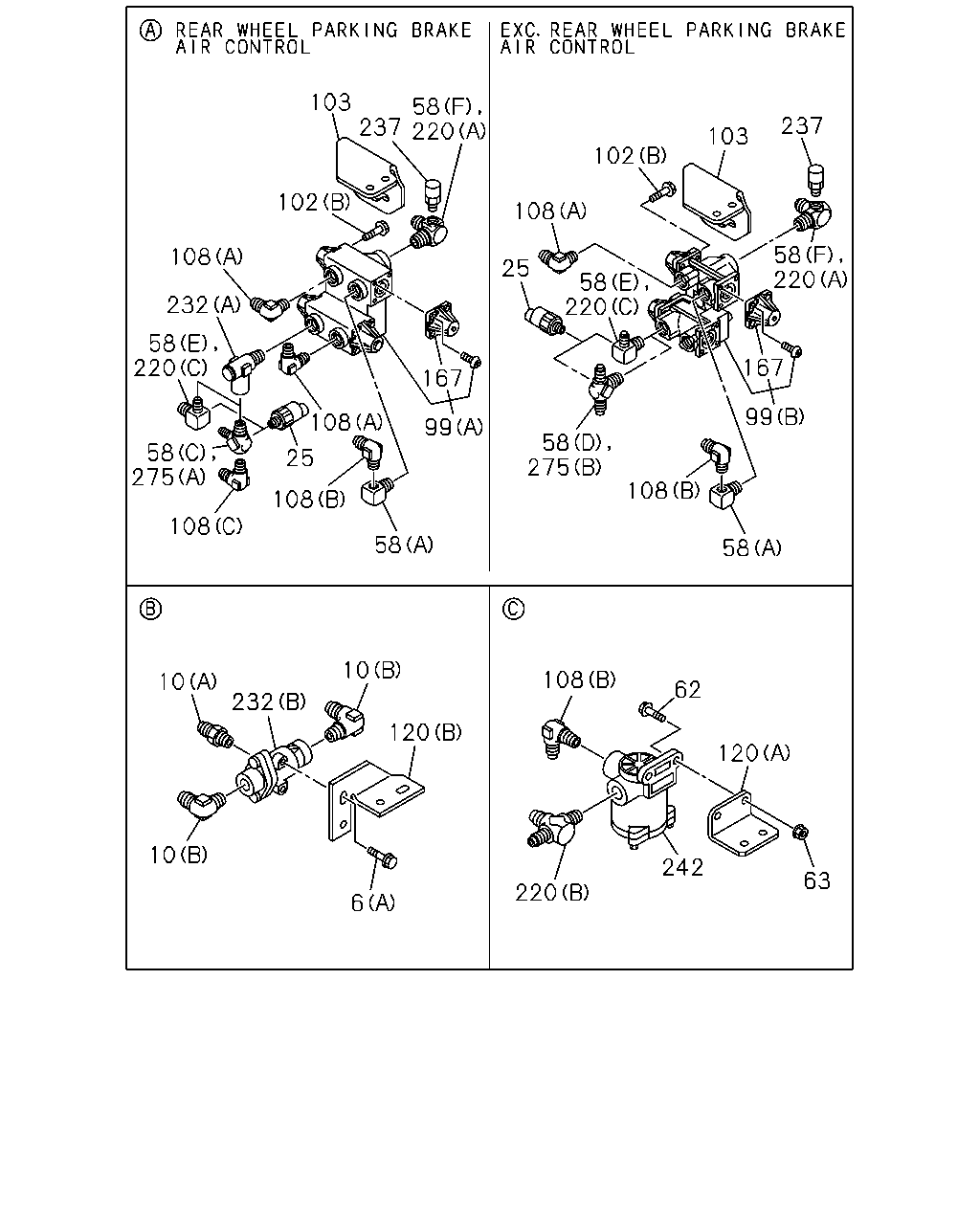

çizim 193036
102 103 237 108 25 58 220 58 275 108 58 99 167 220 58 58 220 237 103 102 108 232 58 220 58 275 108 108 25 108 99 167 58 10 232 10 120 10 6 108 62 120 63 242 220
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0803-
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0803-
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0803-
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 0803-
58 ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
58 ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98035-011-0 01 1 1204-
58 ADAPTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (D) 		1-09656-704-0 01 1 1204-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0803-
58 ADAPTER
(B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0803-0808
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 0809-
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 0803-
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0803-
99 VALVE; PROTECTION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48110-287-3 01 1 0809-
99 VALVE; PROTECTION
BRAKE REGULATION ECE(TDV) (A) 		1-48110-290-0 01 1 0803-0808
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) 		1-48110-290-3 01 1 0809-
99 VALVE; PROTECTION
EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48110-288-0 01 1 0803-0808
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48110-288-3 01 1 0809-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0803-
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803-
103 BRACKET; PROTECTION VALVE 8-98034-985-1 01 1 0803-1311
103 BRACKET; PROTECTION VALVE 8-98221-293-0 01 1 1312-
108 CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 0812-1107
108 CONNECTOR; ELBOW
TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1108-
108 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0809-
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0808
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0803-0808
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0809-
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0803-0808
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0809-
108 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0809-
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0809-
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0803-0808
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0809-
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 0803-
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98050-131-0 01 1 0803-
167 COVER; VALVE 1-48119-625-0 04 1 0803-0808
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 04 1 0809-
167 COVER; VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 03 1 0809-
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) PT1/4 & M12 & M16 3WAY 		1-09656-331-1 01 1 0803-
220 CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 0803-1203
220 CONNECTOR; 3WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1204-
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 0803-1203
220 CONNECTOR; 3WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1204-
232 VALVE; CHECK
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-48410-531-1 01 1 0803-
232 VALVE; CHECK
(A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0803-0808
232 VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-
237 VALVE; SAFETY 1-48320-012-2 01 1 0803-
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 0803-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-704-0 01 1 0809-1203
275 CONNECTOR; 4WAY
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98050-414-0 01 1 0809-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (A) 		8-98035-011-0 01 1 0803-1203
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 1204-
275 CONNECTOR; 4WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 1204-
çizim 426373
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-1 01 1 0803-0808
241 REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-451-2 01 1 0809-
241 REPAIR KIT; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-452-2 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
