Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#67447) — 222 parça

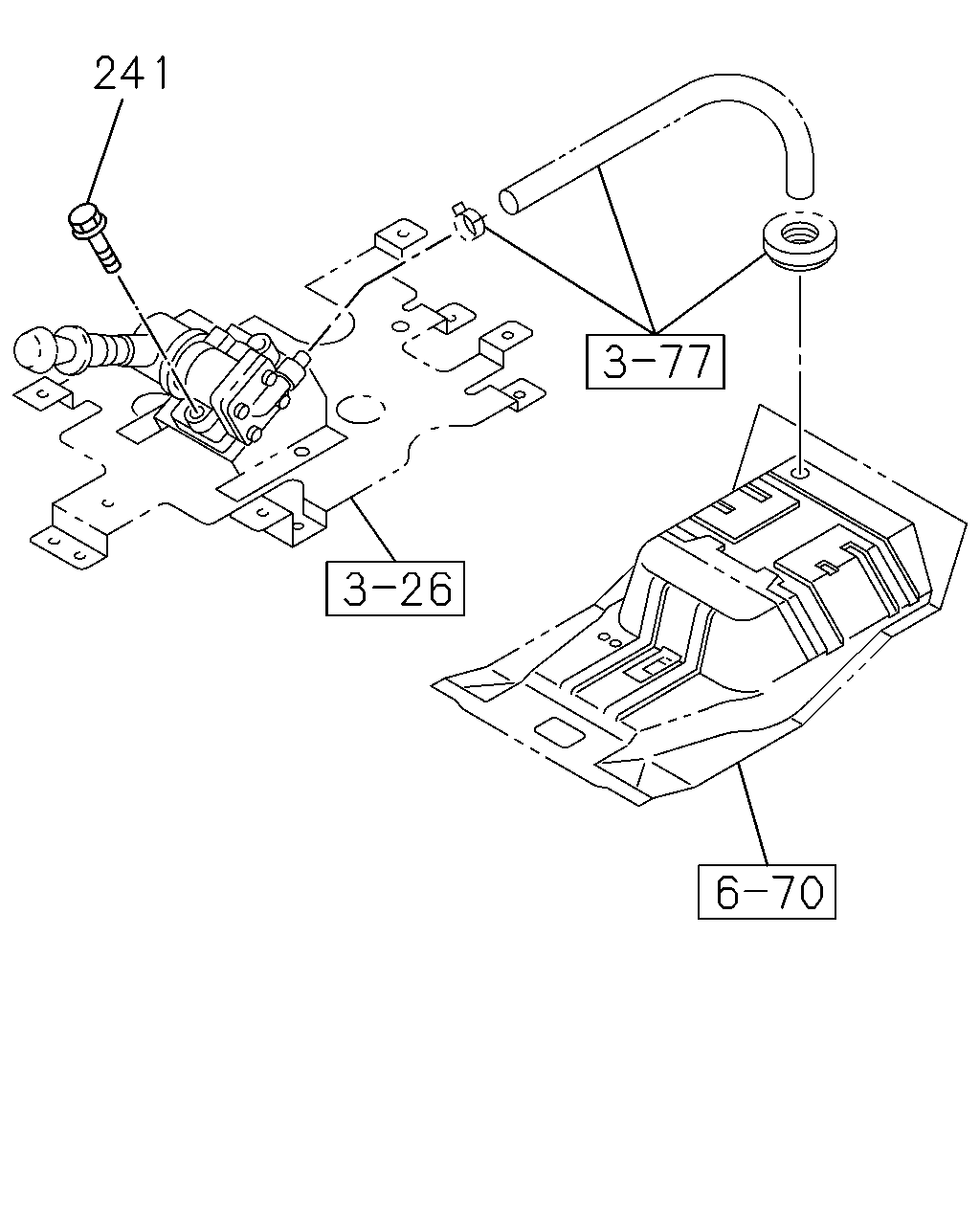

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0803-0808
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0809-

148 81 223 223 148 274 223 223 223 94 37 42 83 237 238 138 239 178 83 240 86 145 125 217 145 217 125 217 271 271 152 81 145 151 139 148 274 145 153 151 140 178 177 35 175 178

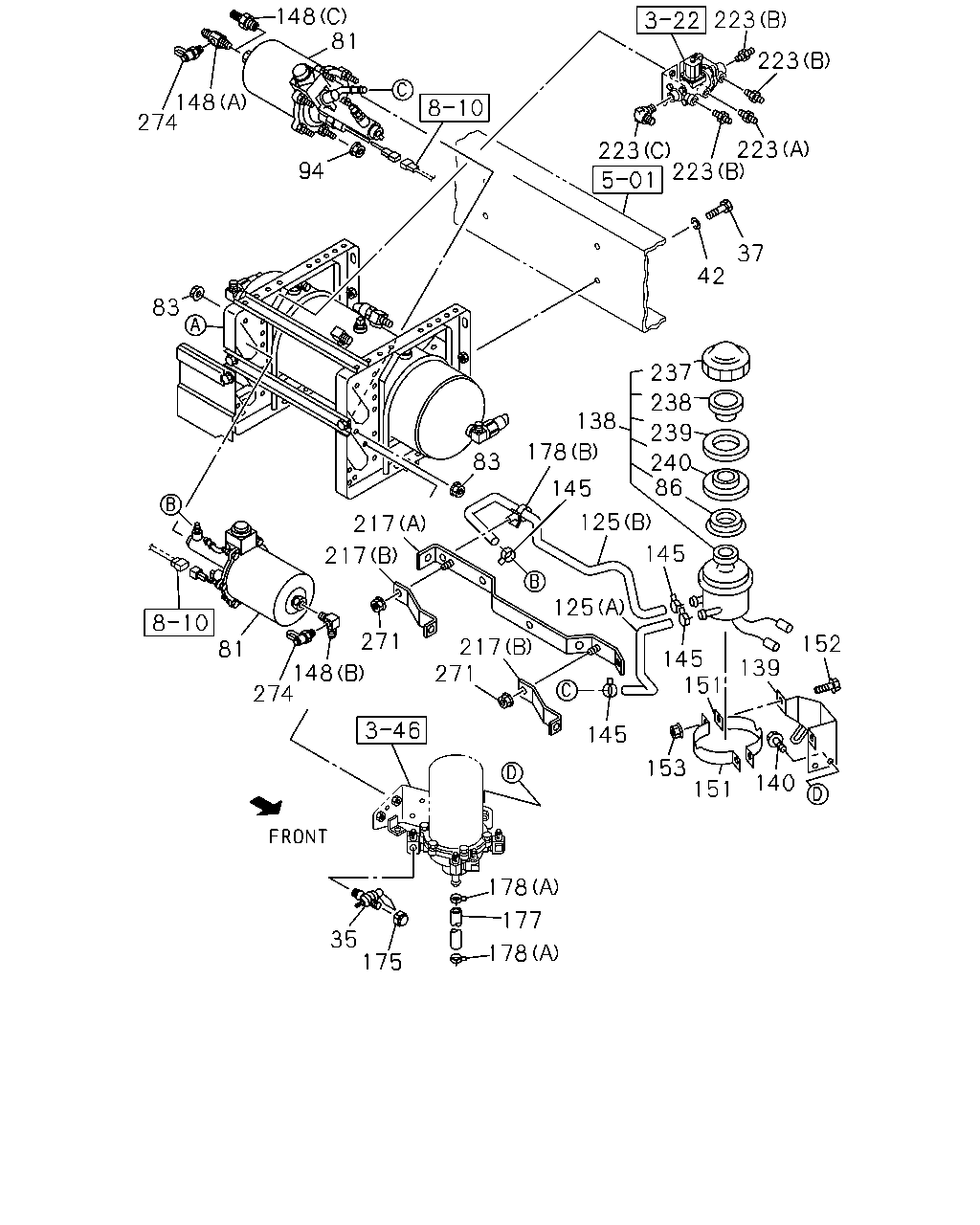

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0803-0811
35	COCK; AIR,AIR TANK EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0812-1107
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1108-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	0803-
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	0803-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-777-0	02	1	0803-0905
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	0906-
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	0803-
86	SEAL; DUST	1-47529-019-0	01	1	0803-
94	NUT; BRKT FIX BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	04	1	0803-0808
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	04	1	0809-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	0803-
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	0803-
138	TANK ASM; OIL,AIR MASTER BRAKE REGULATION ECE(TDV)	1-47530-186-0	01	1	0803-
138	TANK ASM; OIL,AIR MASTER EXC. BRAKE REGULATION ECE(TDV)	1-47530-185-1	01	1	0803-
139	BRACKET; OIL TANK	8-98051-105-0	01	1	0803-
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0803-
148	CONNECTOR; AIR MASTER BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0803-
148	CONNECTOR; AIR MASTER BRAKE REGULATION ECE(TDV) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0803-
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ECE(TDV) (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0803-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0803-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0803-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0803-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0803-0811
175	CAP; AIR COCK EURO4 SPECIFICATION<NT4> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0812-1107
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1108-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0803-0808
177	HOSE; RUBBER,DRAIN EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1107
177	HOSE; RUBBER,DRAIN EURO4 SPECIFICATION<NT4> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1107
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-
177	HOSE; RUBBER,DRAIN EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV) (A) ID=21	8-94242-034-0	01	1	0809-1107
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1107
178	CLIP; HOSE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (A) ID=21	8-94242-034-0	01	1	1108-
178	CLIP; HOSE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0803-0906
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0907-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0803-0808
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) ID=21	8-94242-034-0	02	1	0809-1107
178	CLIP; HOSE BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	0803-
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	0803-
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0803-
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0803-
237	CAP; OIL TANK	1-47525-030-0	01	1	0803-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0803-
239	FILTER; DUST	1-47529-017-0	01	1	0803-
240	HOLDER; FILTER	1-47529-018-0	01	1	0803-
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	0803-
274	CONNECTOR; VLV BRAKE REGULATION ECE(TDV) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0803-

9 8 9 8 352 126 10 9 126 344 126 8 1 344 39 3 282 43 9 39 64 7 8 6 9 28 28 417 368 43 8 106 172 64 46 46 64 43 134

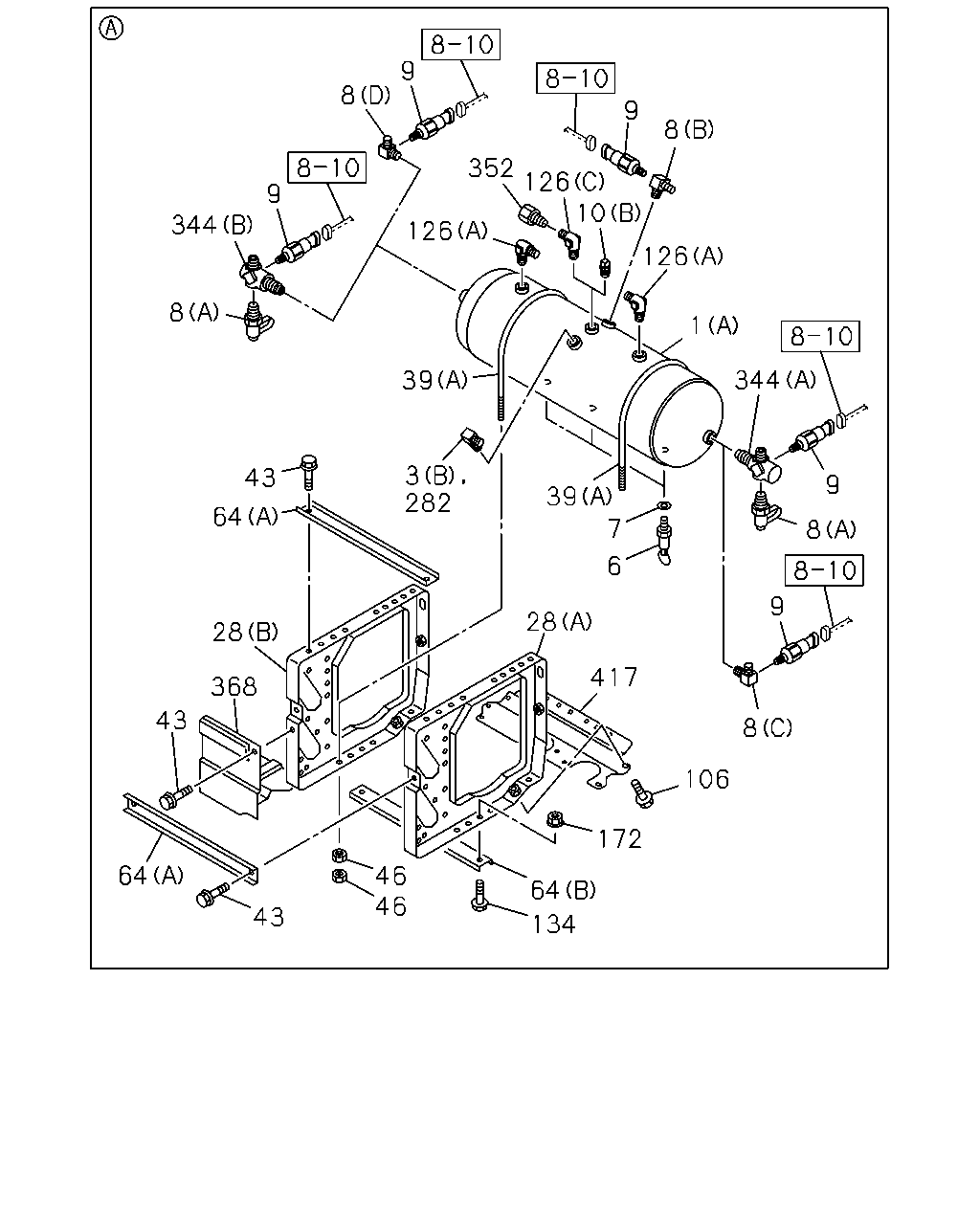

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE REGULATION ECE(TDV) (C)	8-98081-870-0	01	1	0803-0808
1	TANK ASM; AIR TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C)	8-98081-870-1	01	1	0809-
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0803-0808
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0809-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	0803-
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1107
3	VALVE; CHECK,AIR TANK TURBO - CONVENTIONAL<Q5T> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE(TDV) (A)	1-48320-031-1	01	1	0803-0808
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A)	1-48320-031-1	01	1	0809-
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE(TDV)	1-48312-015-0	01	1	0803-0808
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0803-0808
6	COCK; DRAIN,AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48312-015-0	01	1	0809-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0809-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0803-
7	GASKET; DRAIN COCK BRAKE REGULATION ECE(TDV) ID=14	1-09630-145-0	01	1	0803-0808
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0803-0808
7	GASKET; DRAIN COCK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) ID=14	1-09630-145-0	01	1	0809-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0809-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0803-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0803-0808
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0809-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0803-0808
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0809-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0803-
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0803-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE(TDV) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0803-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE(TDV) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0803-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	03	1	0803-
10	PLUG; AIR TANK BRAKE REGULATION ECE(TDV) (B) PT3/8	9-09204-517-0	02	1	0803-0808
10	PLUG; AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (B) PT3/8	9-09204-517-0	02	1	0809-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0803-0808
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> (B) PT3/8	9-09204-517-0	01	1	0809-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> (B) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0803-0808
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0809-1101
28	BRACKET; AIR TANK BRAKE REGULATION ECE(TDV) (C)	8-98100-165-2	01	1	0803-0808
28	BRACKET; AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C)	8-98100-165-3	01	1	0809-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0803-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0803-
39	U-BOLT; AIR TANK BRAKE REGULATION ECE(TDV) (B) L=210	1-48317-458-1	02	1	0803-0808
39	U-BOLT; AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (B) L=210	1-48317-458-1	02	1	0809-
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0803-
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	0803-
46	NUT; U-BOLT BRAKE REGULATION ECE(TDV) M8	0-91110-508-0	08	1	0803-0808
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0803-0808
46	NUT; U-BOLT TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8	0-91110-508-0	08	1	0809-1107
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0809-1107
46	NUT; U-BOLT TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8	0-91110-508-0	08	1	1108-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1108-
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	0803-
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	0803-
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	0803-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1107
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0803-0808
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0803-0808
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0803-0808
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	0803-
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0803-
282	UNION; 2 WAY M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0803-0808
282	UNION; 2 WAY EURO4 SPECIFICATION<NT4> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0809-1107
282	UNION; 2 WAY EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1108-
344	CONNECTOR; 4WAY BRAKE REGULATION ECE(TDV) (A)	1-09656-726-0	01	1	0803-
344	CONNECTOR; 4WAY BRAKE REGULATION ECE(TDV) (B)	1-09656-767-0	01	1	0803-
352	CONNECTOR; STRAIGHT EURO2 SPECIFICATION<NT2>	8-98133-234-0	01	1	0812-1107
352	CONNECTOR; STRAIGHT TURBO - CONVENTIONAL<Q5T>	8-98133-234-0	01	1	1108-
368	COVER; AIR TANK	8-98061-625-3	01	1	0803-
417	COVER; HARNESS	8-98111-401-0	01	1	0803-

39 5 5 10 1 39 46 46 10 7 6 28 94 80 31 30 10 1 8 8 34 203 203 8 126 3 8 126 7 40 124 166 6 40 5 8

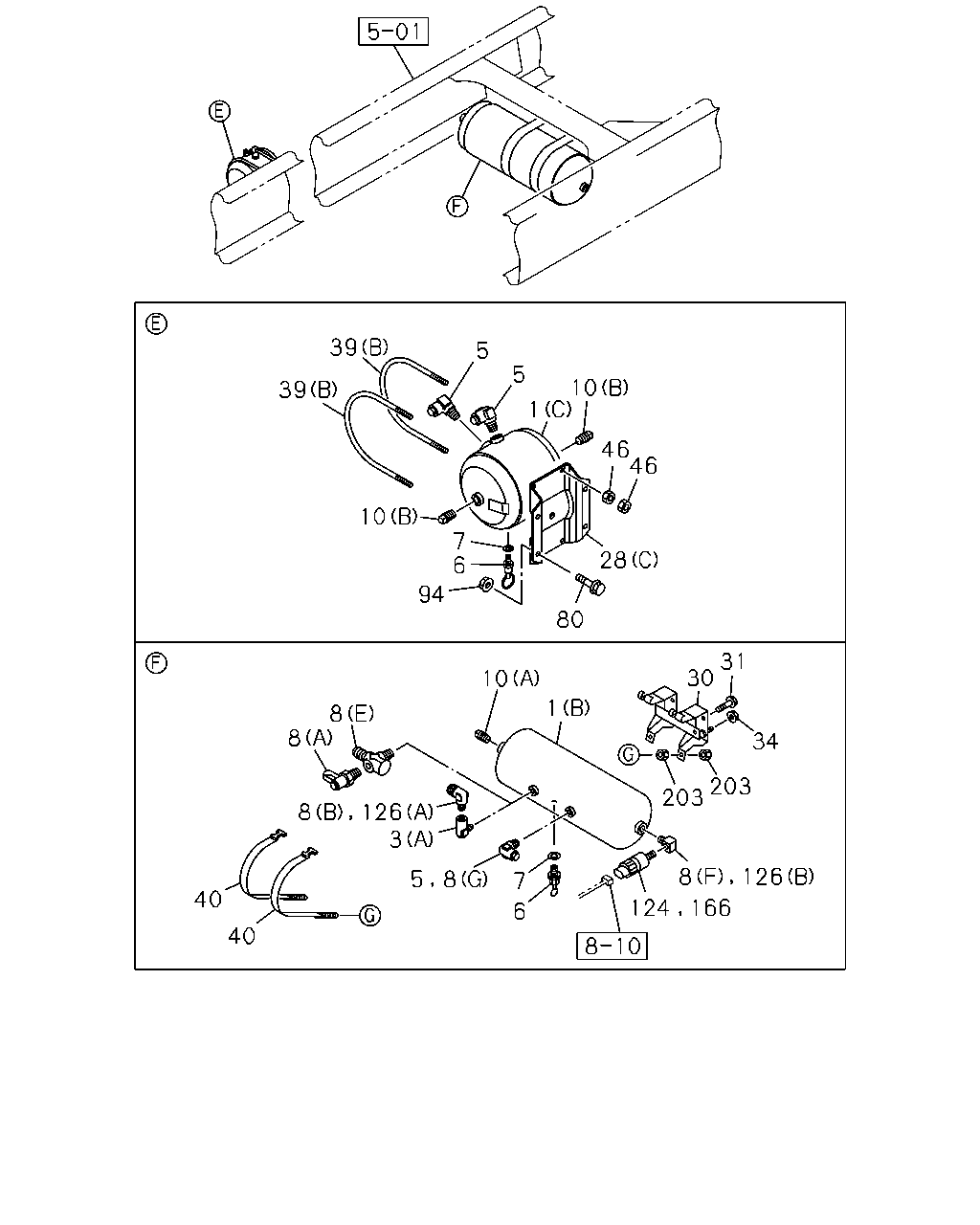

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE REGULATION ECE(TDV) (C)	8-98081-870-0	01	1	0803-0808
1	TANK ASM; AIR TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C)	8-98081-870-1	01	1	0809-
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0803-0808
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0809-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	0803-
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1107
3	VALVE; CHECK,AIR TANK TURBO - CONVENTIONAL<Q5T> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK EXC. BRAKE REGULATION ECE(TDV) (A)	1-48320-031-1	01	1	0803-0808
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A)	1-48320-031-1	01	1	0809-
5	UNION; AIR TANK BRAKE REGULATION ECE(TDV) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0803-0808
5	UNION; AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0803-0808
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-1101
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE(TDV)	1-48312-015-0	01	1	0803-0808
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0803-0808
6	COCK; DRAIN,AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48312-015-0	01	1	0809-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0809-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0803-
7	GASKET; DRAIN COCK BRAKE REGULATION ECE(TDV) ID=14	1-09630-145-0	01	1	0803-0808
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0803-0808
7	GASKET; DRAIN COCK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) ID=14	1-09630-145-0	01	1	0809-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0809-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0803-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0803-0808
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0809-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0803-0808
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0809-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0803-
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0803-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE(TDV) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0803-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE(TDV) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0803-
10	PLUG; AIR TANK BRAKE REGULATION ECE(TDV) (B) PT3/8	9-09204-517-0	02	1	0803-0808
10	PLUG; AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (B) PT3/8	9-09204-517-0	02	1	0809-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0803-0808
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> (B) PT3/8	9-09204-517-0	01	1	0809-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> (B) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0803-0808
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0809-1101
28	BRACKET; AIR TANK BRAKE REGULATION ECE(TDV) (C)	8-98100-165-2	01	1	0803-0808
28	BRACKET; AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C)	8-98100-165-3	01	1	0809-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0803-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0803-
30	BRACKET; AIR TANK,SUB	1-48317-894-1	01	1	0803-0808
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	0809-
31	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	0803-0808
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0809-
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	0803-0808
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0809-
39	U-BOLT; AIR TANK BRAKE REGULATION ECE(TDV) (B) L=210	1-48317-458-1	02	1	0803-0808
39	U-BOLT; AIR TANK TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (B) L=210	1-48317-458-1	02	1	0809-
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0803-
40	BAND ASM; AIR TANK	1-48317-893-1	02	1	0803-0808
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	0809-
46	NUT; U-BOLT BRAKE REGULATION ECE(TDV) M8	0-91110-508-0	08	1	0803-0808
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0803-0808
46	NUT; U-BOLT TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8	0-91110-508-0	08	1	0809-1107
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0809-1107
46	NUT; U-BOLT TAIWAN EQUIPMENT(B04) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8	0-91110-508-0	08	1	1108-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1108-
80	BOLT; BRKT BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	03	1	0803-0808
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	03	1	0809-
94	NUT; BRKT FIX BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	04	1	0803-0808
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	04	1	0809-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1102-
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (C) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811
126	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1107
126	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0803-0808
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0803-0808
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0803-0808
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0803-0808
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	0809-1101
203	NUT M8	0-91110-508-0	04	1	0803-0808
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
