3-01 — FRONT WHEEL BRAKE (#67442) — 189 parça

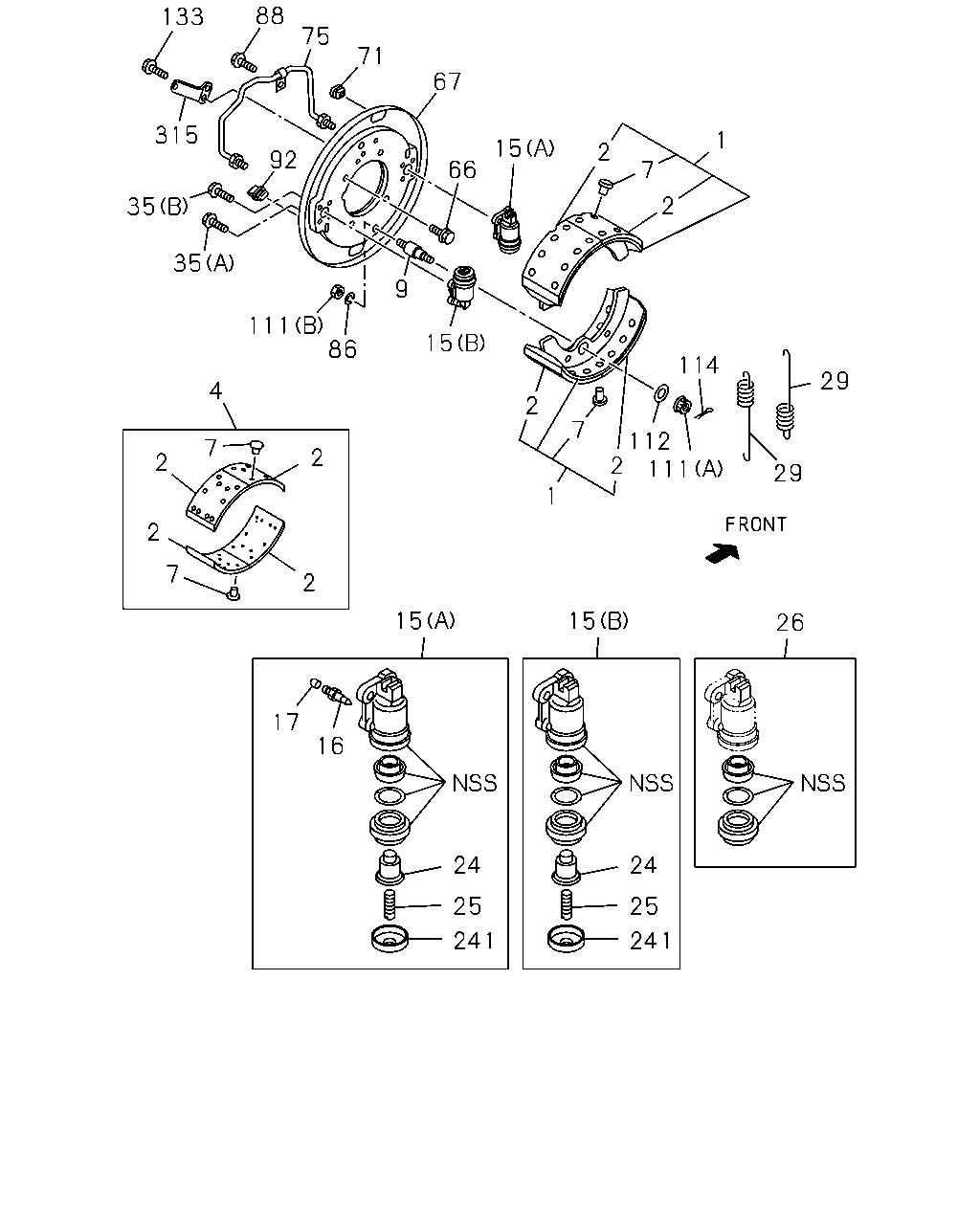

88 133 75 71 67 315 1 15 2 92 66 7 2 35 35 9 111 86 15 114 29 4 2 7 112 2 111 7 2 2 29 1 2 7 2 15 15 26 17 16 24 24 25 25 241 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47120-624-0	04	1	1012-
1	SHOE; BRK,FRT	1-47170-483-0	04	1	0803-1011
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-483-0	04	1	1012-
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-801-0	04	1	1012-
2	LINING; FRT BRK SHOE,STANDARD	1-47126-800-0	08	1	0803-1011
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-800-0	08	1	1012-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-501-1	01	1	1012-
4	LINING SET; FRT BRK,STANDARD	1-88311-385-0	02	1	0803-1011
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-385-0	02	1	1012-
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	56	1	1012-
7	RIVET; LINING,FRT BRK	1-09732-056-0	64	1	0803-0803
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	0804-1011
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	64	1	1012-
9	PIN; SHOE HOLDER	1-47162-046-0	04	1	0803-1011
9	PIN; SHOE HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-046-0	04	1	1012-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-938-0	02	1	1012-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-939-0	02	1	1012-
15	CYLINDER; WHEEL,FRT BRK (B) BACKWARD	1-47601-172-0	01	1	0803-1011
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-172-0	01	1	1012-
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47601-173-0	01	1	0803-1011
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-173-0	01	1	1012-
15	CYLINDER; WHEEL,FRT BRK (B) BACKWARD	1-47601-174-0	01	1	0803-1011
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-174-0	01	1	1012-
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47601-175-0	01	1	0803-1011
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-175-0	01	1	1012-
16	SCREW; BLEEDER,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	8-98050-476-0	04	1	1012-
16	SCREW; BLEEDER,FRT BRK	1-47615-009-0	02	1	0803-1011
16	SCREW; BLEEDER,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-009-0	02	1	1012-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98050-479-0	04	1	1012-
17	CAP; BLEEDER,FRT WHEEL CYL OD=12	1-47619-011-0	02	1	0803-1011
17	CAP; BLEEDER,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1012-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-318-0	02	1	1012-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-319-0	02	1	1012-
24	PISTON; FRT WHEEL CYL	1-47620-237-0	04	1	0803-1011
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-237-0	04	1	1012-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> LH THREAD	1-47622-020-0	02	1	1012-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> RH THREAD	1-47622-021-0	02	1	1012-
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-070-0	04	1	0803-1011
25	SCREW; ADJ,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1012-
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-679-0	04	1	1012-
26	CUP SET; FRT WHEEL CYL	1-87831-309-0	04	1	0803-1011
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87831-309-0	04	1	1012-
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-288-0	04	1	1012-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-385-2	04	1	0803-1011
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-385-2	04	1	1012-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (C) M14X30	1-09000-365-0	04	1	1012-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D) M8X22	9-09802-475-0	08	1	1012-
35	BOLT; FRT WHEEL CYL (A) M10X25 W/LK WASHER	0-50051-025-0	08	1	0803-0906
35	BOLT; FRT WHEEL CYL (A) M10X25 W/LK WASHER	0-50551-025-0	08	1	0907-1011
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M10X25 W/LK WASHER	0-50551-025-0	08	1	1012-
35	BOLT; FRT WHEEL CYL (B)	1-47159-227-0	08	1	0803-1011
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-227-0	08	1	1012-
66	BOLT; OIL SHIELD COVER M14X60	0-20951-460-0	04	1	0803-1011
66	BOLT; OIL SHIELD COVER EXC. BRAKE ADJUSTER MANUAL<BJR> M14X60	0-20951-460-0	04	1	1012-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-375-0	01	1	1012-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-376-0	01	1	1012-
67	PLATE; BACK,FRT BRK	1-47150-704-0	01	1	0803-0907
67	PLATE; BACK,FRT BRK	1-47150-716-1	01	1	0908-1011
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-716-1	01	1	1012-
67	PLATE; BACK,FRT BRK	1-47150-705-0	01	1	0803-0907
67	PLATE; BACK,FRT BRK	1-47150-717-1	01	1	0908-1011
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-717-1	01	1	1012-
71	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1012-
71	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0803-1011
71	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1012-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-237-0	01	1	1012-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-238-0	01	1	1012-
75	PIPE; OIL,FWD,FRT BRK	1-49167-859-0	02	1	0803-1011
75	PIPE; OIL,FWD,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-49167-859-0	02	1	1012-
86	WASHER; LK,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-614-0	04	1	1012-
86	WASHER; LK,FRT WHEEL CYL	1-47159-110-0	04	1	0803-1011
86	WASHER; LK,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1012-
88	BOLT; BRK PIPE CLAMP M6X10	9-01900-610-0	02	1	0803-1011
88	BOLT; BRK PIPE CLAMP EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1012-
92	GROMMET; ADJ HOLE BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1012-
92	GROMMET; ADJ HOLE	1-09333-138-0	04	1	0803-1011
92	GROMMET; ADJ HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1012-
111	NUT; FLANGE,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> (C)	1-09440-002-0	04	1	1012-
111	NUT; FLANGE,SHOE HOLD (A)	1-09440-101-0	04	1	0803-1011
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09440-101-0	04	1	1012-
111	NUT; FLANGE,SHOE HOLD (B)	1-47159-111-0	04	1	0803-1011
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-111-0	04	1	1012-
112	WASHER; PL,SHOE HOLD	1-47169-037-0	04	1	0803-1011
112	WASHER; PL,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1012-
114	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1012-
114	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	9-08112-020-0	04	1	0803-0907
114	PIN; SPLIT,SHOE HOLD	1-47169-048-0	04	1	0908-1011
114	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-048-0	04	1	1012-
133	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	0803-0906
133	BOLT; BRKT M8X20 W/LK WASHER	0-50540-820-0	04	1	0907-1011
133	BOLT; BRKT EXC. BRAKE ADJUSTER MANUAL<BJR> M8X20 W/LK WASHER	0-50540-820-0	04	1	1012-
241	HOLDER	1-47619-097-0	04	1	0803-1011
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1012-
315	BRACKET; BRAKE FLEX HOSE	1-47159-228-0	01	1	0803-0907
315	BRACKET; BRAKE FLEX HOSE	1-47159-242-0	01	1	0908-1011
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-242-0	01	1	1012-
315	BRACKET; BRAKE FLEX HOSE	1-47159-229-0	01	1	0803-0907
315	BRACKET; BRAKE FLEX HOSE	1-47159-243-0	01	1	0908-1011
315	BRACKET; BRAKE FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-243-0	01	1	1012-

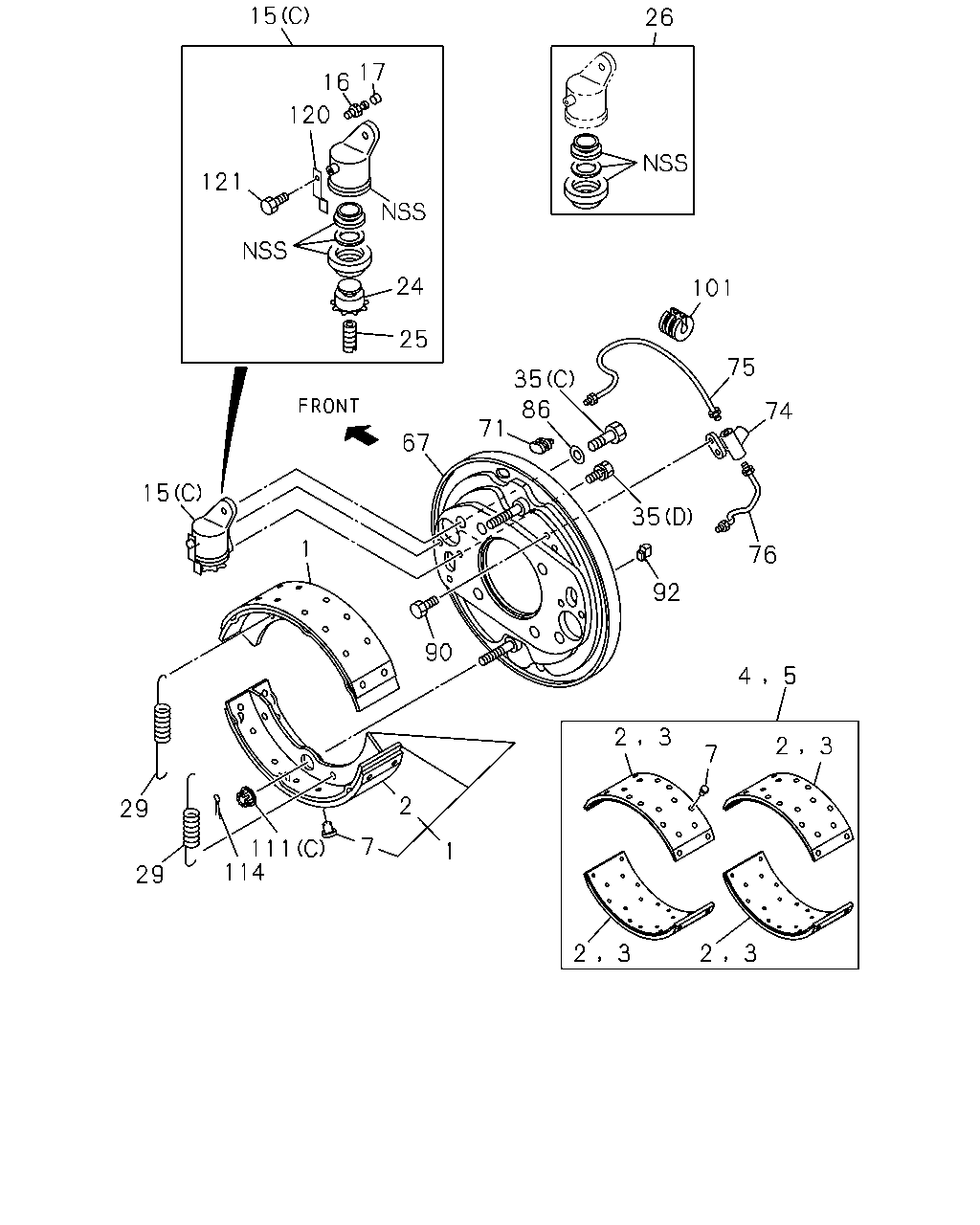

15 26 17 16 120 121 24 101 25 75 35 86 74 71 67 15 35 1 76 92 90 5 4 3 2 3 2 7 2 29 7 111 114 1 29 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47120-624-0	04	1	1012-
1	SHOE; BRK,FRT	1-47170-483-0	04	1	0803-1011
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-483-0	04	1	1012-
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-801-0	04	1	1012-
2	LINING; FRT BRK SHOE,STANDARD	1-47126-800-0	08	1	0803-1011
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-800-0	08	1	1012-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-802-0	04	1	1012-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-501-1	01	1	1012-
4	LINING SET; FRT BRK,STANDARD	1-88311-385-0	02	1	0803-1011
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-385-0	02	1	1012-
5	LINING SET; FRT BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-502-1	01	1	1012-
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	56	1	1012-
7	RIVET; LINING,FRT BRK	1-09732-056-0	64	1	0803-0803
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	0804-1011
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	64	1	1012-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-938-0	02	1	1012-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C)	1-47600-939-0	02	1	1012-
15	CYLINDER; WHEEL,FRT BRK (B) BACKWARD	1-47601-172-0	01	1	0803-1011
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-172-0	01	1	1012-
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47601-173-0	01	1	0803-1011
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-173-0	01	1	1012-
15	CYLINDER; WHEEL,FRT BRK (B) BACKWARD	1-47601-174-0	01	1	0803-1011
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-174-0	01	1	1012-
15	CYLINDER; WHEEL,FRT BRK (A) FORWARD	1-47601-175-0	01	1	0803-1011
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-175-0	01	1	1012-
16	SCREW; BLEEDER,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	8-98050-476-0	04	1	1012-
16	SCREW; BLEEDER,FRT BRK	1-47615-009-0	02	1	0803-1011
16	SCREW; BLEEDER,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-009-0	02	1	1012-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98050-479-0	04	1	1012-
17	CAP; BLEEDER,FRT WHEEL CYL OD=12	1-47619-011-0	02	1	0803-1011
17	CAP; BLEEDER,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1012-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-318-0	02	1	1012-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-319-0	02	1	1012-
24	PISTON; FRT WHEEL CYL	1-47620-237-0	04	1	0803-1011
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-237-0	04	1	1012-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> LH THREAD	1-47622-020-0	02	1	1012-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> RH THREAD	1-47622-021-0	02	1	1012-
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-070-0	04	1	0803-1011
25	SCREW; ADJ,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1012-
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-679-0	04	1	1012-
26	CUP SET; FRT WHEEL CYL	1-87831-309-0	04	1	0803-1011
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87831-309-0	04	1	1012-
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-288-0	04	1	1012-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-385-2	04	1	0803-1011
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-385-2	04	1	1012-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (C) M14X30	1-09000-365-0	04	1	1012-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D) M8X22	9-09802-475-0	08	1	1012-
35	BOLT; FRT WHEEL CYL (A) M10X25 W/LK WASHER	0-50051-025-0	08	1	0803-0906
35	BOLT; FRT WHEEL CYL (A) M10X25 W/LK WASHER	0-50551-025-0	08	1	0907-1011
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M10X25 W/LK WASHER	0-50551-025-0	08	1	1012-
35	BOLT; FRT WHEEL CYL (B)	1-47159-227-0	08	1	0803-1011
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-227-0	08	1	1012-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-375-0	01	1	1012-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-376-0	01	1	1012-
67	PLATE; BACK,FRT BRK	1-47150-704-0	01	1	0803-0907
67	PLATE; BACK,FRT BRK	1-47150-716-1	01	1	0908-1011
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-716-1	01	1	1012-
67	PLATE; BACK,FRT BRK	1-47150-705-0	01	1	0803-0907
67	PLATE; BACK,FRT BRK	1-47150-717-1	01	1	0908-1011
67	PLATE; BACK,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-717-1	01	1	1012-
71	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1012-
71	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0803-1011
71	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1012-
74	CONNECTOR; FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47630-013-1	01	1	1012-
74	CONNECTOR; FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47630-014-1	01	1	1012-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-237-0	01	1	1012-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-238-0	01	1	1012-
75	PIPE; OIL,FWD,FRT BRK	1-49167-859-0	02	1	0803-1011
75	PIPE; OIL,FWD,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-49167-859-0	02	1	1012-
76	PIPE; OIL,BACKWARD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-241-0	01	1	1012-
76	PIPE; OIL,BACKWARD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47414-242-0	01	1	1012-
86	WASHER; LK,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-614-0	04	1	1012-
86	WASHER; LK,FRT WHEEL CYL	1-47159-110-0	04	1	0803-1011
86	WASHER; LK,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1012-
90	BOLT; CONNECTOR BRAKE ADJUSTER MANUAL<BJR>	5-09030-036-1	02	1	1012-
92	GROMMET; ADJ HOLE BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1012-
92	GROMMET; ADJ HOLE	1-09333-138-0	04	1	0803-1011
92	GROMMET; ADJ HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1012-
101	PROTECTOR; OIL PIPE,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	9-47461-158-0	02	1	1012-
111	NUT; FLANGE,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> (C)	1-09440-002-0	04	1	1012-
111	NUT; FLANGE,SHOE HOLD (A)	1-09440-101-0	04	1	0803-1011
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09440-101-0	04	1	1012-
111	NUT; FLANGE,SHOE HOLD (B)	1-47159-111-0	04	1	0803-1011
111	NUT; FLANGE,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47159-111-0	04	1	1012-
114	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1012-
114	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	9-08112-020-0	04	1	0803-0907
114	PIN; SPLIT,SHOE HOLD	1-47169-048-0	04	1	0908-1011
114	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-048-0	04	1	1012-
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47629-072-0	04	1	1012-
121	SCREW; LK SPR FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-94128-727-0	04	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
