Isuzu WW
▶
TRUCKS
▶
FRR
▶
11120 - FRR-L EU2/4 EXC.SPAC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#67441) — 9 parça
◀

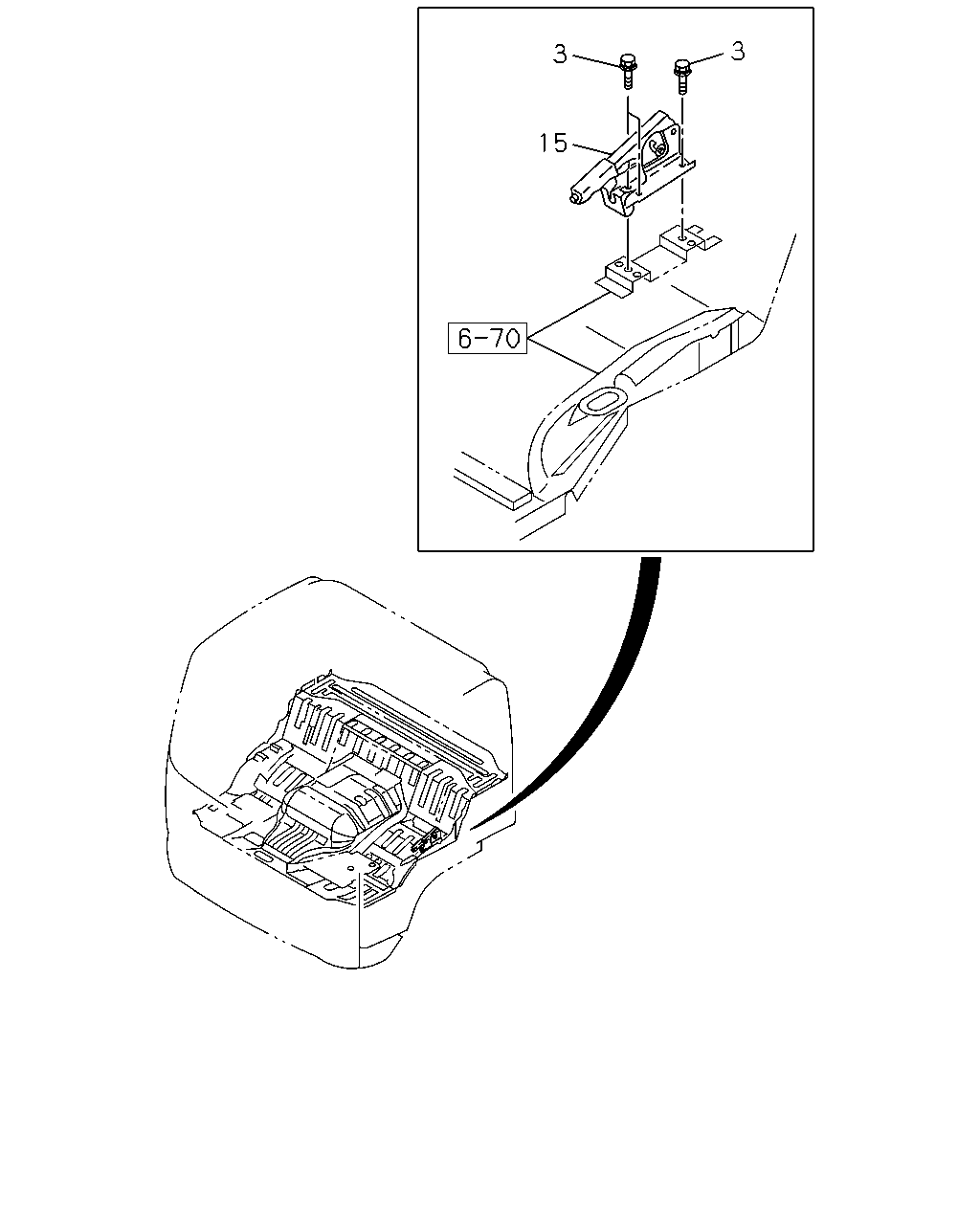

[285A] CONTROL LEVER (2 parça)

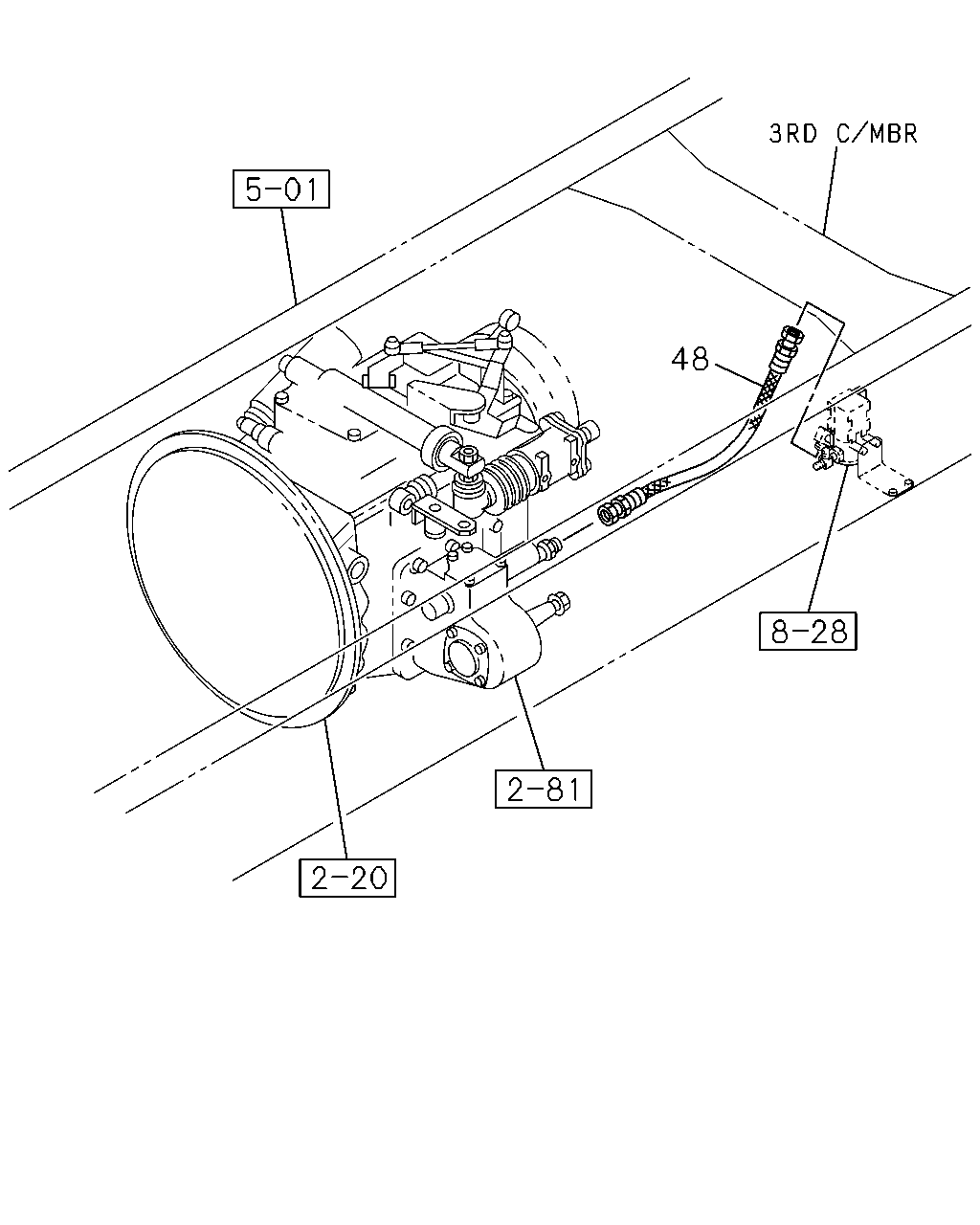

[285A] HOSE (7 parça)
▶
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BRKT,DUMP CONT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0803-
15
LEVER ASM; PTO CONT
TRANSMISSION CONTROL-SMOOTHER(8GF)
1-79996-092-0
01
1
0803-
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=330
1-09363-636-0
01
1
0907-
48
HOSE; FLEX,PTO
MLD6S M/T(X7W) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410
1-09363-895-0
01
1
0806-0906
48
HOSE; FLEX,PTO
MZW6P M/T(RSZ),MLD6S M/T(X7W) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410
1-09363-895-0
01
1
0907-
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=320
1-09363-625-0
01
1
0803-0803
48
HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=320
1-09363-625-0
01
1
0804-
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390
1-09363-616-0
01
1
0803-0803
48
HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390
1-09363-616-0
01
1
0804-
