2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#67435) — 54 parça

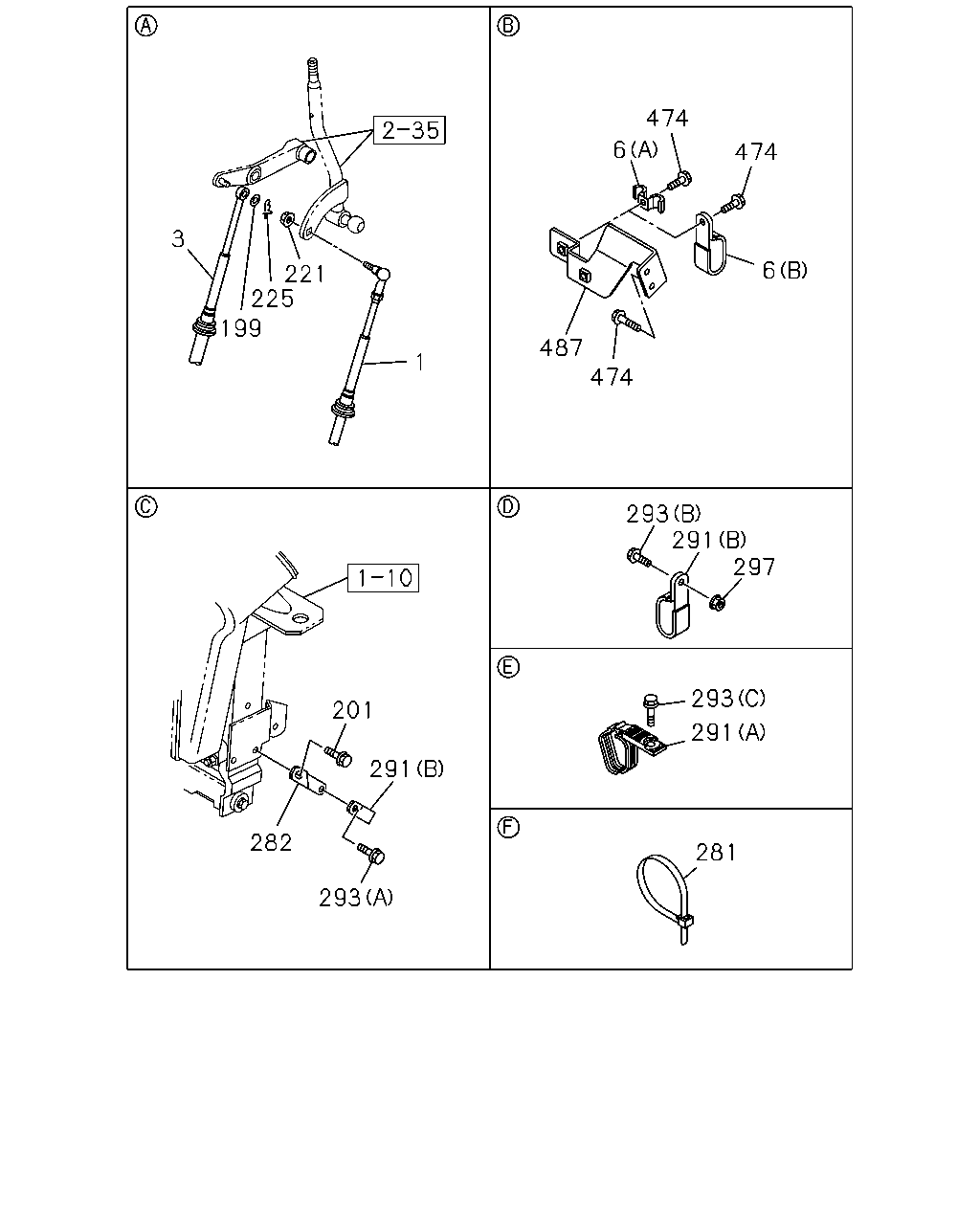

474 6 474 3 6 221 225 199 487 1 474 293 291 297 293 201 291 291 282 281 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3465	8-98121-046-2	01	1	0806-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485	8-98121-044-4	01	1	0806-
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3410	8-98017-513-4	01	1	0803-0906
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3410	8-98017-513-4	01	1	0907-
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440	8-98017-512-6	01	1	0803-0906
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440	8-98017-512-6	01	1	0907-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555	8-98121-047-1	01	1	0806-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3580	8-98121-045-3	01	1	0806-
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3615	8-98017-516-3	01	1	0803-0906
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3615	8-98017-516-3	01	1	0907-
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615	8-98017-515-5	01	1	0803-0906
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615	8-98017-515-5	01	1	0907-
6	CLIP; CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16	0-95325-026-0	01	1	1010-1012
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0803-1009
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1010-1012
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1101-
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	0803-
201	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	01	1	0803-
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-049-0	01	1	0803-1011
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1012-
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	0803-
281	CLIP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300	1-09707-001-1	01	1	0803-
282	BRACKET; TRANS SIDE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-418-0	01	1	0803-
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0803-
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16	0-95325-026-0	01	1	0803-
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16	0-95325-026-0	01	1	0803-
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE	0-28050-820-0	01	1	0803-
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE	0-28050-816-0	01	1	0803-
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	01	1	0803-
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	02	1	0803-0808
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	02	1	0809-
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	02	1	0809-
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	01	1	0803-
487	BRACKET; CONT CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98183-115-0	01	1	1012-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-921-2	01	1	0803-0808
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-921-2	01	1	0809-0901
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98021-921-2	01	1	0809-0901
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98137-772-0	01	1	0902-1011
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98137-772-0	01	1	0902-1011
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98137-772-0	01	1	1012-

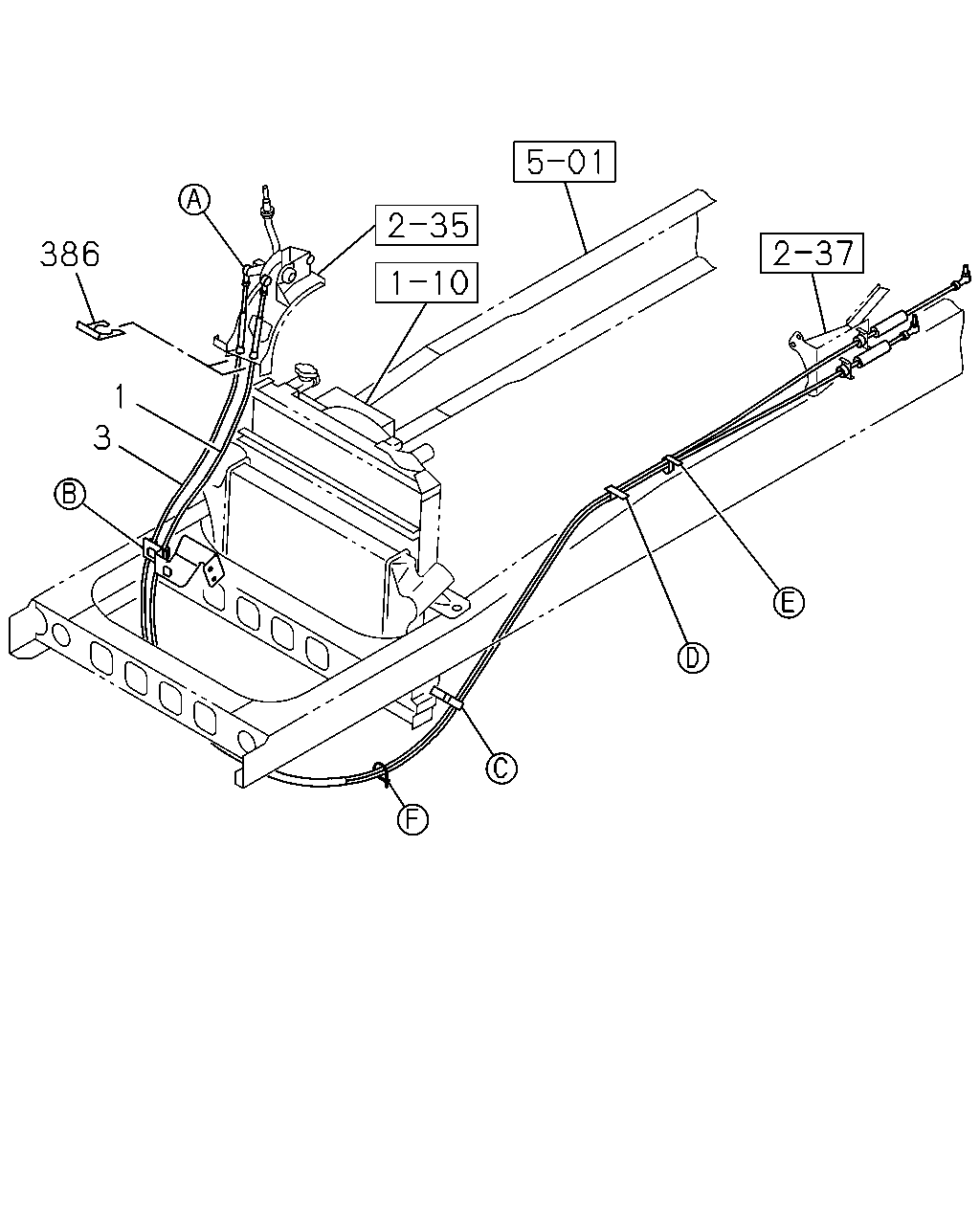

386 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3465	8-98121-046-2	01	1	0806-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485	8-98121-044-4	01	1	0806-
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3410	8-98017-513-4	01	1	0803-0906
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3410	8-98017-513-4	01	1	0907-
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440	8-98017-512-6	01	1	0803-0906
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440	8-98017-512-6	01	1	0907-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555	8-98121-047-1	01	1	0806-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3580	8-98121-045-3	01	1	0806-
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3615	8-98017-516-3	01	1	0803-0906
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3615	8-98017-516-3	01	1	0907-
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615	8-98017-515-5	01	1	0803-0906
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615	8-98017-515-5	01	1	0907-
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	0803-
