Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#67433) — 903 parça

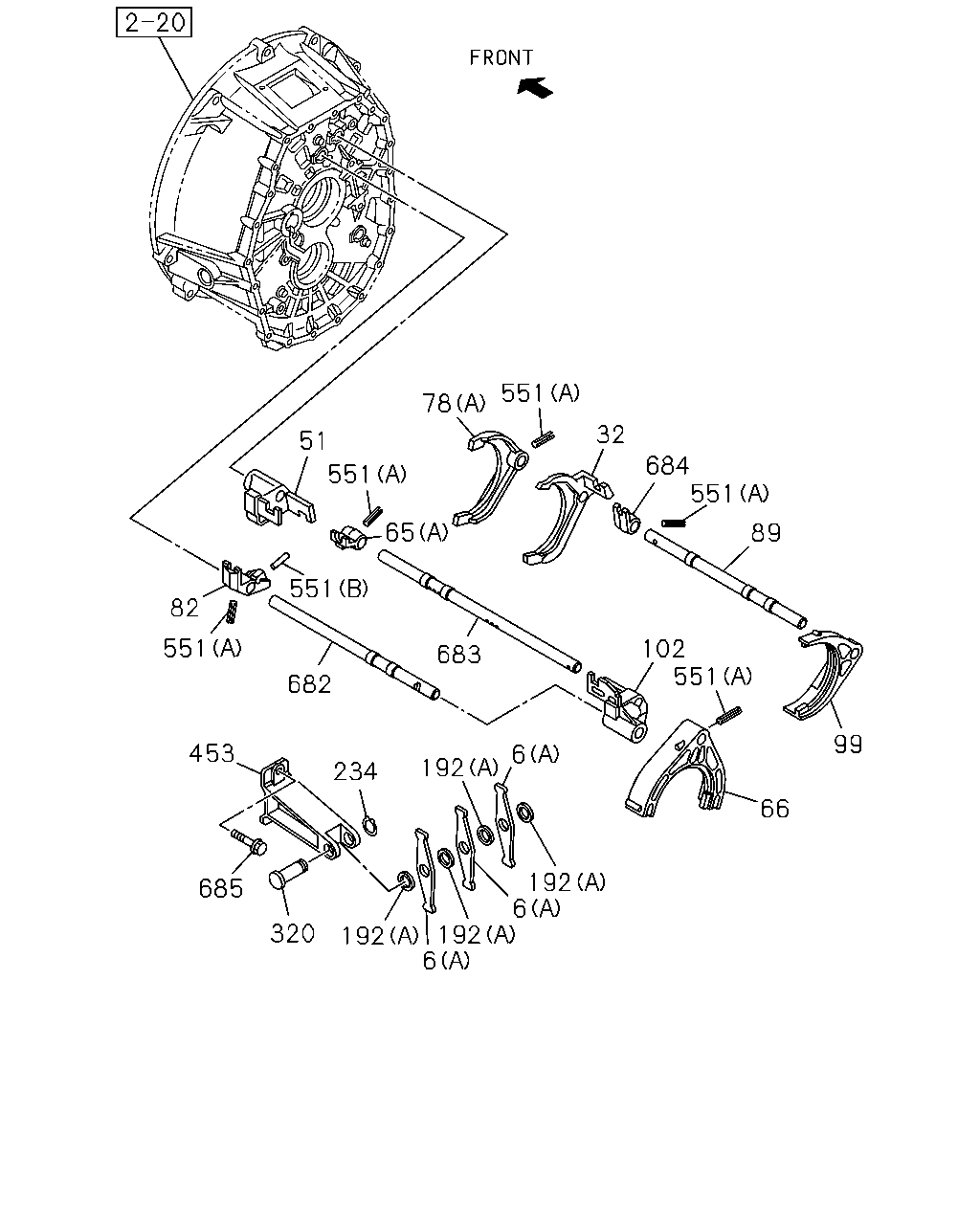

551 78 32 51 684 551 551 65 89 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0806-	●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0803-0906		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0907-		●	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-0906		●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-		●	●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0803-0906		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0907-		●	●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0803-0906		●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0907-1307		●	●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-		●	●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0803-0906		●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0907-		●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-202-3	01	1	0806-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0806-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0806-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	8-97388-980-1	01	1	0803-0906		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	8-97388-980-1	01	1	0907-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0806-	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0803-0906		●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0907-		●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0806-	●
78	ARM; SHIFT,REV (C)	1-33511-234-1	01	1	0806-	●
78	ARM; SHIFT,REV (A)	8-97388-975-1	01	1	0803-0906		●
78	ARM; SHIFT,REV (A)	8-97388-975-1	01	1	0907-		●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0806-	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0803-0906		●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0907-		●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0806-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0803-0906		●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0907-		●	●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0803-0906		●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0907-1506		●	●
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-		●	●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0803-0906		●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0907-		●	●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0803-0906		●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0907-		●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0803-0906		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-		●	●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0803-0906		●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0907-		●	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0803-0906		●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0907-		●	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0806-	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0803-0906		●
320	SHAFT; LEVER	8-97377-928-0	01	1	0907-		●	●
453	BLOCK; RELAY LEVER	8-97377-927-0	01	1	0803-0906		●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	0907-		●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0803-0906		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-		●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0803-0906		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-		●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0803-0906		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0907-		●	●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0803-0906		●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0907-		●	●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0803-0906		●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0907-		●	●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0803-0906		●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0907-		●	●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0803-0906		●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0907-		●	●

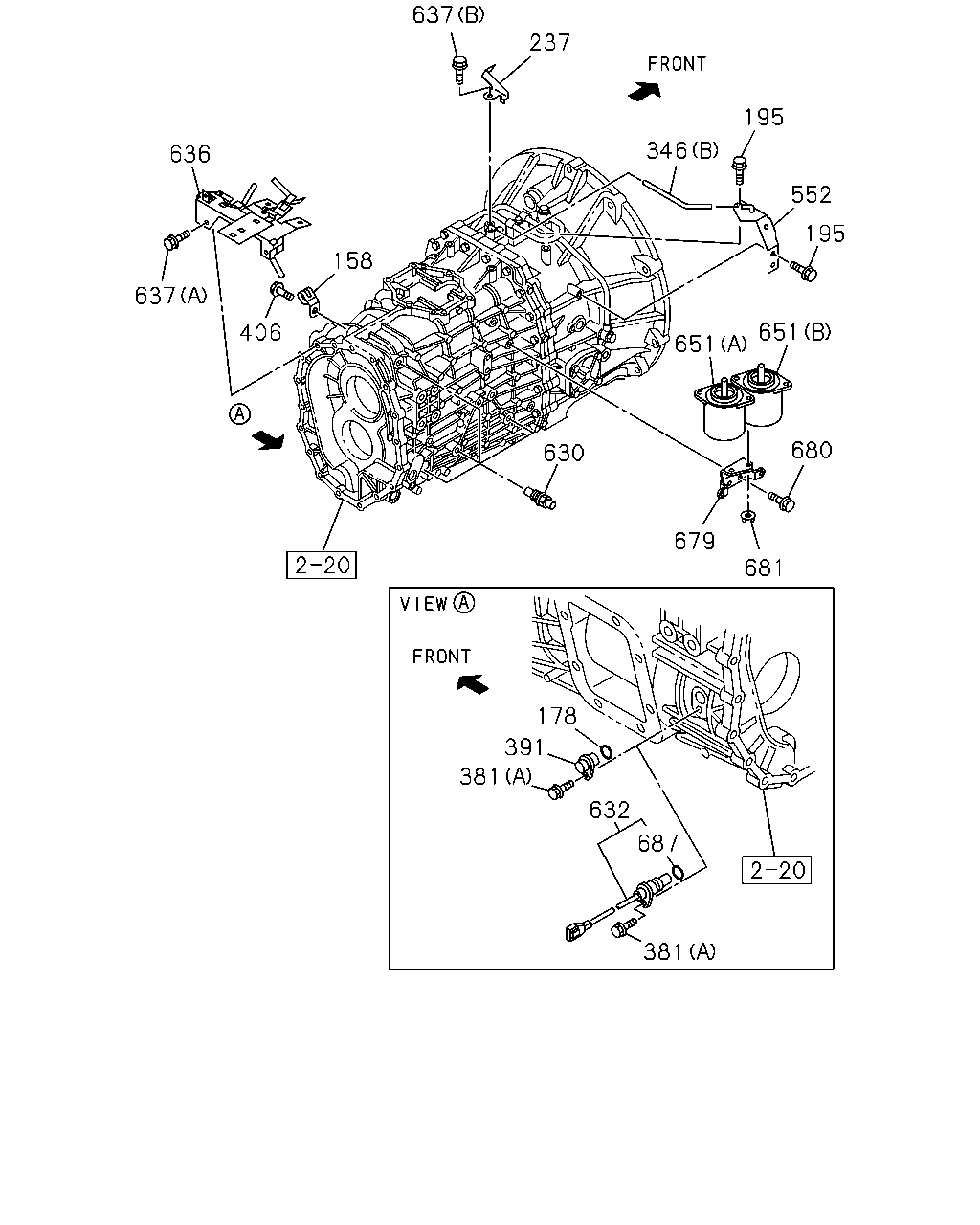

637 237 195 346 636 552 195 158 637 651 406 651 680 630 679 681 178 391 381 632 687 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0803-0906	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0907-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	9-09567-113-0	01	1	0803-0906	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	9-09567-113-0	01	1	0907-	●	●
195	BOLT EXC. 15" CLUTCH(RE9) M8X20 FLANGE	0-28650-820-0	02	1	0803-0906	●
195	BOLT EXC. 15" CLUTCH(RE9) M8X20 FLANGE	0-28650-820-0	02	1	0907-	●	●
237	BRACKET; CABLE,TRANS EXC. 15" CLUTCH(RE9)	8-98009-307-1	01	1	0803-0906	●
237	BRACKET; CABLE,TRANS EXC. 15" CLUTCH(RE9)	8-98009-307-1	01	1	0907-	●	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (A)	8-97309-855-0	01	1	1208-1404	●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-	●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0803-0906	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0907-1204	●	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0803-0906	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0907-	●	●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-0906	●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	0-28050-612-0	04	1	0803-0906	●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	0-28050-612-0	04	1	0907-0907	●	●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-	●	●
391	PLUG; SW HOLE 15" CLUTCH(RE9)	8-97300-273-1	01	1	0803-0906	●
391	PLUG; SW HOLE 15" CLUTCH(RE9)	8-97300-273-1	01	1	0907-	●	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0803-0906	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
552	BRACKET EXC. 15" CLUTCH(RE9)	8-98005-329-1	01	1	0803-0906	●
552	BRACKET EXC. 15" CLUTCH(RE9)	8-98005-329-1	01	1	0907-	●	●
630	DETENT ASM	8-98019-536-0	04	1	0803-0906	●
630	DETENT ASM	8-98019-536-0	04	1	0907-	●	●
632	SENSOR; TRANS,REV EXC. 15" CLUTCH(RE9)	8-97315-604-1	01	1	0803-0906	●
632	SENSOR; TRANS,REV EXC. 15" CLUTCH(RE9)	8-97315-604-1	01	1	0907-	●	●
636	BRACKET; CLIP	8-97610-096-2	01	1	0803-0906	●
636	BRACKET; CLIP	8-97610-096-2	01	1	0907-	●	●
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	0803-0906	●
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
637	BOLT; BRACKET EXC. 15" CLUTCH(RE9) (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-0906	●
637	BOLT; BRACKET EXC. 15" CLUTCH(RE9) (B) M8X20 FLANGE	0-28650-820-0	01	1	0907-	●	●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (A)	8-98048-497-1	01	1	0803-0906	●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (A)	8-98048-497-1	01	1	0907-	●	●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (B)	8-98048-498-1	01	1	0803-0906	●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (B)	8-98048-498-1	01	1	0907-	●	●
679	BRACKET; HEAT PROTECTOR EXC. 15" CLUTCH(RE9)	8-98005-332-0	01	1	0803-0906	●
679	BRACKET; HEAT PROTECTOR EXC. 15" CLUTCH(RE9)	8-98005-332-0	01	1	0907-	●	●
680	BOLT; FLANGE EXC. 15" CLUTCH(RE9) M10X20 FLANGE	0-28761-020-0	02	1	0803-0906	●
680	BOLT; FLANGE EXC. 15" CLUTCH(RE9) M10X20 FLANGE	0-28761-020-0	02	1	0907-	●	●
681	NUT; FLANGE EXC. 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	02	1	0803-0906	●
681	NUT; FLANGE EXC. 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	02	1	0907-	●	●
687	GASKET; SENSOR EXC. 15" CLUTCH(RE9)	9-09567-113-0	01	1	0803-0906	●
687	GASKET; SENSOR EXC. 15" CLUTCH(RE9)	9-09567-113-0	01	1	0907-	●	●

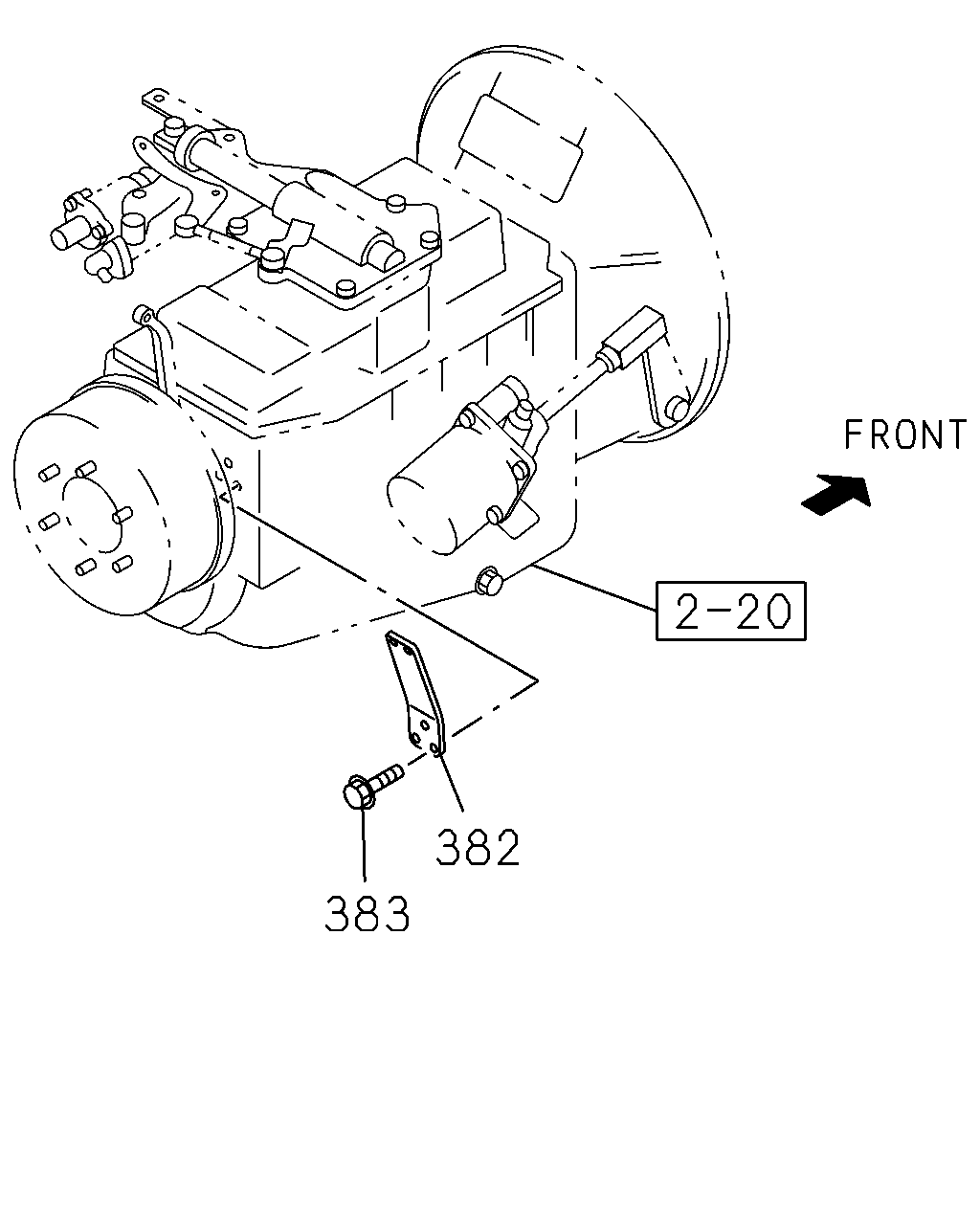

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-223-0	01	1	0809-	●
	383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	0809-	●

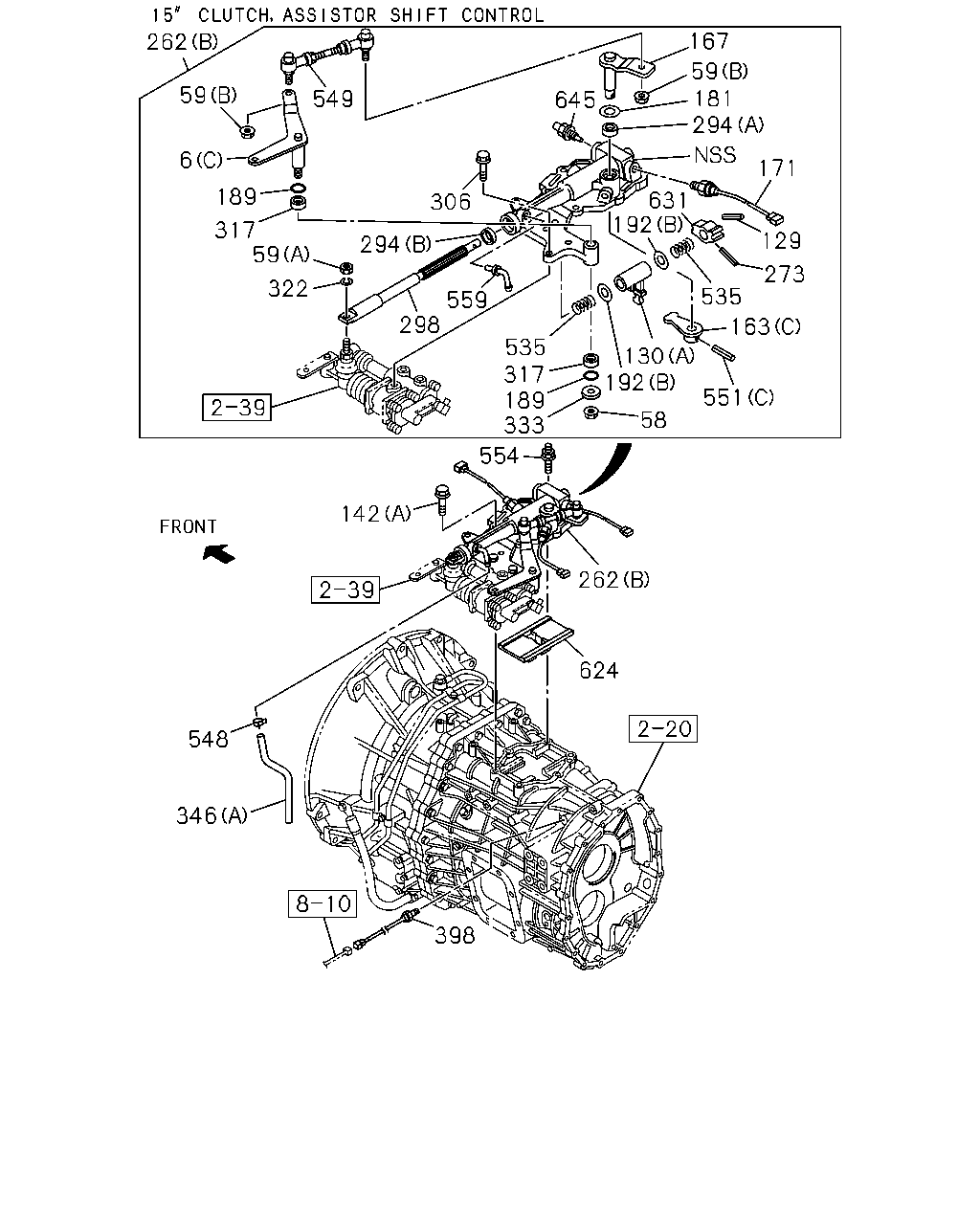

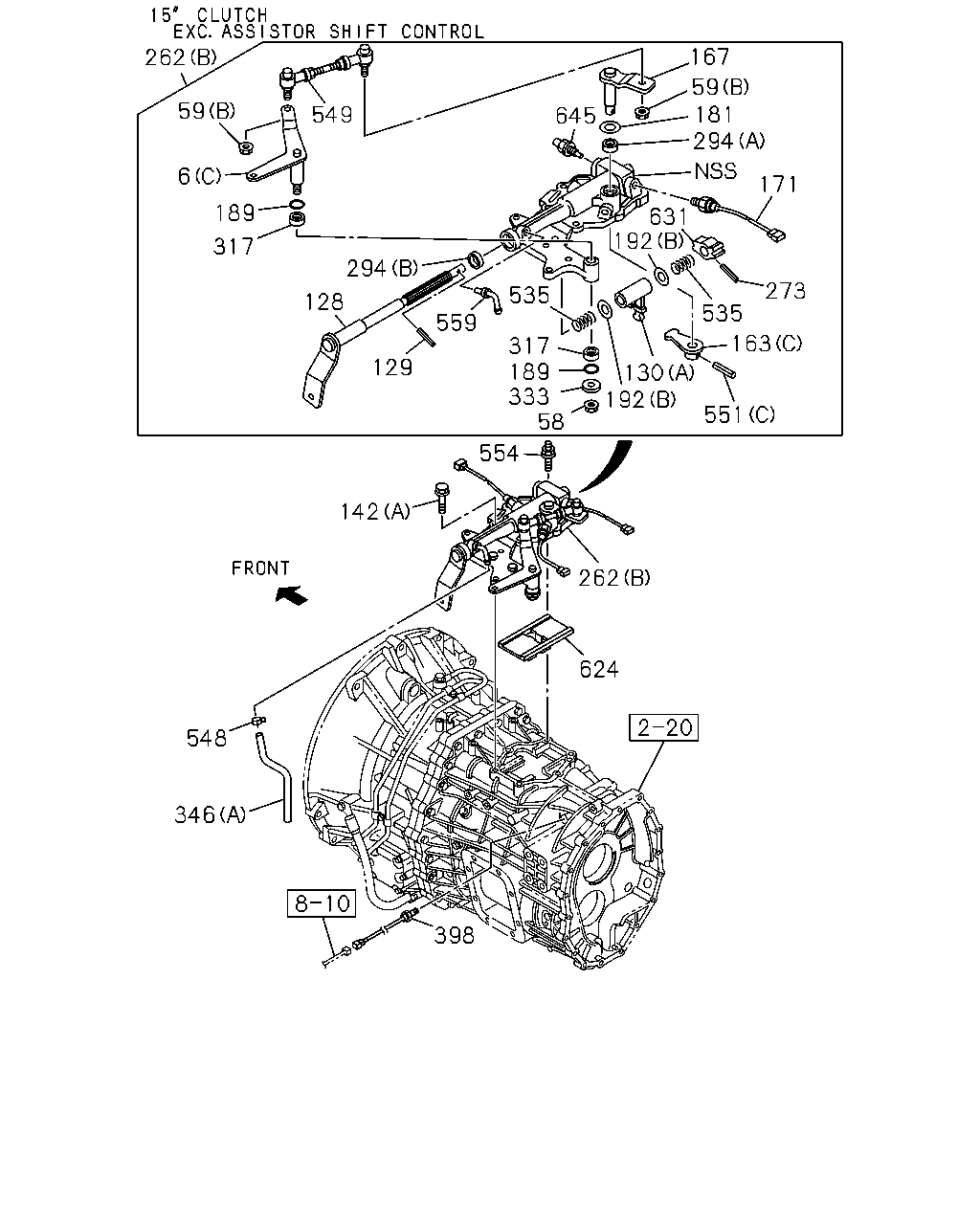

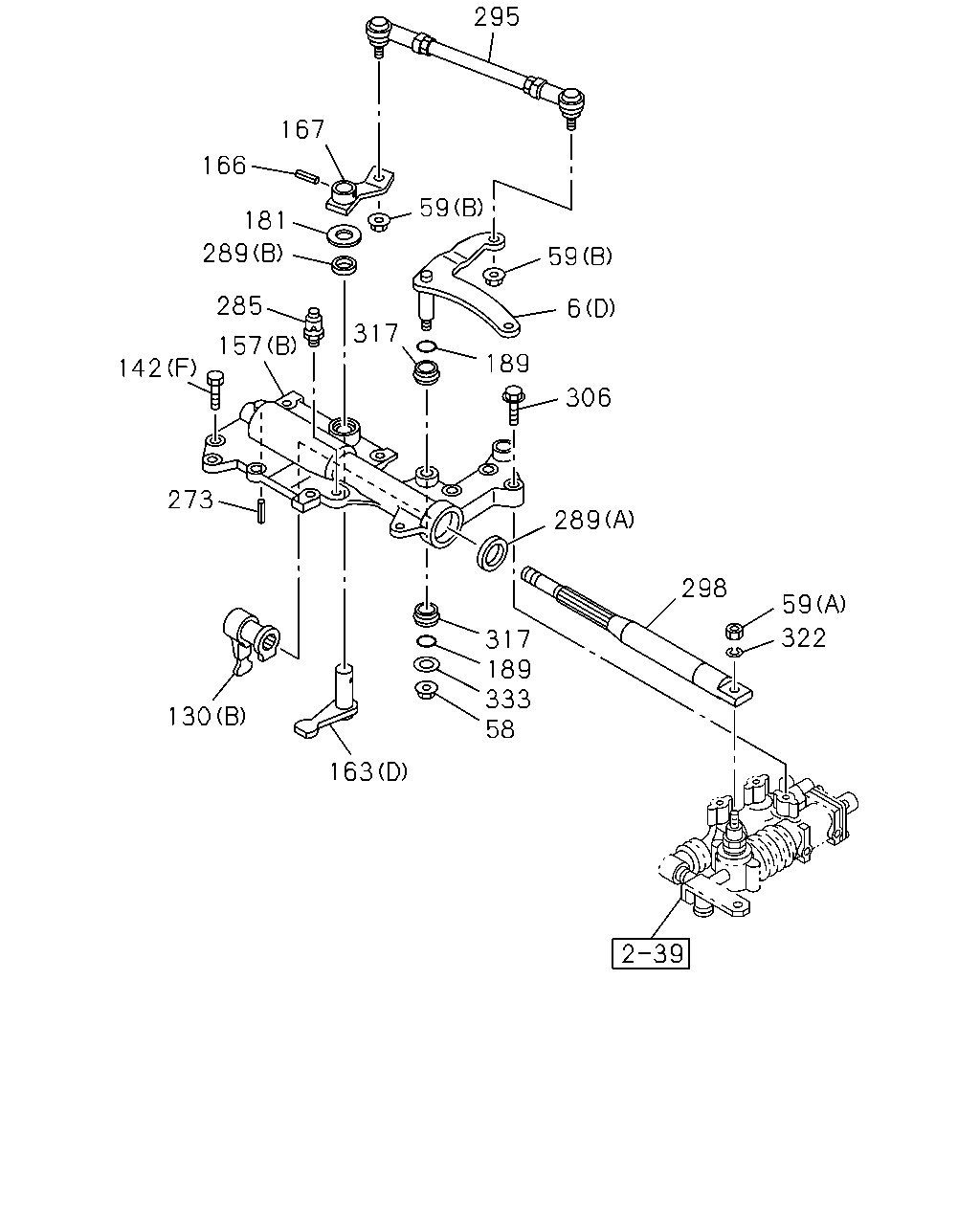

295 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0806-	●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0803-0906		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0907-		●	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-0906		●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-		●	●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0803-0906		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0907-		●	●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0803-0805		●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0806-0906	●	●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0803-0805		●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0806-0906		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0806-0906	●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-		●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-	●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0803-0805		●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0806-0906	●	●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	1-33521-165-0	01	1	0806-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33521-111-1	01	1	0806-	●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9) (A)	8-97306-647-0	01	1	0803-0906		●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9) (A)	8-97306-647-0	01	1	0907-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0806-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-0906		●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0907-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0806-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33541-478-0	01	1	0806-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0806-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0806-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0806-	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0907-		●	●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0907-		●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0806-	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0806-	●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0803-0906		●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0907-		●	●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0803-0805		●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0806-0906	●	●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0907-	●	●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0806-	●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0803-0906		●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0907-		●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0806-1204	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●	●
285	BREATHER; AIR,QUAD BOX 15" CLUTCH(RE9)	1-33149-003-0	01	1	1208-1404	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0806-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0806-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (C) OD=30	1-09625-386-0	01	1	0806-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (D) OD=41	1-09625-647-0	01	1	0806-	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0806-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0803-0906		●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0907-1507		●	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0803-0906		●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0907-		●	●
306	BOLT; SHIFT ASSISTOR 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0803-0805		●
306	BOLT; SHIFT ASSISTOR 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0806-0906		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0806-0906	●
306	BOLT; SHIFT ASSISTOR 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0907-		●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0907-	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0803-0805		●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0806-0906	●	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0907-	●	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0803-0906		●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0907-		●	●
322	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0803-0805		●
322	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0806-0906		●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0806-0906	●
322	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0907-		●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0907-	●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0803-0805		●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0806-0906	●	●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0907-	●	●	●

167 262 59 181 294 59 549 645 6 171 89 631 192 306 317 59 129 294 273 322 535 559 298 163 535 317 189 333 130 192 551 58 554 142 262 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0806-	●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0803-0906		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0907-		●	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-0906		●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-		●	●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0803-0906		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0907-		●	●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0803-0805		●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0806-0906	●	●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0803-0805		●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0806-0906		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0806-0906	●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-		●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-	●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0803-0805		●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0806-0906	●	●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0806-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0803-0906		●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0907-		●	●
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	0803-0906		●
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	0907-		●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	1-33521-165-0	01	1	0806-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33521-111-1	01	1	0806-	●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9) (A)	8-97306-647-0	01	1	0803-0906		●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9) (A)	8-97306-647-0	01	1	0907-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0806-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-0906		●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0907-		●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0806-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0806-	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0907-		●	●
171	SWITCH; NEUTRAL EXC. 15" CLUTCH(RE9)	8-98242-172-0	01	1	1307-1312		●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0806-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0803-0906		●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1306		●	●
171	SWITCH; NEUTRAL 15" CLUTCH(RE9)	8-98023-050-0	01	1	1307-1312		●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0806-	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0806-	●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0803-0906		●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0907-		●	●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0803-0805		●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0806-0906	●	●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0907-	●	●	●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0803-0906		●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0907-		●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0803-0906		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-		●	●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0803-0906		●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0907-		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0907-1204		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-477-0	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-477-0	01	1	0907-1204		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1205-1306		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-041-0	01	1	1307-1312		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-010-0	01	1	1401-1404		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-161-1	01	1	1405-1507		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1508-		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-3	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-4	01	1	0907-1010		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98107-814-1	01	1	1011-1306		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98241-122-1	01	1	1307-1411		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98296-530-0	01	1	1412-1509		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98331-686-0	01	1	1510-		●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0806-	●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0803-0906		●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0907-		●	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0803-0906		●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0907-1507		●	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0803-0906		●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0907-		●	●
306	BOLT; SHIFT ASSISTOR 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0803-0805		●
306	BOLT; SHIFT ASSISTOR 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0806-0906		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0806-0906	●
306	BOLT; SHIFT ASSISTOR 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0907-		●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0907-	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0803-0805		●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0806-0906	●	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0907-	●	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0803-0906		●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0907-		●	●
322	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0803-0805		●
322	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0806-0906		●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0806-0906	●
322	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0907-		●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0907-	●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0803-0805		●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0806-0906	●	●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0907-	●	●	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (A)	8-97309-855-0	01	1	1208-1404		●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0803-0906		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0907-1204		●	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0803-0906		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0907-		●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0806-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0803-0906		●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312		●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●	●
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	0803-0906		●
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	0907-		●	●
548	CLIP; HOSE EXC. 15" CLUTCH(RE9)	8-97031-674-0	01	1	1208-1404		●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●	●
548	CLIP; HOSE	8-97031-674-0	01	1	0803-0906		●
548	CLIP; HOSE	8-97031-674-0	01	1	0907-1204		●	●
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	0803-0906		●
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	0907-		●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0803-0906		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-		●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0803-0906		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-		●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0803-0906		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0907-		●	●
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	0803-0906		●
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	0907-		●	●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1405-		●	●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0803-0906		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0907-1204		●	●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0803-0906		●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0907-		●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0803-0906		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0907-		●	●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0803-0906		●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0907-		●	●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0803-0906		●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0907-		●	●
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	0803-0906		●
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	0907-		●	●

262 652 243 274 653 548 624 398 262 346 142 142 652 651 374 654 551 381 551 374 374 163 315 651 381 655 551 654 381 631 265 655 551 657 265 656 656 559 133 656 551 298 133 6 317 551 163 171 654 294 192 317 374 551 530 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0806-	●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0803-0906		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0907-		●	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-0906		●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-		●	●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0803-0906		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0907-		●	●
133	SEAT; SPR EXC. 15" CLUTCH(RE9) (A)	8-97379-988-0	01	1	0803-0906		●
133	SEAT; SPR EXC. 15" CLUTCH(RE9) (A)	8-97379-988-0	01	1	0907-		●	●
133	SEAT; SPR EXC. 15" CLUTCH(RE9) (B)	8-97379-989-0	01	1	0803-0906		●
133	SEAT; SPR EXC. 15" CLUTCH(RE9) (B)	8-97379-989-0	01	1	0907-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0806-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-0906		●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0907-		●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0806-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0806-	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0907-		●	●
171	SWITCH; NEUTRAL EXC. 15" CLUTCH(RE9)	8-98242-172-0	01	1	1307-1312		●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0806-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0803-0906		●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1306		●	●
171	SWITCH; NEUTRAL 15" CLUTCH(RE9)	8-98023-050-0	01	1	1307-1312		●	●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0803-0906		●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0907-		●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0803-0906		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-		●	●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0803-0906		●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0907-		●	●
243	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X12 FLANGE	0-28050-612-0	11	1	0803-0906		●
243	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X12 FLANGE	0-28050-612-0	11	1	0907-0907		●	●
243	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X12 FLANGE	1-33739-842-0	11	1	0907-		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0907-1204		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-477-0	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-477-0	01	1	0907-1204		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1205-1306		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-041-0	01	1	1307-1312		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-010-0	01	1	1401-1404		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-161-1	01	1	1405-1507		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1508-		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-3	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-4	01	1	0907-1010		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98107-814-1	01	1	1011-1306		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98241-122-1	01	1	1307-1411		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98296-530-0	01	1	1412-1509		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98331-686-0	01	1	1510-		●	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97363-225-0	01	1	0803-0906		●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97363-225-0	01	1	0907-		●	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97379-981-0	01	1	0803-0906		●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97379-981-0	01	1	0907-		●	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0806-	●
274	COVER; SHAFT,QUAD BOX EXC. 15" CLUTCH(RE9)	8-98020-711-0	01	1	0803-0906		●
274	COVER; SHAFT,QUAD BOX EXC. 15" CLUTCH(RE9)	8-98020-711-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0907-		●	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0803-0906		●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0907-1507		●	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0803-0906		●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0907-		●	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	0806-	●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-97379-998-0	01	1	0803-0906		●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-97379-998-0	01	1	0907-1411		●	●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-98296-526-0	01	1	1412-		●	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0803-0805		●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0806-0906	●	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0907-	●	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0803-0906		●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0907-		●	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (A)	8-97309-855-0	01	1	1208-1404		●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0803-0906		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0907-1204		●	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0803-0906		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0907-		●	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97349-571-0	03	1	0803-0906		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97349-571-0	03	1	0907-		●	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97349-573-0	01	1	0803-0906		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97349-573-0	01	1	0907-		●	●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-0906		●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0907-		●	●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	0-28050-612-0	04	1	0803-0906		●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	0-28050-612-0	04	1	0907-0907		●	●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-		●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0806-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0803-0906		●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312		●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●	●
530	SHAFT; SELECT EXC. 15" CLUTCH(RE9)	8-97379-996-0	01	1	0803-0906		●
530	SHAFT; SELECT EXC. 15" CLUTCH(RE9)	8-97379-996-0	01	1	0907-		●	●
548	CLIP; HOSE EXC. 15" CLUTCH(RE9)	8-97031-674-0	01	1	1208-1404		●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●	●
548	CLIP; HOSE	8-97031-674-0	01	1	0803-0906		●
548	CLIP; HOSE	8-97031-674-0	01	1	0907-1204		●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0803-0906		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-		●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0803-0906		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-		●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0803-0906		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0907-		●	●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1405-		●	●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0803-0906		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0907-1204		●	●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0803-0906		●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0907-		●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0803-0906		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0907-		●	●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0803-0906		●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0907-		●	●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0803-0906		●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0907-		●	●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (A)	8-98048-497-1	01	1	0803-0906		●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (A)	8-98048-497-1	01	1	0907-		●	●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (B)	8-98048-498-1	01	1	0803-0906		●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (B)	8-98048-498-1	01	1	0907-		●	●
652	BOLT; SORENOID EXC. 15" CLUTCH(RE9) M10X25 FLANGE	0-28151-025-0	06	1	0803-0906		●
652	BOLT; SORENOID EXC. 15" CLUTCH(RE9) M10X25 FLANGE	0-28151-025-0	06	1	0907-		●	●
653	SOLENOID ASM; SELECT EXC. 15" CLUTCH(RE9)	8-98002-761-0	01	1	0803-0906		●
653	SOLENOID ASM; SELECT EXC. 15" CLUTCH(RE9)	8-98002-761-0	01	1	0907-		●	●
654	JOINT; SOLENOID,CASE EXC. 15" CLUTCH(RE9) (A)	8-97349-473-0	02	1	0803-0906		●
654	JOINT; SOLENOID,CASE EXC. 15" CLUTCH(RE9) (A)	8-97349-473-0	02	1	0907-		●	●
654	JOINT; SOLENOID,CASE EXC. 15" CLUTCH(RE9) (B)	8-97380-419-0	01	1	0803-0906		●
654	JOINT; SOLENOID,CASE EXC. 15" CLUTCH(RE9) (B)	8-97380-419-0	01	1	0907-		●	●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (A)	8-97324-826-0	01	1	0803-0906		●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (A)	8-97324-826-0	01	1	0907-1010		●	●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (A)	8-98107-823-0	01	1	1011-		●	●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (B)	8-97324-827-0	01	1	0803-0906		●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (B)	8-97324-827-0	01	1	0907-1010		●	●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (B)	8-98107-824-0	01	1	1011-		●	●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (A)	8-97379-985-0	01	1	0803-0906		●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (A)	8-97379-985-0	01	1	0907-		●	●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (B)	8-97379-986-0	01	1	0803-0906		●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (B)	8-97379-986-0	01	1	0907-		●	●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (C)	8-97379-987-0	01	1	0803-0906		●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (C)	8-97379-987-0	01	1	0907-		●	●
657	PLATE; SIDE EXC. 15" CLUTCH(RE9)	8-98020-712-0	01	1	0803-0906		●
657	PLATE; SIDE EXC. 15" CLUTCH(RE9)	8-98020-712-0	01	1	0907-		●	●

262 167 59 181 294 59 549 645 6 171 89 631 192 317 294 273 535 128 535 559 163 317 189 333 58 129 130 192 551 554 142 262 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0806-	●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0803-0906		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0907-		●	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-0906		●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-		●	●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0803-0906		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0907-		●	●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0803-0805		●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0806-0906	●	●
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0803-0805		●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0806-0906		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0806-0906	●
59	NUT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-		●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-	●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0803-0805		●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0806-0906	●	●
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0806-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0803-0906		●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0907-		●	●
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	0803-0906		●
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	0907-1507		●	●
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-		●	●
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	0803-0906		●
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	0907-		●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	1-33521-165-0	01	1	0806-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33521-111-1	01	1	0806-	●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9) (A)	8-97306-647-0	01	1	0803-0906		●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9) (A)	8-97306-647-0	01	1	0907-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0806-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-0906		●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0907-		●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0806-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0806-	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0907-		●	●
171	SWITCH; NEUTRAL EXC. 15" CLUTCH(RE9)	8-98242-172-0	01	1	1307-1312		●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0806-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0803-0906		●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1306		●	●
171	SWITCH; NEUTRAL 15" CLUTCH(RE9)	8-98023-050-0	01	1	1307-1312		●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0806-	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0806-	●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0803-0906		●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0907-		●	●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0803-0805		●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0806-0906	●	●
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	0907-	●	●	●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0803-0906		●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0907-		●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0803-0906		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-		●	●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0803-0906		●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0907-		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0907-1204		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-477-0	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-477-0	01	1	0907-1204		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1205-1306		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-041-0	01	1	1307-1312		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-010-0	01	1	1401-1404		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-161-1	01	1	1405-1507		●	●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1508-		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-3	01	1	0803-0906		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-4	01	1	0907-1010		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98107-814-1	01	1	1011-1306		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98241-122-1	01	1	1307-1411		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98296-530-0	01	1	1412-1509		●	●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98331-686-0	01	1	1510-		●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0806-	●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0803-0906		●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0907-		●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0803-0906		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0907-		●	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0803-0805		●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0806-0906	●	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0907-	●	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0803-0906		●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0907-		●	●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0803-0805		●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0806-0906	●	●
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	0907-	●	●	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (A)	8-97309-855-0	01	1	1208-1404		●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0803-0906		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0907-1204		●	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0803-0906		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0907-		●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0806-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0803-0906		●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312		●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●	●
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	0803-0906		●
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	0907-		●	●
548	CLIP; HOSE EXC. 15" CLUTCH(RE9)	8-97031-674-0	01	1	1208-1404		●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●	●
548	CLIP; HOSE	8-97031-674-0	01	1	0803-0906		●
548	CLIP; HOSE	8-97031-674-0	01	1	0907-1204		●	●
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	0803-0906		●
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	0907-		●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0803-0906		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-		●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0803-0906		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-		●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0803-0906		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0907-		●	●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0803-0906		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0907-		●	●
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	0803-0906		●
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	0907-		●	●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1405-		●	●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0803-0906		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0907-1204		●	●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0803-0906		●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0907-		●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0803-0906		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0907-		●	●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0803-0906		●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0907-		●	●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0803-0906		●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0907-		●	●
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	0803-0906		●
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	0907-		●	●

38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 218 86 39 142 31 30 28 86 225 224 223 398 80 142 221 413 78 218 61 86 142 142 218 42 71 171 157 142 219 78 70 142 69 42 66 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0806-	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0806-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0806-	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0806-	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0806-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0806-	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0806-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0806-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0806-	●
30	PIN; INTER LK	9-33534-003-0	03	1	0806-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0806-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0806-1202	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0806-	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0806-	●
39	BALL; DETENT	1-09843-012-0	04	1	0806-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0806-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0806-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0806-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0806-1202	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-202-3	01	1	0806-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0806-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0806-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	8-97388-980-1	01	1	0803-0906		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	8-97388-980-1	01	1	0907-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0806-	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0803-0906		●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0907-		●	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0806-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0806-1202	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0806-	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0806-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0806-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0806-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0806-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0806-	●
78	ARM; SHIFT,REV (C)	1-33511-234-1	01	1	0806-	●
78	ARM; SHIFT,REV (A)	8-97388-975-1	01	1	0803-0906		●
78	ARM; SHIFT,REV (A)	8-97388-975-1	01	1	0907-		●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0806-1202	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0806-	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0803-0906		●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0907-		●	●
84	SLEEVE; REV	1-33516-025-0	01	1	0806-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0806-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0806-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0806-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0803-0906		●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0907-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0806-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-0906		●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0907-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0806-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33541-478-0	01	1	0806-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0806-	●
171	SWITCH; NEUTRAL EXC. 15" CLUTCH(RE9)	8-98242-172-0	01	1	1307-1312		●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0806-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0803-0906		●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1306		●	●
171	SWITCH; NEUTRAL 15" CLUTCH(RE9)	8-98023-050-0	01	1	1307-1312		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0806-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0806-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0806-	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0806-	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0806-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0806-	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0806-	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0806-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0806-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0806-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0803-0906		●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312		●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0806-	●

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	1-33521-165-0	01	1	0806-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33521-111-1	01	1	0806-	●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9) (A)	8-97306-647-0	01	1	0803-0906		●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9) (A)	8-97306-647-0	01	1	0907-		●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0806-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0806-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-0906		●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0907-		●	●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-0906		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0907-		●	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0806-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33541-478-0	01	1	0806-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0806-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0806-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0806-	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0907-		●	●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0803-0906		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0806-	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0907-		●	●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0803-0906		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0907-		●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0806-	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0806-	●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0803-0906		●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0907-		●	●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0806-	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0806-	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23	1-33549-016-0	01	1	0806-	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32	1-33549-104-0	01	1	0806-	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0806-	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0806-	●
274	COVER; SHAFT,QUAD BOX EXC. 15" CLUTCH(RE9)	8-98020-711-0	01	1	0803-0906		●
274	COVER; SHAFT,QUAD BOX EXC. 15" CLUTCH(RE9)	8-98020-711-0	01	1	0907-		●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0806-1204	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●	●
285	BREATHER; AIR,QUAD BOX 15" CLUTCH(RE9)	1-33149-003-0	01	1	1208-1404	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0806-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0806-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (C) OD=30	1-09625-386-0	01	1	0806-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (D) OD=41	1-09625-647-0	01	1	0806-	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0806-	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0806-	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0806-	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0806-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0806-	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0806-	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0803-0906		●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0907-1507		●	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0806-	●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0803-0906		●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0907-		●	●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0806-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	0806-	●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-97379-998-0	01	1	0803-0906		●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-97379-998-0	01	1	0907-1411		●	●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-98296-526-0	01	1	1412-		●	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0803-0805		●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0806-0906	●	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0907-	●	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0803-0906		●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0907-		●	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0806-	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0806-	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0803-0906		●
320	SHAFT; LEVER	8-97377-928-0	01	1	0907-		●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0806-	●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0806-	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0806-	●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0806-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
