Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#67430) — 418 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

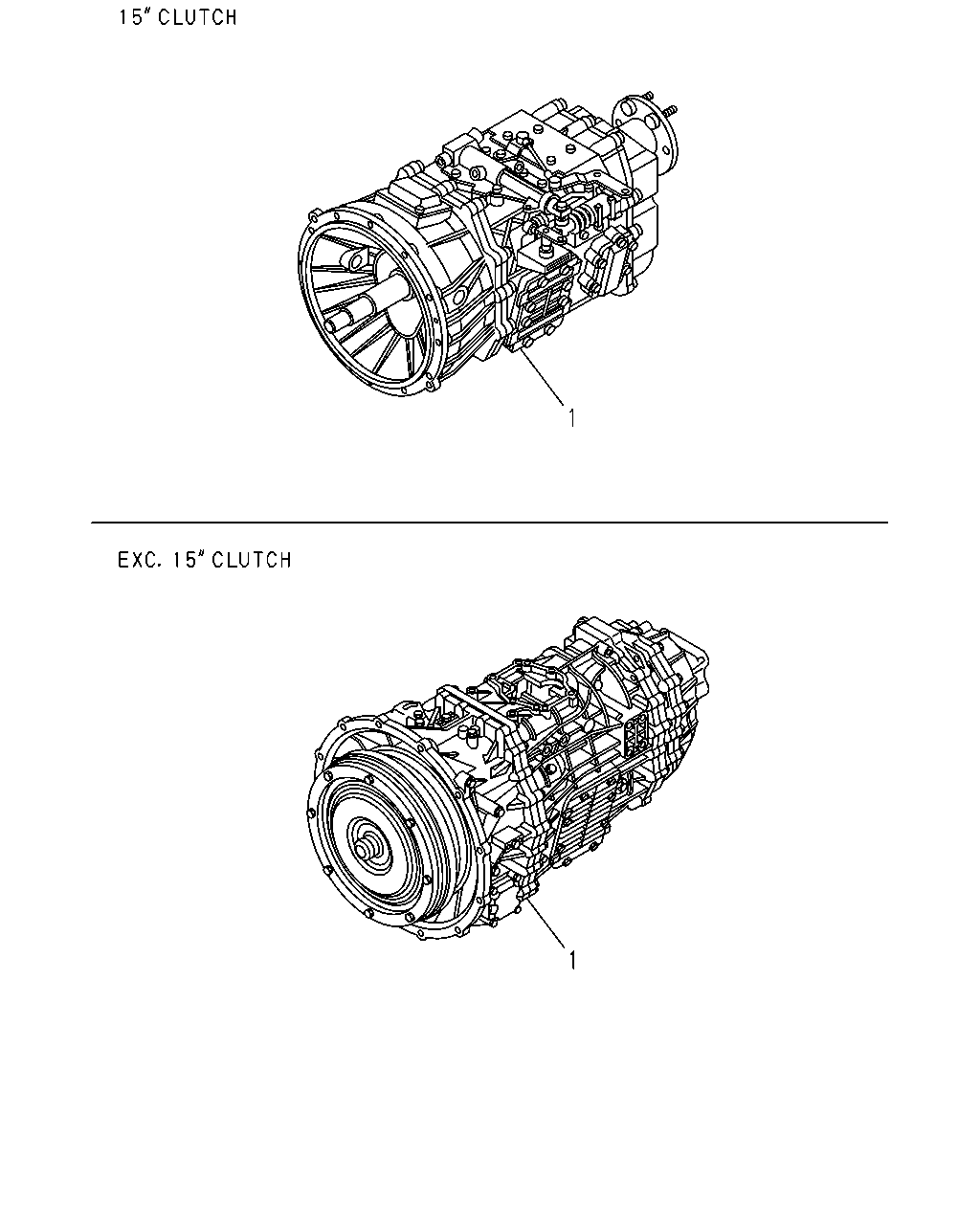

1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-510-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98134-510-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98134-556-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5) ,PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98134-556-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S)	8-98134-520-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98134-520-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,ASSISTOR SHIFT CONTROL<WX8>	8-98134-629-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98134-568-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-629-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98134-568-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98041-776-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98065-504-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-534-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-544-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-766-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5) ,PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-552-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-294-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-295-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-294-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-295-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-290-0	01	1	0806-0808			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-290-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-291-0	01	1	0806-0808			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-291-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-290-0	01	1	0806-0808			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,TRANSMISSIO N CONTROL-SMOOTHER(8GF)	1-33044-290-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-291-0	01	1	0806-0808			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-291-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>	8-98108-376-0	01	1	0803-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,ASSISTOR SHIFT CONTROL<WX8>	8-98108-376-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98108-376-0	01	1	0803-0803		●
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-565-0	01	1	0804-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-565-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-819-0	01	1	0803-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S)	8-98041-819-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0803-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98041-819-0	01	1	0803-0803		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-532-0	01	1	0804-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-532-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0803-0803		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>, KD PREPARATORY PACK<6HF>	8-98041-809-0	01	1	0803-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-809-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-809-0	01	1	0803-0803		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-548-0	01	1	0804-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-548-0	01	1	0809-		●

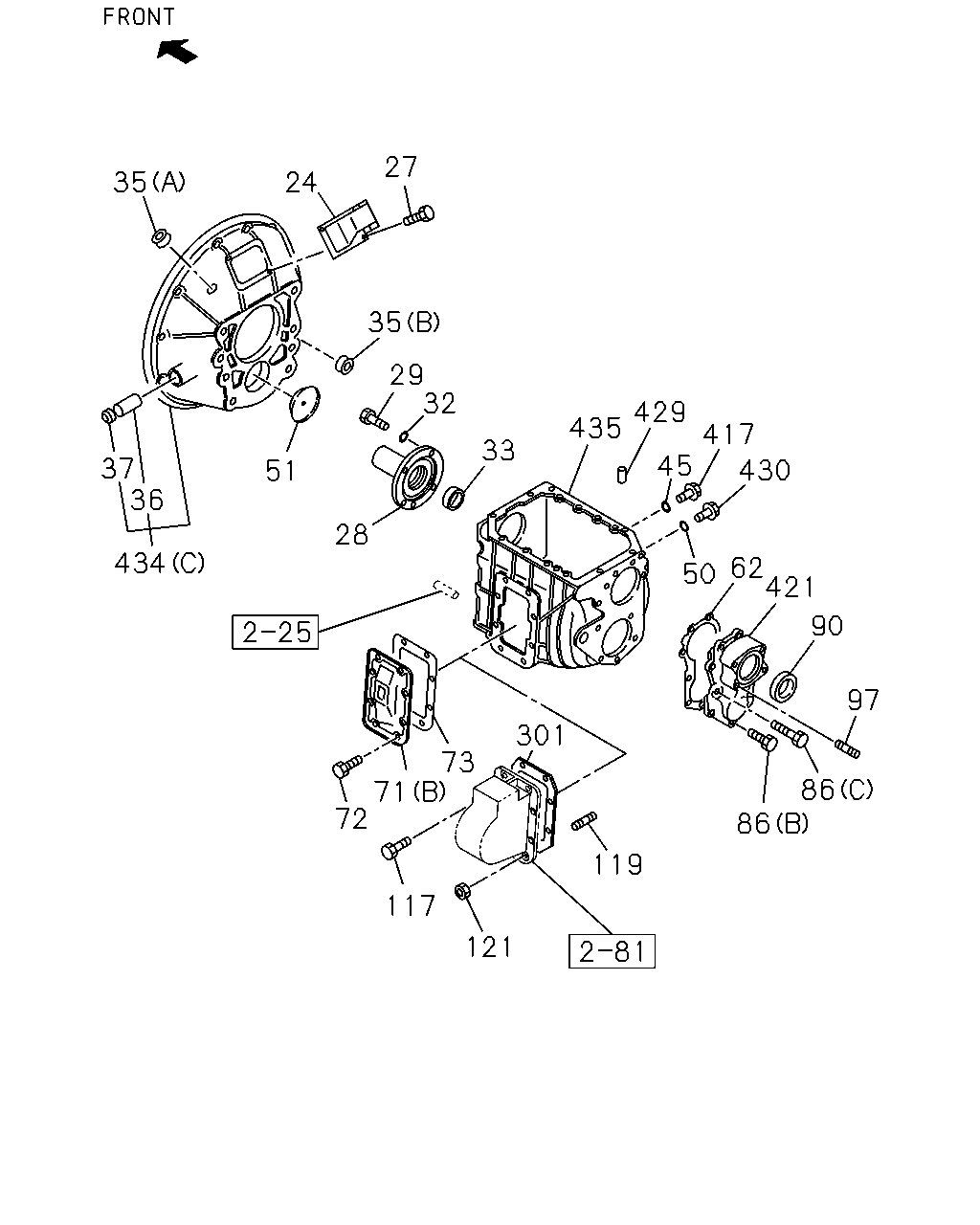

27 24 35 35 29 32 429 435 417 45 33 37 36 430 51 28 434 62 421 50 90 97 301 73 71 72 86 86 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

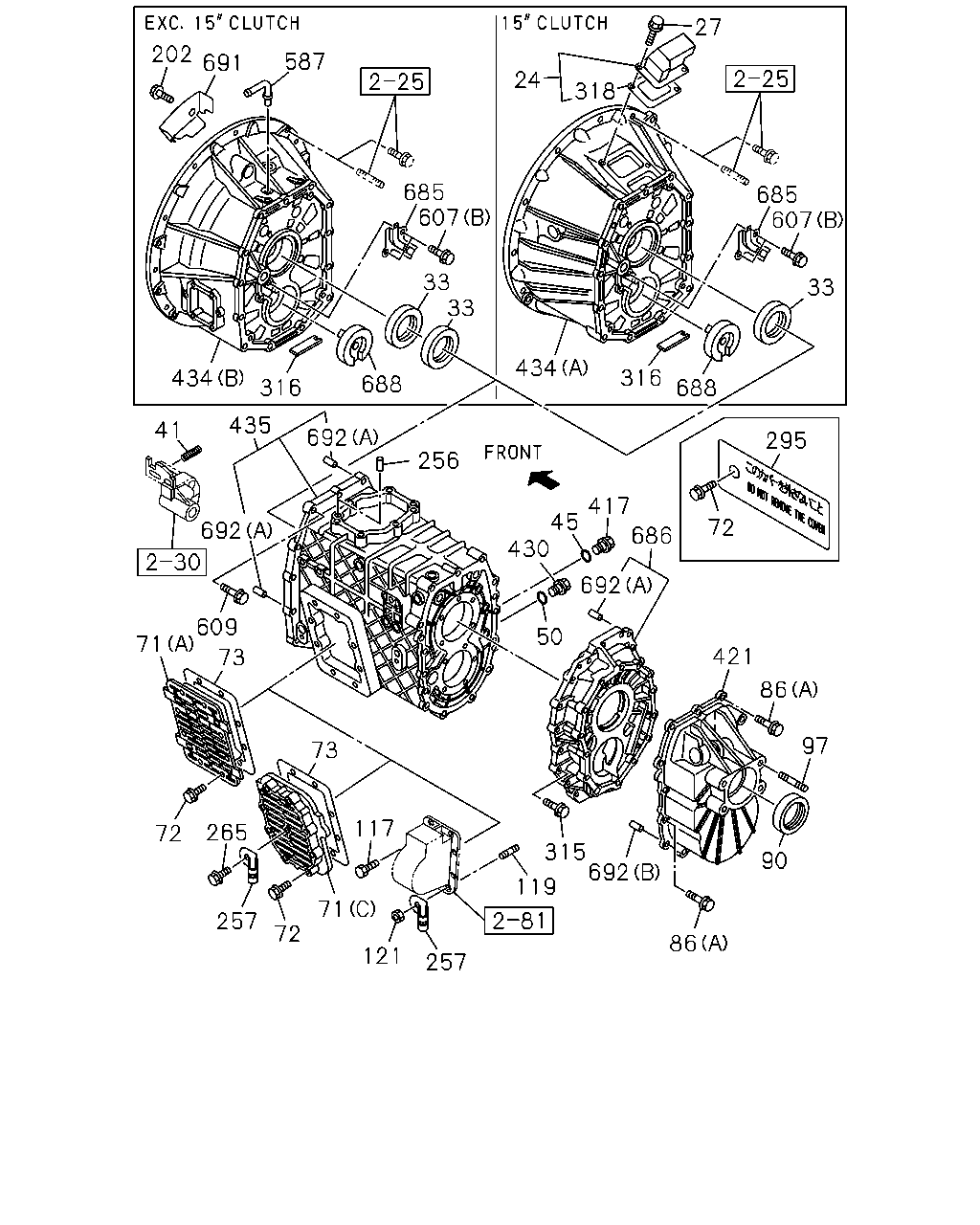

24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-			●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	1-31131-041-0	01	1	0803-0805		●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	1-31131-041-0	01	1	0806-0906		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0806-0906			●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	1-31131-041-0	01	1	0907-1410	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1410			●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	8-98283-062-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-1410			●
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-			●
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X12 FLANGE	0-28050-812-0	02	1	0803-0906		●
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0806-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0806-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0806-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	8-97377-947-0	01	1	0803-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97255-187-0	02	1	0803-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97255-187-0	02	1	0907-	●	●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0806-			●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0806-			●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0806-			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0806-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0806-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0806-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0806-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0803-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0806-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0803-0803		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0803-0805		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0806-		●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0806-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0806-			●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0803-0906		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0803-0805		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0806-0906		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0803-0805		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0808		●	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0803-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0806-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0803-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0803-0805		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0806-		●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0806-			●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0803-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0806-			●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0803-0906		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0806-			●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0803-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-		●
434	HOUSING; CLU (C)	1-31110-169-0	01	1	0806-			●
434	HOUSING; CLU 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	0803-0906		●
434	HOUSING; CLU 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	0907-	●	●
434	HOUSING; CLU EXC. 15" CLUTCH(RE9) (B)	8-98003-404-3	01	1	0803-0906		●
434	HOUSING; CLU EXC. 15" CLUTCH(RE9) (B)	8-98100-982-1	01	1	0907-	●	●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108	●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404	●
435	CASE; TRANS	8-98236-421-1	01	1	1405-	●
435	CASE; TRANS	1-33111-355-0	01	1	0806-			●
435	CASE; TRANS	8-97388-872-4	01	1	0803-		●

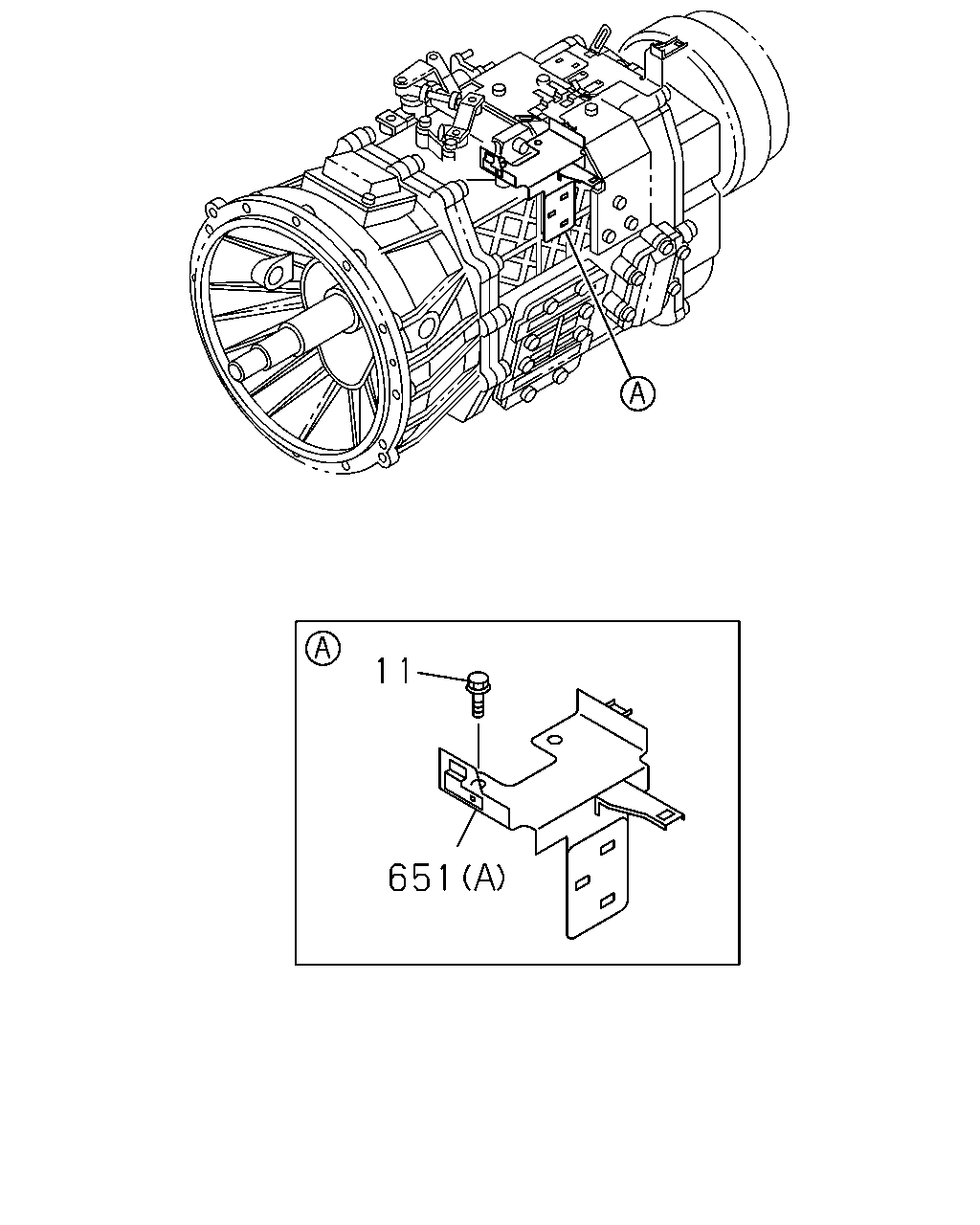

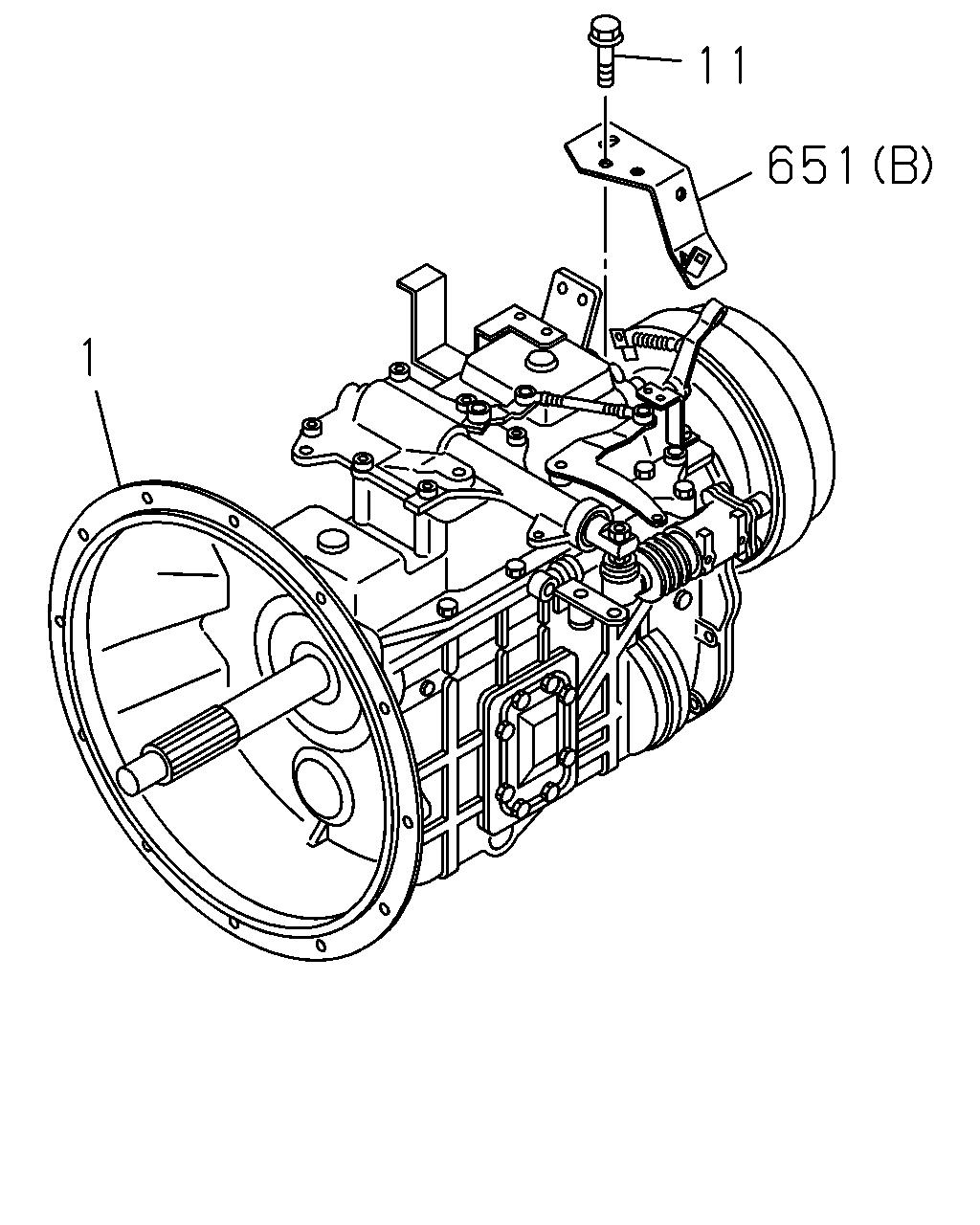

11 651 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-510-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98134-510-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98134-556-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5) ,PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98134-556-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S)	8-98134-520-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98134-520-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,ASSISTOR SHIFT CONTROL<WX8>	8-98134-629-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98134-568-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-629-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98134-568-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98041-776-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98065-504-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-534-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-544-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-766-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5) ,PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-552-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-294-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-295-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-294-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-295-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-290-0	01	1	0806-0808			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-290-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-291-0	01	1	0806-0808			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-291-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-290-0	01	1	0806-0808			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,TRANSMISSIO N CONTROL-SMOOTHER(8GF)	1-33044-290-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-291-0	01	1	0806-0808			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-291-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>	8-98108-376-0	01	1	0803-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,ASSISTOR SHIFT CONTROL<WX8>	8-98108-376-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98108-376-0	01	1	0803-0803		●
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-565-0	01	1	0804-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-565-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-819-0	01	1	0803-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S)	8-98041-819-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0803-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98041-819-0	01	1	0803-0803		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-532-0	01	1	0804-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-532-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0803-0803		●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>, KD PREPARATORY PACK<6HF>	8-98041-809-0	01	1	0803-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-809-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-809-0	01	1	0803-0803		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-548-0	01	1	0804-0808		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),15" CLUTCH(RE9) ,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-548-0	01	1	0809-		●
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0806-			●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0803-0906		●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0907-	●	●
651	BRACKET; T/M HARNESS (B)	8-97627-300-0	01	1	0806-			●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0803-0906		●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0907-	●	●

11 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0806-			●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0803-0906		●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0907-	●	●
651	BRACKET; T/M HARNESS (B)	8-97627-300-0	01	1	0806-			●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0803-0906		●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0907-	●	●

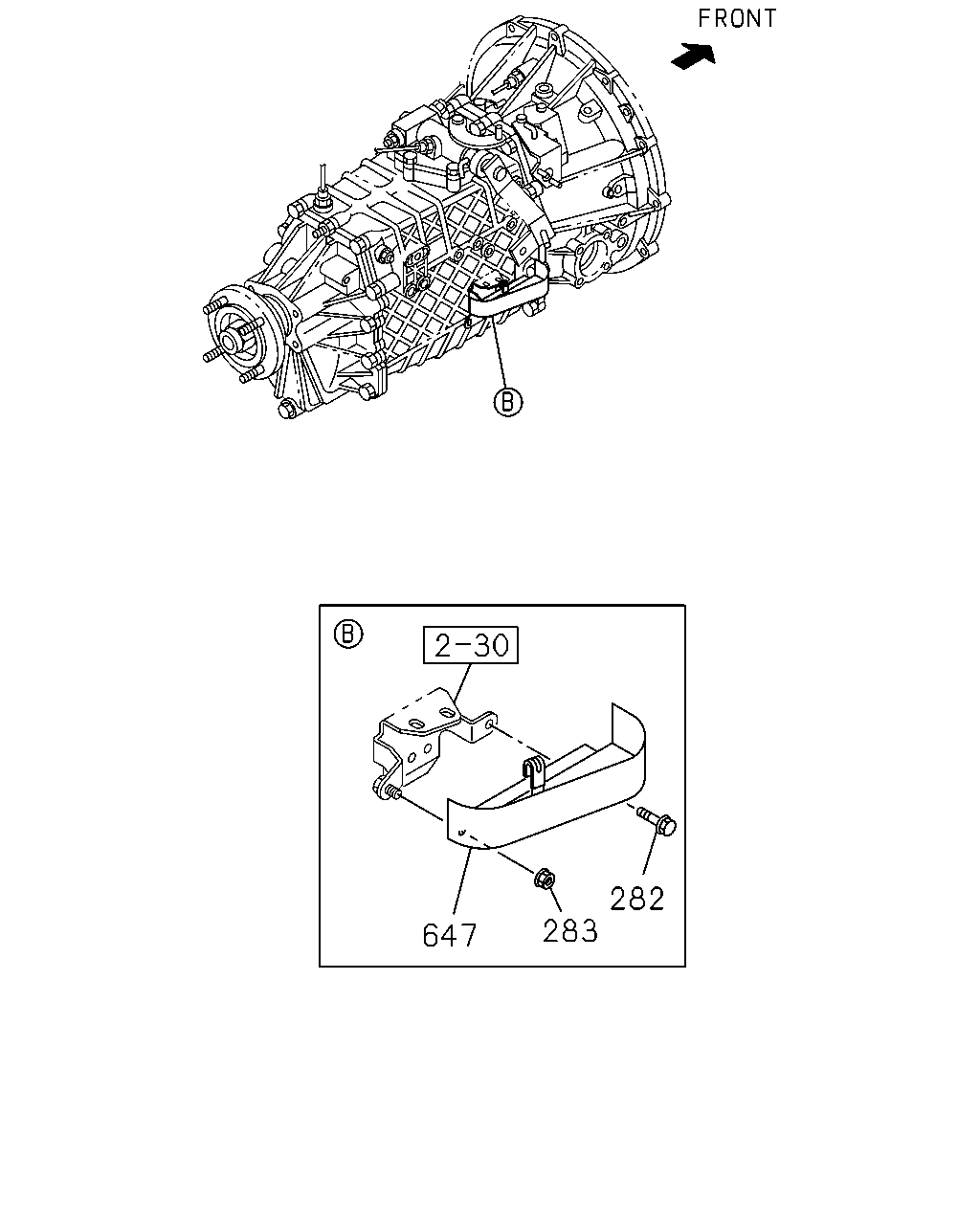

282 283 647

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0803-	●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0803-	●

86 90 97 86 421 692 315 119 257 121 117 71 72 257 265 72 73 73 609 71 692 41 435 692 256 430 50 692 686 417 45 72 295 688 316 434 33 607 685 318 27 24 685 607 33 33 688 316 434 587 691 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-			●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	1-31131-041-0	01	1	0803-0805		●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	1-31131-041-0	01	1	0806-0906		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0806-0906			●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	1-31131-041-0	01	1	0907-1410	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1410			●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9)	8-98283-062-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-1410			●
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-			●
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X12 FLANGE	0-28050-812-0	02	1	0803-0906		●
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0806-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	8-97377-947-0	01	1	0803-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97255-187-0	02	1	0803-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97255-187-0	02	1	0907-	●	●
41	SPRING; DETENT BALL EXC. 15" CLUTCH(RE9)	8-98071-140-0	01	1	0803-0906		●
41	SPRING; DETENT BALL EXC. 15" CLUTCH(RE9)	8-98071-140-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0806-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0803-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0806-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0803-0803		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0803-0805		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0806-		●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0806-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0806-			●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0803-0906		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0803-0805		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0806-0906		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0803-0805		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0808		●	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0803-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0806-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0803-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0803-0805		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0806-		●	●
202	BOLT; PLATE EXC. 15" CLUTCH(RE9) M8X20 FLANGE	0-28650-820-0	01	1	0803-0906		●
202	BOLT; PLATE EXC. 15" CLUTCH(RE9) M8X20 FLANGE	0-28650-820-0	01	1	0907-	●	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0803-0906		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0907-	●	●
257	CLIP; HARNESS EXC. 15" CLUTCH(RE9) ID=8	8-97329-633-0	01	1	0803-0906		●
257	CLIP; HARNESS EXC. 15" CLUTCH(RE9) ID=8	8-97329-633-0	01	1	0907-		●
257	CLIP; HARNESS EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	0907-	●
265	BOLT; CLIP EXC. 15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	0907-	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0804-		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0803-0906		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0803-0906		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-	●	●
318	GASKET; COVER 15" CLUTCH(RE9)	1-31139-023-0	01	1	1411-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0803-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0806-			●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0803-0906		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-	●	●

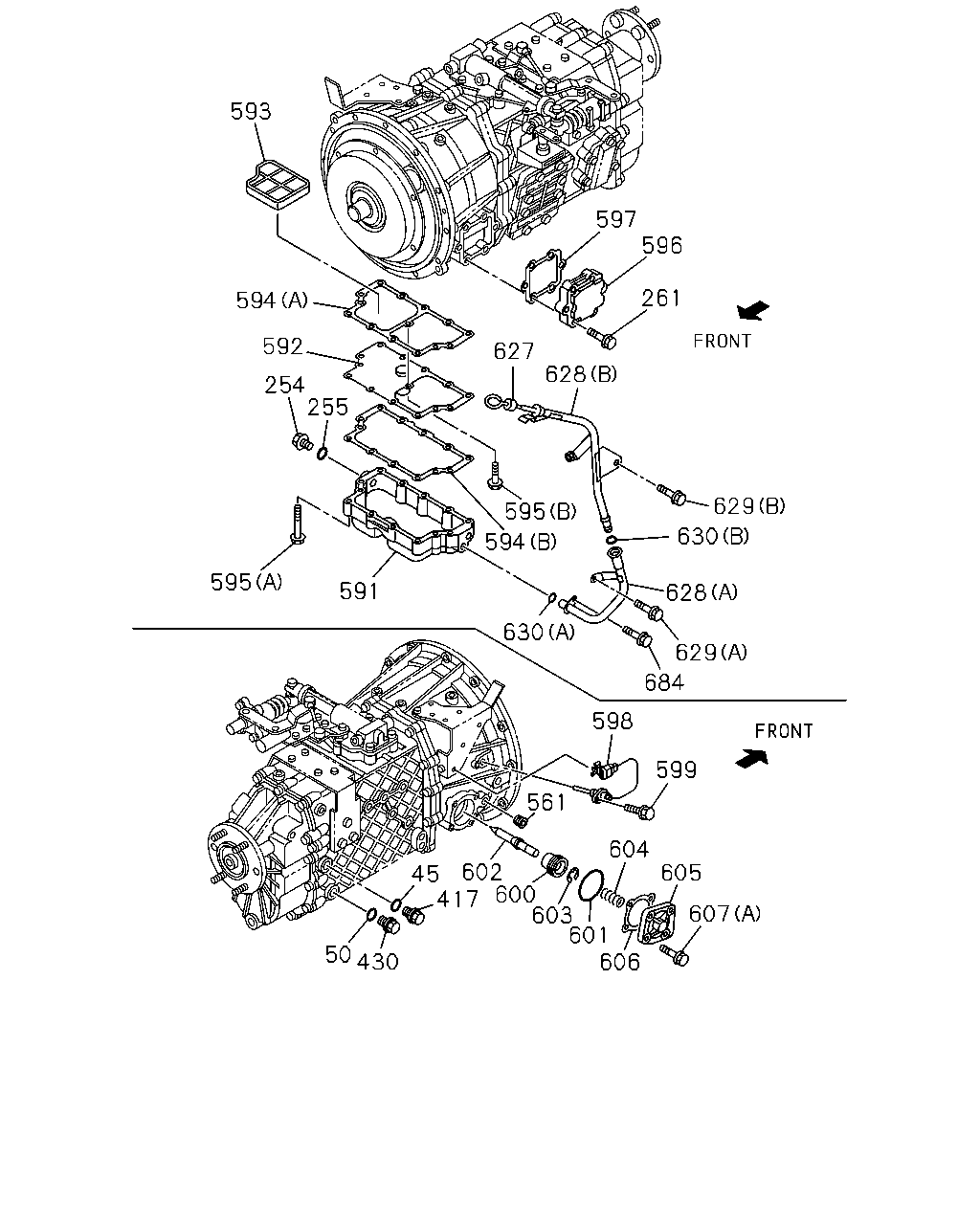

430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0803-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-		●
434	HOUSING; CLU (C)	1-31110-169-0	01	1	0806-			●
434	HOUSING; CLU 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	0803-0906		●
434	HOUSING; CLU 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	0907-	●	●
434	HOUSING; CLU EXC. 15" CLUTCH(RE9) (B)	8-98003-404-3	01	1	0803-0906		●
434	HOUSING; CLU EXC. 15" CLUTCH(RE9) (B)	8-98100-982-1	01	1	0907-	●	●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108	●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404	●
435	CASE; TRANS	8-98236-421-1	01	1	1405-	●
435	CASE; TRANS	1-33111-355-0	01	1	0806-			●
435	CASE; TRANS	8-97388-872-4	01	1	0803-		●
587	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-97358-318-0	01	1	0803-0906		●
587	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-97358-318-0	01	1	0907-	●	●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0906		●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
607	BOLT; COVER EXC. 15" CLUTCH(RE9) (A) M8X30 FLANGE	0-28650-830-0	04	1	0803-0906		●
607	BOLT; COVER EXC. 15" CLUTCH(RE9) (A) M8X30 FLANGE	0-28650-830-0	04	1	0907-	●	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0803-0906		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-	●	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0803-0906		●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-	●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0803-0906		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-	●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0803-0906		●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110	●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508	●	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-	●	●
691	PLATE; BREATHER EXC. 15" CLUTCH(RE9)	8-98044-428-0	01	1	0803-0906		●
691	PLATE; BREATHER EXC. 15" CLUTCH(RE9)	8-98044-428-0	01	1	0907-	●	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0803-0906		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-	●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0803-0906		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-	●	●

593 597 596 261 594 592 627 628 254 255 629 595 630 594 595 591 628 630 629 684 598 599 561 604 600 417 603 601 606 605 607 50 430 45 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-		●
254	PLUG; DRAIN,OIL EXC. 15" CLUTCH(RE9)	8-97365-374-0	01	1	0803-0906		●
254	PLUG; DRAIN,OIL EXC. 15" CLUTCH(RE9)	8-97365-374-0	01	1	0907-	●	●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) ID=17	8-97115-712-0	01	1	0803-0906		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) ID=17	8-97115-712-0	01	1	0907-	●	●
261	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X35 FLANGE	0-28650-635-0	06	1	0803-0906		●
261	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X35 FLANGE	0-28650-635-0	06	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0803-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0803-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-		●
561	PLUG EXC. 15" CLUTCH(RE9)	8-97320-204-0	01	1	0803-0906		●
561	PLUG EXC. 15" CLUTCH(RE9)	8-97320-204-0	01	1	0907-	●	●
591	PAN; OIL EXC. 15" CLUTCH(RE9)	8-97256-429-2	01	1	0803-0906		●
591	PAN; OIL EXC. 15" CLUTCH(RE9)	8-97256-429-2	01	1	0907-	●	●
592	COVER; STRAINER EXC. 15" CLUTCH(RE9)	8-97289-771-1	01	1	0803-0906		●
592	COVER; STRAINER EXC. 15" CLUTCH(RE9)	8-97289-771-1	01	1	0907-	●	●
593	FILTER; STRAINER EXC. 15" CLUTCH(RE9)	8-97256-438-1	01	1	0803-0906		●
593	FILTER; STRAINER EXC. 15" CLUTCH(RE9)	8-97256-438-1	01	1	0907-	●	●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97256-430-1	01	1	0803-0906		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97256-430-1	01	1	0907-	●	●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97289-772-0	01	1	0803-0906		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97289-772-0	01	1	0907-	●	●
595	BOLT; OIL PAN EXC. 15" CLUTCH(RE9) (B) M6X16 FLANGE	0-28650-616-0	01	1	0803-0906		●
595	BOLT; OIL PAN EXC. 15" CLUTCH(RE9) (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
595	BOLT; OIL PAN EXC. 15" CLUTCH(RE9) (A) M6X35 FLANGE	0-28650-635-0	13	1	0803-0906		●
595	BOLT; OIL PAN EXC. 15" CLUTCH(RE9) (A) M6X35 FLANGE	0-28650-635-0	13	1	0907-	●	●
596	COVER; OIL PAN EXC. 15" CLUTCH(RE9)	8-97289-773-0	01	1	0803-0906		●
596	COVER; OIL PAN EXC. 15" CLUTCH(RE9)	8-97289-773-0	01	1	0907-	●	●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97289-774-0	01	1	0803-0906		●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97289-774-0	01	1	0907-	●	●
598	SENSOR; TURBINE EXC. 15" CLUTCH(RE9)	8-97316-495-1	01	1	0803-0906		●
598	SENSOR; TURBINE EXC. 15" CLUTCH(RE9)	8-97316-495-1	01	1	0907-	●	●
599	BOLT; SENSOR EXC. 15" CLUTCH(RE9) M6X16 FLANGE	0-28650-616-0	01	1	0803-0906		●
599	BOLT; SENSOR EXC. 15" CLUTCH(RE9) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
600	PISTON; BRAKE EXC. 15" CLUTCH(RE9)	8-97254-652-1	01	1	0803-0906		●
600	PISTON; BRAKE EXC. 15" CLUTCH(RE9)	8-97254-652-1	01	1	0907-	●	●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97254-755-0	01	1	0803-0906		●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97254-755-0	01	1	0907-	●	●
602	PLUNGER; BRAKE EXC. 15" CLUTCH(RE9)	8-98009-306-1	01	1	0803-0906		●
602	PLUNGER; BRAKE EXC. 15" CLUTCH(RE9)	8-98009-306-1	01	1	0907-	●	●
603	RING; SNAP EXC. 15" CLUTCH(RE9) ID=8	9-09185-008-0	01	1	0803-0906		●
603	RING; SNAP EXC. 15" CLUTCH(RE9) ID=8	9-09185-008-0	01	1	0907-	●	●
604	SPRING; PISTON EXC. 15" CLUTCH(RE9)	8-97371-467-0	01	1	0803-0906		●
604	SPRING; PISTON EXC. 15" CLUTCH(RE9)	8-97371-467-0	01	1	0907-	●	●
605	COVER; CYLINDER EXC. 15" CLUTCH(RE9)	8-97254-756-0	01	1	0803-0906		●
605	COVER; CYLINDER EXC. 15" CLUTCH(RE9)	8-97254-756-0	01	1	0907-	●	●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97254-757-0	01	1	0803-0906		●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9)	8-97254-757-0	01	1	0907-	●	●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0906		●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
607	BOLT; COVER EXC. 15" CLUTCH(RE9) (A) M8X30 FLANGE	0-28650-830-0	04	1	0803-0906		●
607	BOLT; COVER EXC. 15" CLUTCH(RE9) (A) M8X30 FLANGE	0-28650-830-0	04	1	0907-	●	●
627	GAUGE; OIL LEVEL EXC. 15" CLUTCH(RE9)	8-98024-424-0	01	1	0803-0906		●
627	GAUGE; OIL LEVEL EXC. 15" CLUTCH(RE9)	8-98024-424-0	01	1	0907-	●	●
628	TUBE; OIL FILLER EXC. 15" CLUTCH(RE9) (A)	8-98003-673-0	01	1	0803-0906		●
628	TUBE; OIL FILLER EXC. 15" CLUTCH(RE9) (A)	8-98003-673-0	01	1	0907-	●	●
628	TUBE; OIL FILLER EXC. 15" CLUTCH(RE9) (B)	8-98005-327-0	01	1	0803-0906		●
628	TUBE; OIL FILLER EXC. 15" CLUTCH(RE9) (B)	8-98005-327-0	01	1	0907-	●	●
629	BOLT; OIL FILLER EXC. 15" CLUTCH(RE9) (A) M10X16 FLANGE	0-28151-016-0	01	1	0803-0906		●
629	BOLT; OIL FILLER EXC. 15" CLUTCH(RE9) (A) M10X16 FLANGE	0-28151-016-0	01	1	0907-	●	●
629	BOLT; OIL FILLER EXC. 15" CLUTCH(RE9) (B) M6X16 FLANGE	0-28650-616-0	01	1	0803-0906		●
629	BOLT; OIL FILLER EXC. 15" CLUTCH(RE9) (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A) ID=15.8	8-97305-656-0	01	1	0803-0906		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A) ID=15.8	8-97305-656-0	01	1	0907-	●	●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B) ID=12.3	8-97313-558-0	01	1	0803-0906		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B) ID=12.3	8-97313-558-0	01	1	0907-	●	●
684	BOLT; OIL FILLER TUBE EXC. 15" CLUTCH(RE9) M10X16 FLANGE	0-28151-016-0	02	1	0803-0906		●
684	BOLT; OIL FILLER TUBE EXC. 15" CLUTCH(RE9) M10X16 FLANGE	0-28151-016-0	02	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
