1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#67422) — 13 parça

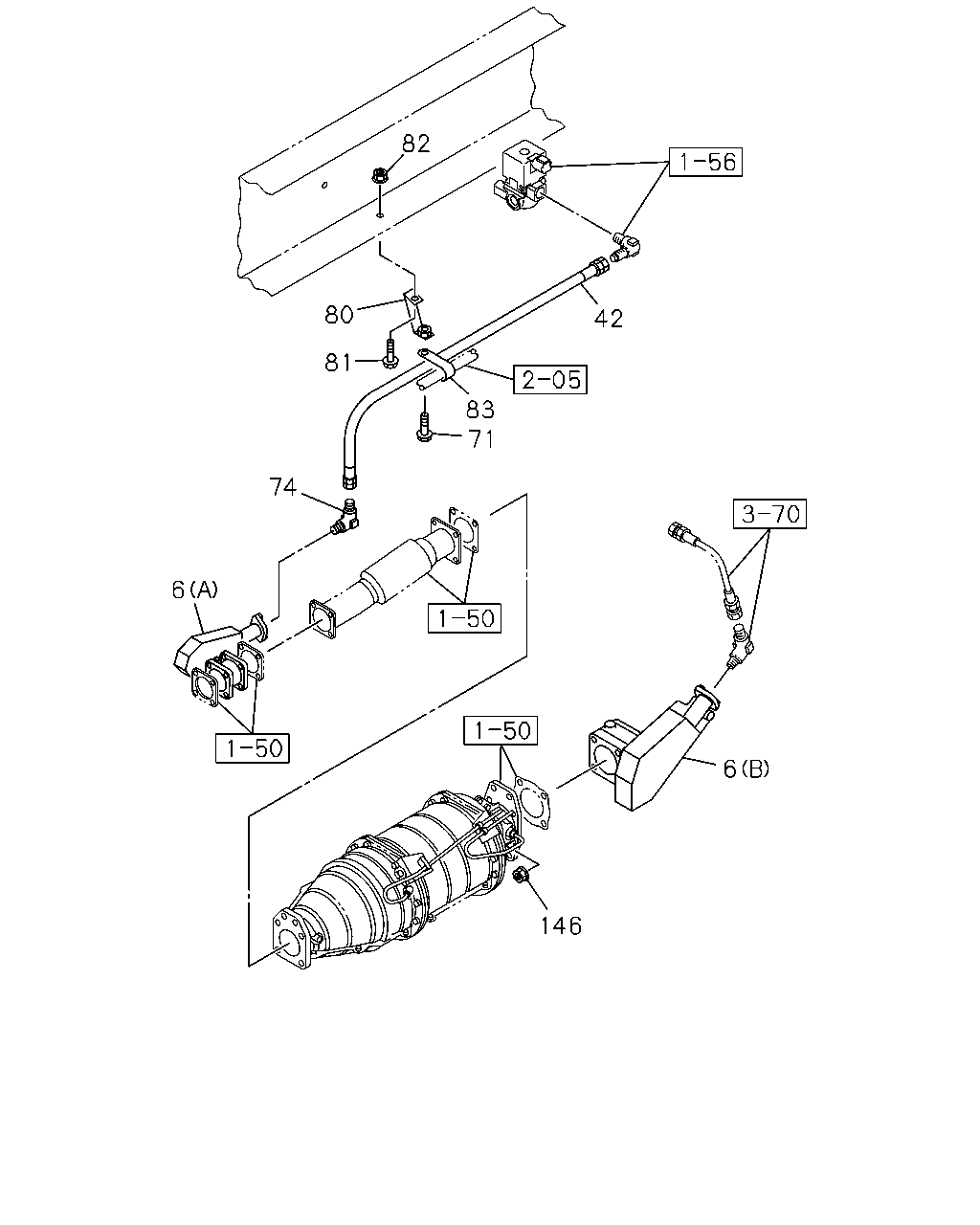

çizim 193147
82 80 42 81 83 71 74 6 6 146
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE
(A) 		8-98054-173-6 01 1 0803-1302
6 VALVE; EXH BRAKE
(A) 		8-98233-801-0 01 1 1303-
6 VALVE; EXH BRAKE
(B) 		8-98054-186-6 01 1 0803-0808
6 VALVE; EXH BRAKE
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98054-186-6 01 1 0809-
42 HOSE; FLEX,EXH BRK
L=520 		1-09363-957-0 01 1 0803-
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0803-
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 0803-
81 BOLT; HOSE BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0803-
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803-
83 CLIP; FLEX HOSE
ID=11X2 L=16 		1-09700-820-0 01 1 0803-
146 NUT; EXH BRK VLV
M10 FLANGE 		0-91180-210-0 04 1 0803-0808
146 NUT; EXH BRK VLV
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 04 1 0809-
