Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#67419) — 283 parça

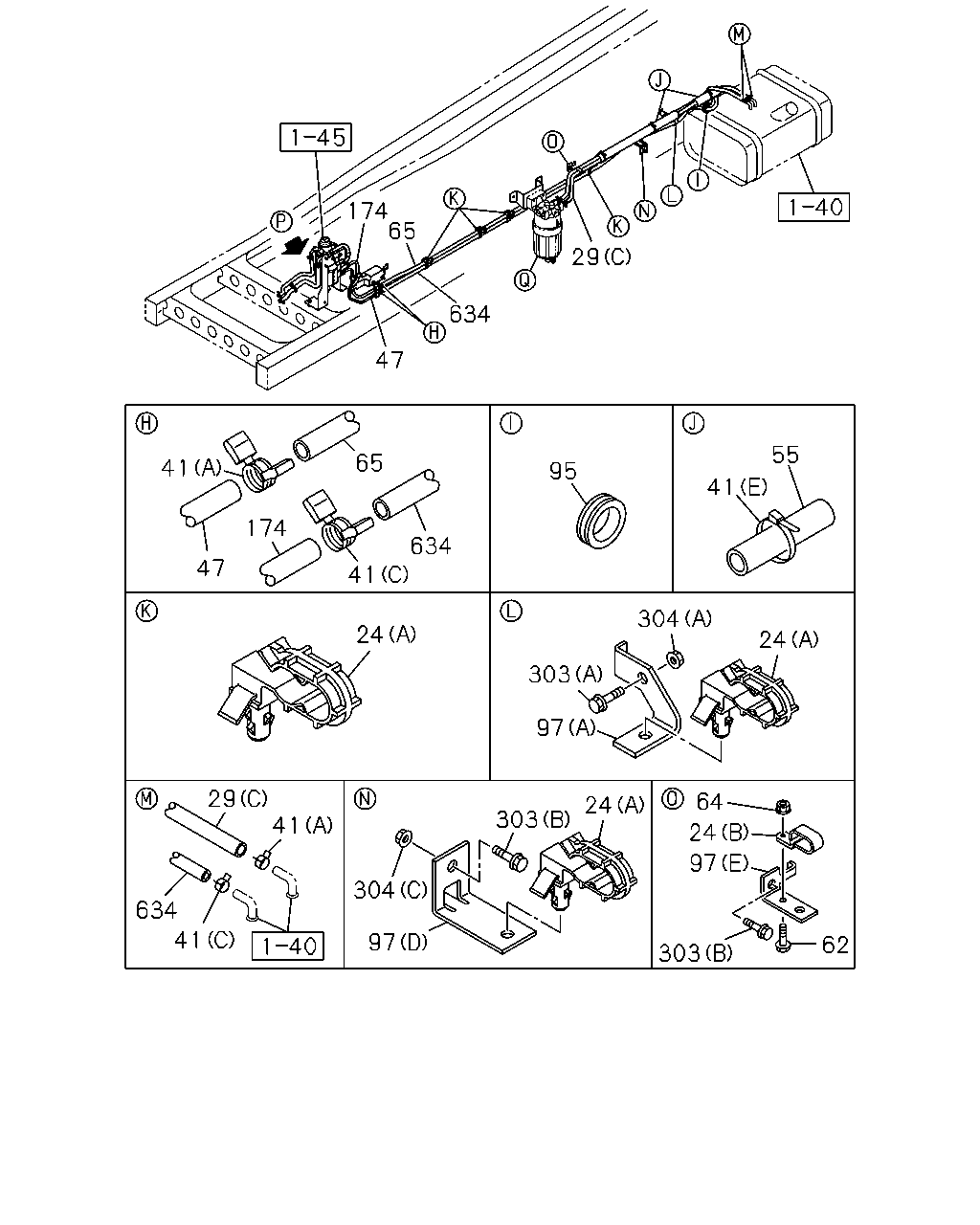

65 47 634 174 41 65 41 95 41 174 41 634 41 47 55 304 24 24 303 97 65 24 303 41 41 55 304 634 97 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0803-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0803-
24	CLIP; FUEL HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0803-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-0808
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0803-0804
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (E) L=140	5-09707-031-1	01	1	0803-0804
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0803-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0803-
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> ID=27 L=500	8-98119-327-0	01	1	0809-1003
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1004-
55	COVER; PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0803-0804
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0803-0804
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-0901
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0902-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0803-
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0803-
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0803-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0803-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (D)	8-98098-427-1	01	1	0803-0804
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (D)	8-98109-768-0	01	1	0805-0806
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0803-
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X35 FLANGE	0-28651-035-0	02	1	0809-
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	0803-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0805-0808
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	1006-1006
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	1007-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1007-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0803-
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0803-0906
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0803-0803
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) M10 FLANGE	0-91180-210-0	01	1	0803-0803
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0803-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0803-
634	HOSE; RUBBER RETURN WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0803-

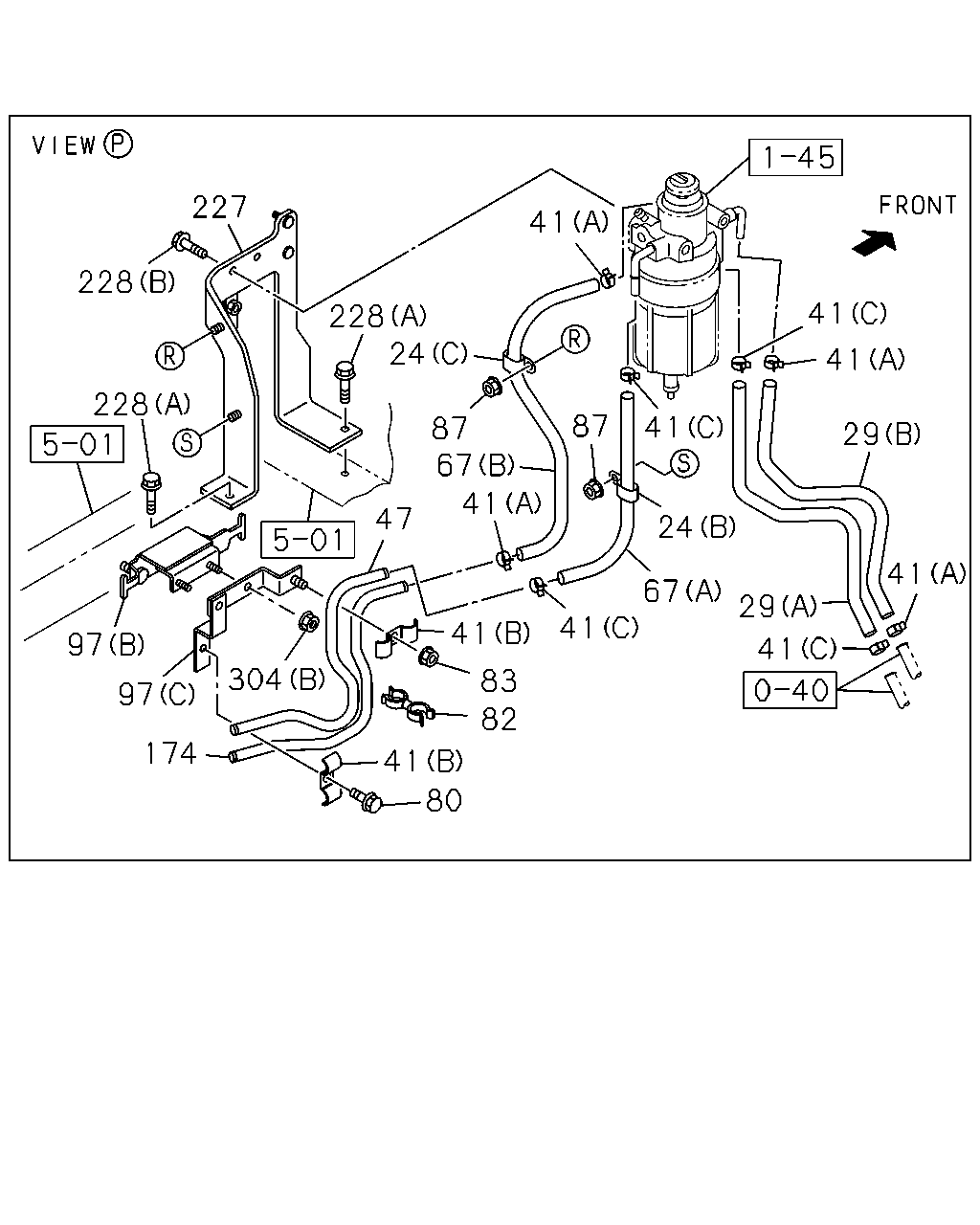

227 228 228 97 174 304 97 41 80 82 83 41 47 67 87 41 41 228 24 41 87 41 24 67 29 41 41 29 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0803-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0803-
24	CLIP; FUEL HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0803-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-0808
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0803-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0803-0804
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (E) L=140	5-09707-031-1	01	1	0803-0804
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0803-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0803-
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	0803-
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	0803-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0803-
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	0809-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0803-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0803-
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0803-
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0803-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0803-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (D)	8-98098-427-1	01	1	0803-0804
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (D)	8-98109-768-0	01	1	0805-0806
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0803-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0803-
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0803-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0803-
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0803-0906
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0803-0803
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) M10 FLANGE	0-91180-210-0	01	1	0803-0803
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-

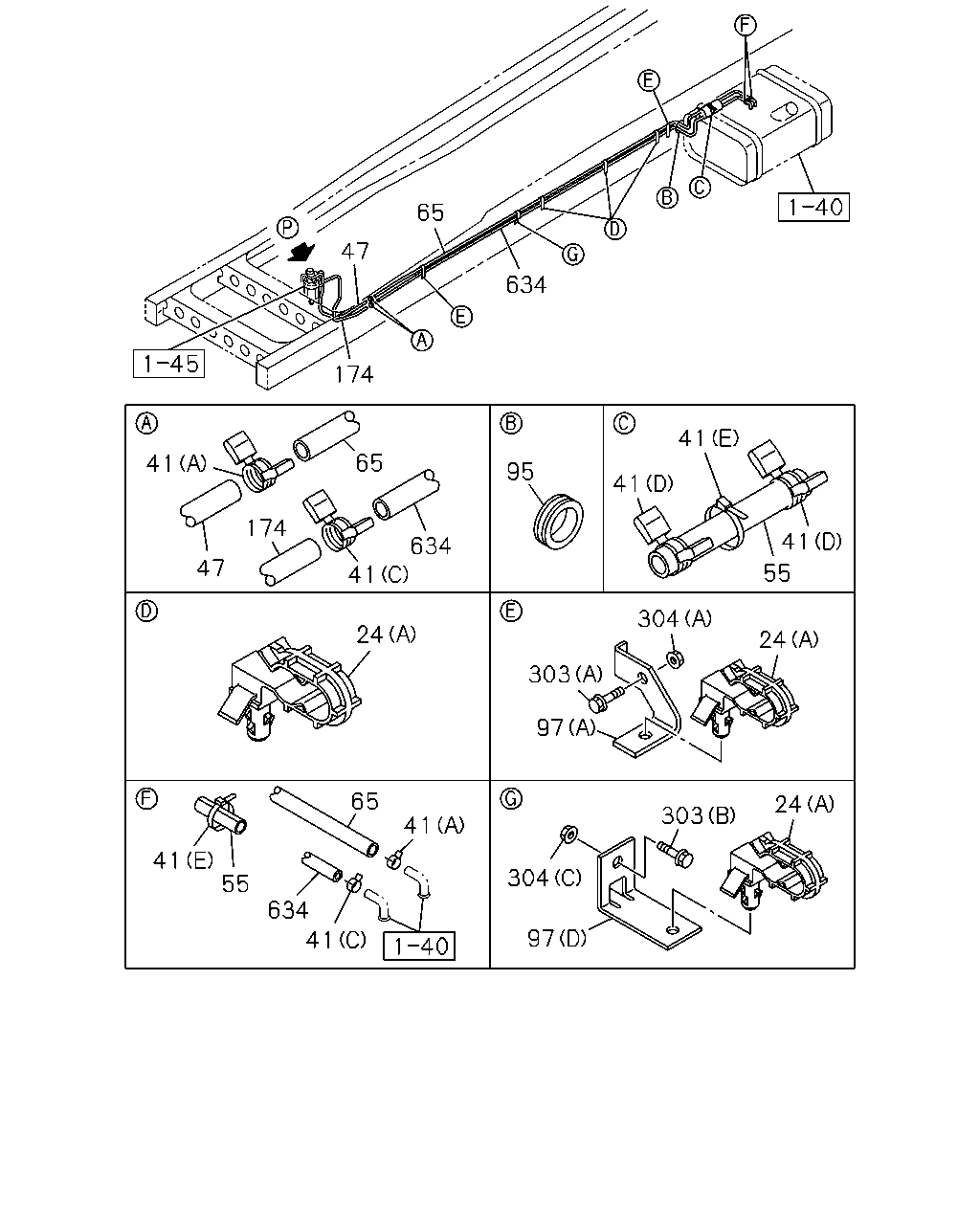

174 65 634 47 29 41 65 634 174 47 41 95 41 55 304 24 303 97 24 29 41 634 41 304 97 303 24 64 24 97 303 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0803-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0803-
24	CLIP; FUEL HOSE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0803-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-0808
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0803-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0803-0804
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (E) L=140	5-09707-031-1	01	1	0803-0804
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0803-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0803-
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> ID=27 L=500	8-98119-327-0	01	1	0809-1003
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1004-
55	COVER; PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0803-0804
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0803-0804
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-0901
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0902-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	01	1	0809-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0803-
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (E)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0803-
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0803-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0803-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (D)	8-98098-427-1	01	1	0803-0804
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (D)	8-98109-768-0	01	1	0805-0806
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0803-
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X35 FLANGE	0-28651-035-0	02	1	0809-
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	0803-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0805-0808
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	1006-1006
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	1007-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1007-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0803-
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0803-0906
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0803-0803
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) M10 FLANGE	0-91180-210-0	01	1	0803-0803
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0803-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0803-
634	HOSE; RUBBER RETURN WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0803-

304 304 418 303 345 228 345 279 39 41 29 9 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0803-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0803-
39	PIPE; FUEL EURO2 SPECIFICATION<NT2>	8-97358-699-0	02	1	0809-0903
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4800MM(48W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0803-0804
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (E) L=140	5-09707-031-1	01	1	0803-0804
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0803-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0803-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<NT2> L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0808
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0803-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-
279	WASHER EURO2 SPECIFICATION<NT2> ID=10.5 OD=26	0-91614-710-0	02	1	0809-
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X35 FLANGE	0-28651-035-0	02	1	0809-
303	BOLT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE	0-28650-830-0	01	1	0803-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0805-0808
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	1006-1006
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (B) M10X30 FLANGE	0-28651-030-0	01	1	1007-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1007-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	01	1	1007-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1007-
304	NUT; BRKT WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE	0-91180-108-0	01	1	0803-
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	0803-0906
304	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0803-0803
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) M10 FLANGE	0-91180-210-0	01	1	0803-0803
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) M10 FLANGE	0-91180-210-0	01	1	0804-0804
304	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0805-0808
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT EURO2 SPECIFICATION<NT2> (C) M10 FLANGE	0-91180-210-0	02	1	1010-
345	PLUG EURO2 SPECIFICATION<NT2> NPTF3/8-18	8-97329-623-0	02	1	0809-
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98114-787-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
