1-11 — RADIATOR HOSE AND SUB TANK (#67414) — 14 parça

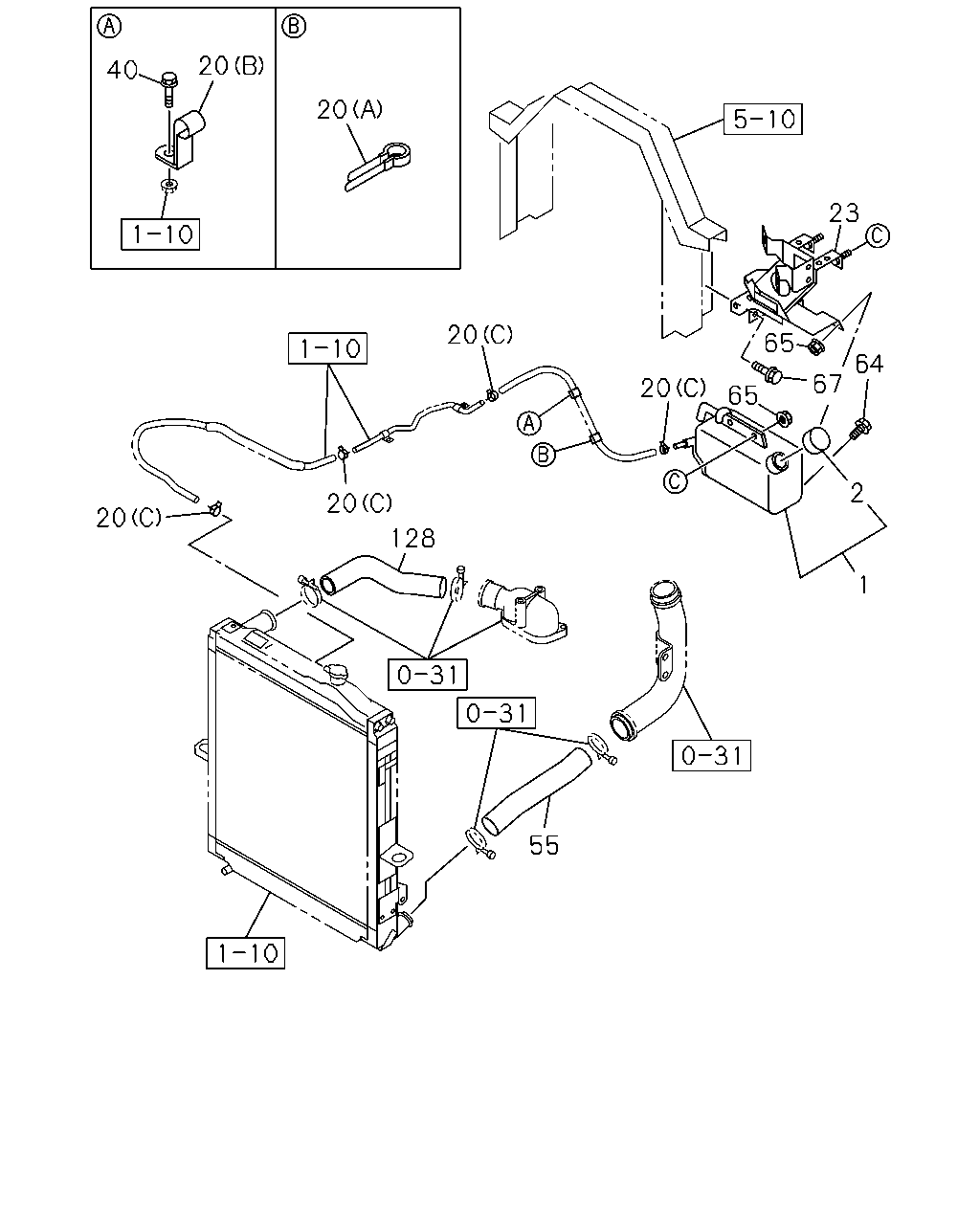

çizim 89130
20 40 20 23 20 65 64 67 20 65 2 20 20 128 1 55
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; SURGE,RAD 8-98010-309-2 01 1 0803-1009
1 TANK; SURGE,RAD 8-98171-757-0 01 1 1010-
2 CAP; SURGE TANK 8-97217-796-0 01 1 0803-1009
2 CAP; SURGE TANK 8-98178-074-0 01 1 1010-
20 CLIP; HOSE,RAD
(B) ID=13 H=40 L=25 		1-09700-620-0 01 1 0803-
20 CLIP; HOSE,RAD
(C) ID=11.5 		8-97375-638-0 04 1 0803-
20 CLIP; HOSE,RAD
(A) ID=20 L=50 		9-09917-430-0 01 1 0803-
23 BRACKET; RESERVE TANK 8-98013-534-4 01 1 0803-
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-
55 HOSE; WATER,RAD OUTLET 8-98010-577-1 01 1 0803-
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0803-
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 03 1 0803-
67 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0803-
128 HOSE; WATER,RAD INL 8-98010-576-2 01 1 0803-
