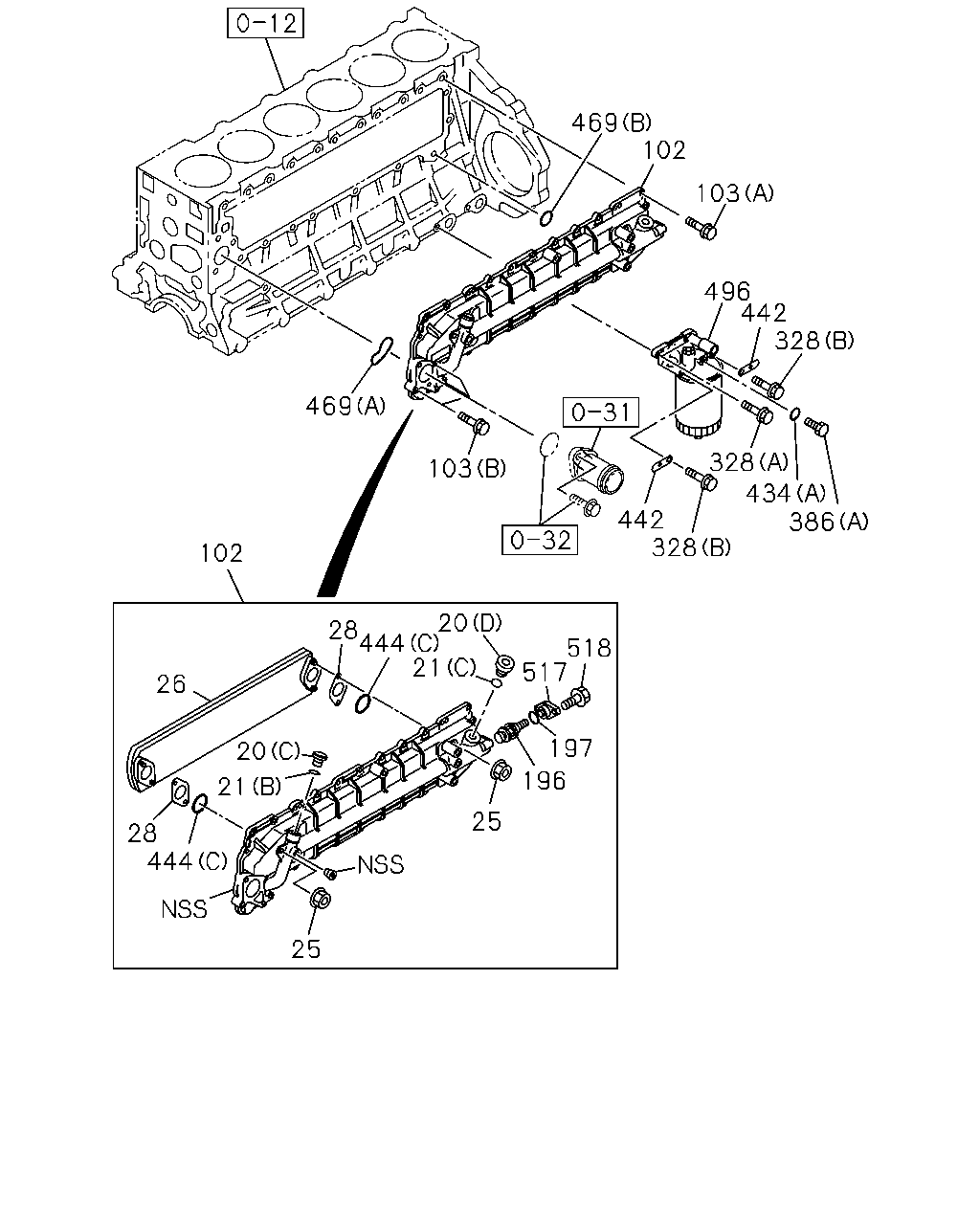

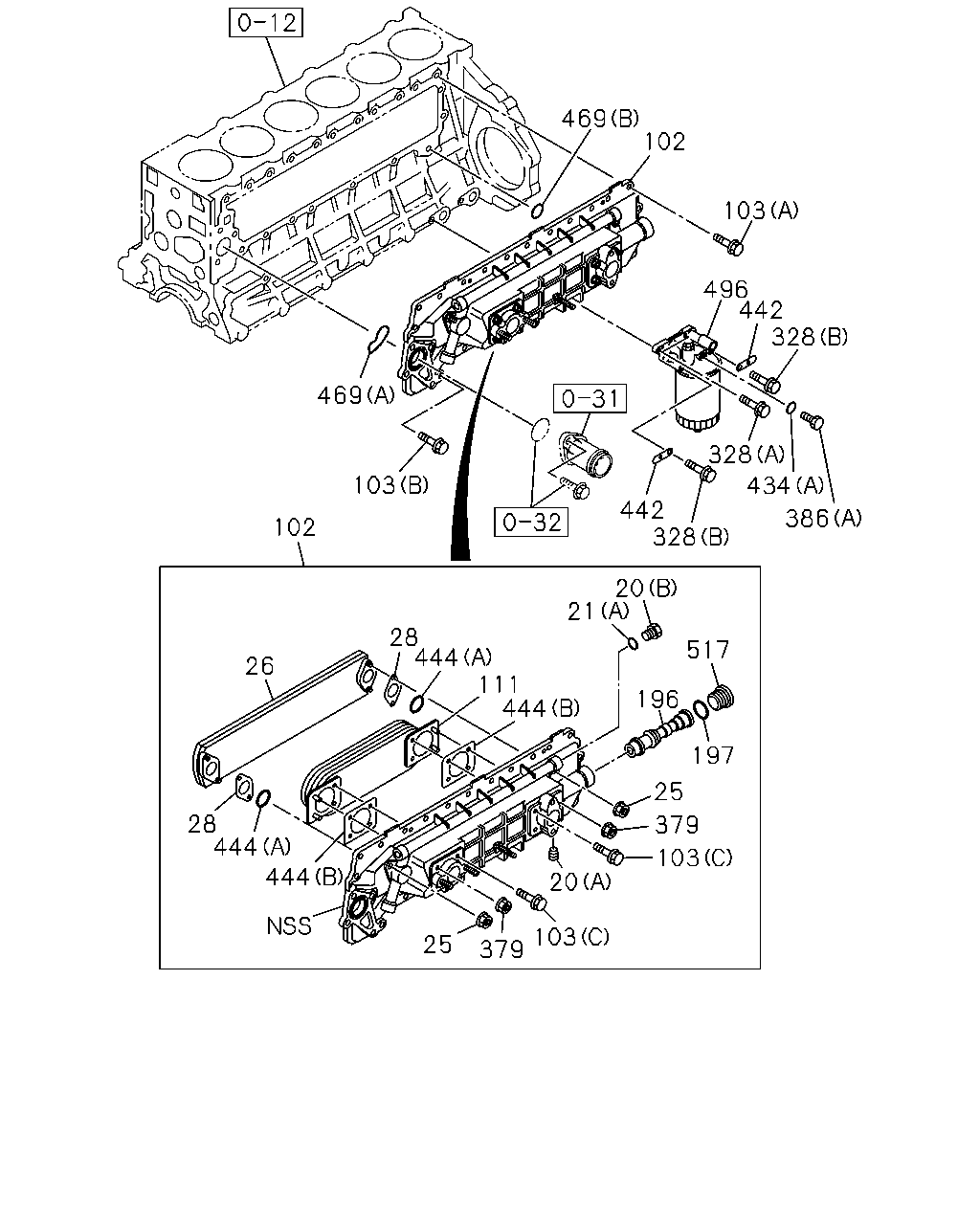

0-50 — OIL COOLER AND OIL FILTER (#67404) — 120 parça

103 379 25 444 444 28 26 28 444 111 444 20 21 20 517 196 197 25 379 103 102 103 469 469 102 103 496 442 328 328 434 386 442 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (C)	8-94393-604-0	01	1	0809-
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (D)	8-94396-753-0	01	1	0809-
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0803-0808
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (A)	1-13219-240-0	02	1	0809-
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0803-0808
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (B)	8-97608-567-0	02	1	0809-
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	0809-
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	0809-
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0803-0808
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (A) ID=17.8	8-97608-568-0	02	1	0809-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0803-
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	0809-
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0803-0808
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	0809-
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	0809-1004
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0803-0808
28	GASKET; CORE TO BODY EURO4 SPECIFICATION<NT4>	8-98063-865-0	02	1	0809-1004
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0809-
102	COOLER ASM; OIL	8-98065-861-1	01	1	0803-0808
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98065-861-1	01	1	0809-0809
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	0809-1307
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (C) M8X18 FLANGE	8-98251-758-0	04	1	1309-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0803-0808
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	0809-
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0803-0808
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0803-
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	0809-
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0803-0808
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	0809-
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0803-
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0803-
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0803-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0803-1011
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B)	8-97601-801-0	02	1	1309-
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (A) ID=38.7	1-09623-299-0	02	1	0809-
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (C)	8-94396-810-0	02	1	0809-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0803-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0803-
496	FILTER ASM; OIL	8-94391-015-8	01	1	0803-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	0809-
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0803-0808
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	0809-

469 102 103 496 442 328 386 434 328 328 442 103 469 102 26 28 444 21 20 28 444 21 20 518 517 197 196 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (C)	8-94393-604-0	01	1	0809-
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (D)	8-94396-753-0	01	1	0809-
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0803-0808
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (A)	1-13219-240-0	02	1	0809-
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0803-0808
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (B)	8-97608-567-0	02	1	0809-
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	0809-
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	0809-
21	GASKET; PLUG (A) ID=17.8	8-97608-568-0	02	1	0803-0808
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (A) ID=17.8	8-97608-568-0	02	1	0809-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0803-
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	0809-
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0803-0808
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	0809-
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	0809-1004
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0803-0808
28	GASKET; CORE TO BODY EURO4 SPECIFICATION<NT4>	8-98063-865-0	02	1	0809-1004
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0809-
102	COOLER ASM; OIL	8-98065-861-1	01	1	0803-0808
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98065-861-1	01	1	0809-0809
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	0809-1307
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (C) M8X18 FLANGE	8-98251-758-0	04	1	1309-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0803-0808
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	0809-
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0803-0808
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	24	1	0809-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0803-
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	0809-
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0803-0808
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	0809-
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0803-
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0803-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0803-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0803-1011
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (B)	8-97601-801-0	02	1	1309-
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (A) ID=38.7	1-09623-299-0	02	1	0809-
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (C)	8-94396-810-0	02	1	0809-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0803-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0803-
496	FILTER ASM; OIL	8-94391-015-8	01	1	0803-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	0809-
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0803-0808
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	0809-
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	0809-

496 386 434 66 13 265 307 308 2 321 265 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0803-
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-
66	SPRING; VLV	8-98238-943-0	01	1	1308-
265	BODY; OIL FILTER	8-94391-016-4	01	1	0803-1307
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0803-1307
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0803-1307
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0803-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0803-
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0803-
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-
496	FILTER ASM; OIL	8-94391-015-8	01	1	0803-1307
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-
