0-36 — TURBOCHARGER SYSTEM (#67398) — 192 parça

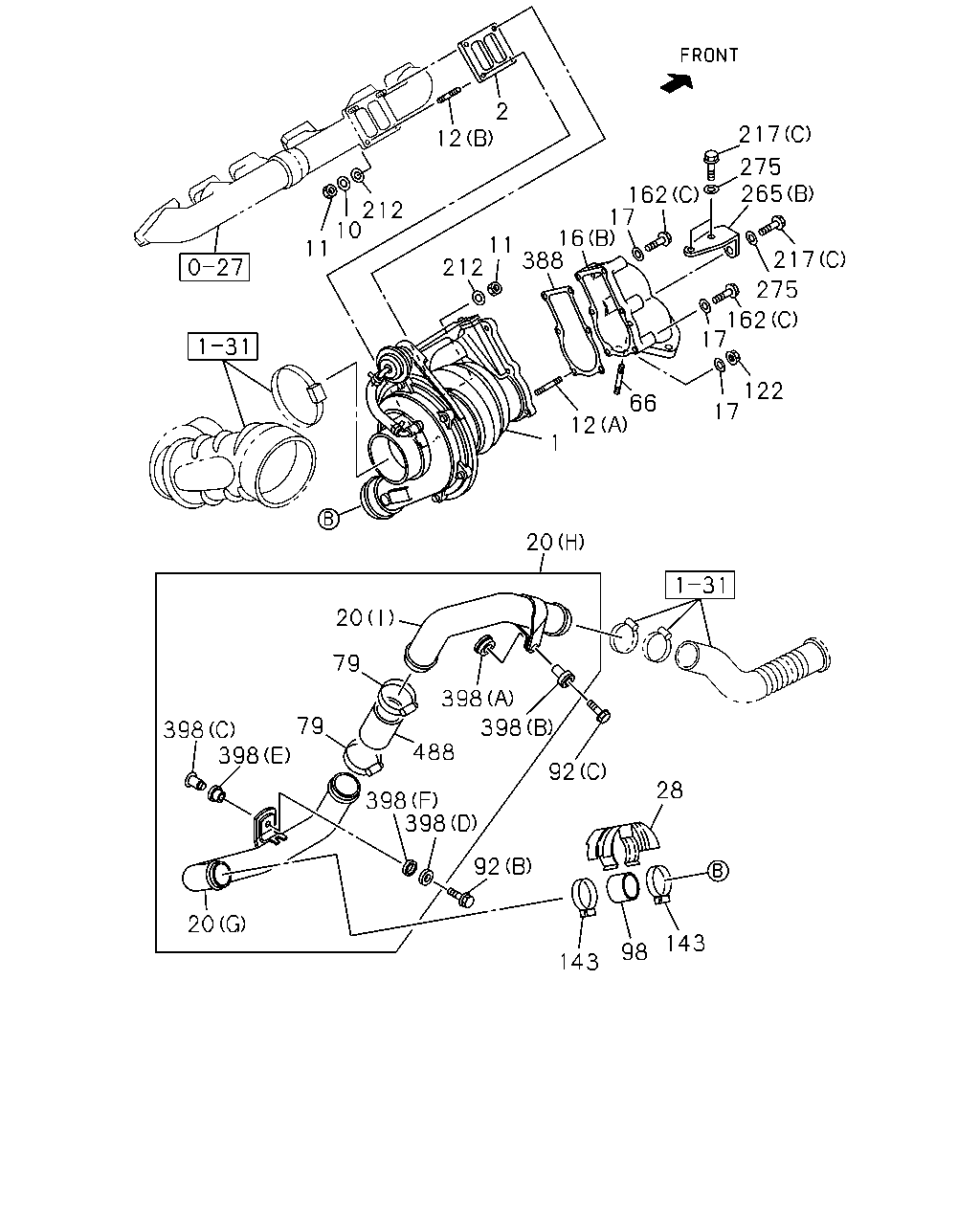

çizim 193107
2 12 217 275 265 162 17 16 388 212 10 11 212 11 217 275 162 17 122 17 66 12 1 20 20 79 398 79 398 398 398 488 92 28 398 398 92 20 143 98 143
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911-
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0803-0808
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0809-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0803-0808
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809-
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0803-0808
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809-
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 0809-
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809-
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809-
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0803-0808
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809-
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0803-0808
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809-
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809-
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0803-0808
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 0803-1408
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0803-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 0803-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0803-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0803-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0803-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0809-
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 0809-
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 0809-
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0803-0811
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903-
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0808
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809-
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0803-
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0803-
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409-
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809-
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0803-0808
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809-
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-76 		1-09707-203-0 02 1 0809-0902
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 0903-
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0809-
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0803-0808
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0803-0808
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911-
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0803-
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809-
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0808
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0803-0808
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809-
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0803-0808
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809-
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809-
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 0809-
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 0809-
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0803-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0803-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0803-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0803-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0803-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0803-
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409-
488 HOSE; RUBBER 8-98046-356-0 01 1 0803-0808
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409-

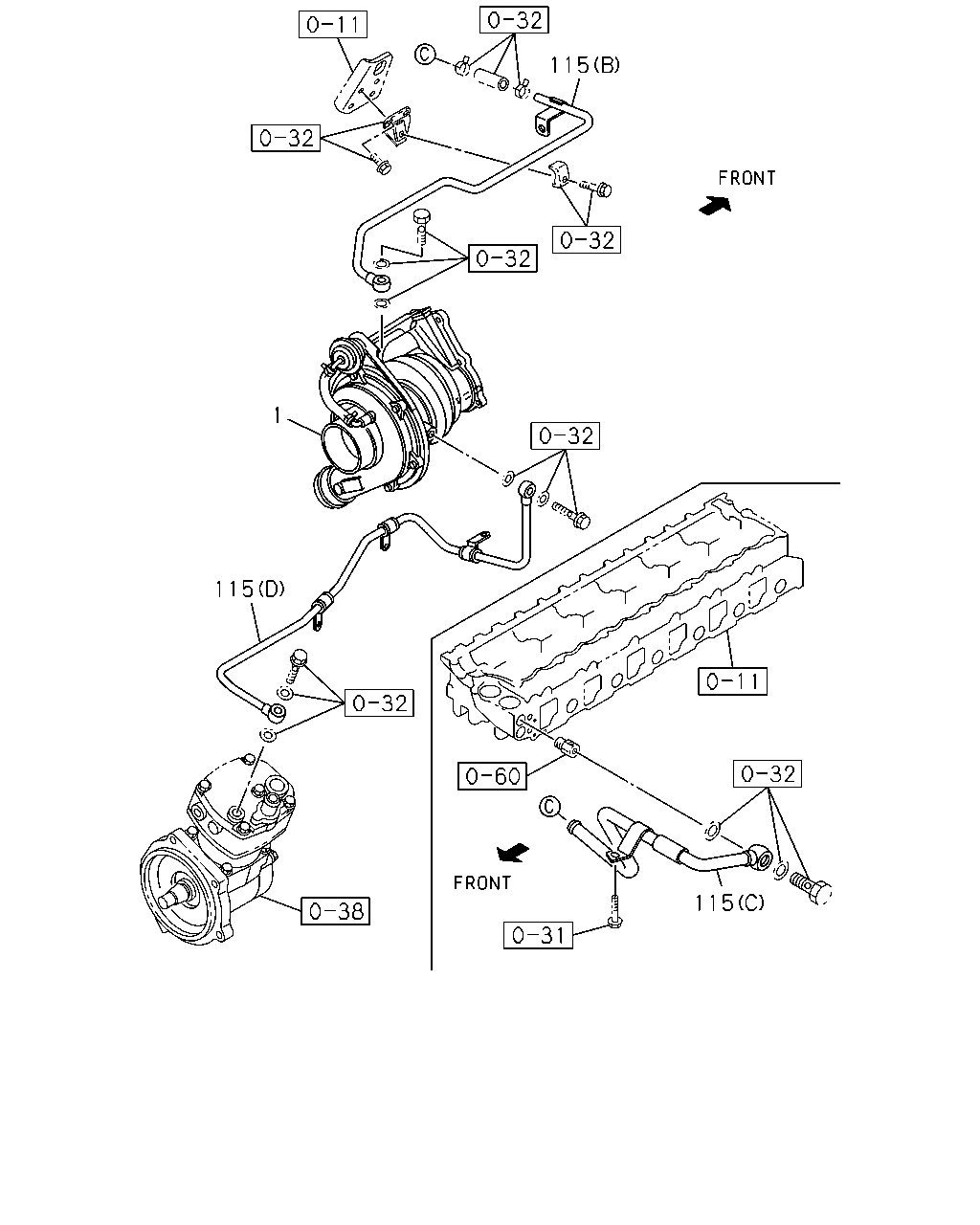

çizim 193119
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911-
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0803-0808
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0803-0808
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97615-877-0 01 1 0809-

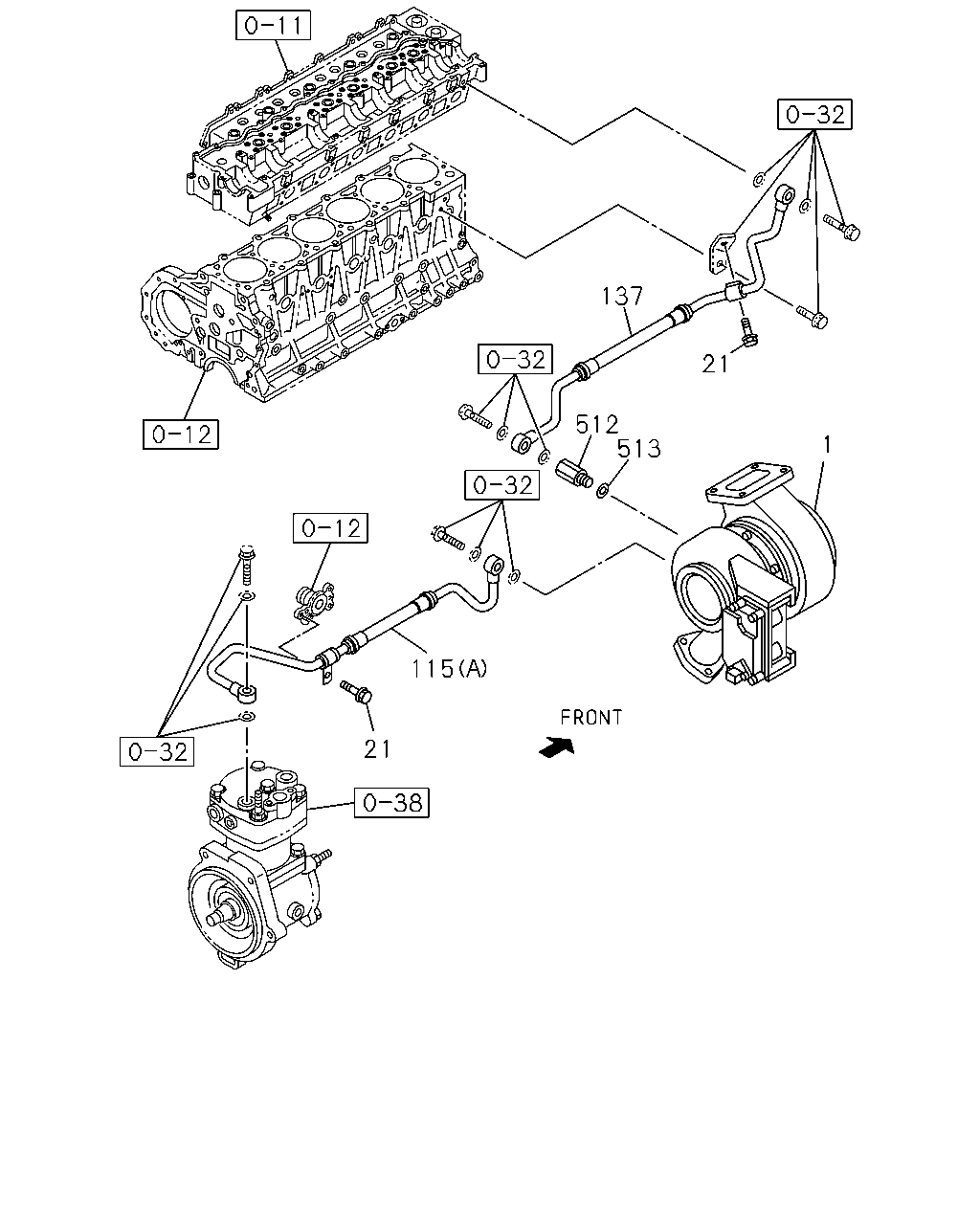

çizim 193137
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911-
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0803-0808
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0803-0808
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0803-0808
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97615-877-0 01 1 0809-
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0803-0808
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 0809-
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0803-0808
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 0809-
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0803-0808
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-1312
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-

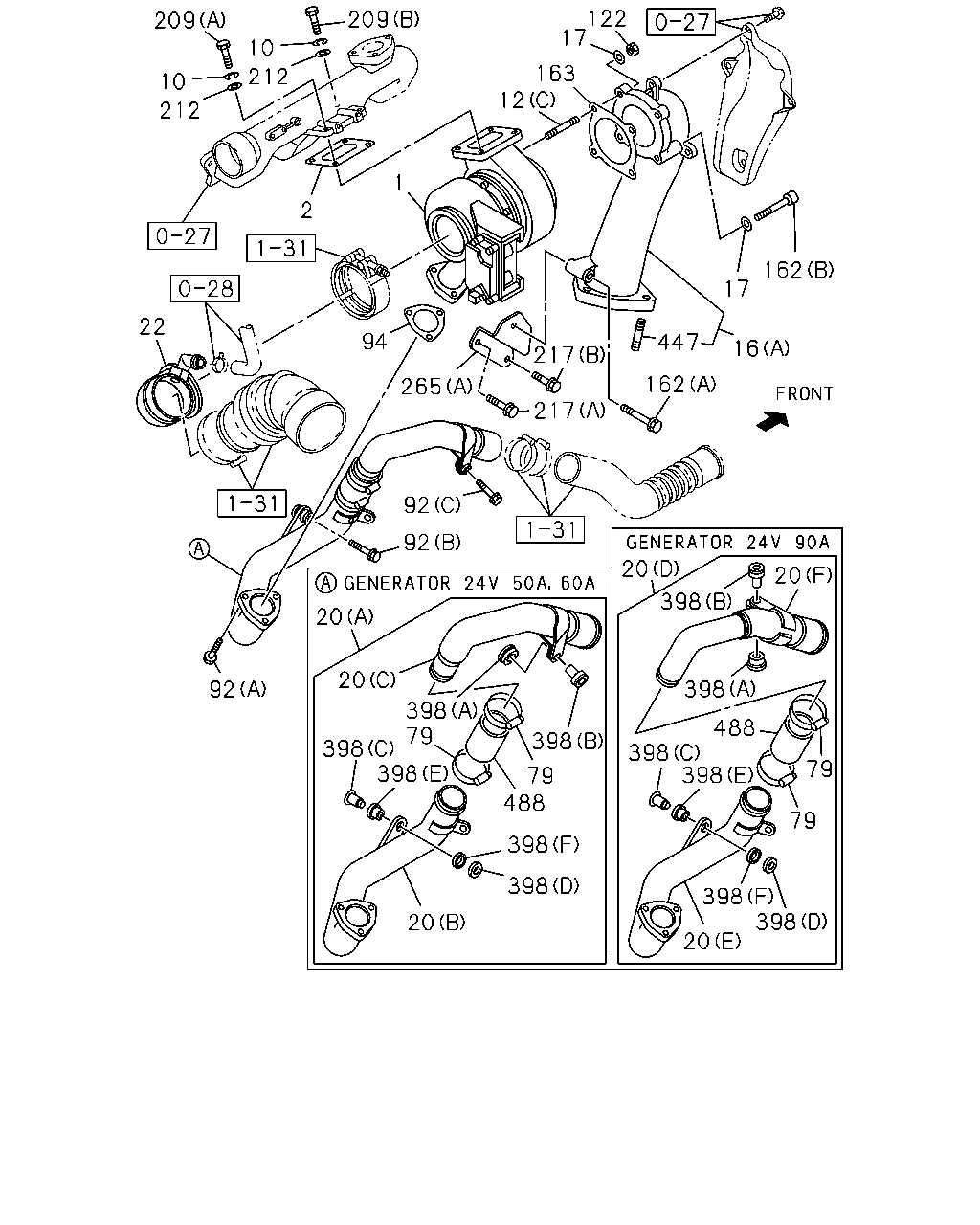

çizim 193138
398 398 398 398 398 398 398 398 398 398 398 398 20 20 20 20 20 20 209 10 10 212 212 1 2 94 22 265 217 217 162 447 17 162 16 12 163 17 122 209 92 92 92 79 488 488 79 79 79
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911-
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0803-0808
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0809-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0803-0808
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809-
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0803-0808
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809-
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809-
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809-
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0803-0808
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809-
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0803-0808
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809-
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809-
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0803-0808
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 0803-1408
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0803-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 0803-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0803-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0803-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0803-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0809-
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-0 01 1 0803-0808
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 0809-
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0803-0811
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903-
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0808
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809-
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0803-
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0803-
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 0803-0808
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> ID=55 		8-98053-830-0 01 1 0809-
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809-
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0803-0808
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809-
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0809-
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0803-0808
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0803-0808
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911-
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-0 01 1 0803-0808
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> ID=83 		8-94392-553-2 01 1 0809-
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0803-0808
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 0809-
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0803-0808
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 0809-
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0803-
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809-
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0808
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0803-0808
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809-
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0803-0808
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809-
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809-
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0803-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0803-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0803-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0803-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0803-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0803-
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0803-0808
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 0809-
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409-
488 HOSE; RUBBER 8-98046-356-0 01 1 0803-0808
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
