Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#67395) — 170 parça

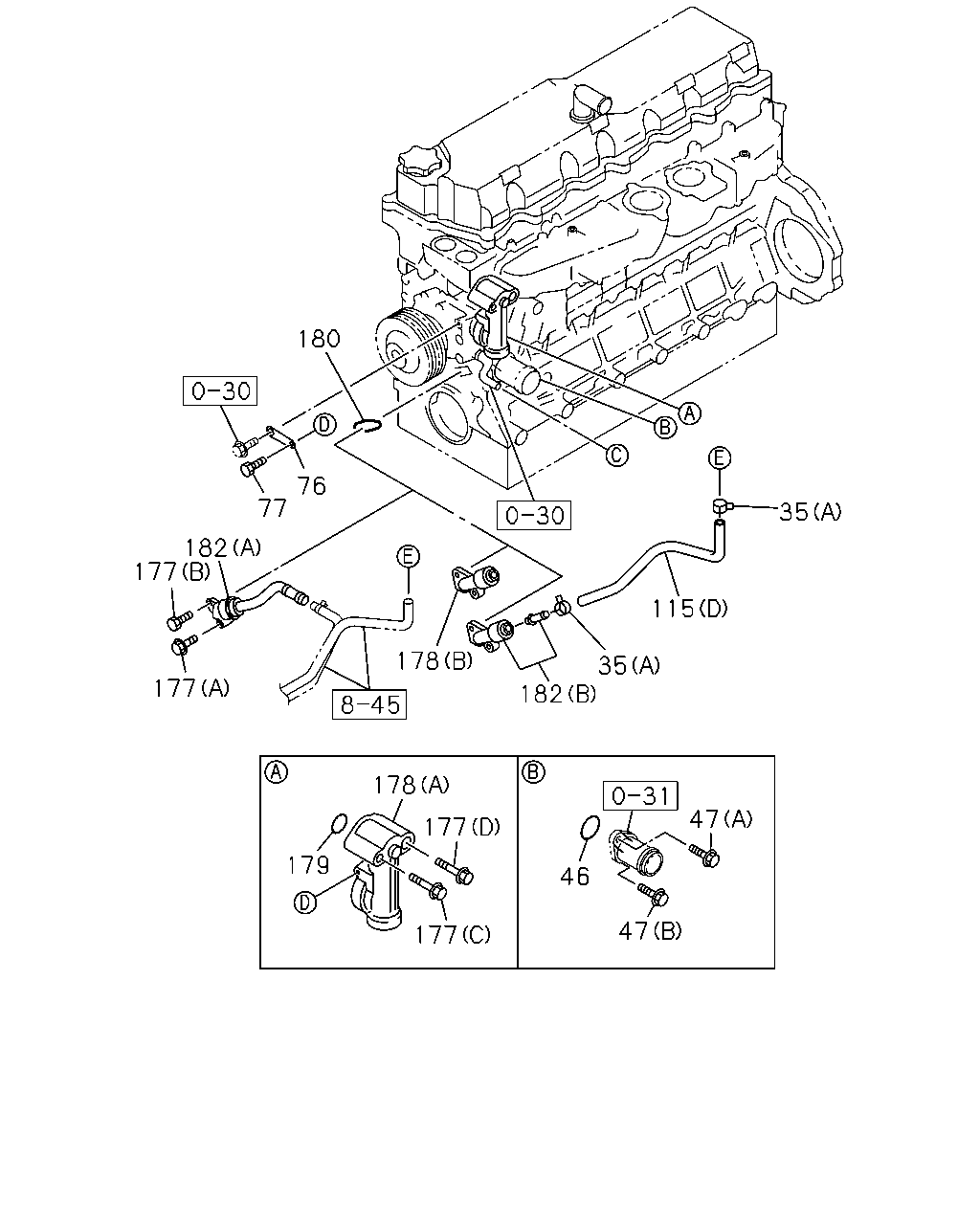

180 76 77 35 182 177 115 178 35 182 177 178 47 177 179 46 47 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	CLIP; RUBBER HOSE (A) ID=20	1-09707-084-1	05	1	0803-0808
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	1-09707-084-1	05	1	0809-0810
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	8-98127-648-0	05	1	0811-1104
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	8-98127-648-0	06	1	1105-
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	0803-0808
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (B) ID=20.8	8-94125-862-1	01	1	0809-0810
35	CLIP; RUBBER HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0803-0808
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0809-0810
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=20	8-98127-648-0	02	1	0811-
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0803-
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0803-
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0803-
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0803-
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0809-
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0809-
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	0809-
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	0809-
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	0809-
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0803-
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0803-
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0803-
178	DUCT; WATER,BYPASS (A)	8-94396-627-2	01	1	0803-0808
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94390-644-0	01	1	0809-
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	0809-
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0803-1408
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0803-
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	0803-
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94396-727-3	01	1	0803-0808
182	DUCT; WATER,HTR EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94396-727-3	01	1	0809-

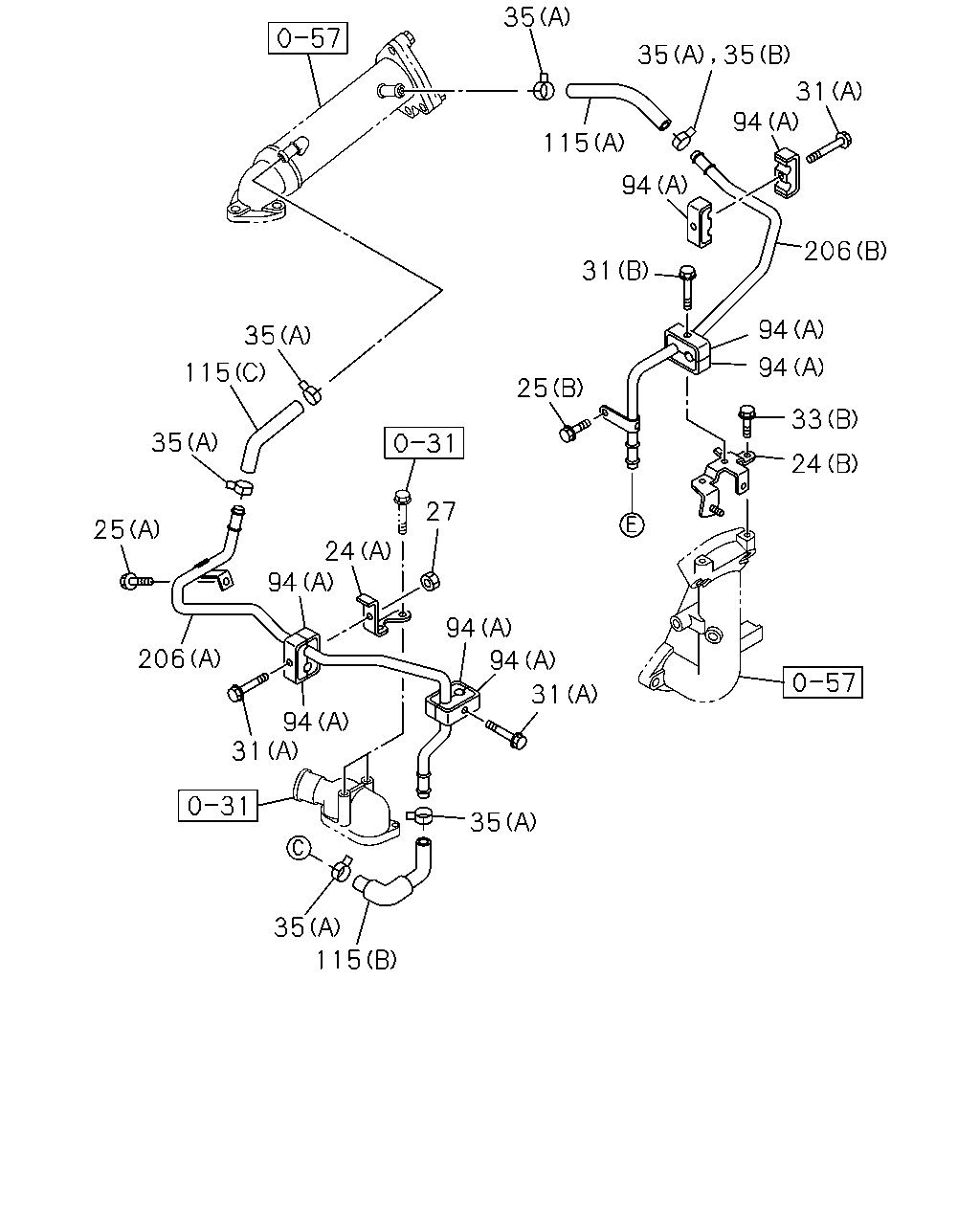

35 35 35 31 94 115 94 206 31 94 35 94 115 25 33 35 24 27 25 24 94 94 94 206 31 94 31 35 35 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-98000-557-2	01	1	0803-0808
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98000-557-2	01	1	0809-
24	BRACKET; WATER PIPE (B)	8-98051-626-0	01	1	0803-0808
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98051-626-1	01	1	0809-
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-0808
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	0809-
25	BOLT; WATER PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-0808
25	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28650-820-0	01	1	0809-
27	NUT; PIPE FIX M6 FLANGE	0-91180-106-0	01	1	0803-0808
27	NUT; PIPE FIX EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	0809-
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	0809-
31	BOLT; CLIP (B) M6X45 FLANGE	0-28050-645-0	01	1	0803-0808
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X45 FLANGE	0-28050-645-0	01	1	0809-
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	02	1	0803-0808
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M6X40 FLANGE	0-28650-640-0	02	1	0809-1106
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0808
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	0809-
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-0808
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	0809-
35	CLIP; RUBBER HOSE (A) ID=20	1-09707-084-1	05	1	0803-0808
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	1-09707-084-1	05	1	0809-0810
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	8-98127-648-0	05	1	0811-1104
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	8-98127-648-0	06	1	1105-
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	0803-0808
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (B) ID=20.8	8-94125-862-1	01	1	0809-0810
35	CLIP; RUBBER HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0803-0808
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0809-0810
35	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=20	8-98127-648-0	02	1	0811-
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	0809-
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	0803-0808
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	0809-
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0809-
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0809-
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	0809-
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	0809-
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	0809-
206	PIPE; WATER,EGR COOLER (A)	8-97604-928-2	01	1	0803-0808
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97604-928-2	01	1	0809-
206	PIPE; WATER,EGR COOLER (B)	8-98000-480-1	01	1	0803-0808
206	PIPE; WATER,EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98000-480-1	01	1	0809-

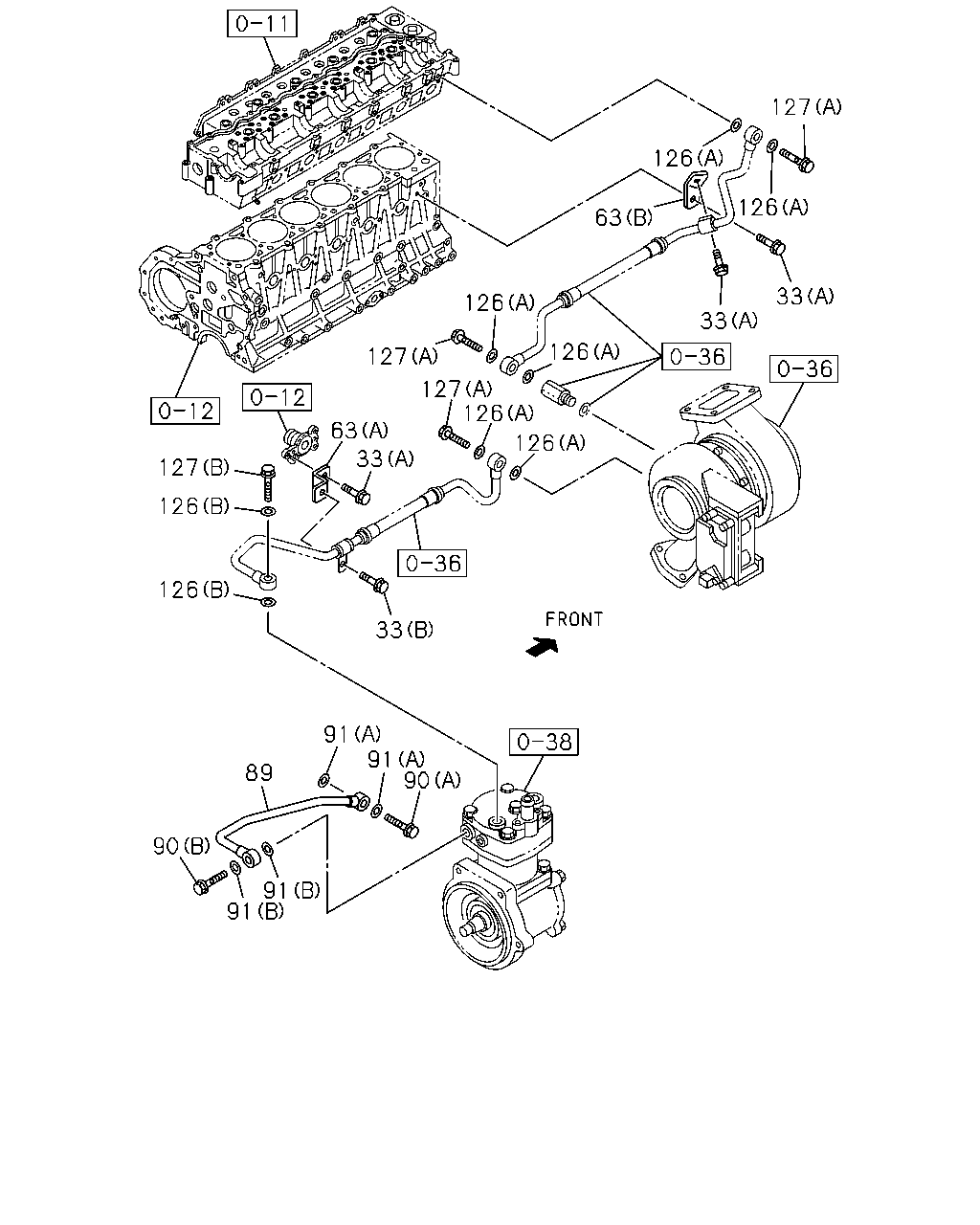

127 126 126 63 33 126 33 126 127 127 126 63 126 33 127 126 126 33 91 91 90 89 90 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0808
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	0809-
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-0808
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	0809-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (E)	8-94392-951-0	01	1	0809-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	0809-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-253-0	01	1	0809-
63	BRACKET; WATER PIPE (A)	8-97615-878-0	01	1	0803-0808
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97615-878-0	01	1	0809-1001
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98153-457-0	01	1	1002-
63	BRACKET; WATER PIPE (B)	8-98046-784-0	01	1	0803-0808
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98046-784-0	01	1	0809-
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0803-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0803-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0803-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0803-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0809-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=16.2	1-09630-086-0	04	1	0809-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0803-0808
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0809-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0803-0808
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=16.2	1-09630-086-0	02	1	0809-
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0809-
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (D) M16X25	5-09675-028-2	01	1	0809-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0803-0808
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0809-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0803-

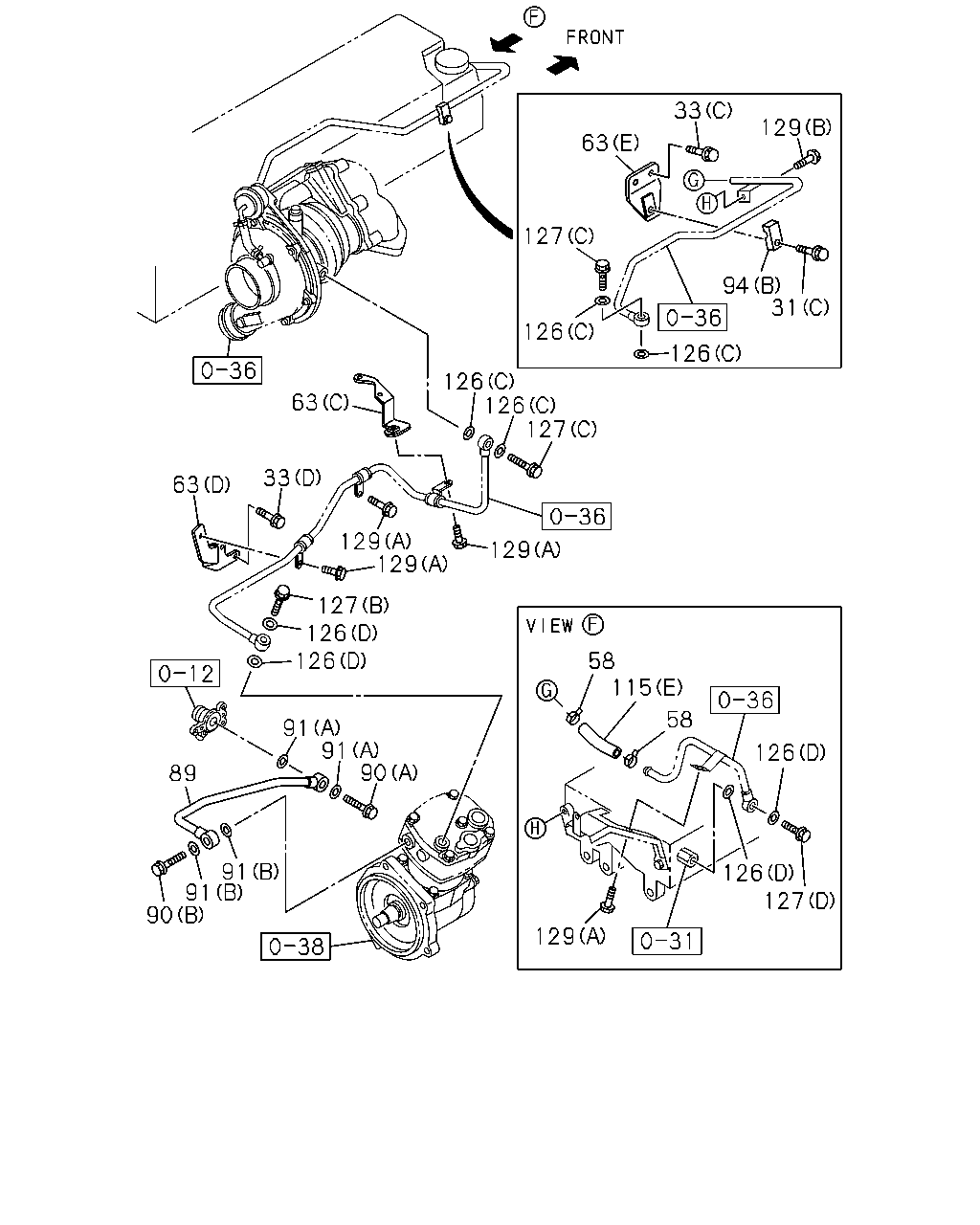

33 129 63 127 94 31 126 126 126 126 127 63 33 63 129 129 129 127 126 126 58 115 58 91 91 90 126 89 91 91 90 126 127 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	0809-
31	BOLT; CLIP (B) M6X45 FLANGE	0-28050-645-0	01	1	0803-0808
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M6X45 FLANGE	0-28050-645-0	01	1	0809-
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	02	1	0803-0808
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M6X40 FLANGE	0-28650-640-0	02	1	0809-1106
31	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0808
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	01	1	0809-
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-0808
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	03	1	0809-
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	0809-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (E)	8-94392-951-0	01	1	0809-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	0809-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-253-0	01	1	0809-
63	BRACKET; WATER PIPE (A)	8-97615-878-0	01	1	0803-0808
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97615-878-0	01	1	0809-1001
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98153-457-0	01	1	1002-
63	BRACKET; WATER PIPE (B)	8-98046-784-0	01	1	0803-0808
63	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (B)	8-98046-784-0	01	1	0809-
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0803-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0803-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0803-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0803-
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	0809-
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	0803-0808
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-97605-129-1	08	1	0809-
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0809-
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0809-
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-97606-735-1	01	1	0809-
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (C)	8-98043-192-0	01	1	0809-
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	0803-0808
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	0809-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0809-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=16.2	1-09630-086-0	04	1	0809-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0803-0808
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0809-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0803-0808
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=16.2	1-09630-086-0	02	1	0809-
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0809-
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (D) M16X25	5-09675-028-2	01	1	0809-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0803-0808
127	BOLT; EYE EURO4 SPECIFICATION<NT4> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0809-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0803-
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	05	1	0809-
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
