Isuzu WW
▶
TRUCKS
▶
FRR
▶
11120 - FRR-L EU2/4 EXC.SPAC
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

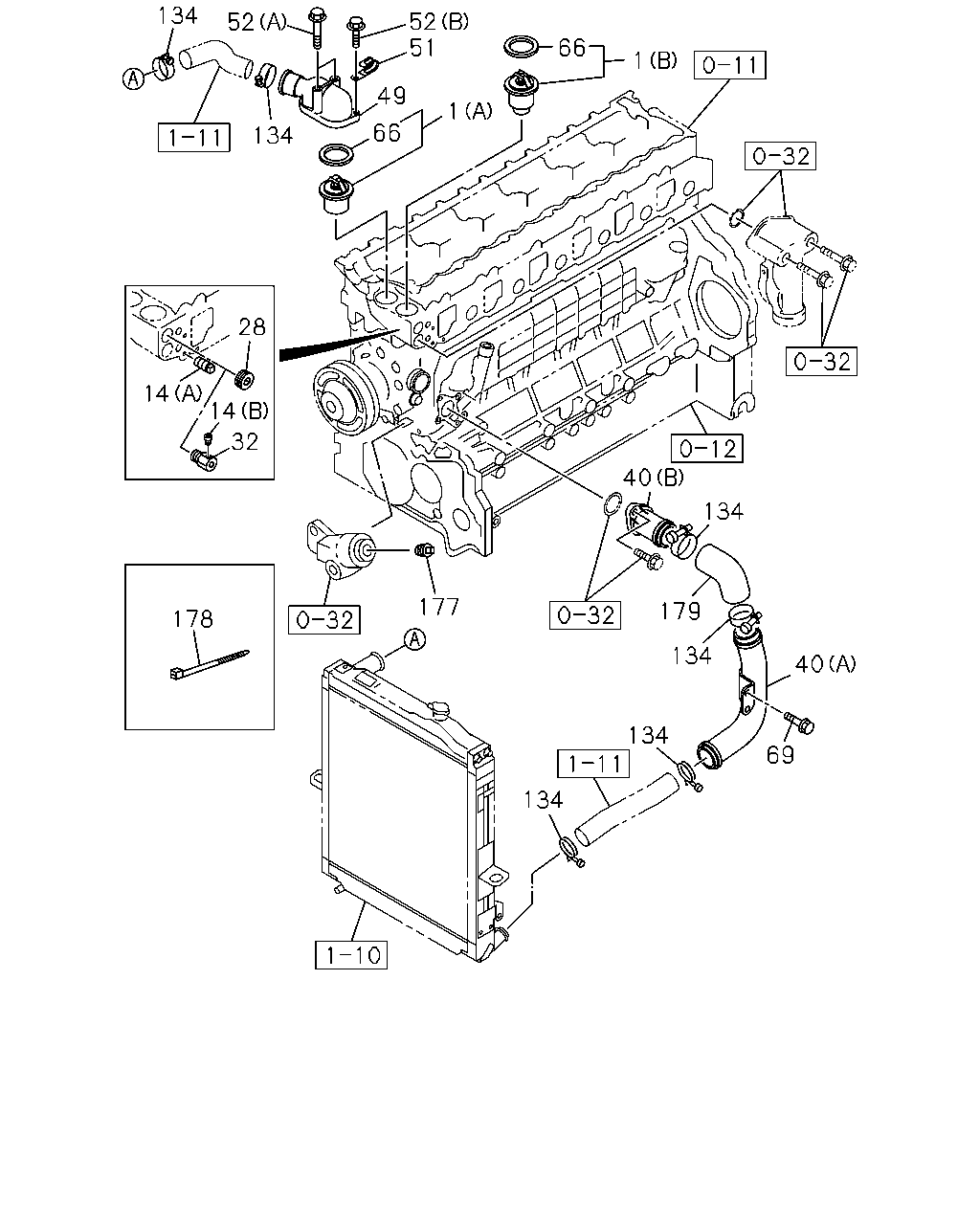

0-31 — THERMOSTAT AND HOUSING
(#67394) — 28 parça
52
51
52
134
134
49
66
1
66
1
134
40
40
179
134
69
134
134
177
178
14
14
28
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
(A) 82 CELSIUS
8-97602-048-3
01
1
0803-
1
THERMOSTAT
(B) 82 CELSIUS
8-97602-393-1
01
1
0803-1501
1
THERMOSTAT
(B) 82 CELSIUS
8-98295-921-0
01
1
1502-
14
PLUG; SW
(A) PT3/8
8-94397-338-0
01
1
0803-0808
14
PLUG; SW
EURO2 SPECIFICATION<NT2> (B) PT1/4
1-09605-019-0
01
1
0809-1008
14
PLUG; SW
(A) PT3/8
8-94397-338-0
01
1
0809-
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
0803-0808
28
PLUG; HTR
EURO4 SPECIFICATION<NT4> PT3/4
1-09605-020-0
01
1
0809-
32
CONNECTOR; HTR
EURO2 SPECIFICATION<NT2>
8-94395-851-1
01
1
0809-1008
32
CONNECTOR; HTR
EURO2 SPECIFICATION<NT2>
8-98177-501-0
01
1
1009-
40
DUCT; WATER,SUCTION
(B)
8-94391-091-1
01
1
0803-
40
DUCT; WATER,SUCTION
(A)
8-94394-404-1
01
1
0803-
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0803-
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-97367-985-1
01
1
0803-
52
BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0803-0808
52
BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION<NT2> (A) M8X80 FLANGE
0-28050-880-0
02
1
0809-
52
BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0809-
52
BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE
8-97023-062-0
02
1
0803-0808
52
BOLT; JOINT,THERMOSTAT
EURO4 SPECIFICATION<NT4> (A) M8X85 FLANGE
8-97023-062-0
02
1
0809-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0803-1501
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28650-820-0
02
1
0803-
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
06
1
0803-
177
PLUG; PIPE,WATER DUCT
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) PT1/2
9-09204-521-0
01
1
0809-
178
CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) L=250
5-09707-030-1
01
1
0803-0808
178
CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) L=250
5-09707-030-1
01
1
0809-1205
178
CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) L=250
8-98216-430-0
01
1
1206-
179
HOSE; RUBBER,WATER DUCT
8-94390-400-3
01
1
0803-
