◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#67376) — 57 parça

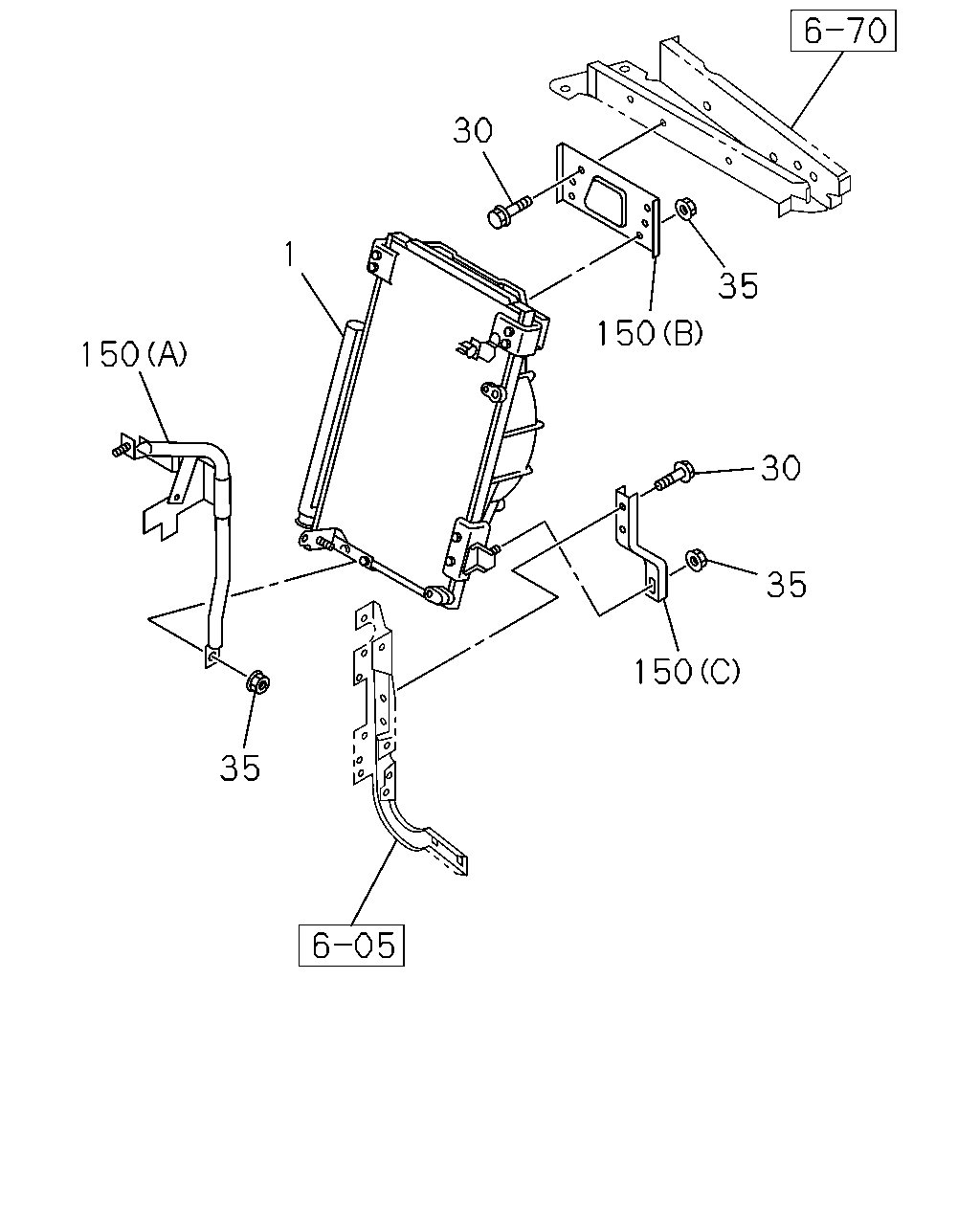

çizim 141417
30 35 150 1 150 35 150 35 30
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98076-087-2 01 1 0710-1109
1 CONDENSER; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98076-087-2 01 1 1110-
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-1109
30 BOLT; CONDENSER,A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1110-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 0710-1109
35 NUT; CONDENSER,A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91180-108-0 05 1 1110-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 0710-1109
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83571-984-0 01 1 1110-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 0710-1109
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83571-985-0 01 1 1110-
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 0710-1109
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-242-1 01 1 1110-

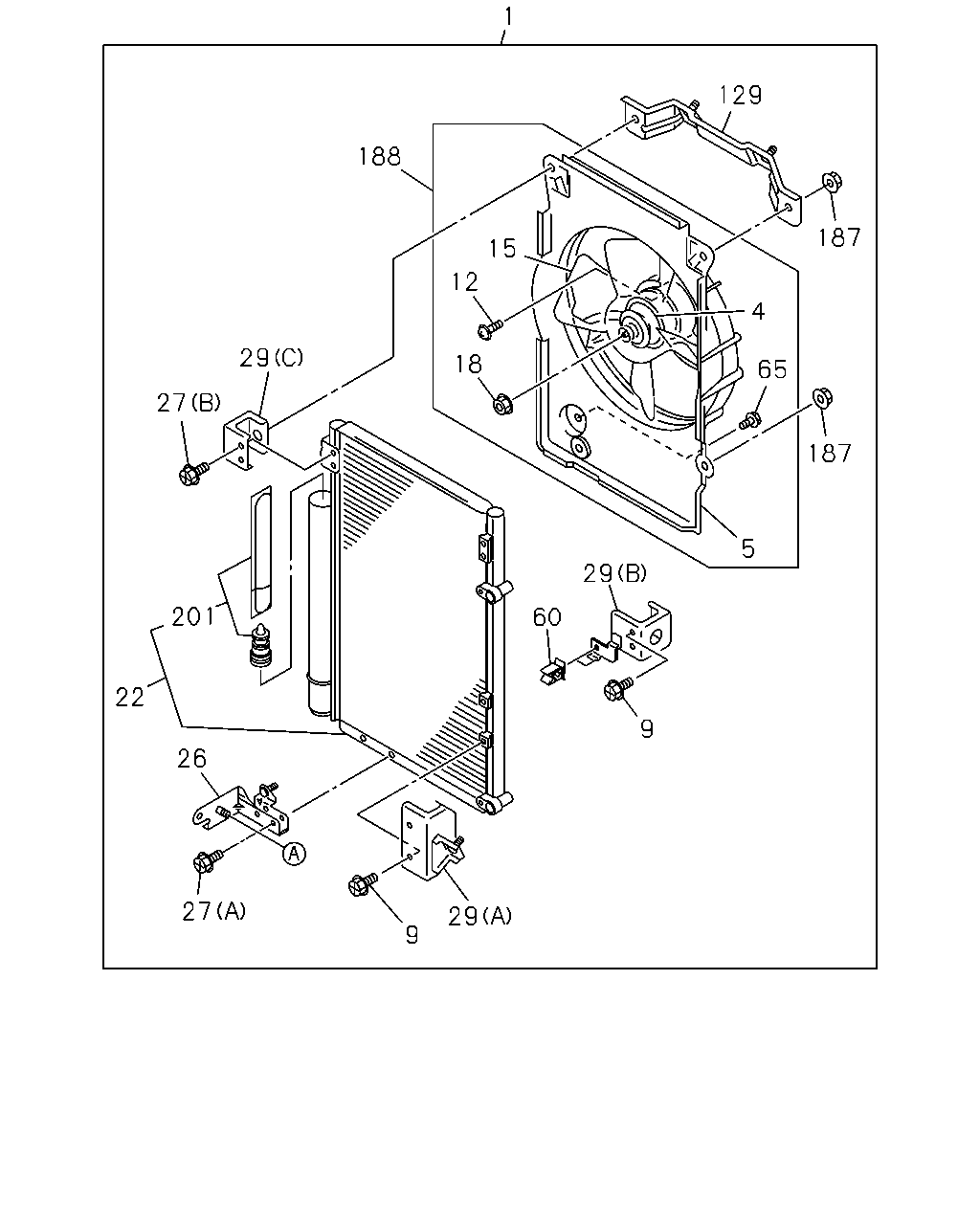

çizim 158240
188 1 129 187 4 65 187 5 15 12 18 29 27 201 22 26 27 9 29 60 29 9
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98076-087-2 01 1 0710-1109
1 CONDENSER; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98076-087-2 01 1 1110-
4 MOTOR ASM; FAN 8-98078-763-0 01 1 0710-1109
4 MOTOR ASM; FAN
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98078-763-0 01 1 1110-
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 0710-1109
5 SHROUD; FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98076-093-0 01 1 1110-
9 BOLT; BRKT
M6X14 		1-83539-382-0 04 1 0710-1109
9 BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X14 		1-83539-382-0 04 1 1110-
12 BOLT; FAN MOTOR 8-98290-384-0 03 1 0710-1109
12 BOLT; FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98290-384-0 03 1 1110-1201
12 BOLT; FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98290-384-0 01 1 1202-1409
12 BOLT; FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98290-384-0 03 1 1410-
15 FAN; MOTOR 8-98076-092-0 01 1 0710-1109
15 FAN; MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98076-092-0 01 1 1110-
18 NUT; FAN,CENTER 1-83539-313-0 01 1 0710-1109
18 NUT; FAN,CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83539-313-0 01 1 1110-
22 CONDENSER ASM; A/C 1-83534-261-0 01 1 0710-1109
22 CONDENSER ASM; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83534-261-0 01 1 1110-1409
22 CONDENSER ASM; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98275-189-0 01 1 1410-
26 BRACKET; LOW 1-83573-281-0 01 1 0710-1109
26 BRACKET; LOW
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83573-281-0 01 1 1110-
27 BOLT; BRKT,LOW SIDE
(B) M6X14 		1-83539-382-0 02 1 0710-1109
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M6X14 		1-83539-382-0 02 1 1110-
27 BOLT; BRKT,LOW SIDE
(A) M5X25 		8-97178-770-0 02 1 0710-1109
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X25 		8-97178-770-0 02 1 1110-
29 BRACKET; SIDE
(C) 		1-83573-278-0 01 1 0710-1109
29 BRACKET; SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83573-278-0 01 1 1110-
29 BRACKET; SIDE
(B) 		1-83573-279-0 01 1 0710-1109
29 BRACKET; SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83573-279-0 01 1 1110-
29 BRACKET; SIDE
(A) 		1-83573-280-0 01 1 0710-1109
29 BRACKET; SIDE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-280-0 01 1 1110-
60 CLIP; PIPE 1-83574-266-0 01 1 0710-1109
60 CLIP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83574-266-0 01 1 1110-
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 0710-1109
65 BOLT; SHROUD
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16 		8-97096-525-0 01 1 1110-
129 BRACKET; UPR 1-83573-129-0 01 1 0710-1109
129 BRACKET; UPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83573-129-0 01 1 1110-
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 0710-1109
187 NUT; SHROUD
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6 		1-83539-354-0 04 1 1110-
188 BLOWER ASM; SHROUD 8-98078-760-1 01 1 0710-1109
188 BLOWER ASM; SHROUD
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98078-760-1 01 1 1110-
201 DRYER ASM; CONDENSER 1-83535-097-0 01 1 0710-1109
201 DRYER ASM; CONDENSER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83535-097-0 01 1 1110-1409
201 DRYER ASM; CONDENSER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98282-482-0 01 1 1410-
