8-74 — EVAPORATOR (#67375) — 28 parça

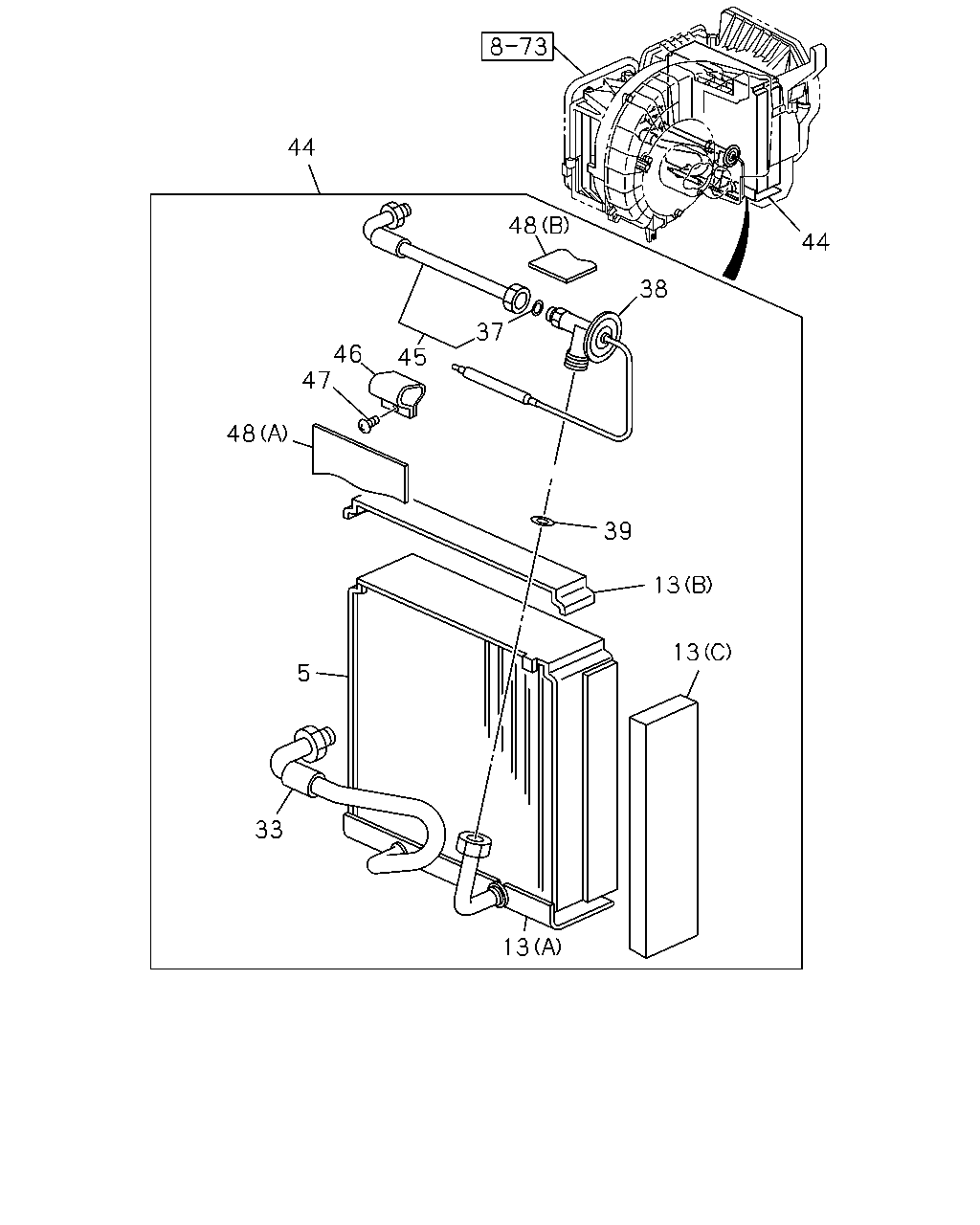

çizim 158262
44 48 44 38 37 45 46 47 48 5 33 13 13 13 39
BalonParca AdiParca NoAdetTipApplied Date
5 EVAPORATOR 1-83562-097-0 01 1 0710-1109
5 EVAPORATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83562-097-0 01 1 1110-
13 SEAL; EVAP
(C) 		1-83579-938-0 01 1 0710-1109
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83579-938-0 01 1 1110-
13 SEAL; EVAP
(A) 		1-83579-959-0 01 1 0710-1109
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83579-959-0 01 1 1110-
13 SEAL; EVAP
(B) 		1-83579-960-0 01 1 0710-1109
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-960-0 01 1 1110-
33 LINING; EVAP 1-83579-653-0 01 1 0710-1109
33 LINING; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-653-0 01 1 1110-
37 GASKET; EVAP
ID=6.07 		8-94461-902-0 01 1 0710-1109
37 GASKET; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=6.07 		8-94461-902-0 01 1 1110-
38 VALVE; EXPANSION 1-83569-189-0 01 1 0710-1109
38 VALVE; EXPANSION
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83569-189-0 01 1 1110-
39 GASKET; EVAP 8-94481-717-0 01 1 0710-1109
39 GASKET; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-94481-717-0 01 1 1110-
44 EVAPORATOR ASM; A/C 1-83562-099-0 01 1 0710-1109
44 EVAPORATOR ASM; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83562-099-0 01 1 1110-
45 PIPE; EXPANSION VLV 1-83567-682-0 01 1 0710-1109
45 PIPE; EXPANSION VLV
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83567-682-0 01 1 1110-
46 CLIP; EXPANSION VLV 1-83574-214-0 01 1 0710-1109
46 CLIP; EXPANSION VLV
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83574-214-0 01 1 1110-
47 SCREW; EVAP 8-97130-601-0 01 1 0710-1109
47 SCREW; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-97130-601-0 01 1 1110-
48 INSULATOR; EVAP
(A) 		1-83579-784-0 01 1 0710-1109
48 INSULATOR; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83579-784-0 01 1 1110-
48 INSULATOR; EVAP
(B) 		1-83579-969-0 01 1 0710-1109
48 INSULATOR; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-969-0 01 1 1110-
