8-73 — BLOWER UNIT (#67374) — 96 parça

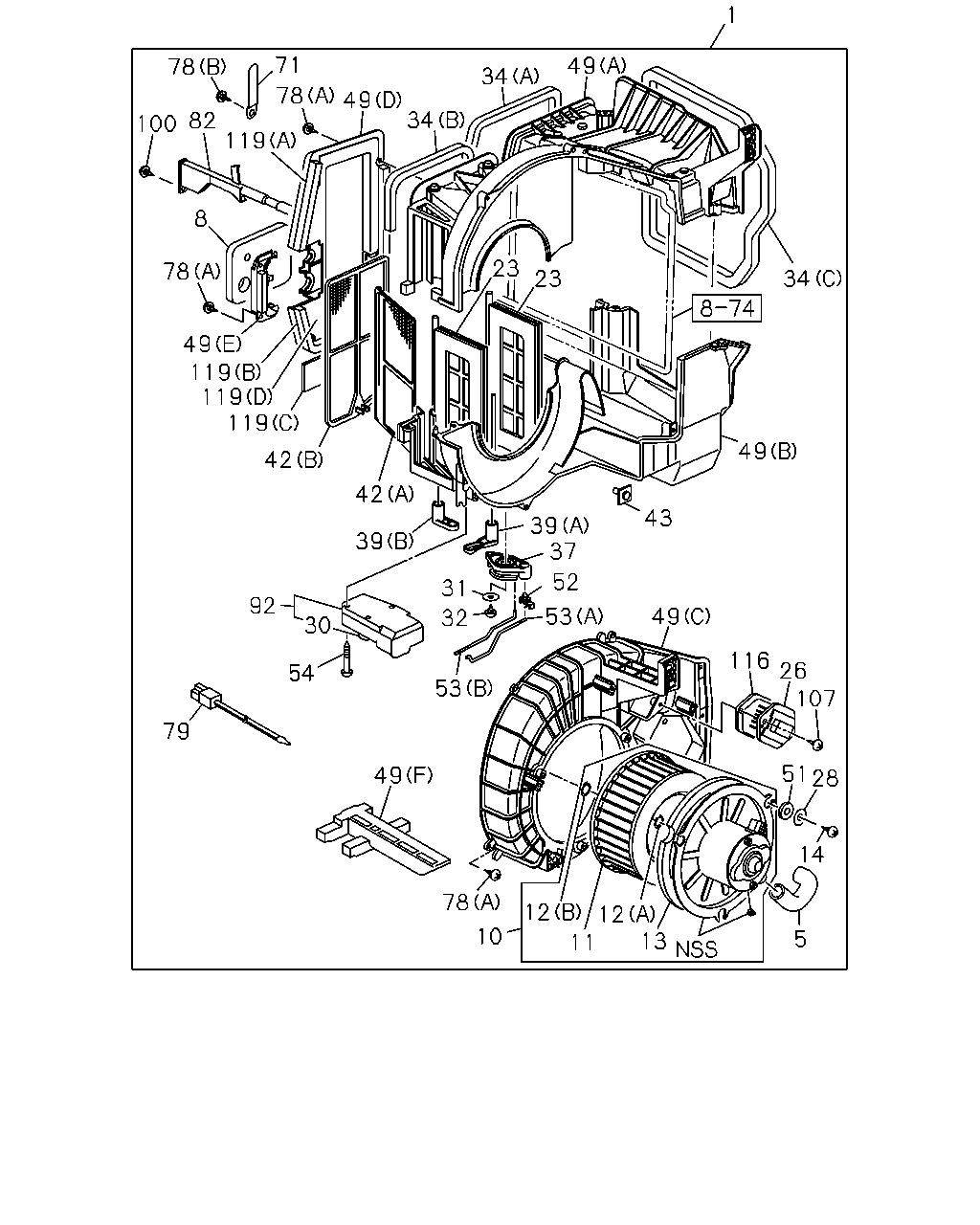

çizim 192949
78 71 34 49 34 49 78 82 100 8 119 78 49 119 119 119 42 42 39 92 30 54 79 49 53 32 31 39 37 52 53 49 43 49 23 23 34 1 116 26 107 51 28 14 5 12 13 11 12 10 78
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 1-83561-154-5 01 1 0710-1109
1 BLOWER ASM
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83561-154-5 01 1 1110-
5 HOSE; AIR 1-83563-140-0 01 1 0710-1109
5 HOSE; AIR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83563-140-0 01 1 1110-
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 0710-1109
8 SEAL; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83539-261-1 01 1 1110-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0710-1109
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83561-161-0 01 1 1110-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0710-1109
11 IMPELLER; FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-635-0 01 1 1110-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0710-1109
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		5-83569-088-0 01 1 1110-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0710-1109
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		8-94243-962-0 01 1 1110-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0710-1109
13 LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-636-0 01 1 1110-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0710-1109
14 SCREW; COVER TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X20 		9-09829-324-1 03 1 1110-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0710-1109
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-637-0 02 1 1110-
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 0710-1109
26 TRANSISTOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-654-0 01 1 1110-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0710-1109
28 WASHER; PL,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-170-0 03 1 1110-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0710-1109
30 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83564-345-1 01 1 1110-
31 WASHER; LEVER 1-83579-095-0 01 1 0710-1109
31 WASHER; LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-095-0 01 1 1110-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0710-1109
32 SCREW; LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X20 		9-09829-324-1 01 1 1110-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0710-1109
34 LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83579-633-2 01 1 1110-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0710-1109
34 LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-634-2 01 1 1110-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0710-1109
34 LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83579-644-0 01 1 1110-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0710-1109
37 LEVER; MODE LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83564-344-0 01 1 1110-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0710-1109
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-342-0 01 1 1110-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0710-1109
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-343-0 01 1 1110-
42 FILTER; BLOWER UNIT
(A) 		1-83579-643-3 01 1 0710-1109
42 FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83579-643-3 01 1 1110-
42 FILTER; BLOWER UNIT
(B) 		1-83579-993-0 02 1 0710-1109
42 FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-993-0 02 1 1110-
43 BOLT; CASE 1-83579-657-2 04 1 0710-1109
43 BOLT; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-657-2 04 1 1110-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0710-1109
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83564-337-4 01 1 1110-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0710-1109
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E) 		1-83564-339-1 01 1 1110-
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 0710-1109
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (F) 		1-83564-340-1 01 1 1110-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0710-1109
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-351-1 01 1 1110-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0710-1109
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D) 		1-83564-353-1 01 1 1110-
49 CASE; BLOWER UNIT
(B) 		1-83564-406-1 01 1 0710-1109
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-406-1 01 1 1110-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0710-1109
51 ISOLATOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-496-0 03 1 1110-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0710-1109
52 CLIP; LEVER TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-94248-794-0 02 1 1110-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0710-1109
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83579-638-0 01 1 1110-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0710-1109
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-639-0 01 1 1110-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0710-1109
54 SCREW; ACTUATOR TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-94348-809-0 02 1 1110-
71 CLIP; HARNESS 1-83574-080-0 01 1 0710-1109
71 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83574-080-0 01 1 1110-
78 SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 0710-1109
78 SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 1110-
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 0710-1109
78 SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M4X16 		8-94324-850-0 17 1 1110-
79 SENSOR; BLOWER UNIT 1-83544-037-0 01 1 0710-1109
79 SENSOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83544-037-0 01 1 1110-
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 0710-1109
82 BRACKET; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83571-871-1 01 1 1110-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0710-1109
92 ACTUATOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-640-1 01 1 1110-
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0710-1109
100 SCREW; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M4X16 		8-94324-850-0 01 1 1110-
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 0710-1109
107 SCREW; TRANSISTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M4X16 		8-94324-850-0 02 1 1110-
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 0710-1109
116 SEAL; TRANSISTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-656-0 01 1 1110-
119 LINING; CASE
(D) 		1-83578-032-0 01 1 0710-1109
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D) 		1-83578-032-0 01 1 1110-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0710-1109
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83579-670-1 01 1 1110-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0710-1109
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-671-1 01 1 1110-
119 LINING; CASE
(C) 		1-83579-961-0 01 1 0710-1109
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83579-961-0 01 1 1110-
