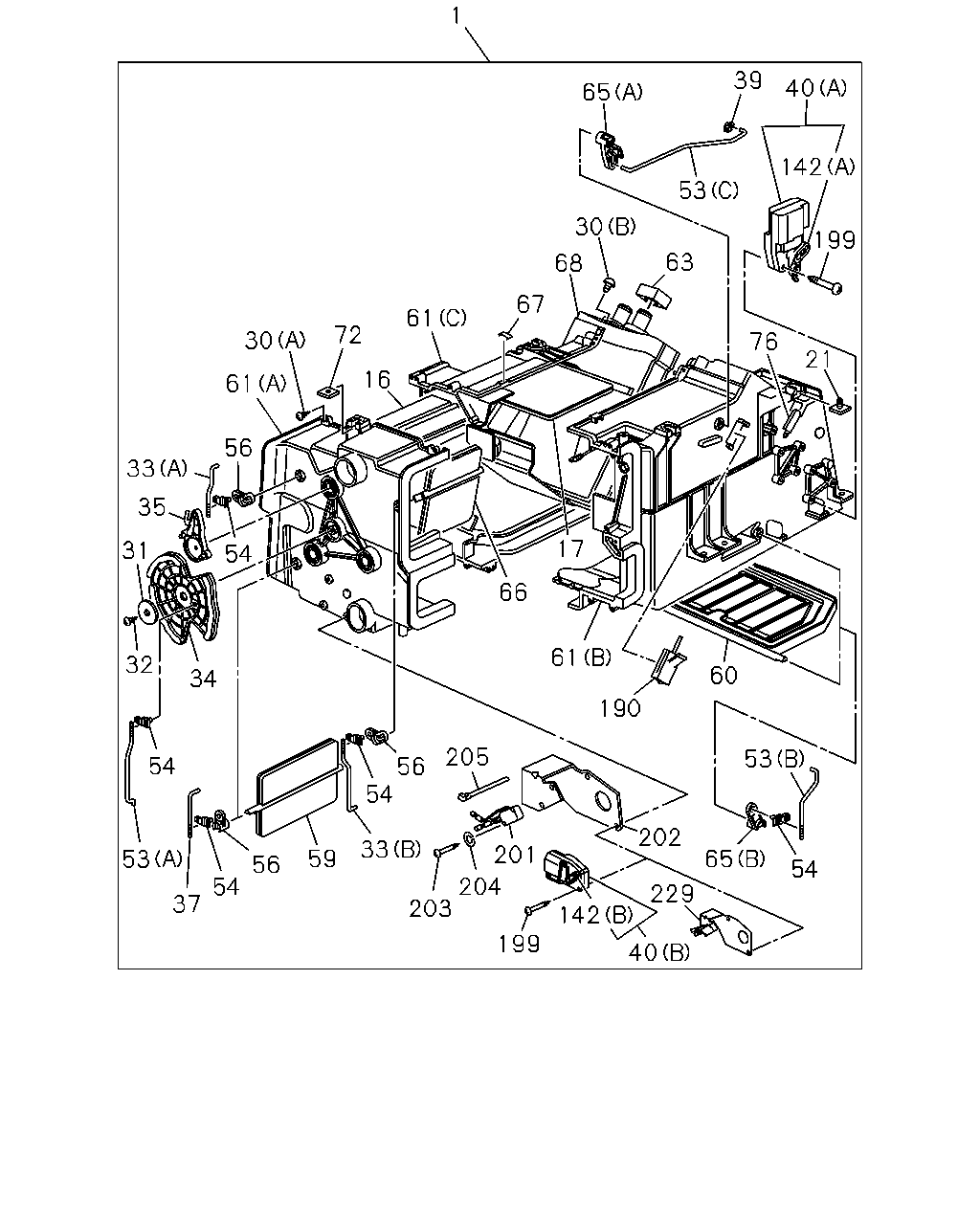

8-60 — HEATER UNIT; FRONT (#67372) — 87 parça

1 40 39 65 53 142 30 199 63 68 67 61 72 30 61 16 56 33 54 35 31 32 34 54 53 37 59 56 54 54 33 56 203 205 204 202 201 142 199 40 65 229 54 53 60 190 61 66 21 76 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT	1-83511-182-1	01	1	0710-1109
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83511-182-1	01	1	1110-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98238-480-0	01	1	1410-
16	SHUTTER; HTR UNIT,CENTER UPR	1-83579-625-1	01	1	0710-1109
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-625-1	01	1	1110-
17	SHUTTER; HTR UNIT,CENTER	1-83579-628-1	01	1	0710-1109
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-628-1	01	1	1110-
21	BOLT; CASE,HTR UNIT	1-83579-657-2	02	1	0710-1109
21	BOLT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-657-2	02	1	1110-
30	SCREW; HTR UNIT (A) M4X16	8-94324-850-0	12	1	0710-1109
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M4X16	8-94324-850-0	12	1	1110-
30	SCREW; HTR UNIT (B) M5X20	9-09829-324-1	01	1	0710-1109
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M5X20	9-09829-324-1	01	1	1110-1409
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M5X16	8-94248-820-0	01	1	1410-
31	WASHER; HTR UNIT	8-94129-950-0	01	1	0710-1109
31	WASHER; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94129-950-0	01	1	1110-
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	0710-1109
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X20	9-09829-324-1	01	1	1110-1409
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X16	8-94248-820-0	01	1	1410-
33	ROD; SHUTTER LEVER (A)	1-83579-619-0	01	1	0710-1109
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-619-0	01	1	1110-
33	ROD; SHUTTER LEVER (B)	1-83579-621-0	01	1	0710-1109
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-621-0	01	1	1110-
34	LEVER; SHUTTER,HTR UNIT	1-83564-326-0	01	1	0710-1109
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-326-0	01	1	1110-
35	LEVER; SHUTTER,HTR UNIT	8-94389-502-1	03	1	0710-1109
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94389-502-1	03	1	1110-
37	ROD; LEVER	1-83579-620-1	01	1	0710-1109
37	ROD; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-620-1	01	1	1110-
39	CLIP; HTR UNIT	1-83574-136-0	01	1	0710-1109
39	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-136-0	01	1	1110-
40	ACTUATOR; HTR UNIT (A)	1-83579-650-1	01	1	0710-1109
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-650-1	01	1	1110-
40	ACTUATOR; HTR UNIT (B)	1-83579-676-2	01	1	0710-1109
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	1110-
53	ROD; SHUTTER LEVER (A)	1-83579-622-0	01	1	0710-1109
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-622-0	01	1	1110-
53	ROD; SHUTTER LEVER (B)	1-83579-623-0	01	1	0710-1109
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-623-0	01	1	1110-
53	ROD; SHUTTER LEVER (C)	1-83579-624-0	01	1	0710-1109
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83579-624-0	01	1	1110-
54	CLIP; SHUTTER LEVER	8-94248-794-0	05	1	0710-1109
54	CLIP; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94248-794-0	05	1	1110-
56	LEVER; SHUTTER,HTR UNIT	1-83564-325-0	03	1	0710-1109
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-325-0	03	1	1110-
59	SHUTTER; HTR UNIT,SIDE	1-83579-626-2	01	1	0710-1109
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-626-2	01	1	1110-
60	DOOR; MIX,HTR UNIT	1-83578-084-0	01	1	0710-1109
60	DOOR; MIX,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83578-084-0	01	1	1110-
61	CASE; HTR UNIT (B)	1-83564-323-5	01	1	0710-1109
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	1110-
61	CASE; HTR UNIT (C)	1-83564-346-3	01	1	0710-1109
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83564-346-3	01	1	1110-
61	CASE; HTR UNIT (A)	1-83564-347-3	01	1	0710-1109
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	1110-
63	LINING; HTR UNIT	1-83579-557-0	02	1	0710-1109
63	LINING; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-557-0	02	1	1110-
65	LEVER; MIX,DOOR (A)	1-83564-327-0	01	1	0710-1109
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-327-0	01	1	1110-
65	LEVER; MIX,DOOR (B)	1-83564-328-1	01	1	0710-1109
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-328-1	01	1	1110-
66	SHUTTER; HTR UNIT,CENTER LWR	1-83579-680-0	01	1	0710-1109
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-680-0	01	1	1110-
67	CLIP; HTR UNIT	1-83574-148-0	01	1	0710-1109
67	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-148-0	01	1	1110-
68	CORE; HTR UNIT	1-83562-078-1	01	1	0710-1109
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83562-078-1	01	1	1110-1409
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98238-475-0	01	1	1410-
72	NUT; CASE,HTR UNIT	1-83579-659-4	02	1	0710-1109
72	NUT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-659-4	02	1	1110-
76	BRACKET; HTR UNIT	1-83571-874-0	01	1	0710-1109
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-874-0	01	1	1110-
142	LEVER; ACTUATOR (B)	1-83564-409-0	01	1	0710-1109
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	1110-
142	LEVER; ACTUATOR (A)	1-83564-414-0	01	1	0710-1109
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-414-0	01	1	1110-
190	SENSOR; HEATER UNIT	1-83579-658-1	01	1	0710-1109
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-658-1	01	1	1110-
199	SCREW; ACTUATOR	8-94348-809-0	04	1	0710-1109
199	SCREW; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94348-809-0	04	1	1110-
201	SWITCH; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-679-1	01	1	1410-
202	BRACKET; MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-907-1	01	1	1410-
203	SCREW; MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	5-83569-141-0	02	1	1410-
204	WASHER; LK,MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1	9-09150-503-0	02	1	1410-
205	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92	1-83574-159-0	01	1	1410-
229	SWITCH ASM; MICRO,HEATER UNIT	1-83579-688-2	01	1	0710-1109
229	SWITCH ASM; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-688-2	01	1	1110-1409
