8-52 — PIPING; AIR CONDITIONING (#67371) — 98 parça

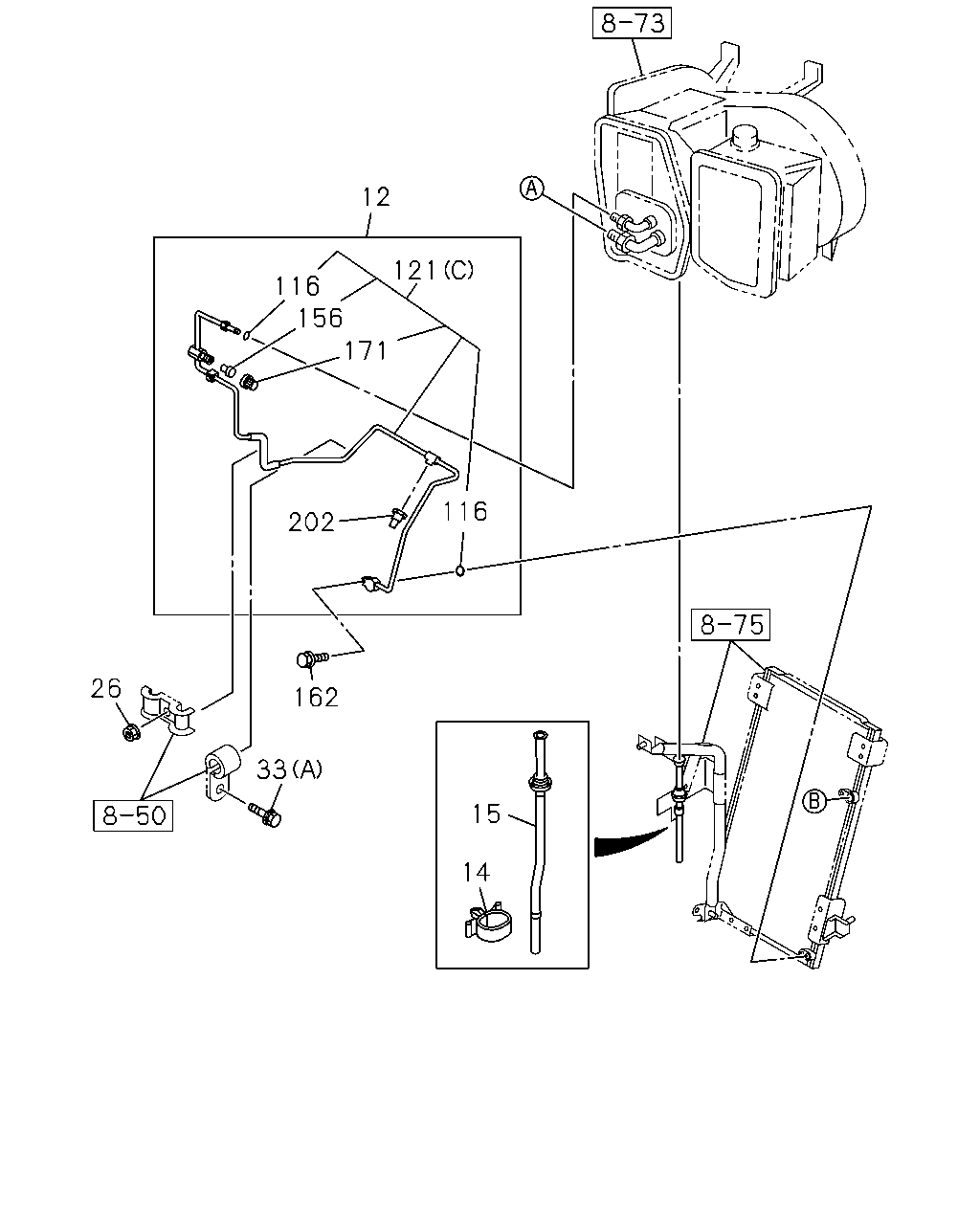

çizim 192943
12 121 116 156 171 116 202 26 162 33 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK 1-83567-877-1 01 1 0710-1109
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83567-877-1 01 1 1110-
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 0710-1109
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=20 		8-94410-200-0 01 1 1110-
15 HOSE; DRAIN 1-83572-635-0 01 1 0710-1109
15 HOSE; DRAIN
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83572-635-0 01 1 1110-
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1109
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91180-108-0 01 1 1110-
33 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-1109
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1110-
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-1109
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1110-
116 GASKET; PIPE
ID=7.4 		8-97095-906-0 02 1 0710-1109
116 GASKET; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=7.4 		8-97095-906-0 02 1 1110-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83577-054-0 01 1 1110-
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D) 		1-83577-055-0 01 1 1110-
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83577-070-0 01 1 1110-
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83577-071-0 01 1 1110-
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E) 		1-83577-086-0 01 1 1110-
156 VALVE; PIPE 8-97095-909-0 01 1 0710-1109
156 VALVE; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-97095-909-0 01 1 1110-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0710-1109
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28050-625-0 02 1 1110-
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 0710-1109
171 CAP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAP MARK H 		8-97095-911-0 01 1 1110-
202 SWITCH; PRESSURE 1-83564-392-1 01 1 0710-1109
202 SWITCH; PRESSURE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83564-392-1 01 1 1110-

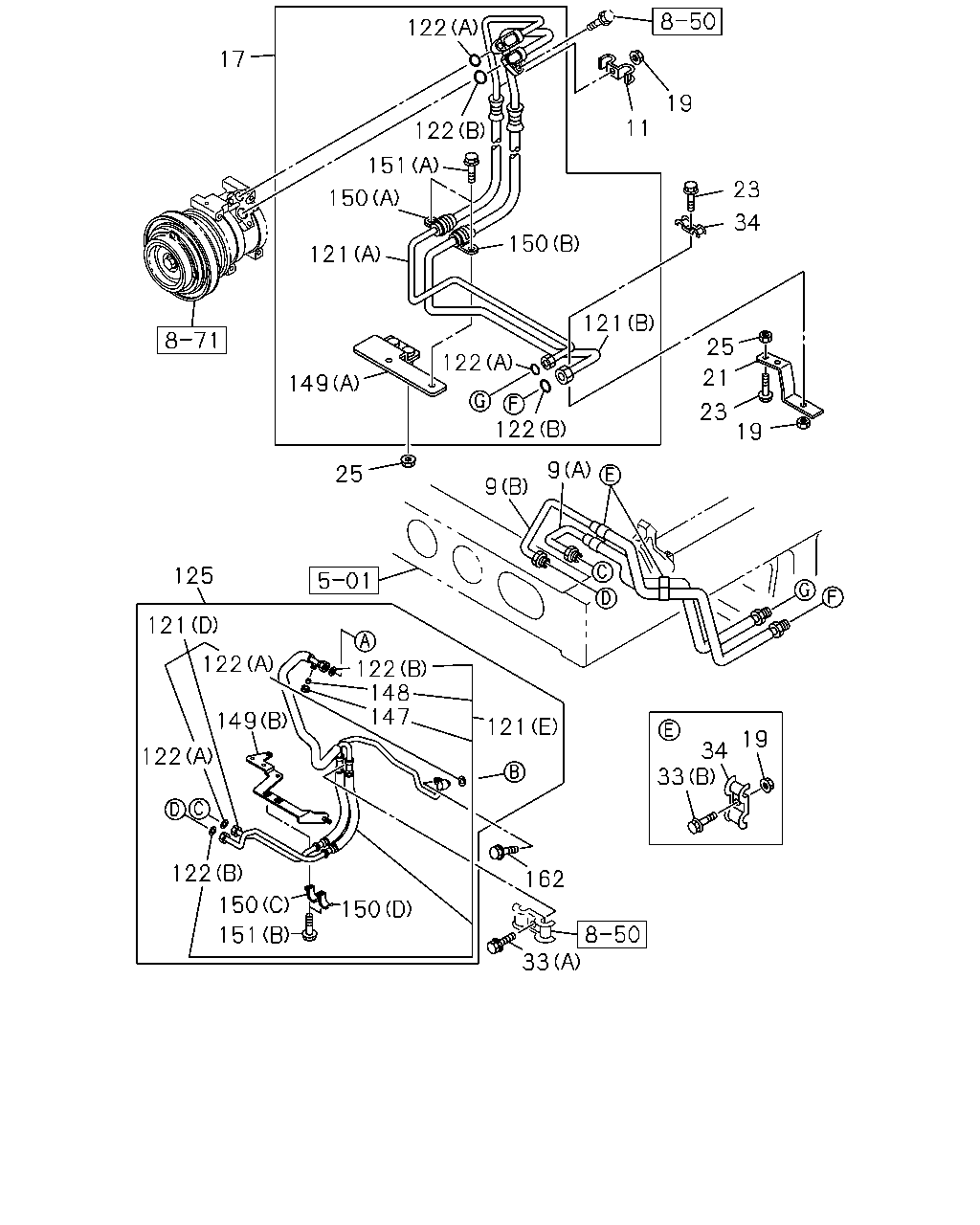

çizim 192944
122 17 19 11 122 151 23 150 34 150 121 121 25 122 21 149 122 23 19 9 25 9 125 121 122 122 148 147 149 121 19 34 33 122 122 162 150 150 151 33
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; COOLER,HOSE TO HOSE
(A) 		1-83567-888-0 01 1 0710-1109
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83567-888-0 01 1 1110-
9 PIPE; COOLER,HOSE TO HOSE
(B) 		1-83567-889-1 01 1 0710-1109
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83567-889-1 01 1 1110-
11 CLIP; COOLER PIPE
ID=12 & 14.5 		1-83574-257-0 01 1 0710-1109
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=12 & 14.5 		1-83574-257-0 01 1 1110-
17 HOSE; FLEX,CMPR TO PIPE 1-83577-062-1 01 1 0710-1109
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83577-062-1 01 1 1110-
19 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 0710-1109
19 NUT; CLIP FIX
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91180-108-0 03 1 1110-
21 BRACKET; COOLER HOSE 1-83573-297-0 01 1 0710-1109
21 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83573-297-0 01 1 1110-
23 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0710-1109
23 BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X20 FLANGE 		0-28050-820-0 02 1 1110-
25 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710-1109
25 NUT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91180-108-0 03 1 1110-
33 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-1109
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1110-
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-1109
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1110-
34 CLIP; COOLER PIPE
ID=20 & 20 		1-83574-195-1 03 1 0710-1109
34 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=20 & 20 		1-83574-195-1 03 1 1110-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83577-054-0 01 1 1110-
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D) 		1-83577-055-0 01 1 1110-
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83577-070-0 01 1 1110-
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83577-071-0 01 1 1110-
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0710-1109
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E) 		1-83577-086-0 01 1 1110-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0710-1109
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0710-1109
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=11.7 		8-97095-907-0 02 1 1110-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=11.7 		8-97095-907-0 02 1 1110-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0710-1109
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0710-1109
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) ID=14.5 		8-97095-908-0 02 1 1110-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) ID=14.5 		8-97095-908-0 02 1 1110-
125 HOSE; FLEX,UNIT TO CMPR 1-83577-026-1 01 1 0710-1109
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83577-026-1 01 1 1110-
147 CAP; FLEX HOSE
CAP MARK L 		8-97095-910-0 01 1 0710-1109
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAP MARK L 		8-97095-910-0 01 1 1110-
148 VALVE; FLEX HOSE 8-97095-909-0 01 1 0710-1109
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-97095-909-0 01 1 1110-
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0710-1109
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-255-0 01 1 1110-
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0710-1109
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83573-265-0 01 1 1110-
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0710-1109
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83574-249-0 01 1 1110-
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0710-1109
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83574-262-0 01 1 1110-
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0710-1109
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D) 		1-83574-263-0 01 1 1110-
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0710-1109
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83574-264-0 01 1 1110-
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0710-1109
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83539-336-0 02 1 1110-
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0710-1109
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83578-098-0 02 1 1110-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0710-1109
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28050-625-0 02 1 1110-
