8-40 — HEATER SYSTEM (#67368) — 106 parça

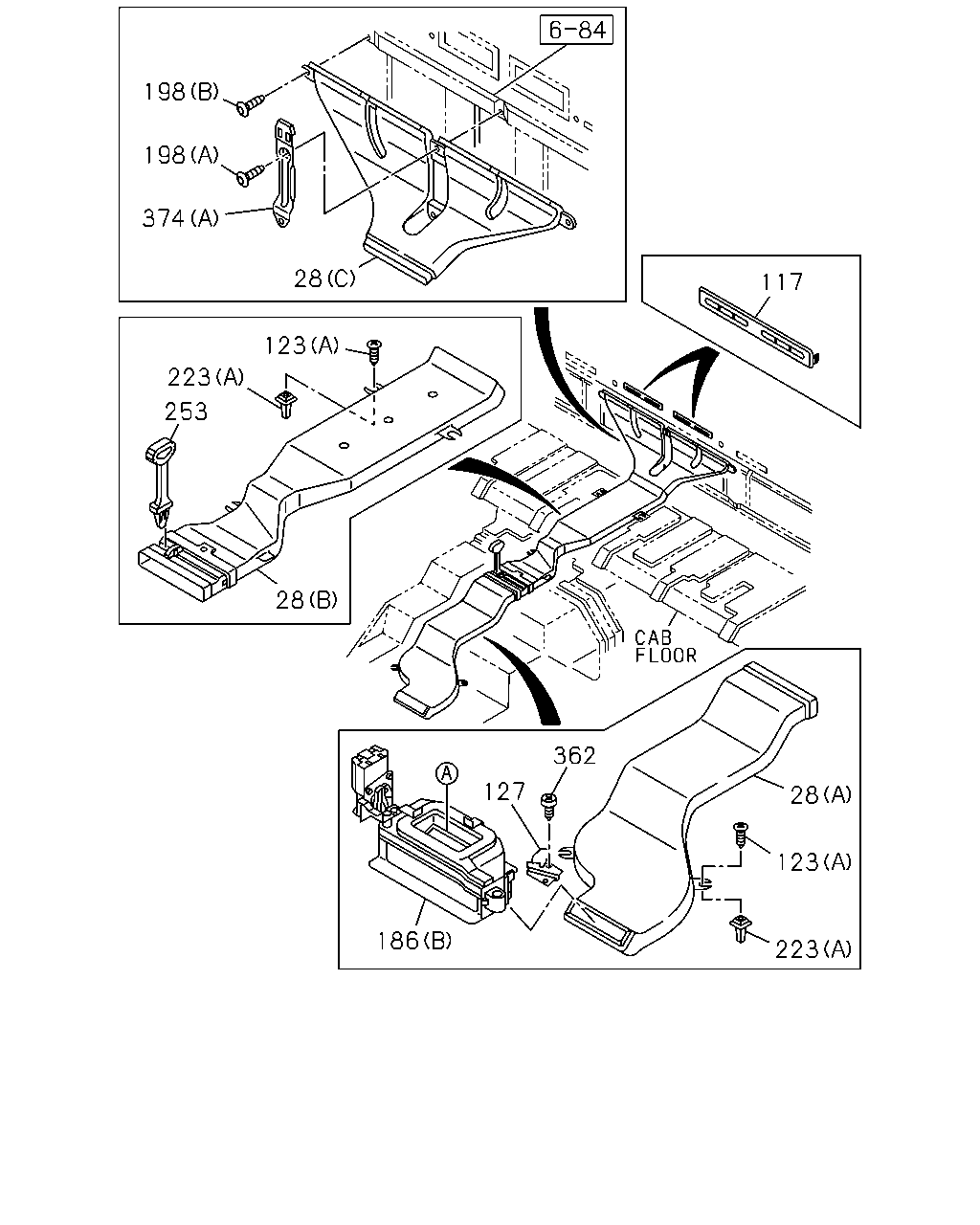

çizim 5660
198 198 374 28 123 223 253 28 117 127 362 28 123 223 186
BalonParca AdiParca NoAdetTipApplied Date
28 DUCT; AIR,VENTILATOR
(B) 		1-76377-180-2 01 1 0710-1109
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) (B) 		1-76377-180-2 01 1 1110-
28 DUCT; AIR,VENTILATOR
(C) 		1-76377-186-1 01 1 0710-1109
28 DUCT; AIR,VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-76377-186-1 01 1 1110-
28 DUCT; AIR,VENTILATOR
(A) 		1-76377-203-0 01 1 0710-1109
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) (A) 		1-76377-203-0 01 1 1110-
117 GRILLE; VENTILATOR 1-76377-188-5 01 1 0710-1109
117 GRILLE; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76377-188-5 01 1 1110-
117 GRILLE; VENTILATOR 1-76377-187-5 01 1 0710-1109
117 GRILLE; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76377-187-5 01 1 1110-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-1109
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1110-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
127 BRACKET; VENT DUCT 1-76397-019-0 01 1 0710-1109
127 BRACKET; VENT DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76397-019-0 01 1 1110-
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0710-1109
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 1110-
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710-
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-
198 CLIP; DUCT
(A) D6X23 BLACK 		1-09987-114-0 02 1 0710-1109
198 CLIP; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 BLACK 		1-09987-114-0 02 1 1110-1204
198 CLIP; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205-
198 CLIP; DUCT
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0710-1109
198 CLIP; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 1110-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-
253 KNOB; CONT LEVER 1-76377-185-1 01 1 0710-1109
253 KNOB; CONT LEVER
CENTER SEAT DELETE(SP9) 		1-76377-185-1 01 1 1110-
362 SCREW; DUCT
M5X14 		8-94279-325-0 02 1 0710-1109
362 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X14 		8-94279-325-0 02 1 1110-
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0710-1109
374 HOLDER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-189-3 01 1 1110-
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710-

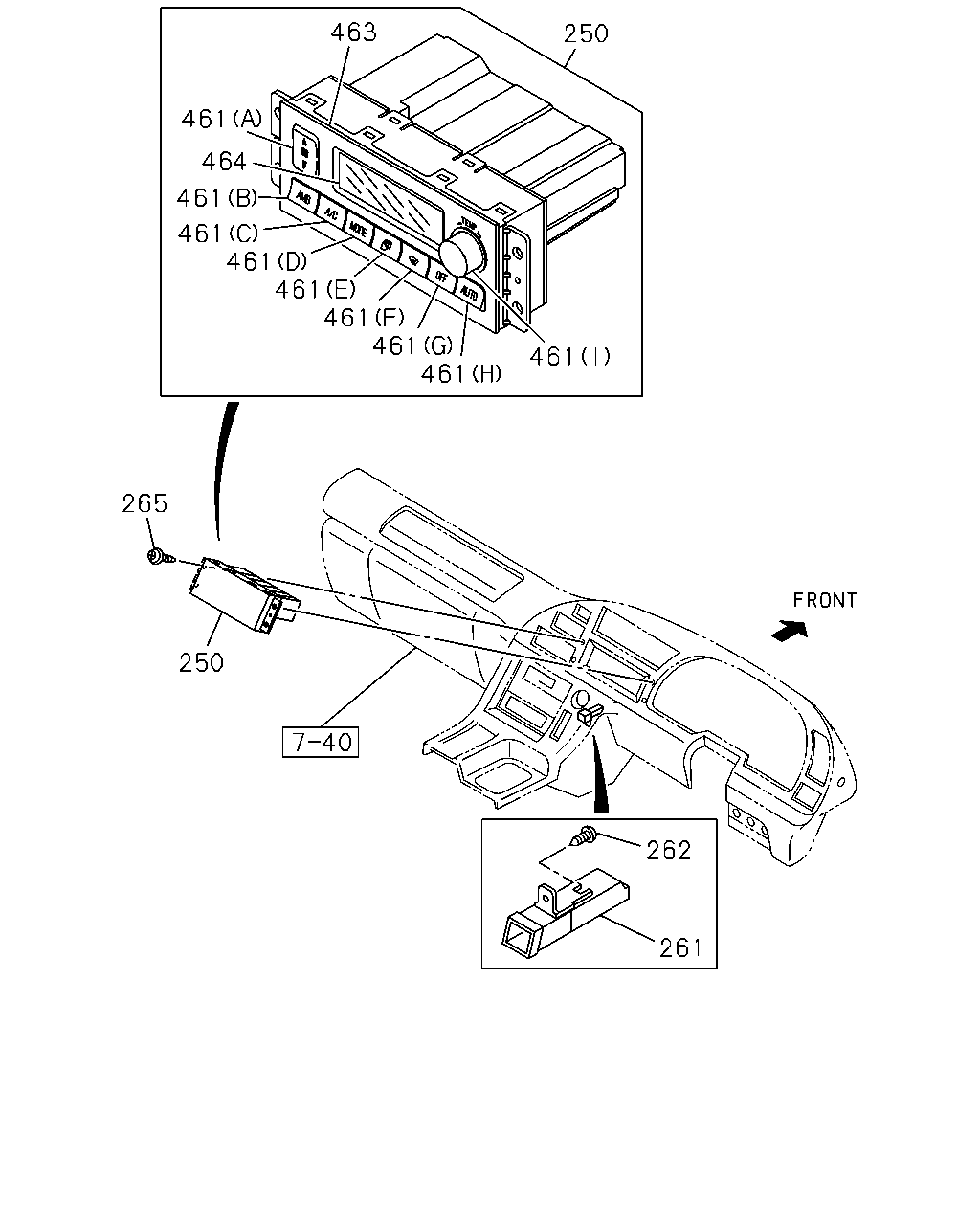

çizim 7359
463 250 461 464 461 461 461 461 461 461 461 461 250 265 262 261
BalonParca AdiParca NoAdetTipApplied Date
250 CONTROL ASM; A/C 1-83543-038-1 01 1 0710-
261 SENSOR; IN CAR 1-83544-023-1 01 1 0710-
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0710-
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 0710-
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0710-
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0710-

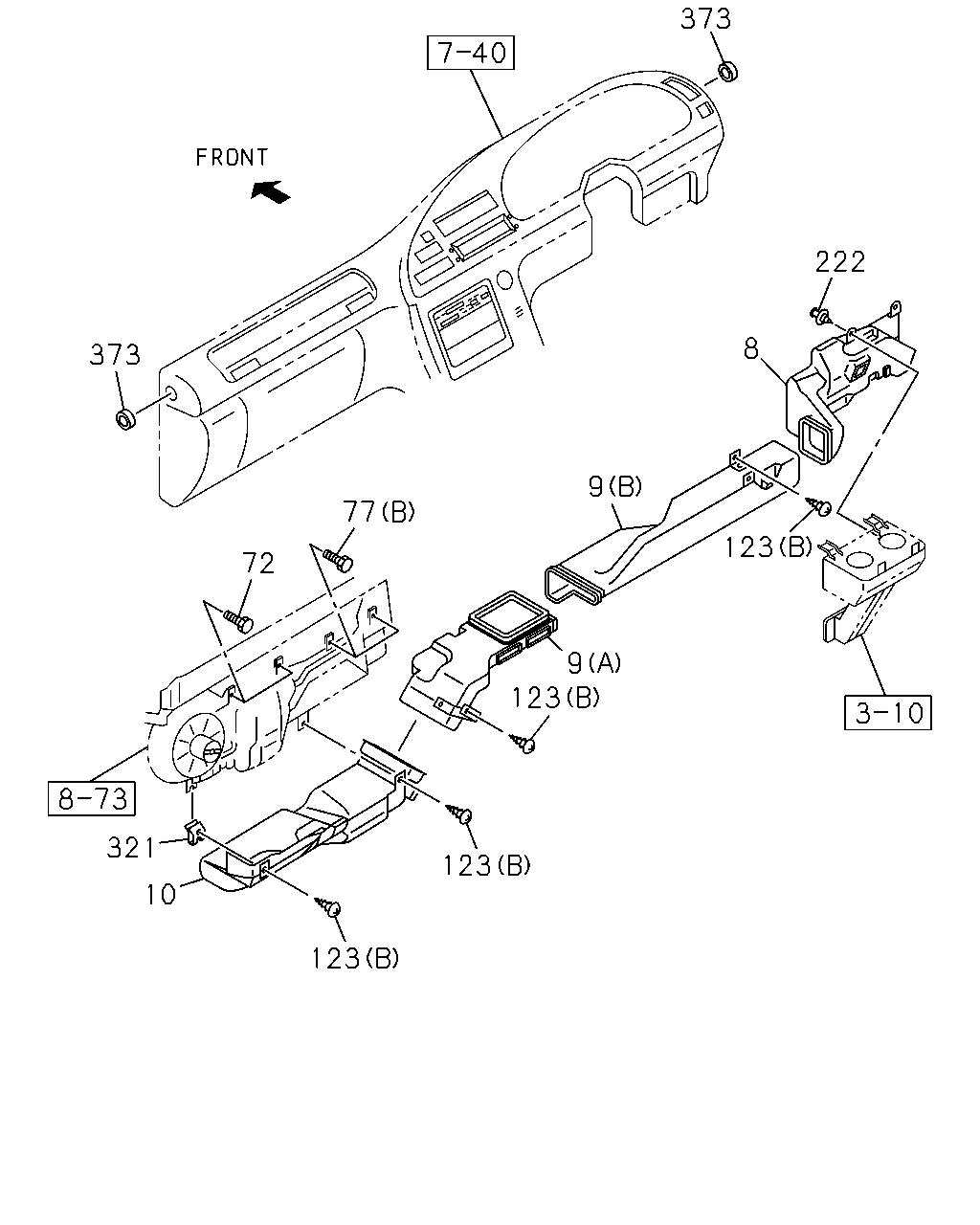

çizim 144084
373 222 8 123 9 77 72 373 321 10 123 123 123 9
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0710-
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 0710-
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-227-2 01 1 0710-1109
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-227-2 01 1 1110-
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 0710-
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-1109
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1110-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 0710-
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0710-
373 RUBBER; JOINT 1-76378-291-0 02 1 0710-

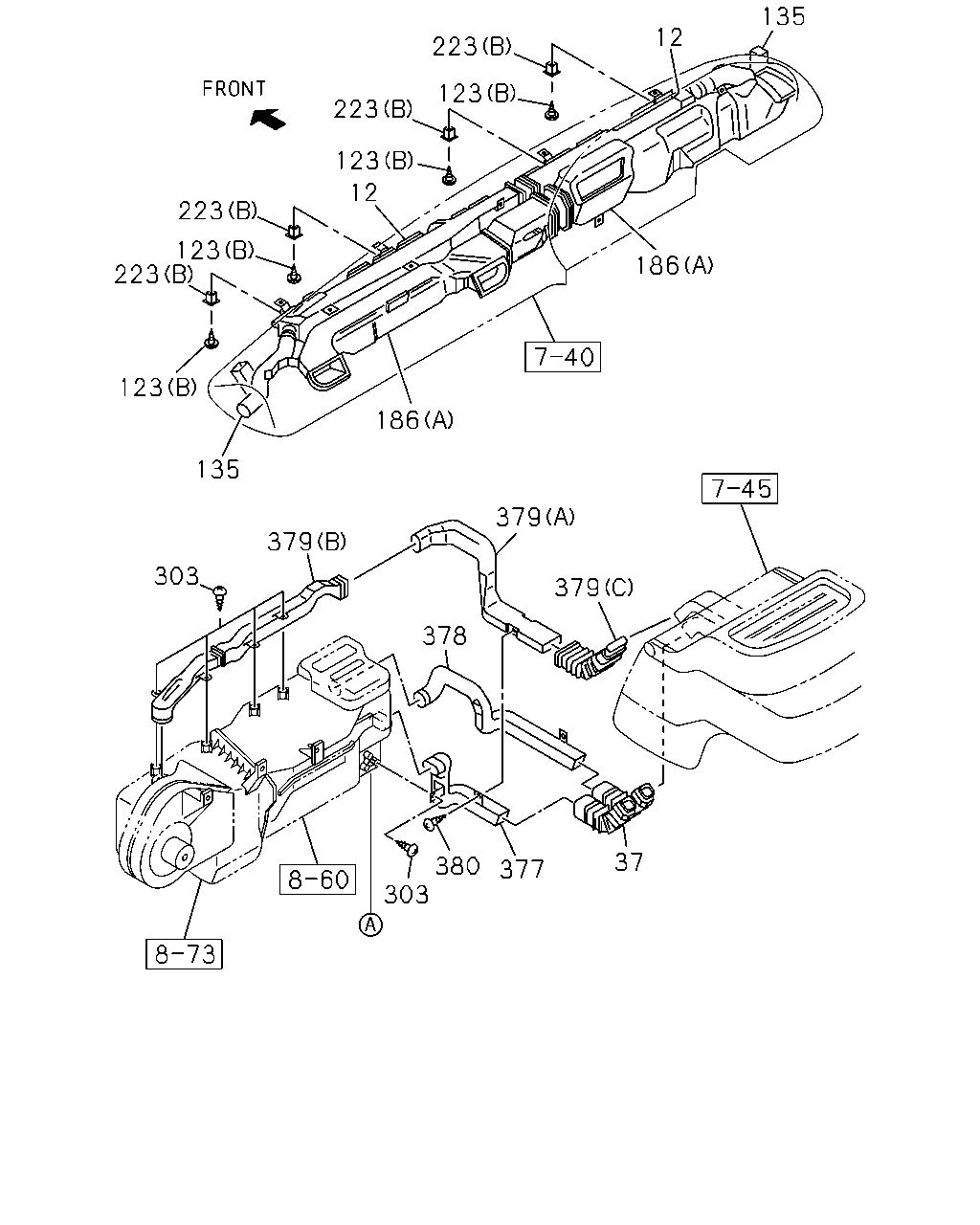

çizim 148006
223 12 135 123 223 123 12 223 123 223 123 135 303 186 379 186 379 379 378 380 303 377 37
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0710-
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 0710-
37 HOSE; AIR,HTR 1-76377-193-3 01 1 0710-1109
37 HOSE; AIR,HTR
COOL & HOT BOX<TMU> 		1-76377-193-3 01 1 1110-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-1109
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 1110-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0710-
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0710-
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0710-1109
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 1110-
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710-
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-
303 SCREW; HOSE
M5X14 		8-94279-325-0 05 1 0710-1109
303 SCREW; HOSE
COOL & HOT BOX<TMU> M5X14 		8-94279-325-0 05 1 1110-
377 HOSE; BOX,INLET,COOL 1-76377-159-5 01 1 0710-1109
377 HOSE; BOX,INLET,COOL
COOL & HOT BOX<TMU> 		1-76377-159-5 01 1 1110-
378 HOSE; BOX,INLET,HOT 1-76377-161-6 01 1 0710-1109
378 HOSE; BOX,INLET,HOT
COOL & HOT BOX<TMU> 		1-76377-161-6 01 1 1110-
379 HOSE; BOX,OUTLET
(A) 		1-76377-163-5 01 1 0710-1109
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (A) 		1-76377-163-5 01 1 1110-
379 HOSE; BOX,OUTLET
(B) 		1-76377-164-3 01 1 0710-1109
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (B) 		1-76377-164-3 01 1 1110-
379 HOSE; BOX,OUTLET
(C) 		1-76377-192-4 01 1 0710-1109
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (C) 		1-76377-192-4 01 1 1110-
380 FASTENER; HOSE
D4.6X14.7 BLACK 		1-09983-104-0 03 1 0710-1109
380 FASTENER; HOSE
COOL & HOT BOX<TMU> D4.6X14.7 BLACK 		1-09983-104-0 03 1 1110-

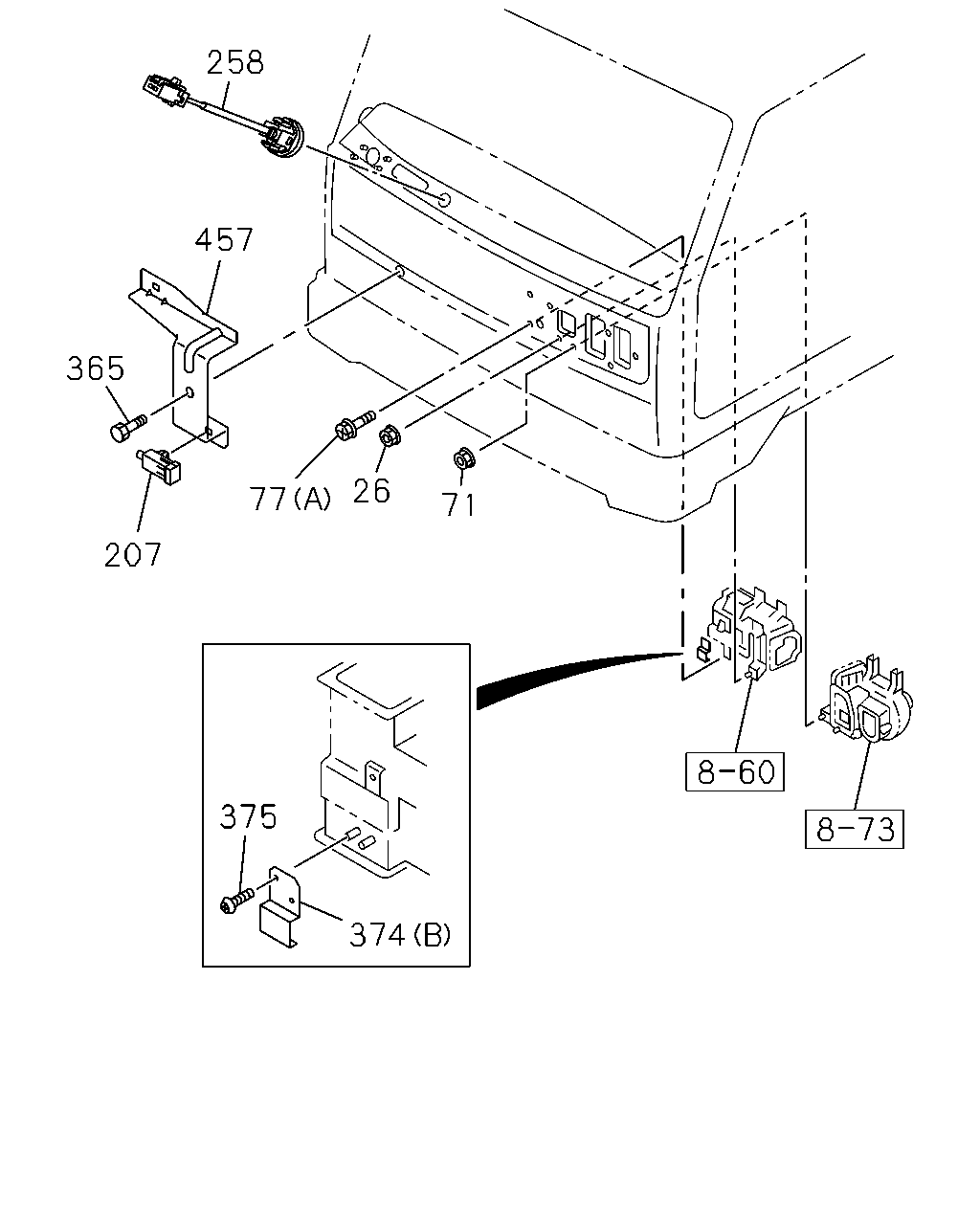

çizim 192951
258 457 365 77 207 375 26 71 374
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0710-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0710-1204
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1205-
258 SENSOR; SUN 8-94472-043-2 01 1 0710-
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0710-1109
374 HOLDER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-189-3 01 1 1110-
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710-
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0710-
457 BRACKET; SENSOR 1-71907-603-1 01 1 0710-
