8-28 — CHASSIS ELECTRICAL (#67367) — 170 parça

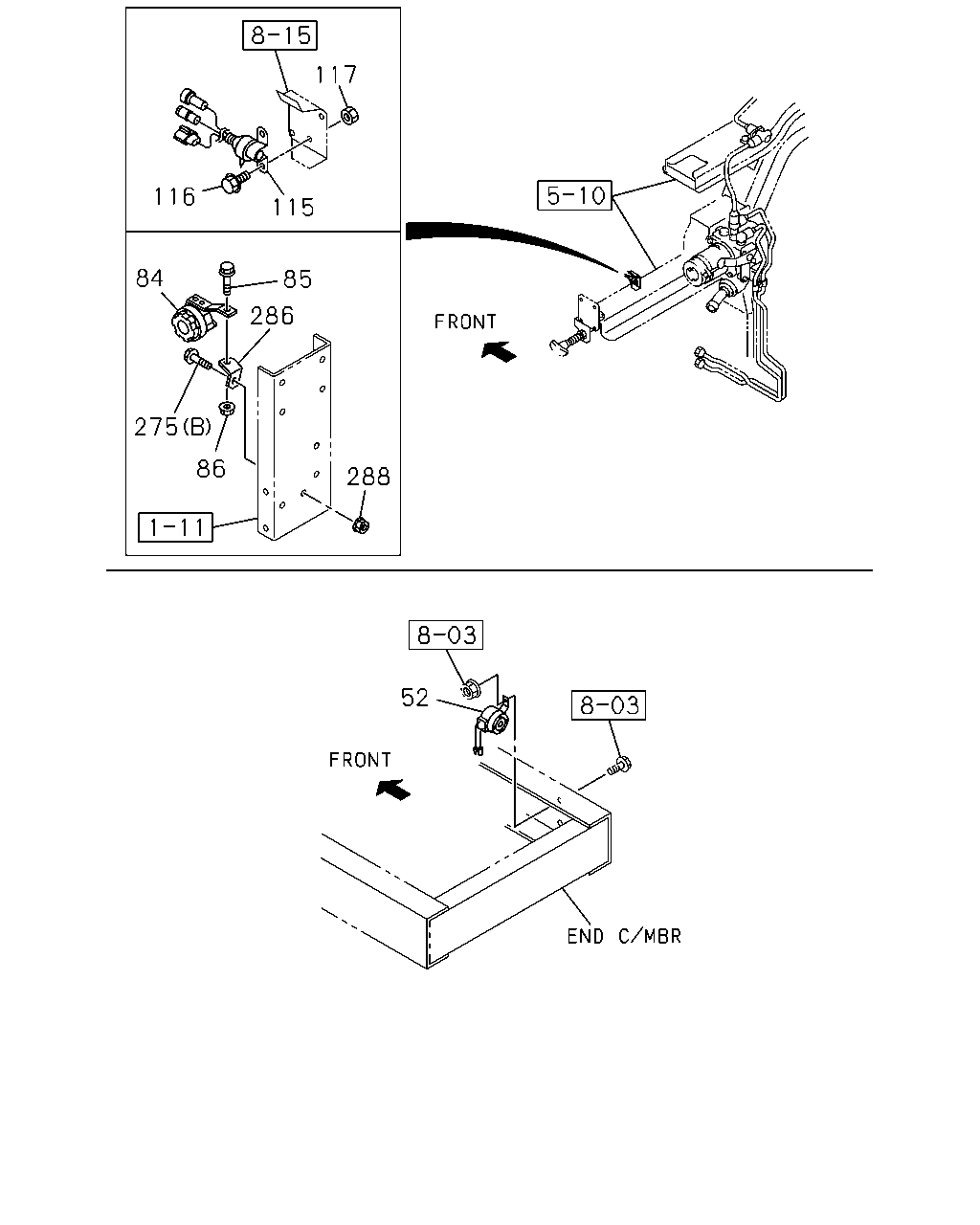

çizim 143671
117 116 115 286 84 275 85 86 288 52
BalonParca AdiParca NoAdetTipApplied Date
52 BUZZER; BACK
METRO DENSO 		8-98069-861-0 01 1 0710-1109
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO DENSO 		8-98069-861-0 01 1 1110-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0710-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0710-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0710-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0710-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0710-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
286 BRACKET 1-82699-199-0 01 1 0710-
288 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0710-

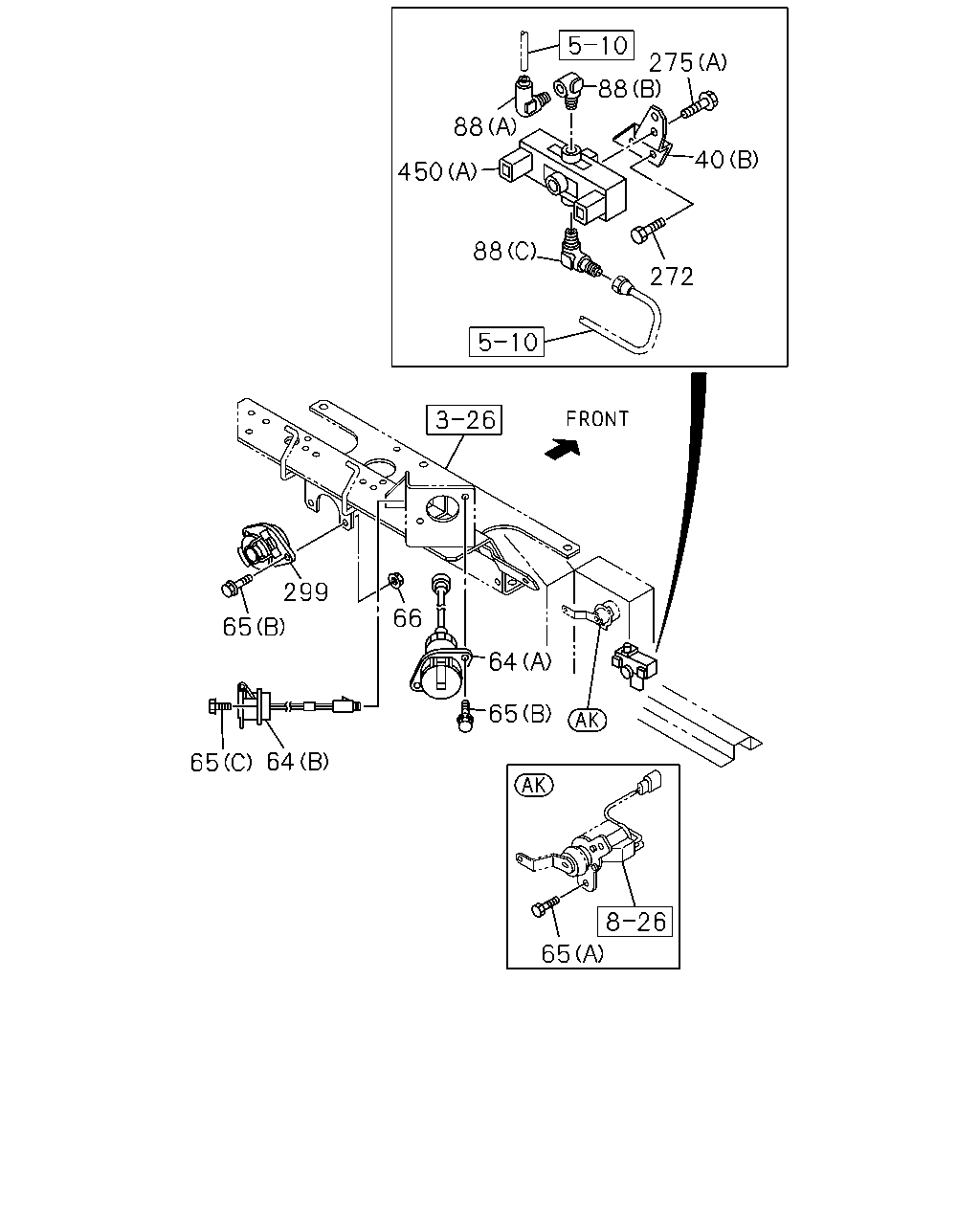

çizim 143749
88 450 88 88 275 40 272 299 65 65 64 66 64 65 65
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0710-
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0710-
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 0710-
64 SOCKET; TRAILER
(A) 		1-82698-364-0 01 1 0710-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0710-
65 BOLT; SOCKET FIX
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
65 BOLT; SOCKET FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0710-
65 BOLT; SOCKET FIX
(B) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0710-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0710-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
272 BOLT; MAG VLV
M10X20 FLANGE 		0-28651-020-0 02 1 0710-1208
272 BOLT; MAG VLV
M10X25 FLANGE 		0-28651-025-0 02 1 1209-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0710-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
299 SOCKET; PARKING 1-82699-396-2 01 1 0710-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0710-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0710-

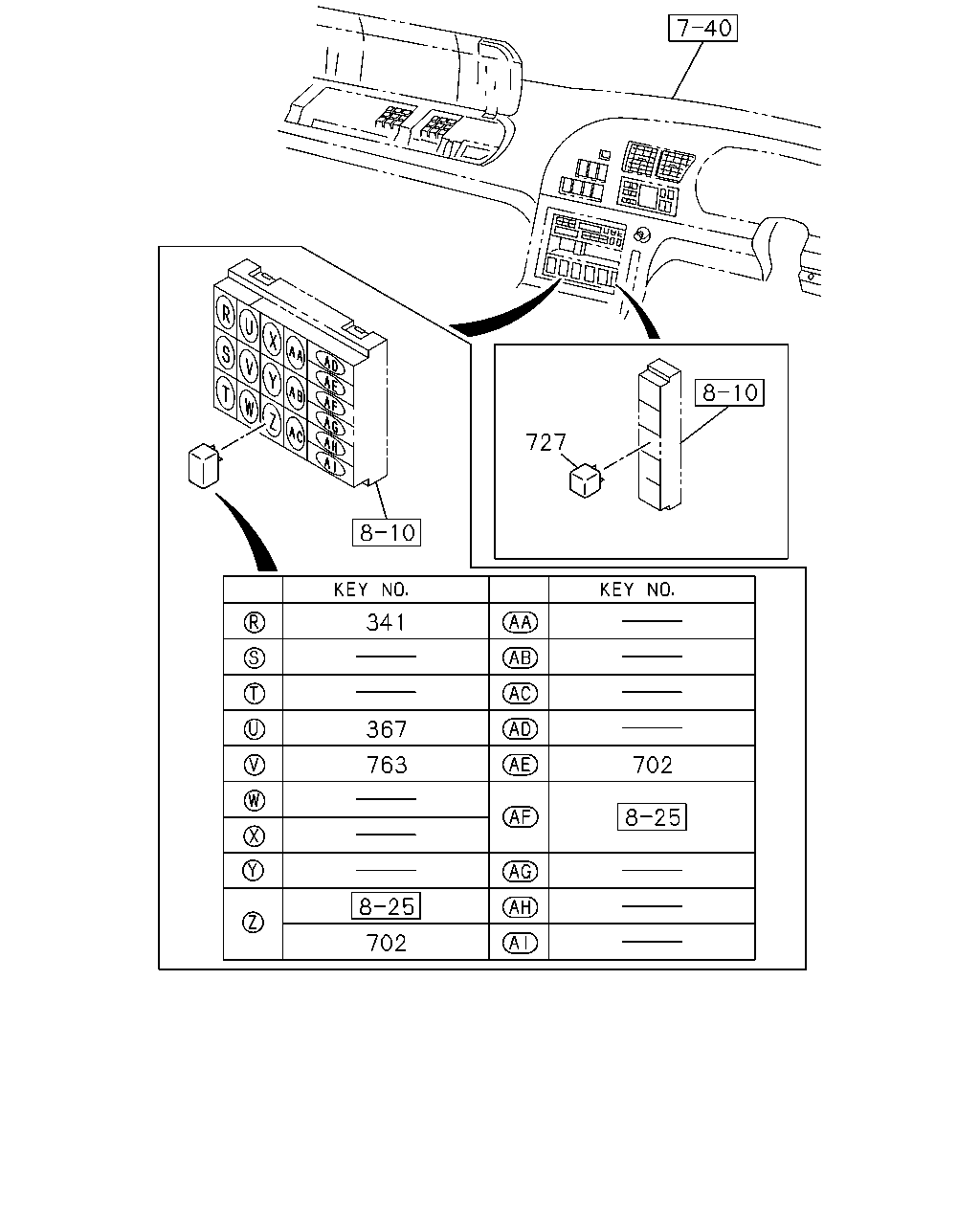

çizim 143768
727 341 367 763 702 702
BalonParca AdiParca NoAdetTipApplied Date
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
702 RELAY; EBS
24V 10A PANASONIC 		8-98167-173-0 01 1 1307-
702 RELAY; EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-1306
702 RELAY; EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-1306
702 RELAY; EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 1307-
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
763 RELAY; EGRTTERY
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
çizim 143933
94 701 22 22
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
22 RELAY; STOP LAMP
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0710-
701 RELAY; BRK,EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-

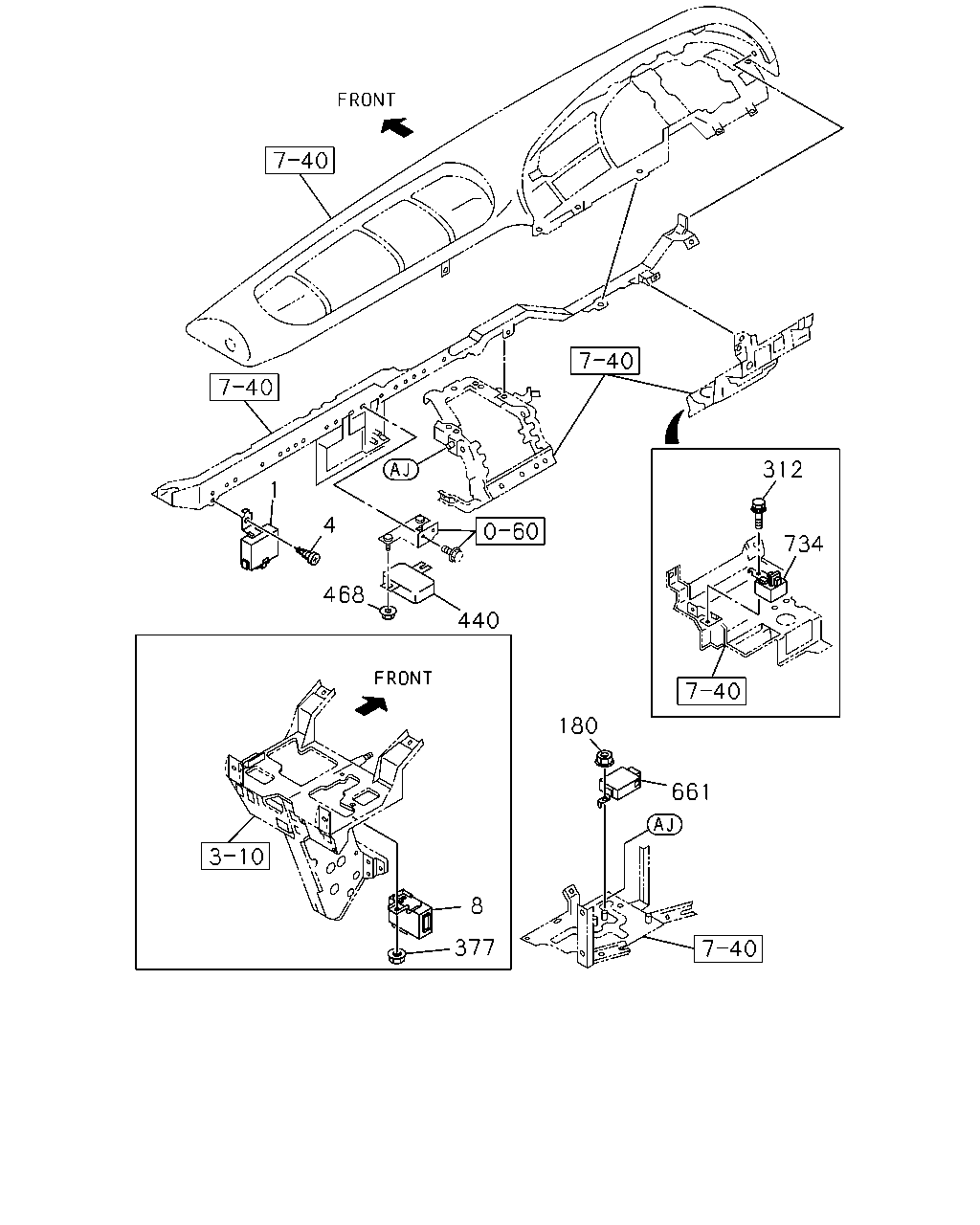

çizim 143975
468 4 1 440 312 734 661 180 8 377
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-062-1 01 1 0710-
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 0710-
8 RELAY; WIPER
AIR BAG(TFQ) 		1-83316-002-4 01 1 0710-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0710-
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-
377 NUT; RELAY
AIR BAG(TFQ) M6 FLANGE 		0-91180-106-0 01 1 0710-
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0710-
468 NUT; MODULE
M6 FLANGE 		0-91180-106-0 02 1 0710-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0710-
734 ALARM; MULTI 1-83460-106-0 01 1 0710-

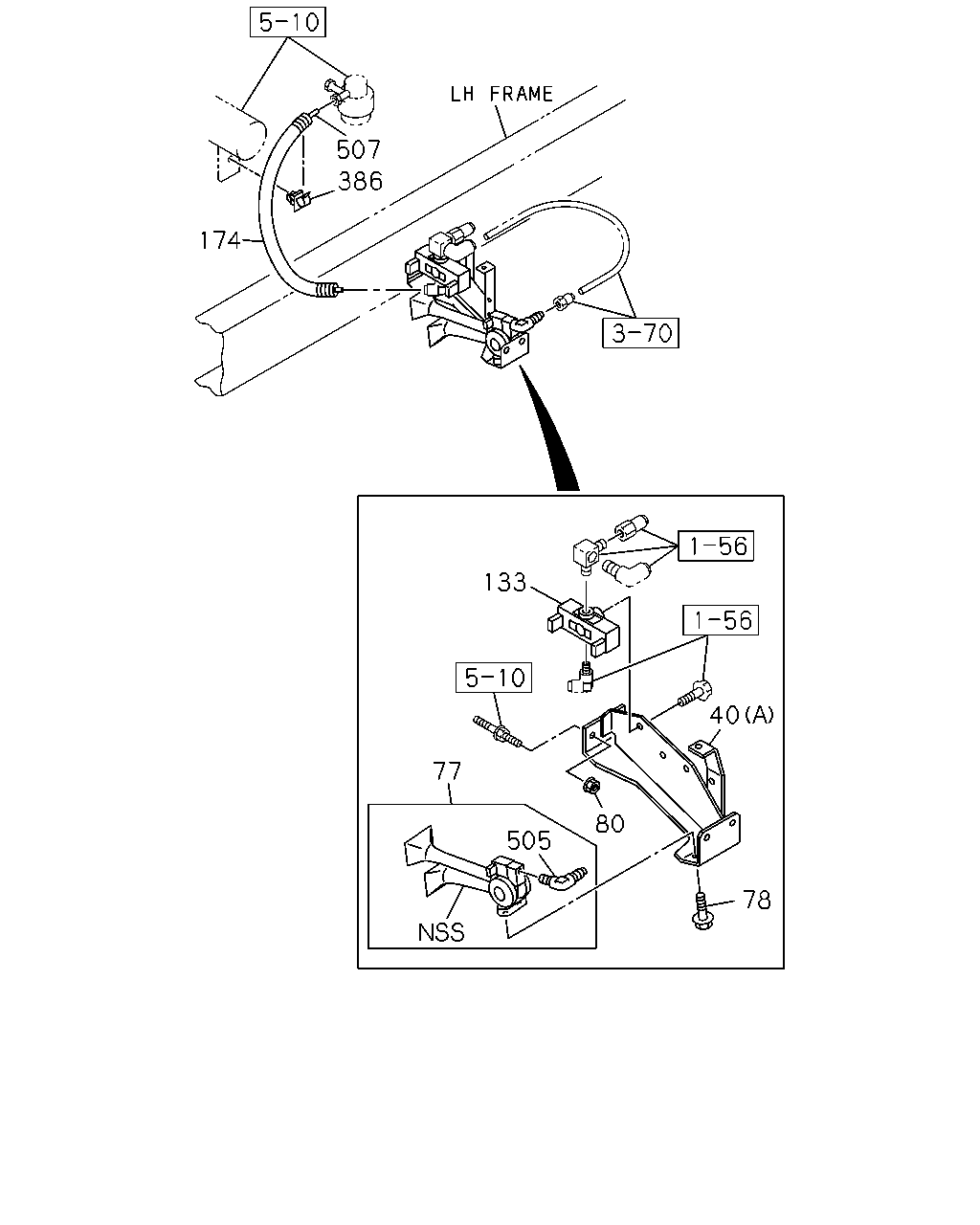

çizim 143980
507 386 174 133 77 505 80 78 40
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0710-
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0710-
77 HORN ASM 1-83430-041-2 01 1 0710-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
80 NUT; MAG VLV
M12 FLANGE 		0-91180-212-0 02 1 0710-
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0710-
174 COVER
L=800 		1-83129-031-1 01 1 0710-
386 CLIP; HARNESS
ID=9.5 		5-09709-020-0 01 1 0710-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0710-
507 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0710-

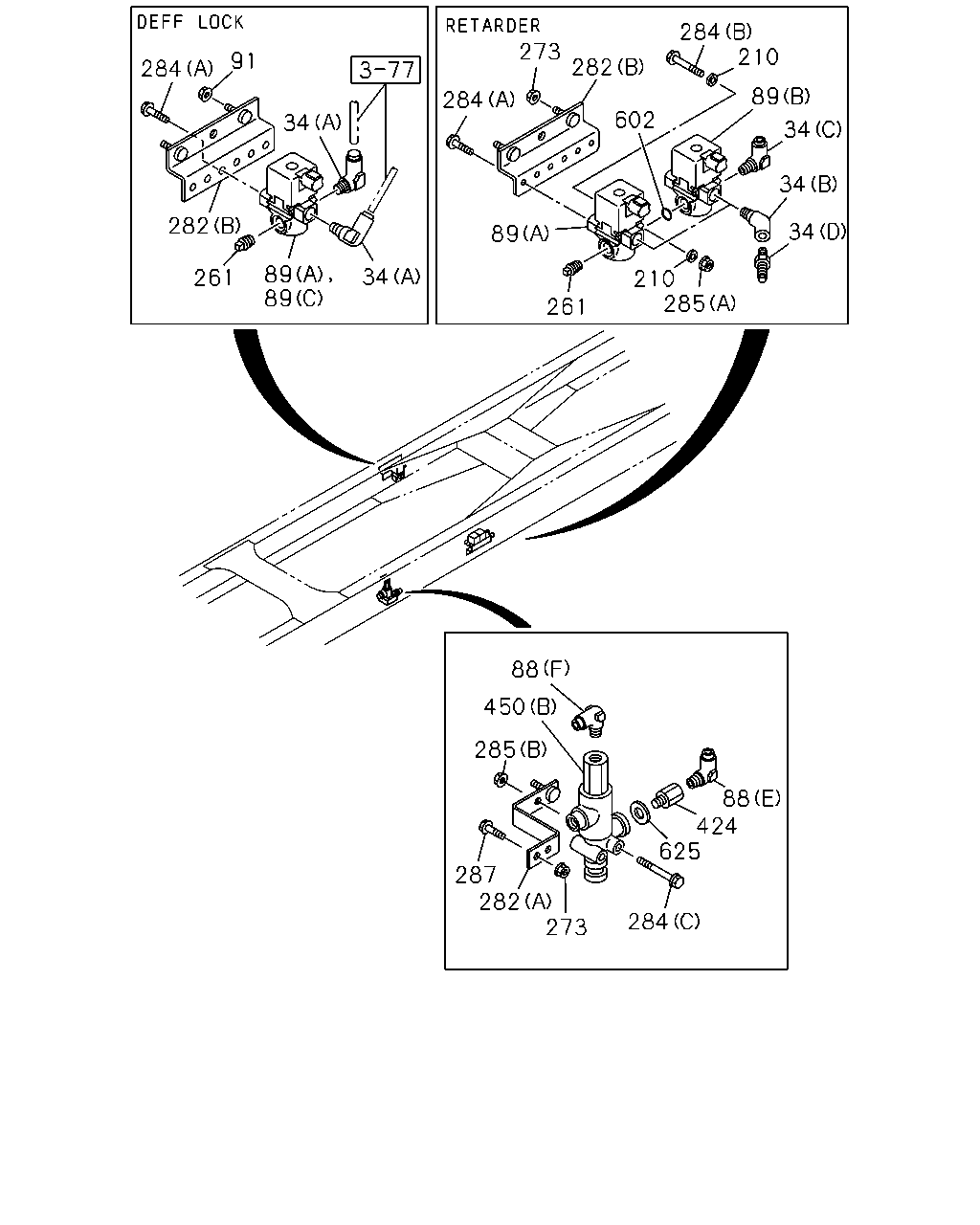

çizim 144036
91 284 34 282 261 89 89 34 273 284 282 284 210 89 602 89 34 34 34 210 261 88 450 285 287 282 273 284 625 424 88 285
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4 		1-09664-211-0 02 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0710-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
89 VALVE; MAG,DIFF LOCK
(C) 		8-97641-594-0 01 1 1206-
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0710-1205
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0710-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 1206-
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82563-872-1 01 1 0710-
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0710-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0710-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0710-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0710-
273 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 02 1 0710-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0710-
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0710-
282 BRACKET; MAG VLV
(D) 		1-82569-298-0 01 1 0710-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0710-
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0710-
284 BOLT; MAG VLV
(C) M8X60 FLANGE 		0-28050-860-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
285 NUT; MAG VLV
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
287 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
424 ADAPTER
M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 0710-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0710-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0710-
625 GASKET; CONNECTOR
ID=16.2 OD=24 		9-09571-416-0 01 1 0710-

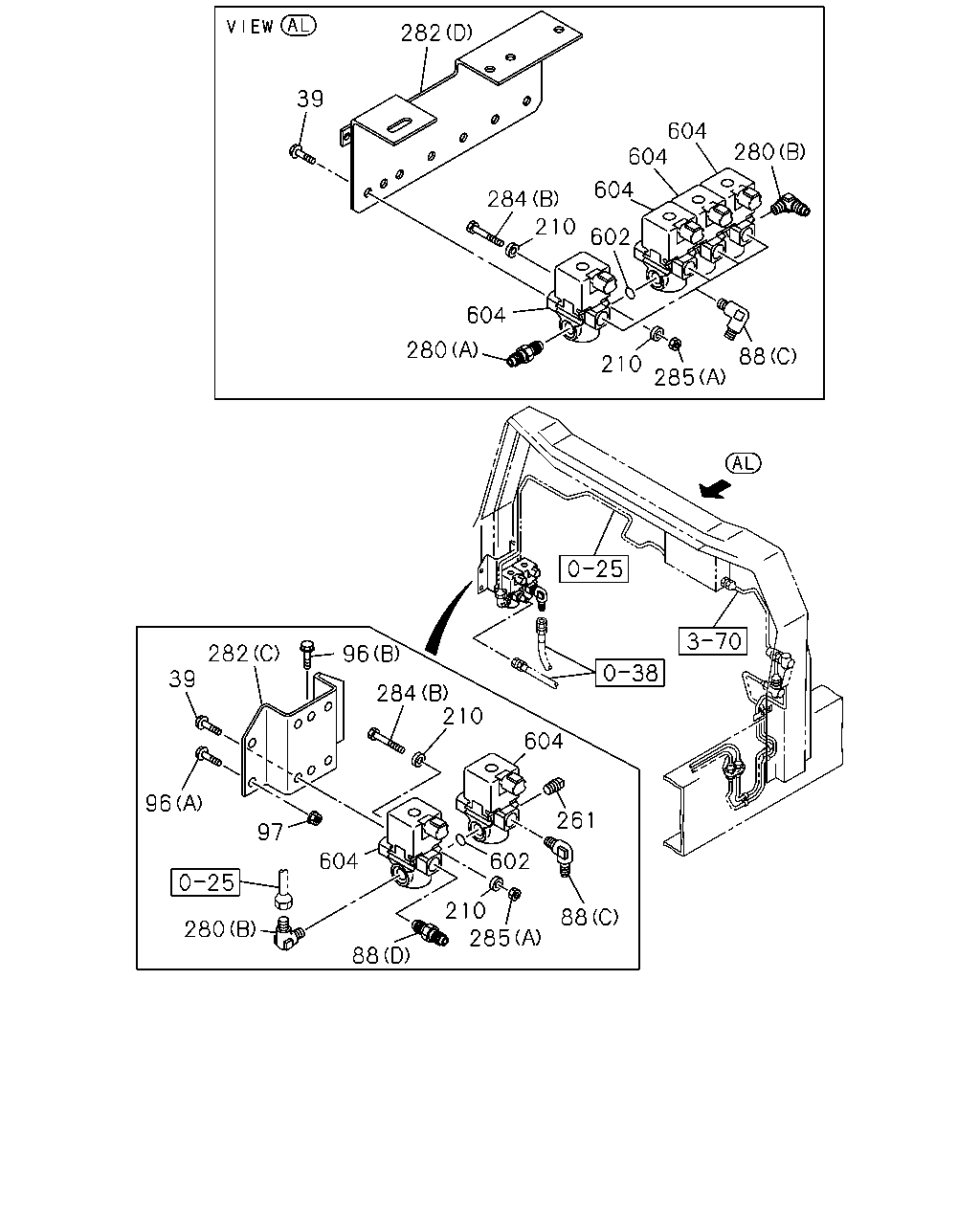

çizim 144043
39 282 604 604 280 602 604 210 284 604 280 210 88 285 96 284 282 39 210 604 261 602 88 210 285 604 97 280 88 96
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0710-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0710-
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0710-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 05 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0710-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0710-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0710-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0710-
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0710-
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0710-
282 BRACKET; MAG VLV
(D) 		1-82569-298-0 01 1 0710-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0710-
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0710-
284 BOLT; MAG VLV
(C) M8X60 FLANGE 		0-28050-860-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
285 NUT; MAG VLV
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0710-
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0710-
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0710-

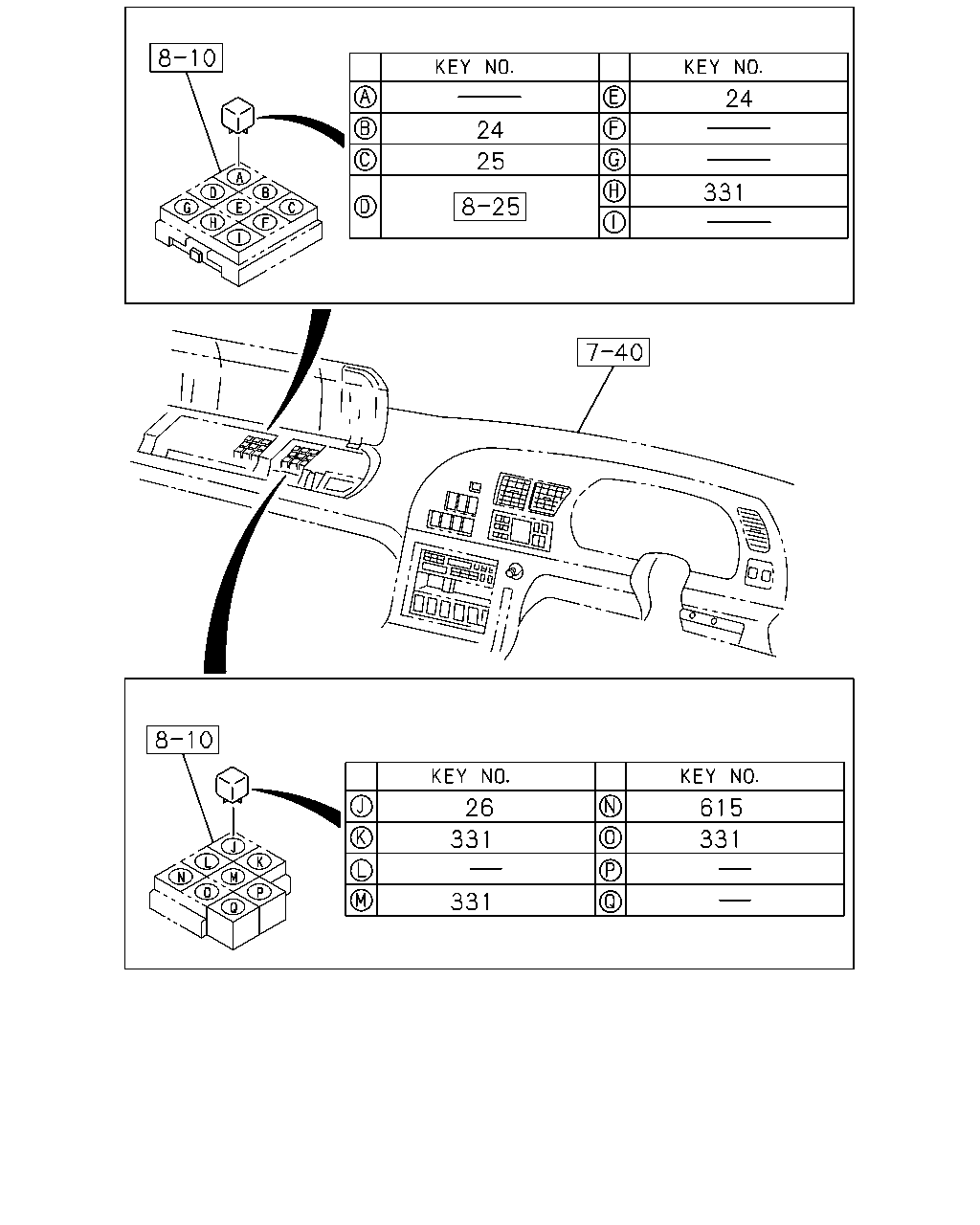

çizim 144093
24 25 24 331 26 331 331 615 331
BalonParca AdiParca NoAdetTipApplied Date
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-1109
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-1109
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1110-
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1110-
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-

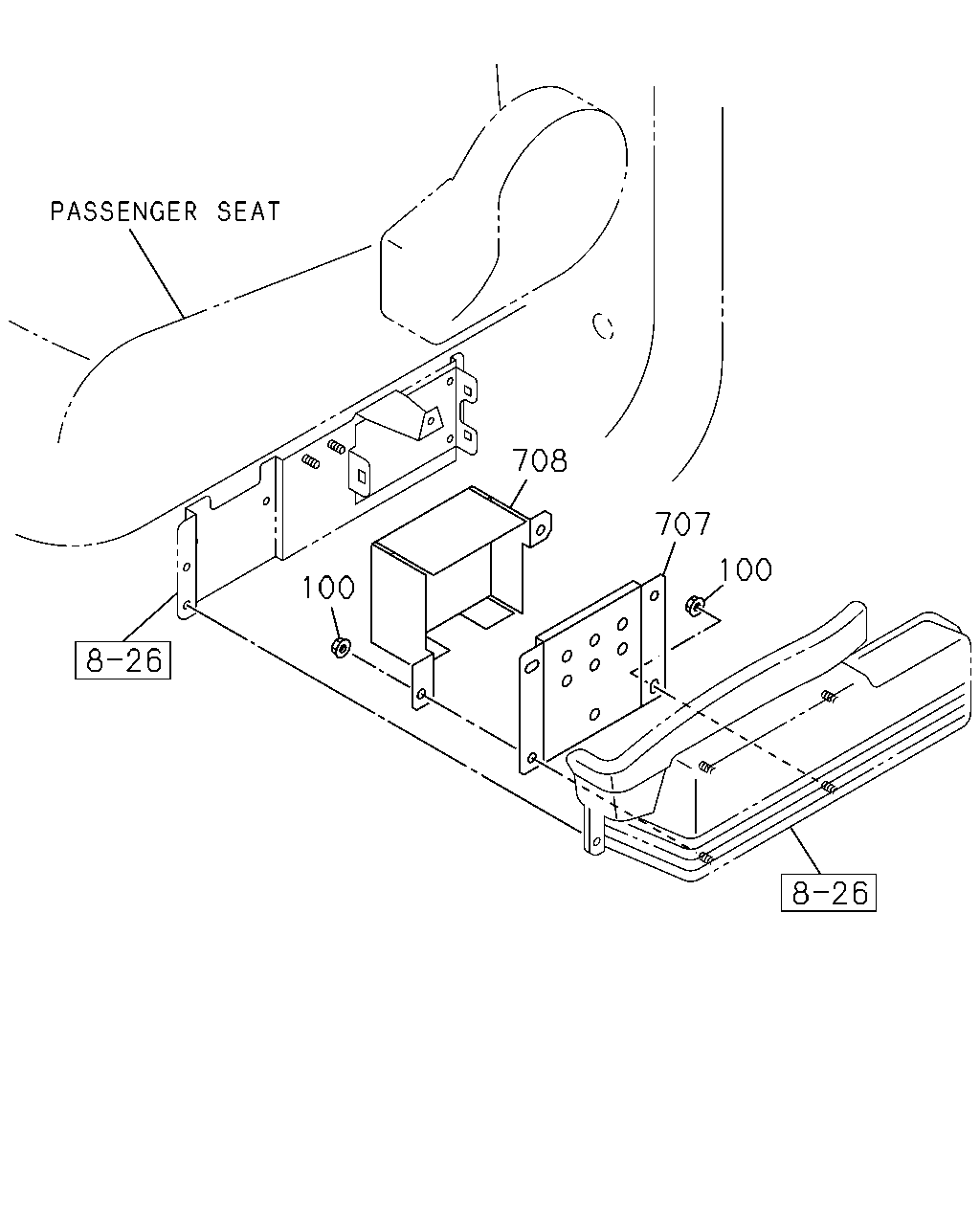

çizim 192941
100 708 707 100
BalonParca AdiParca NoAdetTipApplied Date
100 NUT; RELAY BOX COVER
M6 FLANGE 		0-91180-106-0 04 1 0710-
707 BOX; BASE BRKT 1-82510-603-1 01 1 0710-
708 COVER; BRKT 1-82510-604-1 01 1 0710-0902
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
