◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#67360) — 165 parça

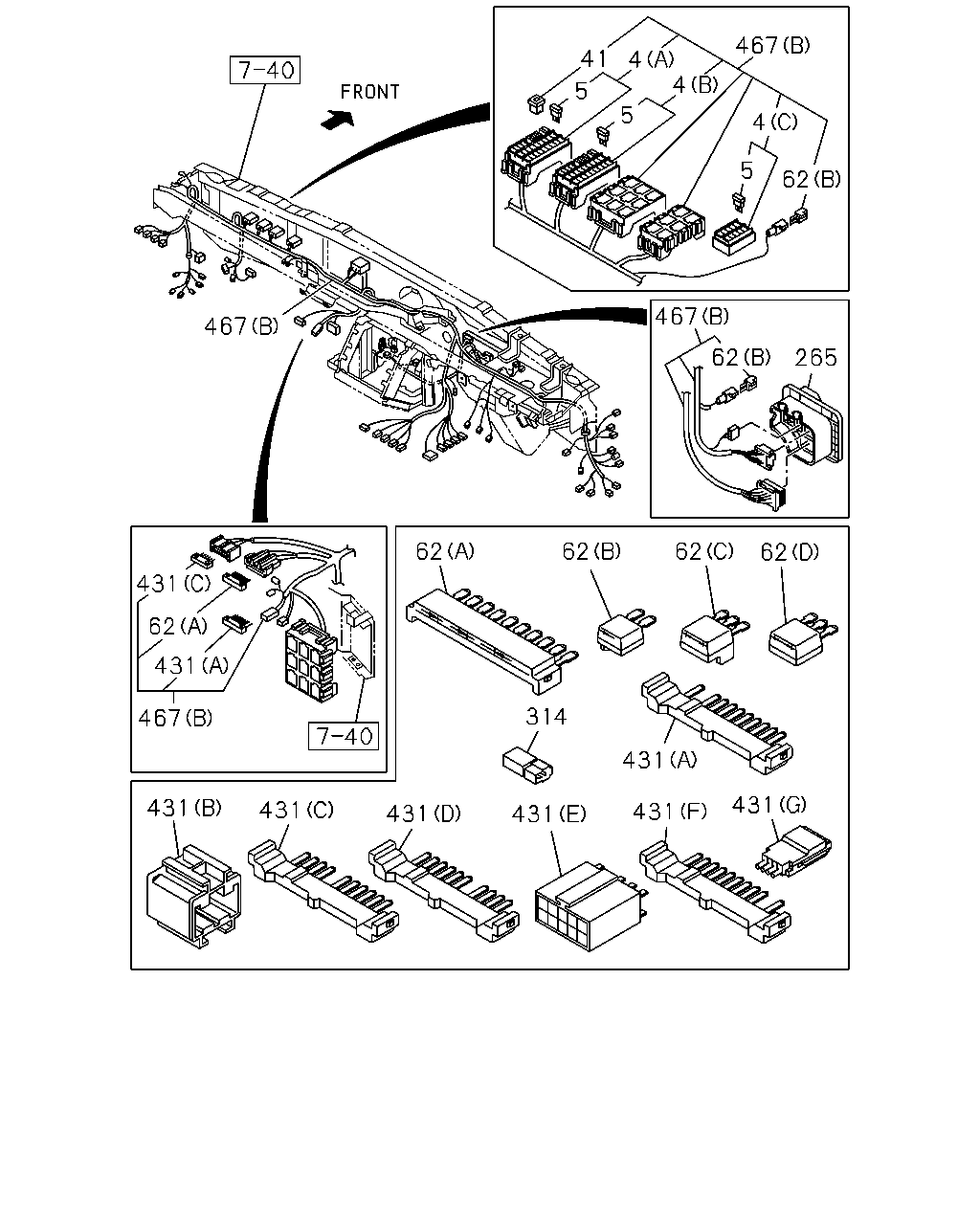

çizim 135970
467 41 4 4 5 5 4 5 62 467 467 62 265 62 62 62 62 431 62 431 314 467 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 0710-1110
4 BOX ASM; FUSE,HARNESS
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (A) 7.5AX22 10AX4 		1-82510-455-0 01 1 1111-
4 BOX ASM; FUSE,HARNESS
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (A) 7.5AX22 10AX4 		1-82510-455-0 01 1 1111-
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 0710-1110
4 BOX ASM; FUSE,HARNESS
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (B) 15AX25 25AX2 		1-82510-602-0 01 1 1111-
4 BOX ASM; FUSE,HARNESS
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (B) 15AX25 25AX2 		1-82510-602-0 01 1 1111-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 0710-1110
4 BOX ASM; FUSE,HARNESS
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (C) 15AX3 		1-82510-638-0 01 1 1111-
4 BOX ASM; FUSE,HARNESS
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (C) 15AX3 		1-82510-638-0 01 1 1111-
5 FUSE; FACIA HARNESS
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) 10A RED 		5-82516-002-0 04 1 1111-
5 FUSE; FACIA HARNESS
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) 10A RED 		5-82516-002-0 04 1 1111-
5 FUSE; FACIA HARNESS
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) 15A BLUE 		5-82516-003-0 28 1 1111-
5 FUSE; FACIA HARNESS
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) 15A BLUE 		5-82516-003-0 28 1 1111-
5 FUSE; FACIA HARNESS
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) 25A CLEAR 		5-82516-005-0 02 1 1111-
5 FUSE; FACIA HARNESS
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) 25A CLEAR 		5-82516-005-0 02 1 1111-
5 FUSE; FACIA HARNESS
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) 7.5A BROWN 		8-94159-007-0 22 1 1111-
5 FUSE; FACIA HARNESS
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) 7.5A BROWN 		8-94159-007-0 22 1 1111-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 AR 1 0710-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0710-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 0710-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 0710-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0710-1110
41 PULLER; FUSE
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) L=25.3 B=11.5 		8-94121-482-0 01 1 1111-
41 PULLER; FUSE
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) L=25.3 B=11.5 		8-94121-482-0 01 1 1111-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 0710-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0710-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0710-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0710-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0710-
314 RESISTOR; HARNESS
RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0710-1110
314 RESISTOR; HARNESS
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 1111-
314 RESISTOR; HARNESS
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 1111-
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 0710-1110
431 CONNECTOR; JOINT
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (B) 6P 		1-82691-206-0 01 1 1111-
431 CONNECTOR; JOINT
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (B) 6P 		1-82691-206-0 01 1 1111-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 0710-1110
431 CONNECTOR; JOINT
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (F) 10P GREEN 		1-82698-579-0 03 1 1111-
431 CONNECTOR; JOINT
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (F) 10P GREEN 		1-82698-579-0 03 1 1111-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 0710-1110
431 CONNECTOR; JOINT
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (C) 10P BLUE 		1-82699-598-0 13 1 1111-
431 CONNECTOR; JOINT
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (C) 10P BLUE 		1-82699-598-0 13 1 1111-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 0710-1110
431 CONNECTOR; JOINT
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (D) 10P GREEN 		1-82699-599-0 03 1 1111-
431 CONNECTOR; JOINT
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (D) 10P GREEN 		1-82699-599-0 03 1 1111-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 08 1 0710-1110
431 CONNECTOR; JOINT
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (A) 10P BROWN 		1-82699-601-0 08 1 1111-
431 CONNECTOR; JOINT
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (A) 10P BROWN 		1-82699-601-0 08 1 1111-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 0710-1110
431 CONNECTOR; JOINT
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (E) 10P 		8-97077-943-0 01 1 1111-
431 CONNECTOR; JOINT
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (E) 10P 		8-97077-943-0 01 1 1111-
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 13 1 0710-1110
431 CONNECTOR; JOINT
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (G) 4P 		8-97376-776-0 13 1 1111-
431 CONNECTOR; JOINT
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (G) 4P 		8-97376-776-0 13 1 1111-
467 HARNESS; FACIA
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (B) 		8-97642-245-0 01 1 1111-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0710-
467 HARNESS; FACIA
(B) 		8-97622-969-3 01 1 0710-0907
467 HARNESS; FACIA
(B) 		8-97634-133-0 01 1 0908-1110
467 HARNESS; FACIA
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (B) 		8-97634-133-0 01 1 1111-

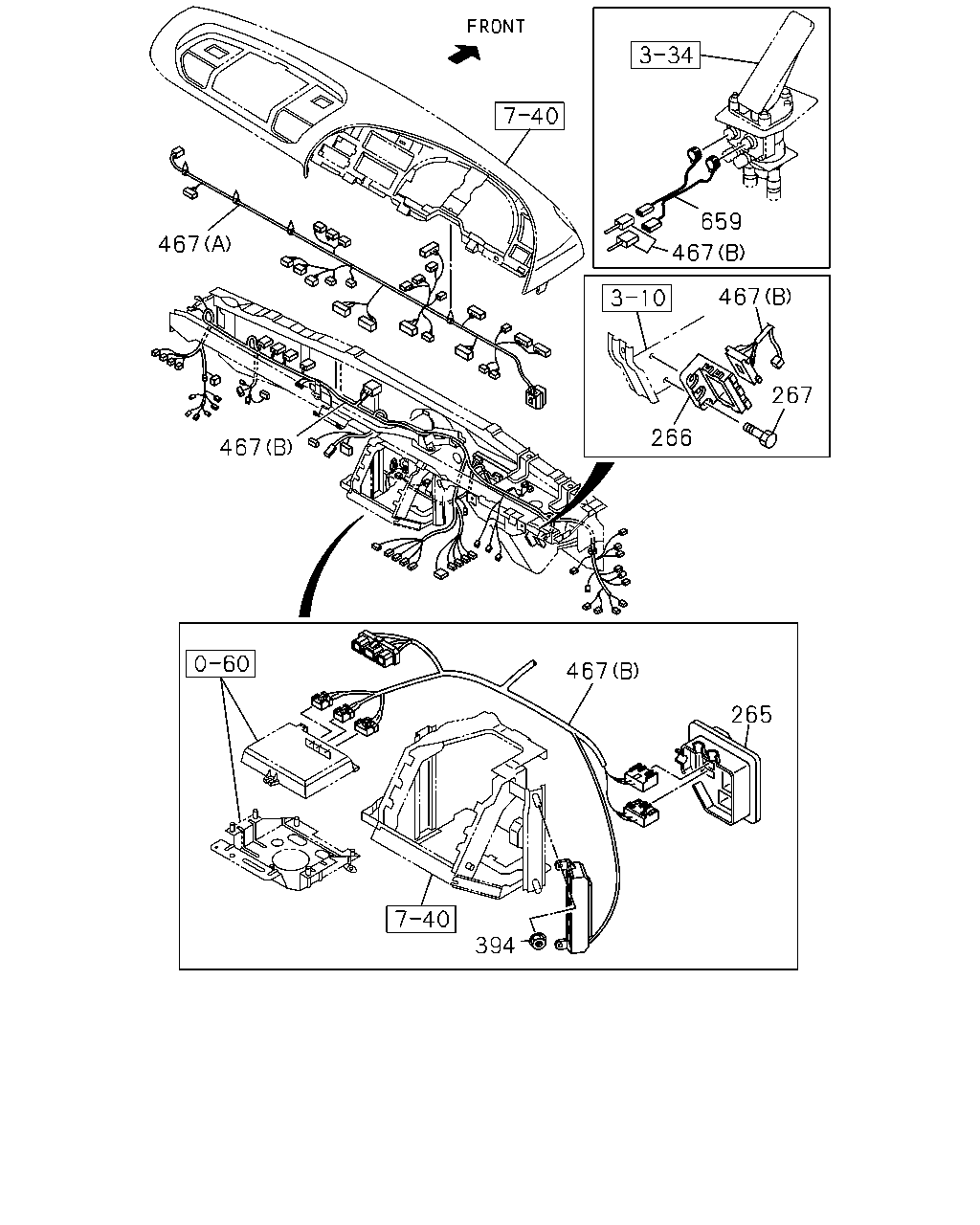

çizim 136165
659 467 267 266 467 467 467 467 265 394
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0710-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0710-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0710-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0710-
467 HARNESS; FACIA
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (B) 		8-97642-245-0 01 1 1111-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0710-
467 HARNESS; FACIA
(B) 		8-97622-969-3 01 1 0710-0907
467 HARNESS; FACIA
(B) 		8-97634-133-0 01 1 0908-1110
467 HARNESS; FACIA
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (B) 		8-97634-133-0 01 1 1111-
659 HARNESS; EXT,BRAKE VALVE 1-82660-995-0 01 1 0710-

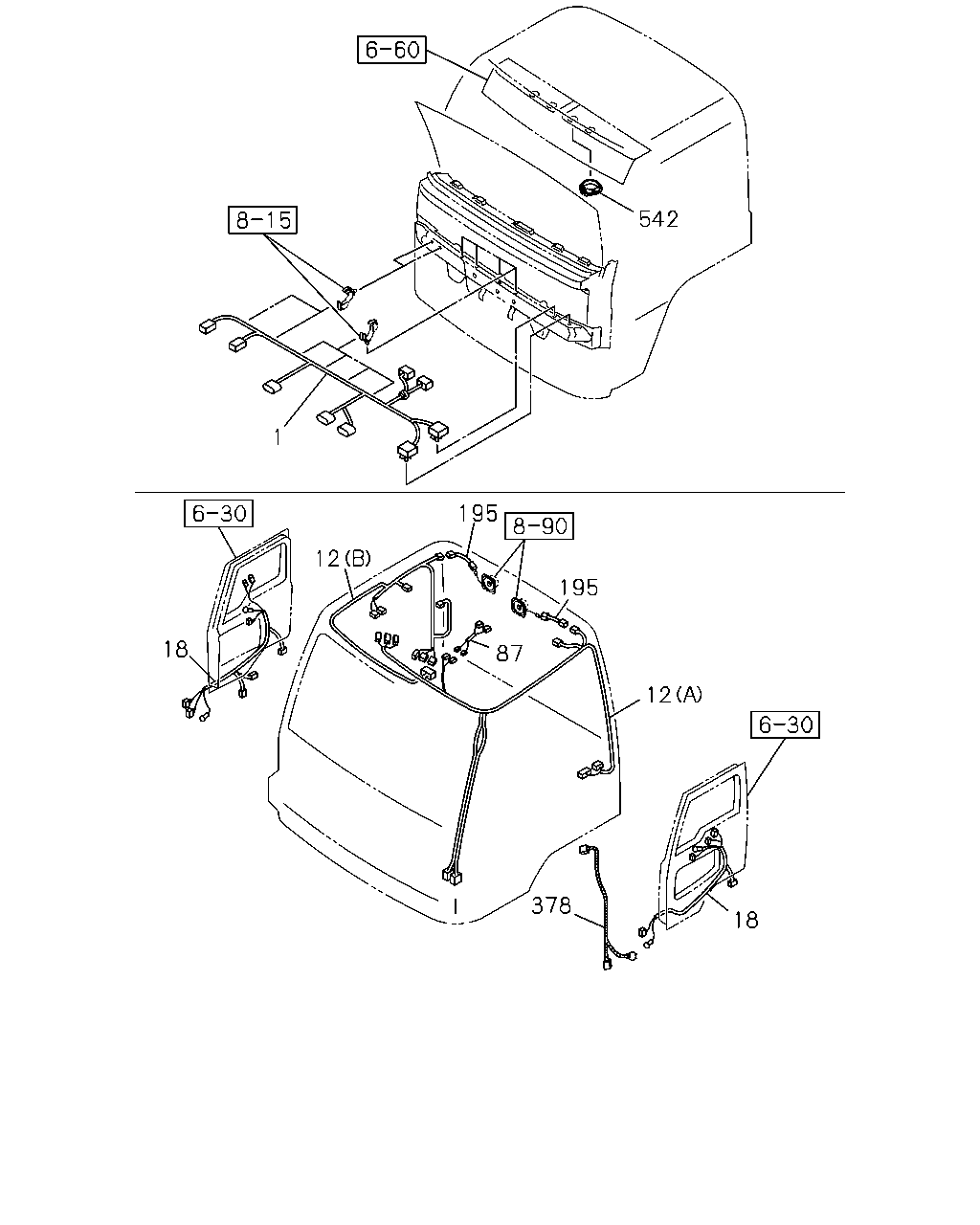

çizim 136804
542 195 195 12 18 87 18 378 12 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 1-82629-234-1 01 1 0710-
12 HARNESS; ROOF
(B) 		8-97611-862-0 01 1 0710-
12 HARNESS; ROOF
HIGH ROOF<S2F> (A) 		8-97622-963-1 01 1 0710-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F> (A) 		8-97611-861-1 01 1 0710-0802
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F> (A) 		8-97625-970-0 01 1 0803-
18 HARNESS; DOOR
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97625-320-0 01 1 1110-1110
18 HARNESS; DOOR
EXC. REMOTE CONT DOOR LOCK<SLG>,CHEAPER CAB(WY1) 		8-97625-320-0 01 1 1111-
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG> CHEAPER CAB(WY1) 		8-97618-826-1 01 1 1111-
18 HARNESS; DOOR
CHEAPER CAB(WY1) 		1-82628-582-0 01 1 1111-
18 HARNESS; DOOR 8-97618-824-1 01 1 0710-1110
18 HARNESS; DOOR
EXC. CHEAPER CAB(WY1) 		8-97618-824-1 01 1 1111-
18 HARNESS; DOOR 8-97618-825-1 01 1 0710-1109
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG> 		8-97618-825-1 01 1 1110-1110
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG> EXC. CHEAPER CAB(WY1) 		8-97618-825-1 01 1 1111-
87 HARNESS; EXT,ROOM LAMP
HIGH ROOF<S2F> 		1-82661-333-0 01 1 0710-
195 HARNESS; EXT
HIGH ROOF<S2F> 		1-82625-300-1 02 1 0710-
378 HARNESS; EXT,MIRROR 8-97621-787-0 02 1 0710-1110
378 HARNESS; EXT,MIRROR
EXC. CHEAPER CAB(WY1) 		8-97621-787-0 02 1 1111-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 01 1 0710-0712
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0801-

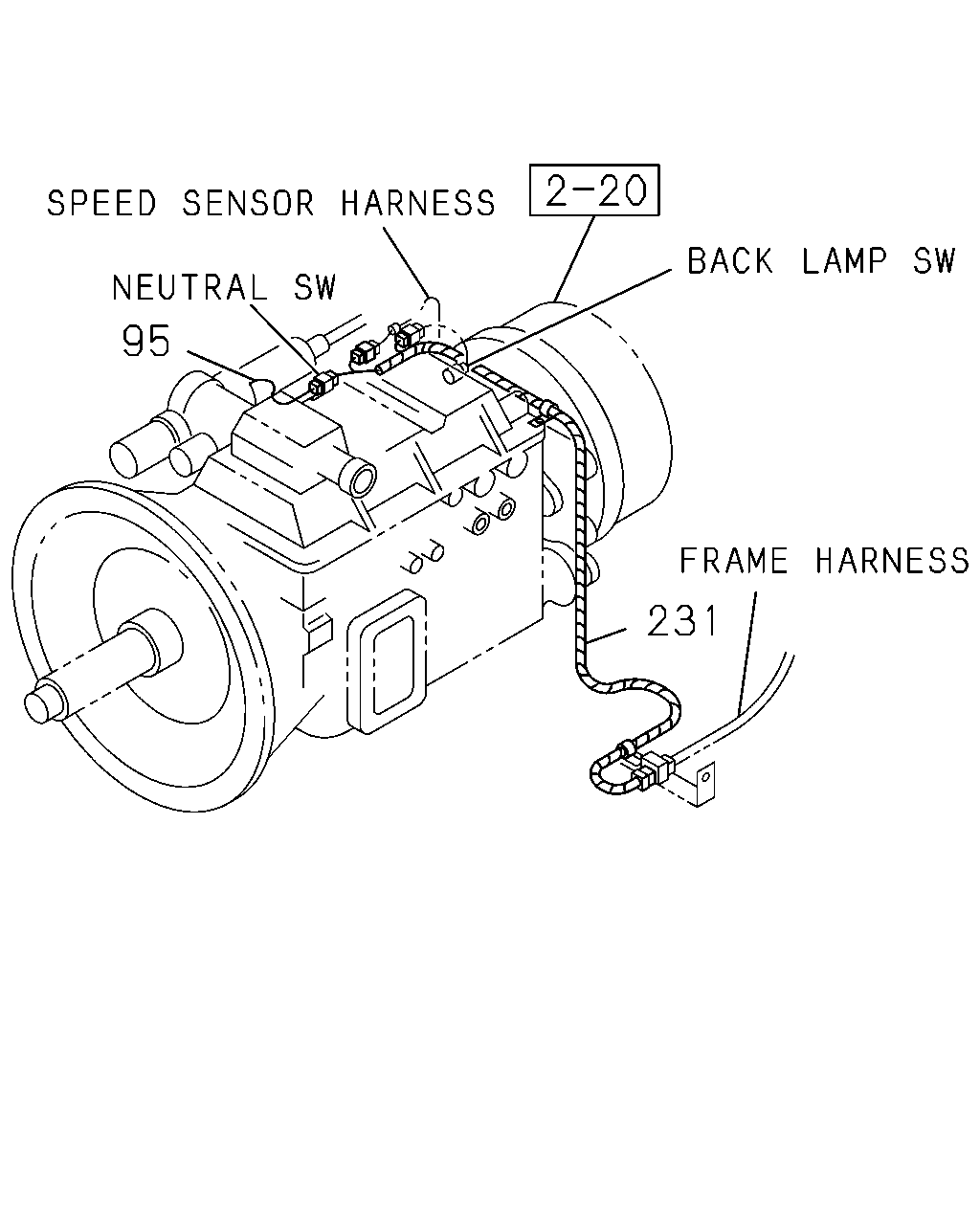

çizim 137002
95 231
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW 1-82639-626-0 01 1 0710-
231 HARNESS; TRANS 8-97620-988-0 01 1 0710-
çizim 137031
467 467 14
BalonParca AdiParca NoAdetTipApplied Date
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-82678-323-0 02 1 1110-
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 0710-1109
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-82677-628-3 02 1 1110-
467 HARNESS; FACIA
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (B) 		8-97642-245-0 01 1 1111-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0710-
467 HARNESS; FACIA
(B) 		8-97622-969-3 01 1 0710-0907
467 HARNESS; FACIA
(B) 		8-97634-133-0 01 1 0908-1110
467 HARNESS; FACIA
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (B) 		8-97634-133-0 01 1 1111-

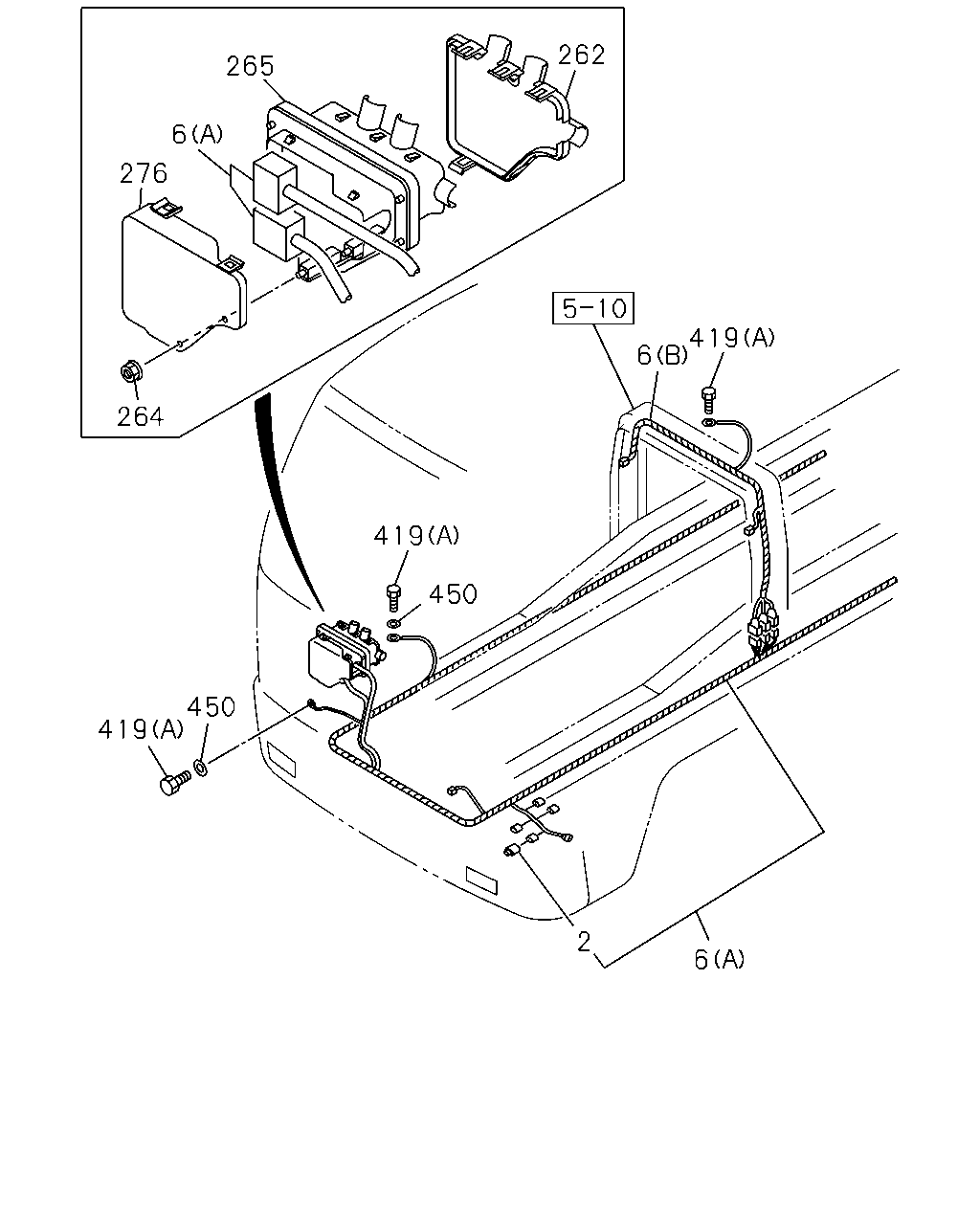

çizim 137085
262 265 6 276 419 6 264 419 450 450 419 2 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 AR 1 0710-
6 HARNESS; FRAME
(A) 		8-97623-702-2 01 1 0710-
6 HARNESS; FRAME
(B) 		8-97607-309-1 01 1 0710-0806
6 HARNESS; FRAME
(B) 		8-98122-929-0 01 1 0807-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0710-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0710-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 0710-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0710-

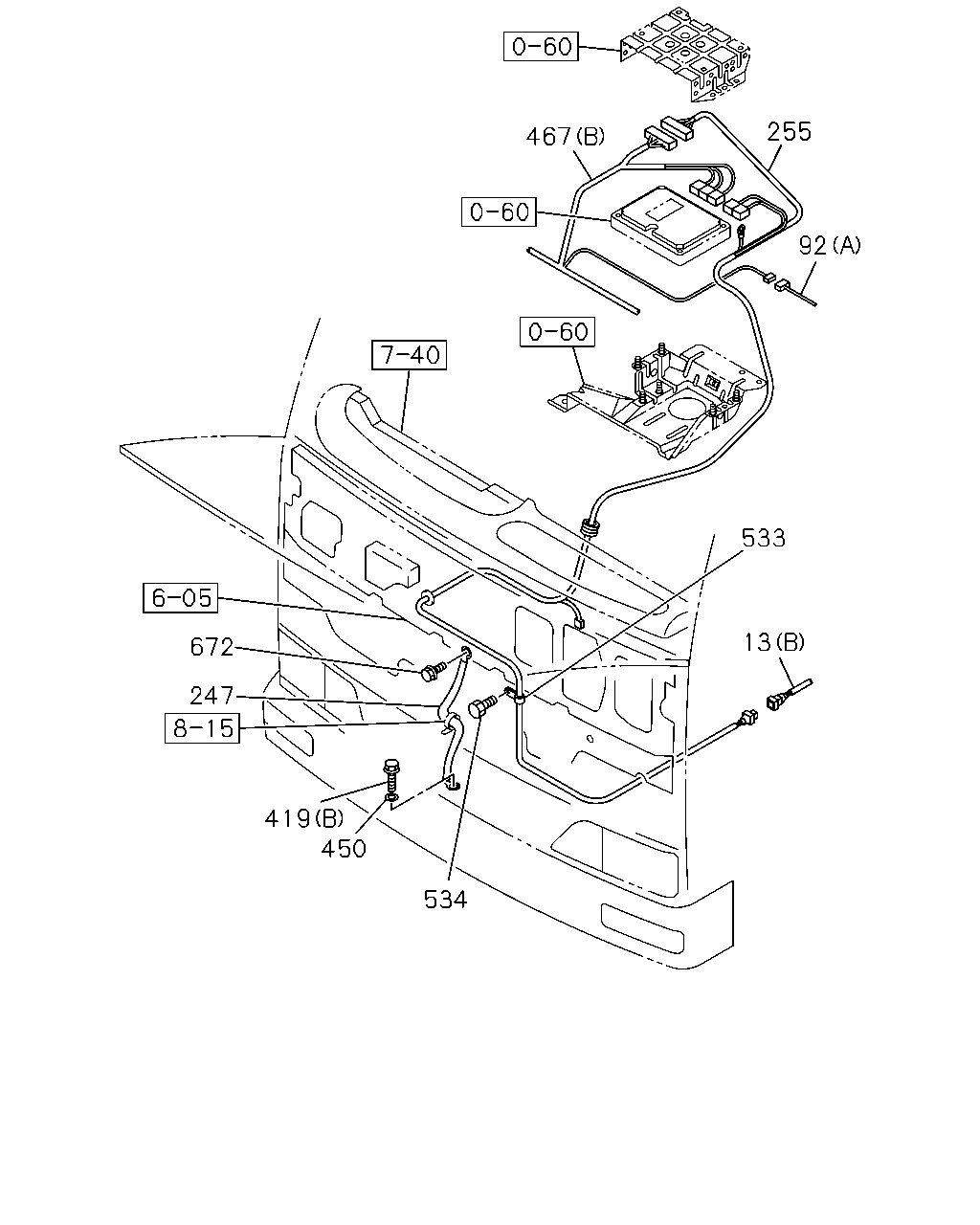

çizim 137125
467 255 92 533 13 534 450 419 247 672
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97617-391-0 01 1 0710-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0710-
92 HARNESS; FLOOR
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),AIR BAG(TFQ) (B) 		8-97642-247-0 01 1 1111-
92 HARNESS; FLOOR
(B) 		8-97622-971-1 01 1 0710-1109
92 HARNESS; FLOOR
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		8-97622-971-1 01 1 1110-1110
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		8-97622-971-1 01 1 1111-
92 HARNESS; FLOOR
(A) 		8-97622-975-0 01 1 0710-
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0710-
255 HARNESS; ELEC GOV 1-82662-307-3 01 1 0710-1210
255 HARNESS; ELEC GOV 8-98229-084-0 01 1 1211-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0710-
467 HARNESS; FACIA
CHEAPER CAB(WY1) EXC. AIR BAG(TFQ) (B) 		8-97642-245-0 01 1 1111-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0710-
467 HARNESS; FACIA
(B) 		8-97622-969-3 01 1 0710-0907
467 HARNESS; FACIA
(B) 		8-97634-133-0 01 1 0908-1110
467 HARNESS; FACIA
AIR BAG(TFQ) EXC. CHEAPER CAB(WY1) (B) 		8-97634-133-0 01 1 1111-
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 0710-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1309
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310-

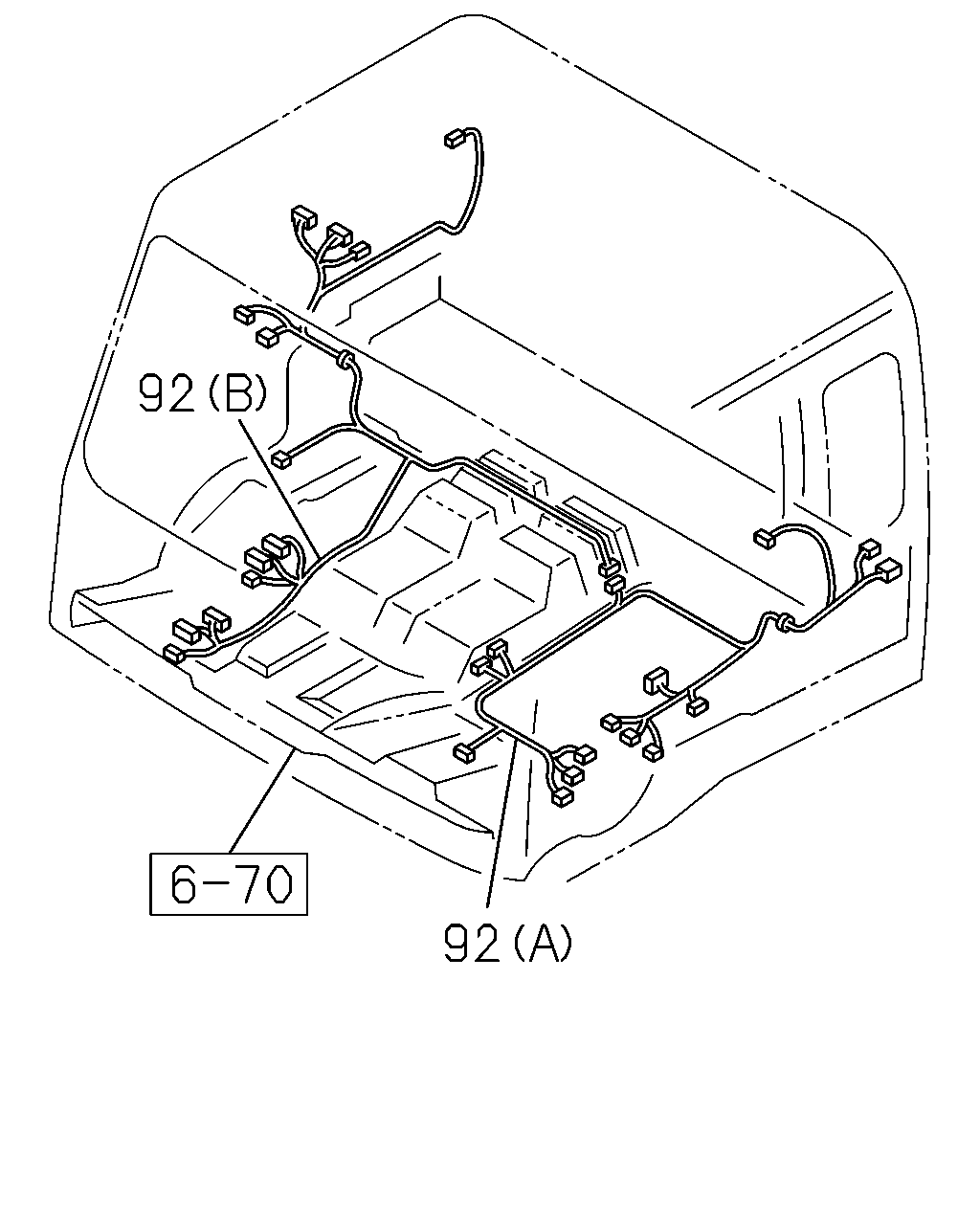

çizim 192929
92 92
BalonParca AdiParca NoAdetTipApplied Date
92 HARNESS; FLOOR
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),AIR BAG(TFQ) (B) 		8-97642-247-0 01 1 1111-
92 HARNESS; FLOOR
(B) 		8-97622-971-1 01 1 0710-1109
92 HARNESS; FLOOR
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		8-97622-971-1 01 1 1110-1110
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		8-97622-971-1 01 1 1111-
92 HARNESS; FLOOR
(A) 		8-97622-975-0 01 1 0710-

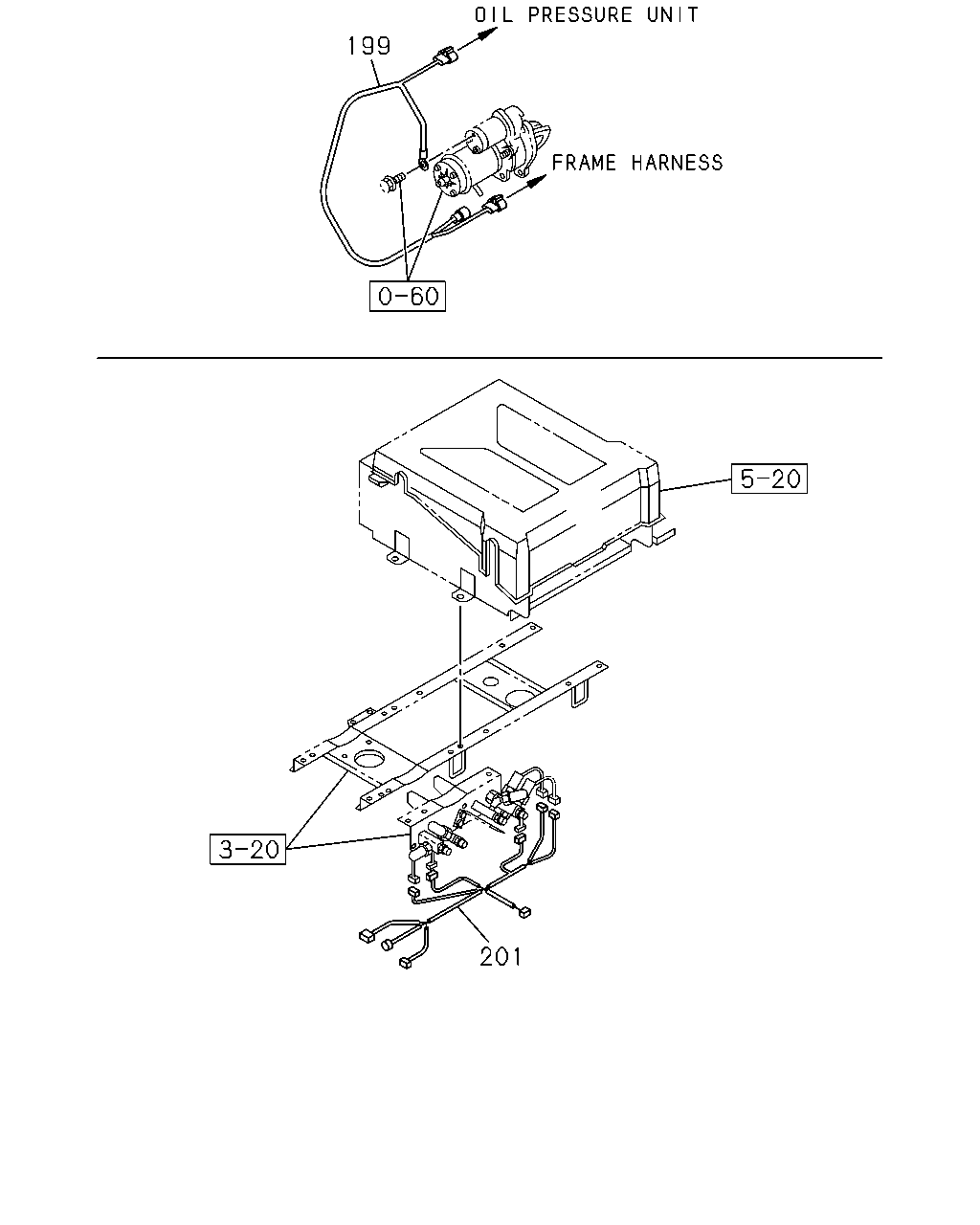

çizim 192931
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 1-82641-368-2 01 1 0710-
201 HARNESS; AIR TANK 1-82678-176-1 01 1 0710-1112
201 HARNESS; AIR TANK 8-98191-795-0 01 1 1201-

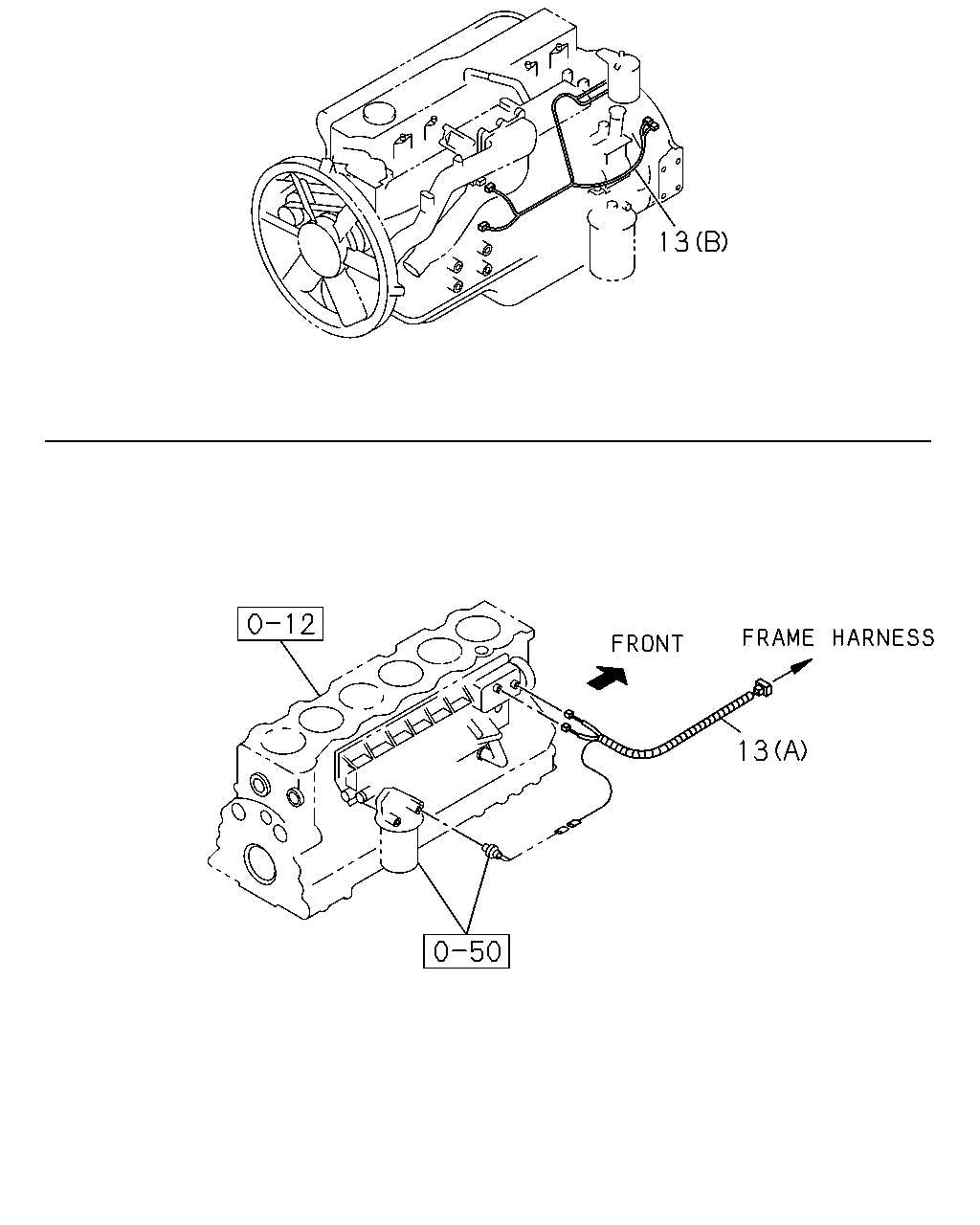

çizim 192933
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97617-391-0 01 1 0710-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0710-

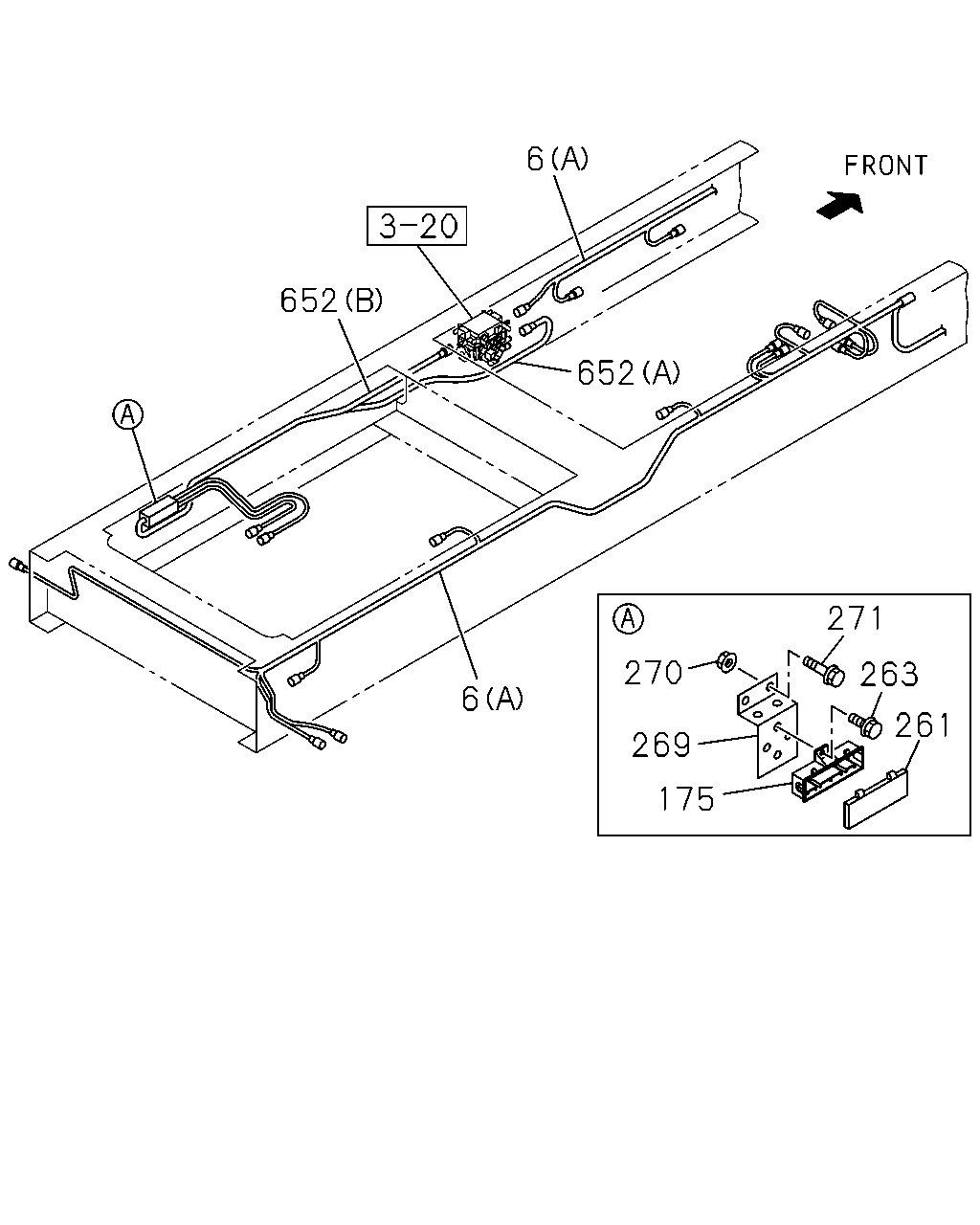

çizim 192936
6 652 652 271 270 263 6 261 269 175
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(A) 		8-97623-702-2 01 1 0710-
6 HARNESS; FRAME
(B) 		8-97607-309-1 01 1 0710-0806
6 HARNESS; FRAME
(B) 		8-98122-929-0 01 1 0807-
175 BOX; CONNECTOR 1-82699-467-0 01 1 0710-0711
261 COVER; CONNECTOR BOX 1-82699-320-0 01 1 0710-0711
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0710-0711
269 BRACKET; CONNECTOR BOX 1-82698-424-0 01 1 0710-0711
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 02 1 0710-0711
271 BOLT; BRKT CONNECTOR BOX
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711
652 HARNESS; EBS
(A) 		1-82678-137-0 01 1 0710-
652 HARNESS; EBS
(B) 		1-82678-138-0 01 1 0710-

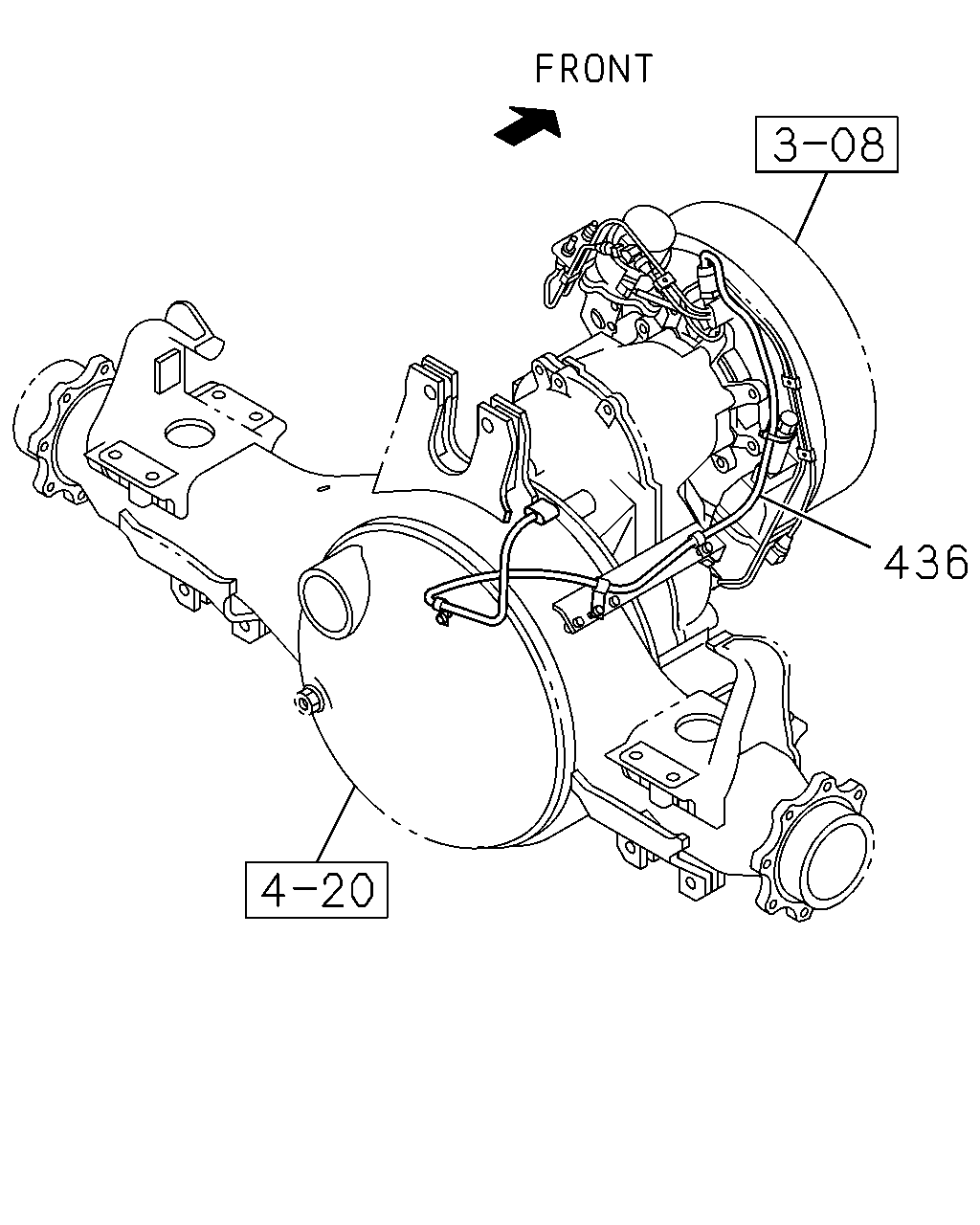

çizim 192958
436
BalonParca AdiParca NoAdetTipApplied Date
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-629-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
