Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11115 - EXZ NZ JAPAN NEW SHORT TERM 2004
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶
8-03 — LAMP; REAR AND REAR SIDE
(#67358) — 36 parça
◀

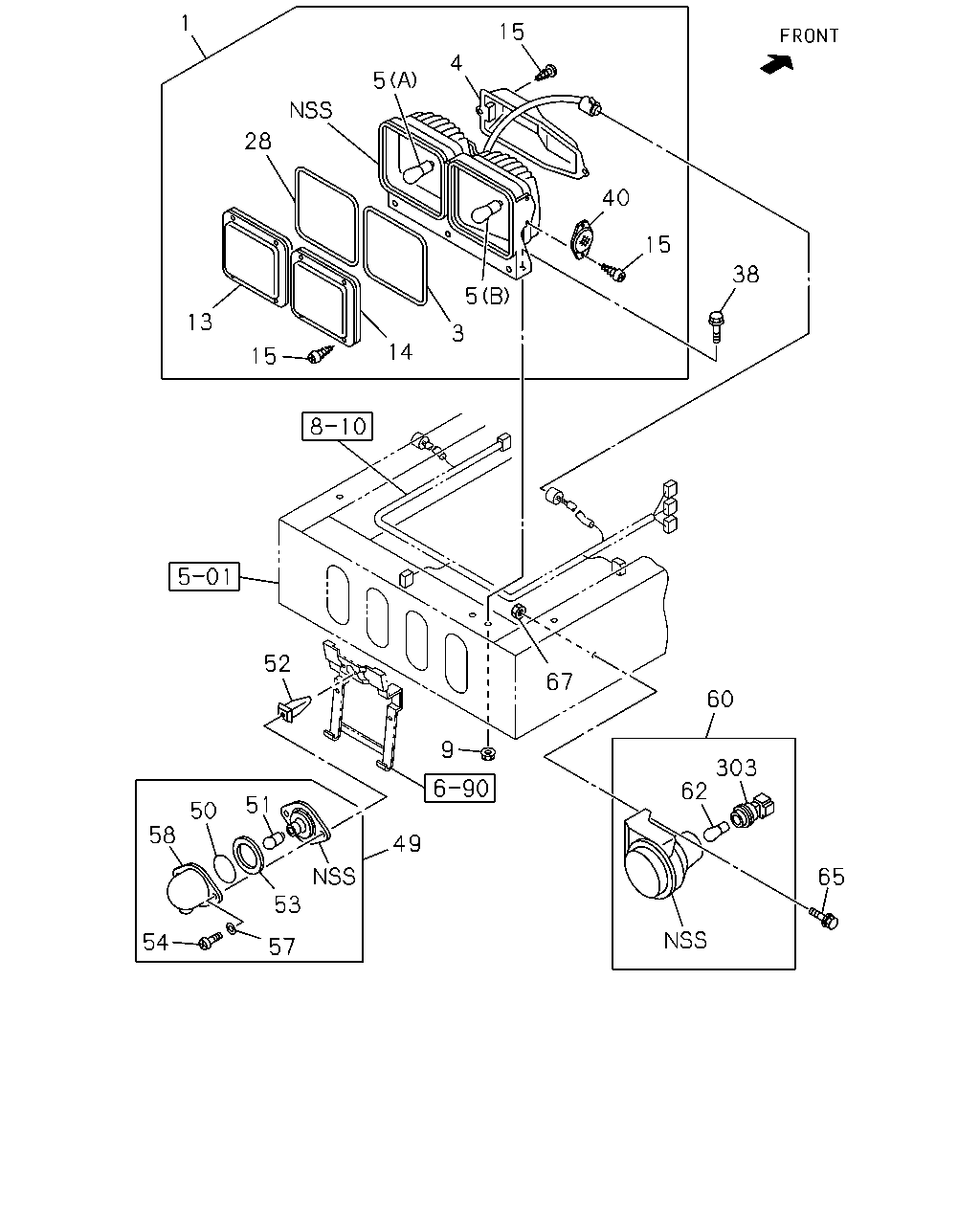

[803A] RR COMB,LICENSE AND BACKUP LAMP (26 parça)

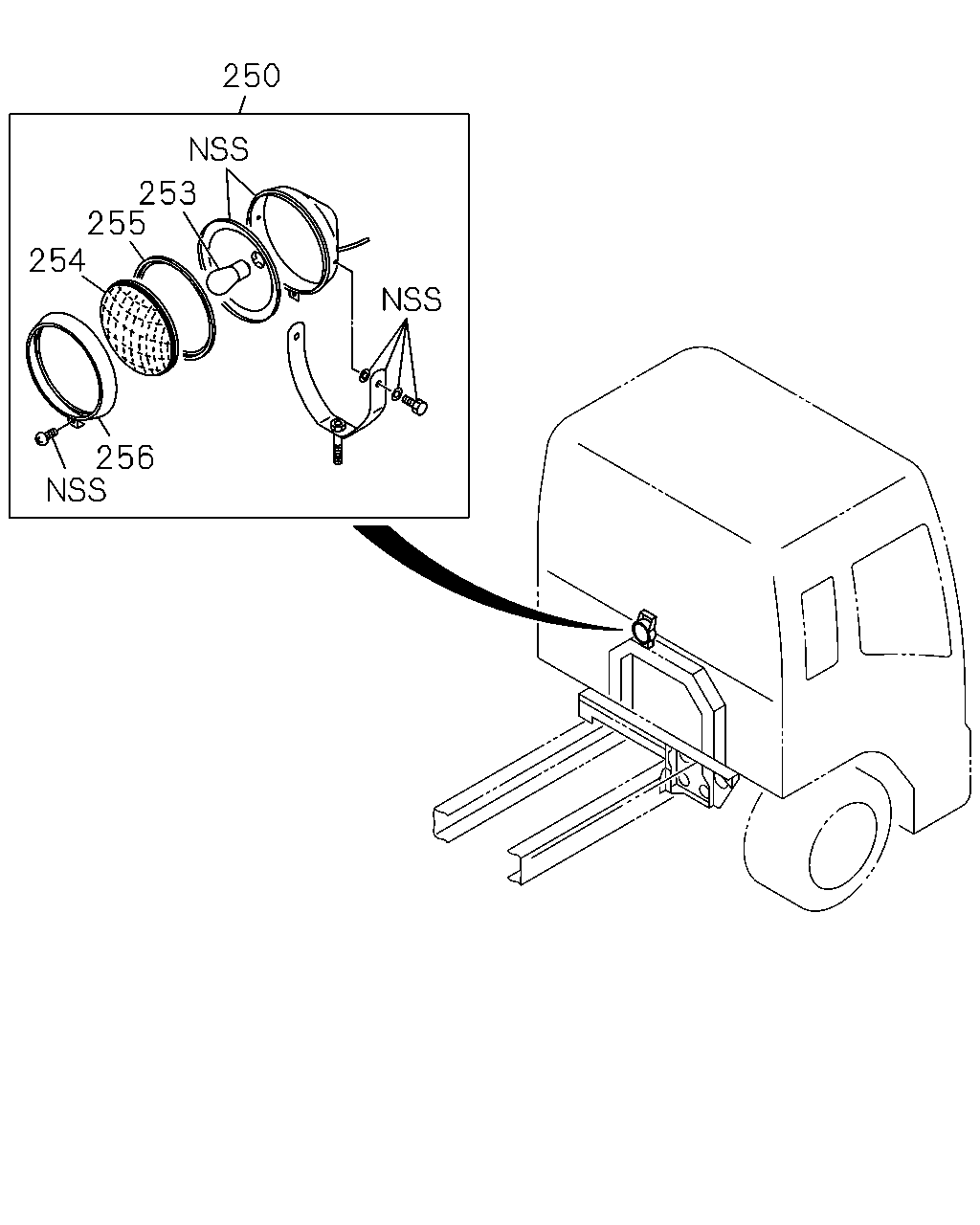

[803A] SEARCH LIGHT (10 parça)
▶
67
62
60
303
65
9
49
53
51
50
58
54
57
52
15
13
28
1
5
3
14
15
38
40
15
4
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-203-6
01
1
0710-
1
LAMP ASM; RR COMB
1-82230-204-5
01
1
0710-
3
GASKET; RR COMB LAMP
1-82236-008-0
02
1
0710-
4
COVER; RR,RR COMB LAMP
1-82239-011-0
02
1
0710-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-108-0
02
1
0710-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-109-0
02
1
0710-
9
NUT; LAMP,RR COMB
M8 FLANGE
0-91180-108-0
02
1
0710-
13
LENS; TURN SIGNAL
1-82235-036-0
02
1
0710-
14
LENS; TAIL & STOP,RR COMB LAMP
1-82235-035-0
02
1
0710-
15
SCREW; RR COMB LAMP
1-82239-012-0
26
1
0710-
28
GASKET; TURN,LAMP
1-82236-008-0
02
1
0710-
38
BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER
1-09030-073-0
02
1
0710-
40
REFLECTOR; REFLEX
8-97608-772-0
02
1
0710-
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
0710-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
0710-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
0710-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
0710-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
0710-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
0710-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
0710-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
0710-
60
LAMP; BACKUP
1-82130-025-0
01
1
0710-
62
BULB; BACKUP LAMP
24V 21W
1-82194-104-0
01
1
0710-
65
BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER
0-50641-035-0
02
1
0710-
67
NUT; FLANGE
M10 FLANGE
0-91180-210-0
02
1
0710-
303
SOCKET ASM; BACKUP LAMP
1-82135-006-0
01
1
0710-
250
253
255
254
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
LAMP ASM; SEARCH LIGHT
1-82180-012-0
01
1
0710-1109
250
LAMP ASM; SEARCH LIGHT
INSPECTION LAMP<T95>
1-82180-012-0
01
1
1110-
253
BULB; SEARCH LIGHT
9-82691-605-0
01
1
0710-1109
253
BULB; SEARCH LIGHT
INSPECTION LAMP<T95>
9-82691-605-0
01
1
1110-
254
LENS; SEARCH LIGHT
9-82681-207-0
01
1
0710-1109
254
LENS; SEARCH LIGHT
INSPECTION LAMP<T95>
9-82681-207-0
01
1
1110-
255
GASKET; SEARCH LIGHT
9-82681-706-0
01
1
0710-1109
255
GASKET; SEARCH LIGHT
INSPECTION LAMP<T95>
9-82681-706-0
01
1
1110-
256
RIM; SEARCH LIGHT
9-82681-402-0
01
1
0710-1109
256
RIM; SEARCH LIGHT
INSPECTION LAMP<T95>
9-82681-402-0
01
1
1110-
