◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#67355) — 33 parça

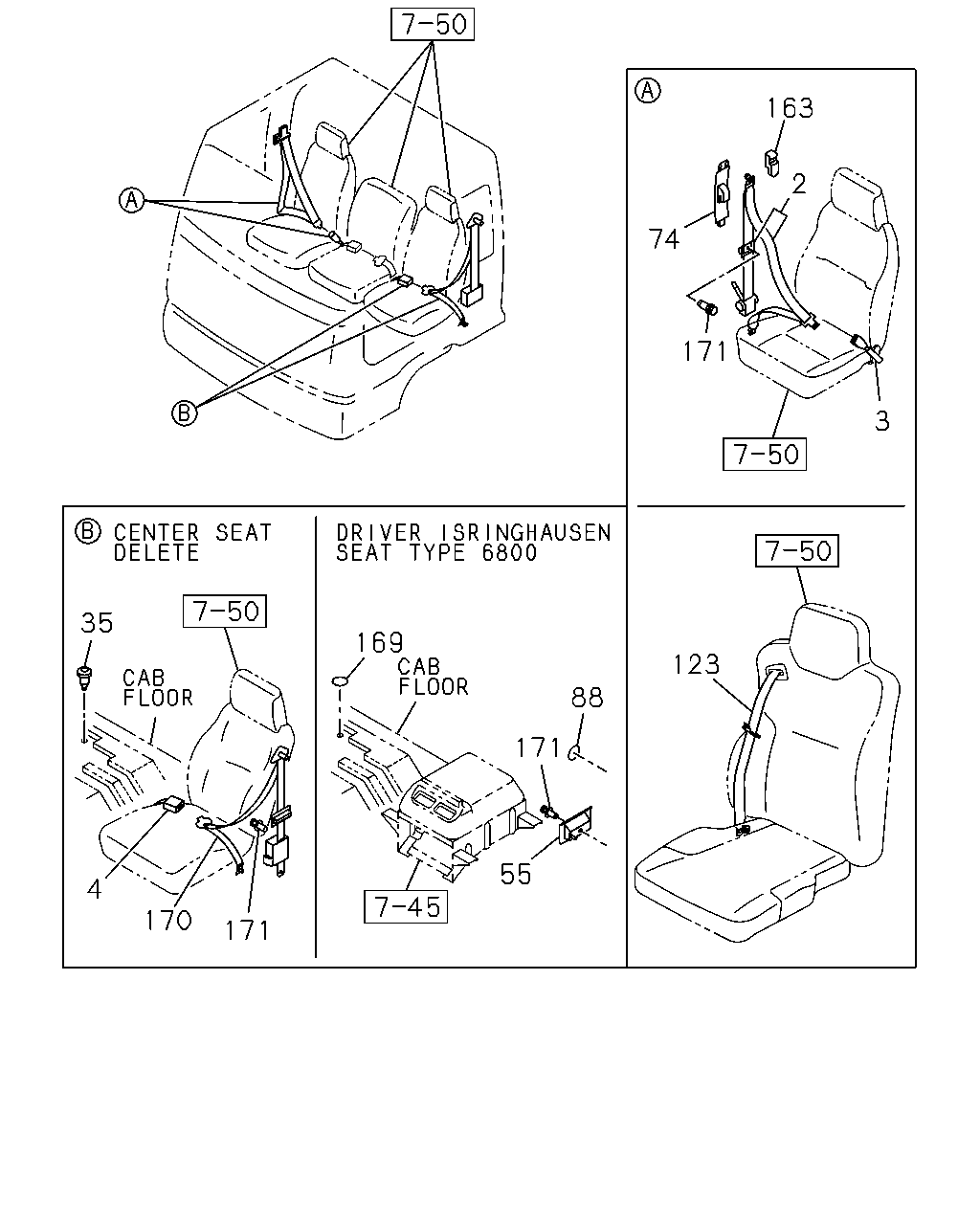

çizim 135865
163 2 74 171 3 123 88 171 55 169 171 170 4 35
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97386-847-3 01 1 1110-1110
2 BELT; SEAT,TONGUE SIDE
AIR BAG(TFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97386-847-3 01 1 1111-
2 BELT; SEAT,TONGUE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA),AIR BAG(TFQ) 		8-98120-814-1 01 1 1111-
3 BELT; SEAT,BUCKLE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97386-846-0 01 1 1110-1110
3 BELT; SEAT,BUCKLE SIDE
AIR BAG(TFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97386-846-0 01 1 1111-1401
3 BELT; SEAT,BUCKLE SIDE
AIR BAG(TFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98270-818-0 01 1 1402-
3 BELT; SEAT,BUCKLE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA),AIR BAG(TFQ) 		1-75618-914-0 01 1 1111-
4 BELT; PASSENGER SEAT,BUCKLE SIDE 1-75617-546-1 01 1 0710-1109
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1110-
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 01 1 1006-1109
35 GROMMET; SEAT BELT ANCHOR
DRIVER ISRINGHAUSEN SEAT(SJA) OD=22 		9-61168-535-0 01 1 1110-
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 0710-1109
55 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-556-0 01 1 1110-
74 RAIL ASM; SHOULDER ANCHOR
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97386-855-2 01 1 1110-1110
74 RAIL ASM; SHOULDER ANCHOR
AIR BAG(TFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97386-855-2 01 1 1111-
88 PLUG; HOLE
OD=31.6 		8-94198-177-0 01 1 0710-1111
88 PLUG; HOLE
DRIVER ISRINGHAUSEN SEAT(SJA) OD=31.6 		8-94198-177-0 01 1 1112-
123 BELT ASM; SEAT
AIR BAG(TFQ) 		8-98097-971-0 01 1 0710-1109
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) 		8-98097-971-0 01 1 1110-
123 BELT ASM; SEAT
EXC. AIR BAG(TFQ) 		8-98097-969-0 01 1 0710-1109
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG(TFQ) 		8-98097-969-0 01 1 1110-
163 COVER; ADJUSTER
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97386-863-0 01 1 1110-1110
163 COVER; ADJUSTER
AIR BAG(TFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97386-863-0 01 1 1111-
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710-1005
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1006-1109
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1006-1109
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1110-
169 SEAL
DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 01 1 1110-
169 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0710-1005
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-588-3 01 1 0710-0805
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-820-1 01 1 0806-1109
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT DELETE(SP9) 		8-98120-820-1 01 1 1110-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
