7-45 — CONSOLE BOX (#67353) — 85 parça

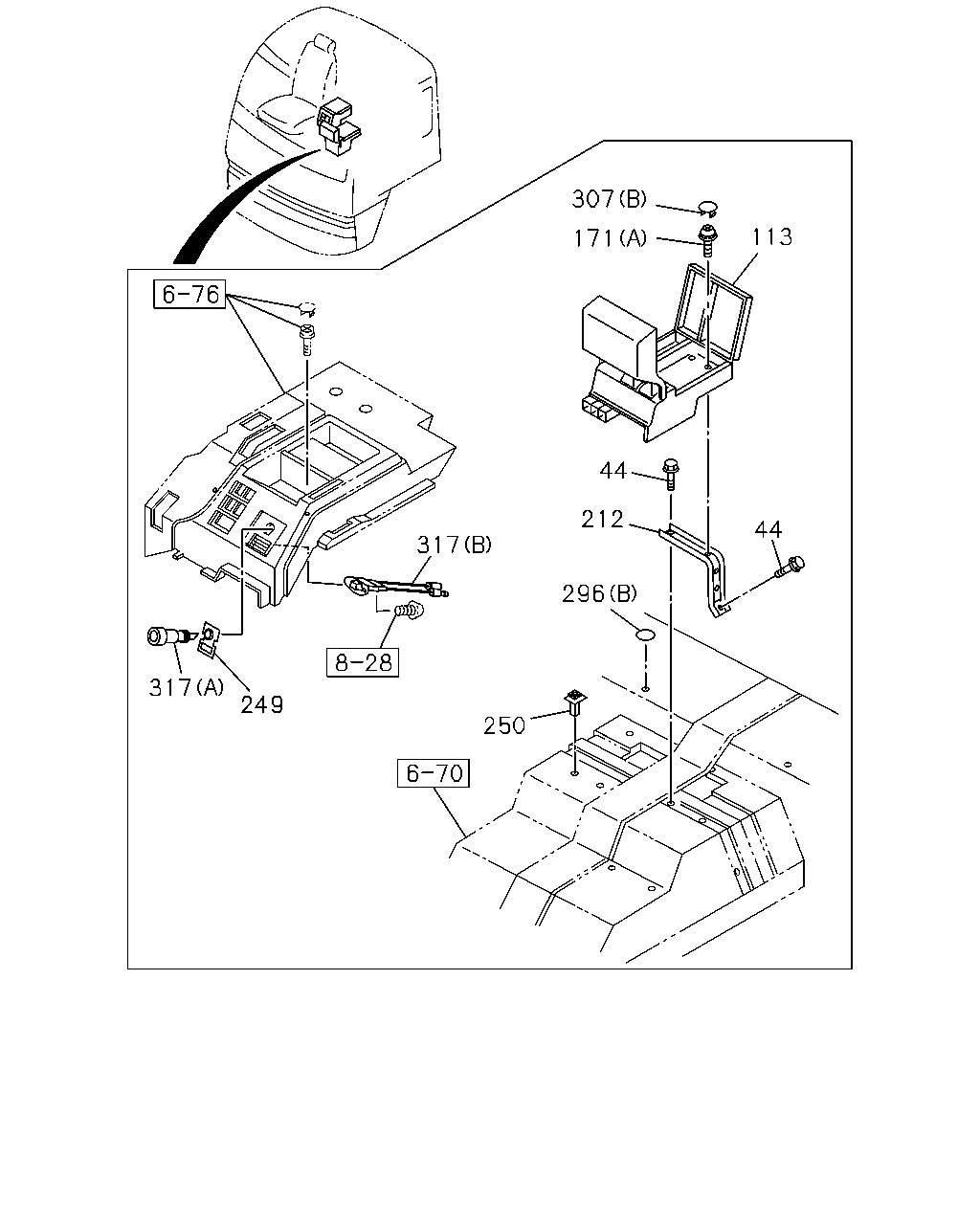

çizim 134091
307 113 171 44 212 44 296 317 249 317 250
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-324-1 01 1 1110-
113 BOX; CONSOLE 1-72537-326-1 01 1 0710-1109
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 1110-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710-1109
171 SCREW; CONSOLE BOX
COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1110-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710-
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0710-
249 COVER 1-82529-001-0 01 1 0710-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0710-
296 SEAL
(A) 		1-72537-094-1 01 1 0710-1109
296 SEAL
COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1110-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710-
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 1110-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0710-1109
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1110-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710-
317 CONSENT
(B) 		1-82523-020-2 01 1 0710-
317 CONSENT
(A) 		8-94382-451-1 01 1 0710-

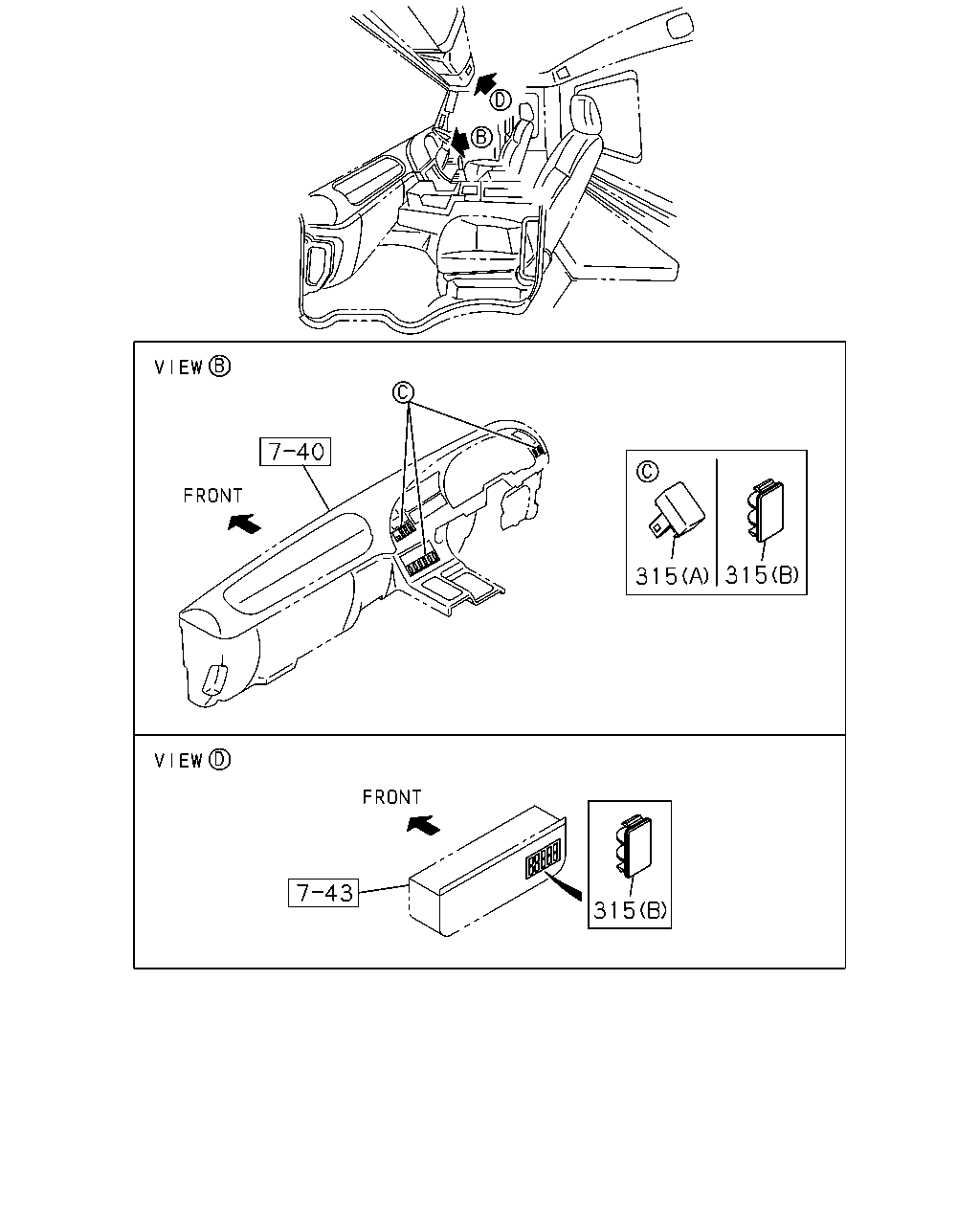

çizim 192923
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0710-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0710-

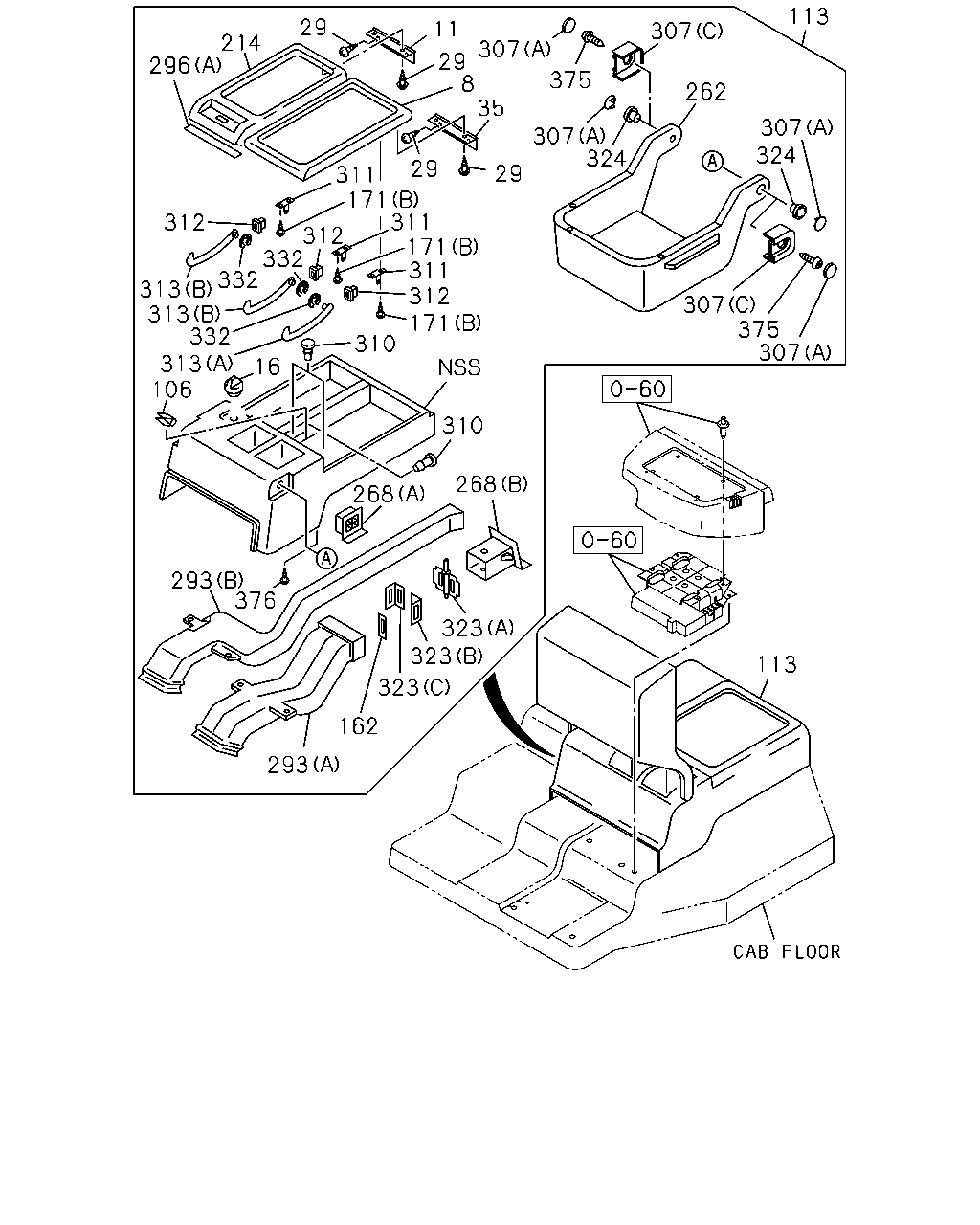

çizim 192945
113 29 11 307 214 307 29 8 35 296 375 262 307 324 307 324 29 29 311 171 311 171 311 312 171 312 312 332 332 313 313 332 313 106 307 375 307 310 16 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE 1-72537-332-0 01 1 0710-1109
8 LID; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 1110-
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0710-1109
11 HINGE; CONSOLE LID
COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 1110-
16 KNOB ASM 1-72537-189-0 01 1 0710-1109
16 KNOB ASM
COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 1110-
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 0710-1109
29 SCREW; HINGE
COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 1110-
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0710-1109
35 HINGE; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 1110-
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0710-1109
106 LOCK; CONSOLE LID
COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 1110-
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-324-1 01 1 1110-
113 BOX; CONSOLE 1-72537-326-1 01 1 0710-1109
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 1110-
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 0710-1109
162 CUSHION; PARCEL BOX
COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 1110-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710-1109
171 SCREW; CONSOLE BOX
COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1110-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710-
214 LID; CONSOLE 1-72537-339-0 01 1 0710-1109
214 LID; CONSOLE
COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 1110-
262 TABLE ASM 1-72537-187-1 01 1 0710-1109
262 TABLE ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 1110-
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0710-1109
268 COVER; DUCT
COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 1110-
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0710-1109
268 COVER; DUCT
COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 1110-
293 DUCT
(A) 		1-72537-081-3 01 1 0710-1109
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 1110-
293 DUCT
(B) 		1-72537-083-2 01 1 0710-1109
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 1110-
296 SEAL
(A) 		1-72537-094-1 01 1 0710-1109
296 SEAL
COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1110-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710-
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 1110-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0710-1109
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1110-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710-
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0710-1109
310 CUSHION; CTR CONSOLE
COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 1110-
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0710-1109
311 HOLDER; CONSOLE
COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 1110-
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0710-1109
312 STOPPER; CONSOLE
COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 1110-
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0710-1109
313 ARM; CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 1110-
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0710-1109
313 ARM; CTR CONSOLE
COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 1110-
323 SHUTTER
(A) 		1-72537-084-1 01 1 0710-1109
323 SHUTTER
COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 1110-
323 SHUTTER
(B) 		1-72537-126-0 01 1 0710-1109
323 SHUTTER
COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 1110-
323 SHUTTER
(C) 		1-72537-127-0 01 1 0710-1109
323 SHUTTER
COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 1110-
324 BUSHING 1-72537-116-0 02 1 0710-1109
324 BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 1110-
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0710-1109
332 RING; SNAP,CONSOLE BOX
COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 1110-
375 SCREW; TAP BUSHING
M6X20 		1-72537-319-0 02 1 0710-1109
375 SCREW; TAP BUSHING
COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 1110-
376 SCREW; TAP DUCT
M4X14 		1-72537-320-0 03 1 0710-1109
376 SCREW; TAP DUCT
COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 1110-
