◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#67351) — 99 parça

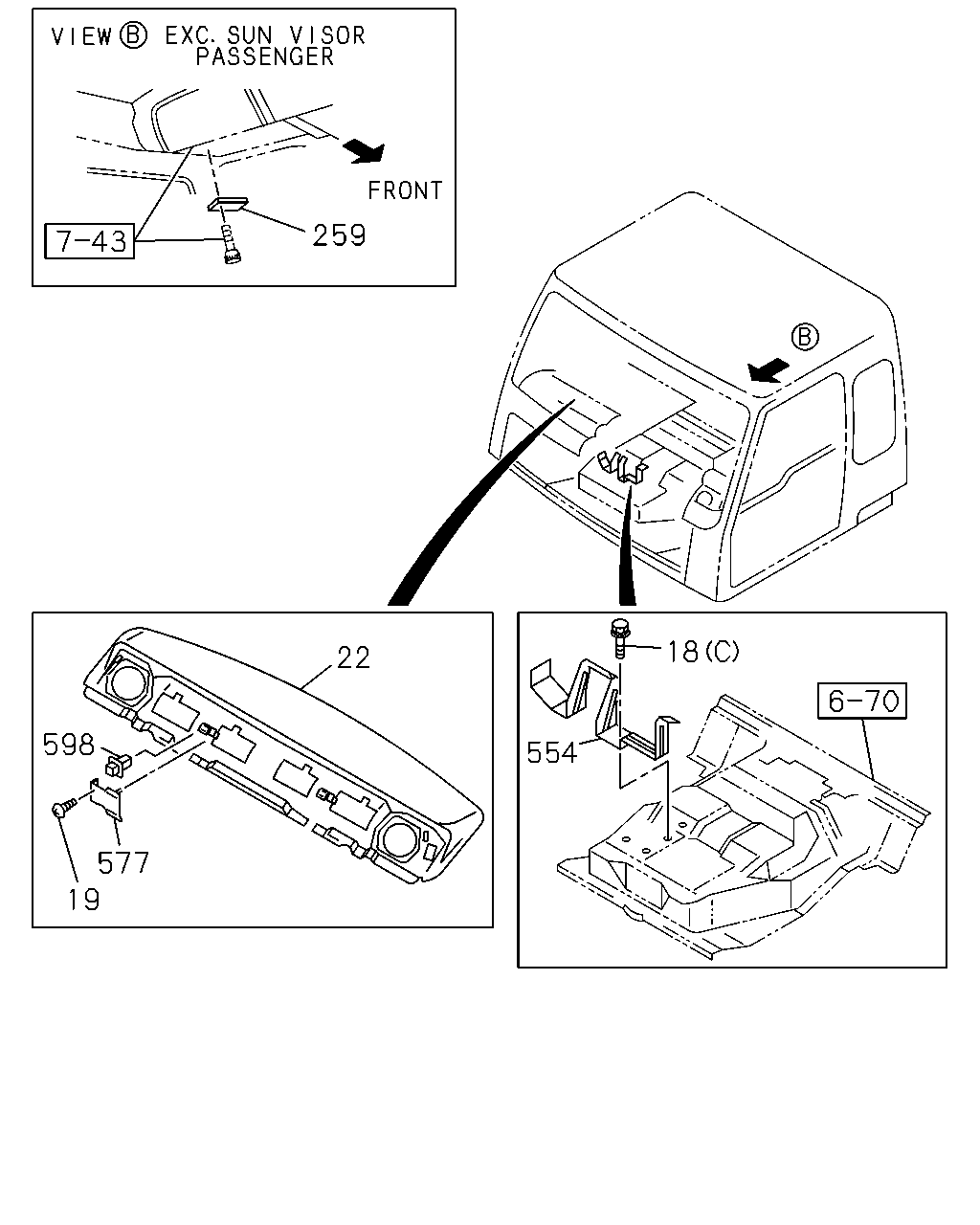

çizim 132849
259 22 18 554 598 577 19
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0710-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0710-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710-
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0710-
22 PAD; INST 1-72317-347-2 01 1 0710-0710
22 PAD; INST 1-72317-372-1 01 1 0711-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0710-
554 BRACKET; CENTER BEZEL 1-65671-758-1 01 1 0710-
577 BRACKET; SENSOR 1-72318-413-0 01 1 0710-
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0710-

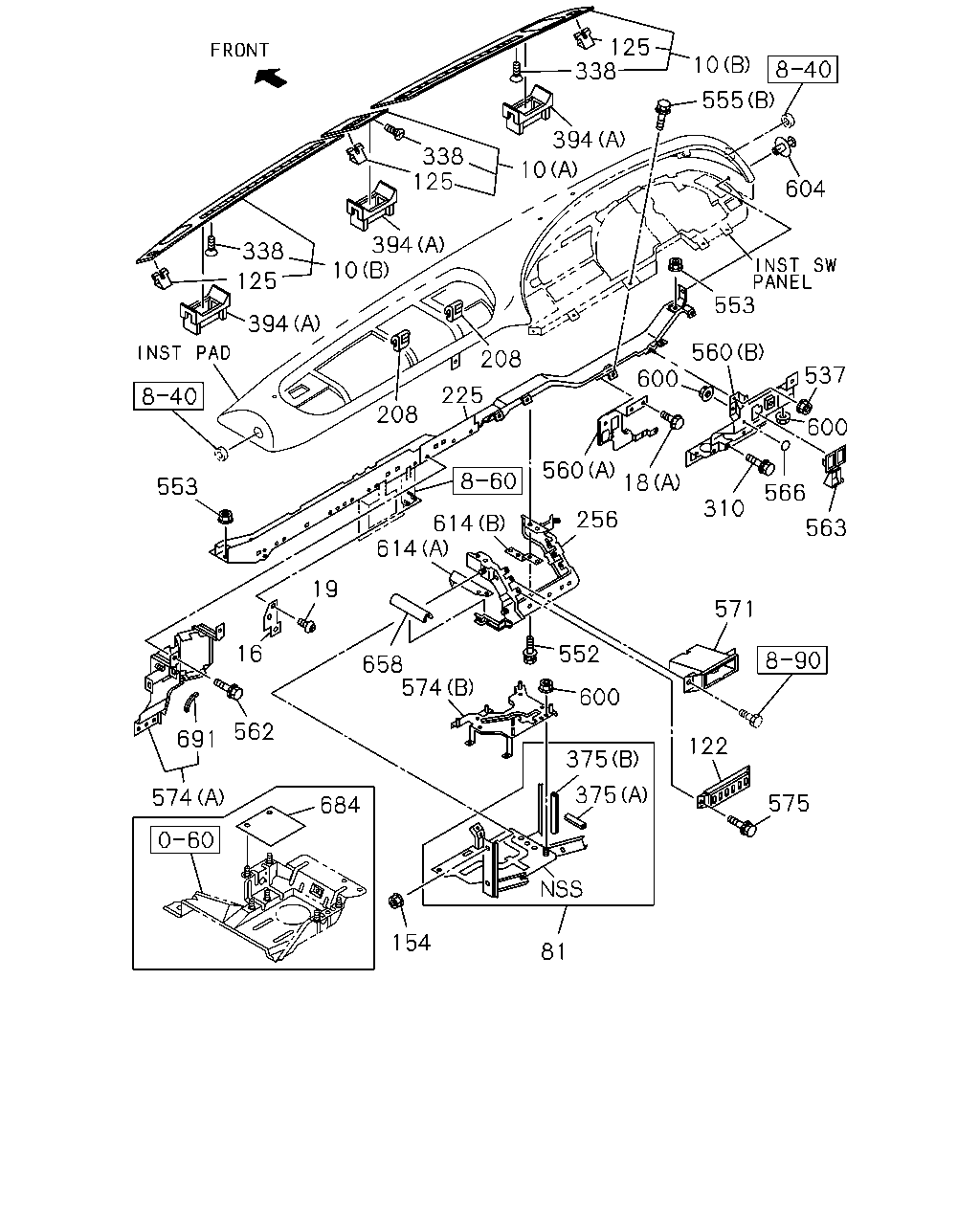

çizim 192920
125 338 10 555 394 338 125 10 604 394 10 338 553 125 394 560 208 600 537 225 600 208 560 614 614 18 553 566 310 256 563 19 571 16 552 658 574 600 562 691 122 375 375 574 575 684 154 81
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 0710-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0710-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 0710-
16 BRACKET; INST PNL 1-73908-023-2 01 1 0710-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0710-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0710-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710-
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0710-
81 BRACKET; ELEC CONT UNIT 1-73907-739-0 01 1 0710-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0710-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0710-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0710-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0710-
225 FRAME; FACIA 1-65671-725-8 01 1 0710-
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0710-0710
256 BEZEL ASM; CENTER 1-65671-832-0 01 1 0711-0801
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 0802-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0710-
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0710-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0710-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0710-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0710-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0710-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0710-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0710-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0710-
560 BRACKET
(B) 		1-65671-760-4 01 1 0710-
560 BRACKET
(A) 		1-65681-197-2 01 1 0710-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0710-
563 BEZEL; BRKT 1-72448-410-3 01 1 0710-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0710-
571 BEZEL; POCKET 1-72438-151-3 02 1 0710-
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 0710-
574 PANEL; RELAY BOX
(A) 		1-73907-705-4 01 1 0710-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0710-
604 CLIP; INST PAD 1-09983-123-0 01 1 0710-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0710-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0710-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0710-
684 RUBBER; HARNESS 1-82698-417-1 01 1 0710-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1006-

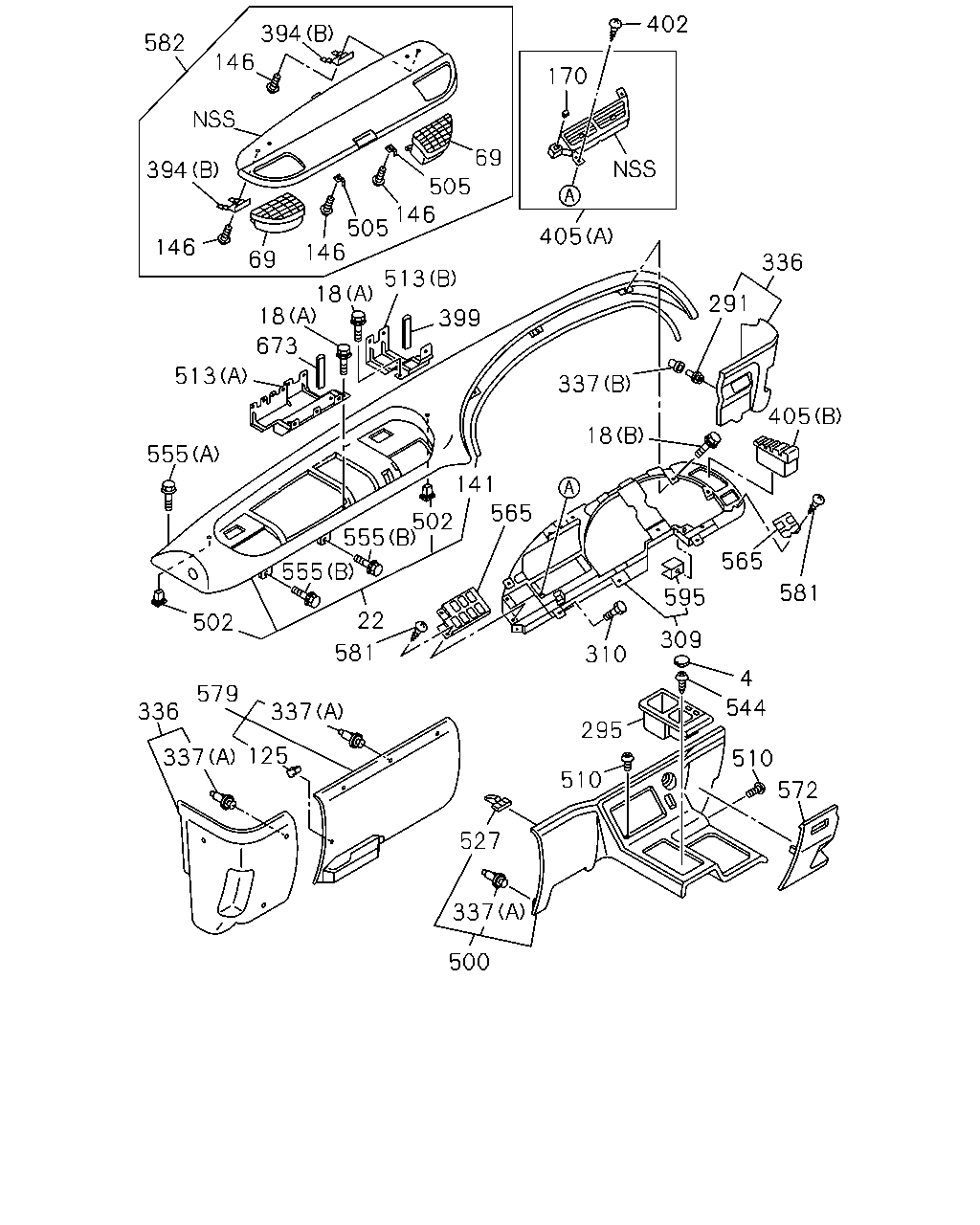

çizim 192922
582 394 170 402 405 291 336 405 565 581 337 18 595 309 4 544 510 572 510 295 310 527 337 500 337 579 336 337 125 581 502 22 555 555 513 673 18 18 513 141 565 502 555 146 394 69 146 505 146 505 69 146 399
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0710-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0710-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0710-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710-
22 PAD; INST 1-72317-347-2 01 1 0710-0710
22 PAD; INST 1-72317-372-1 01 1 0711-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0710-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0710-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0710-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0710-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0710-
170 COVER; HOLE 1-76367-068-0 01 1 0710-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0710-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0710-
309 PANEL; SW,INST 1-72418-009-6 01 1 0710-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0710-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0710-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0710-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0710-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0710-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0710-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0710-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0710-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0710-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0710-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0710-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0710-
500 CLUSTER; INST CENTER 1-72437-653-0 01 1 0710-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-
505 LOCK; LID 1-72558-024-2 02 1 0710-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0710-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0710-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0710-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0710-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0710-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0710-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0710-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0710-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0710-
572 COVER; INSPECTION 1-72437-634-0 01 1 0710-
579 COVER; INST PNL 1-72437-626-0 01 1 0710-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0710-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0710-
595 NUT; HOOK 1-72418-013-0 11 1 0710-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0710-
