◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#6735) — 14 parça

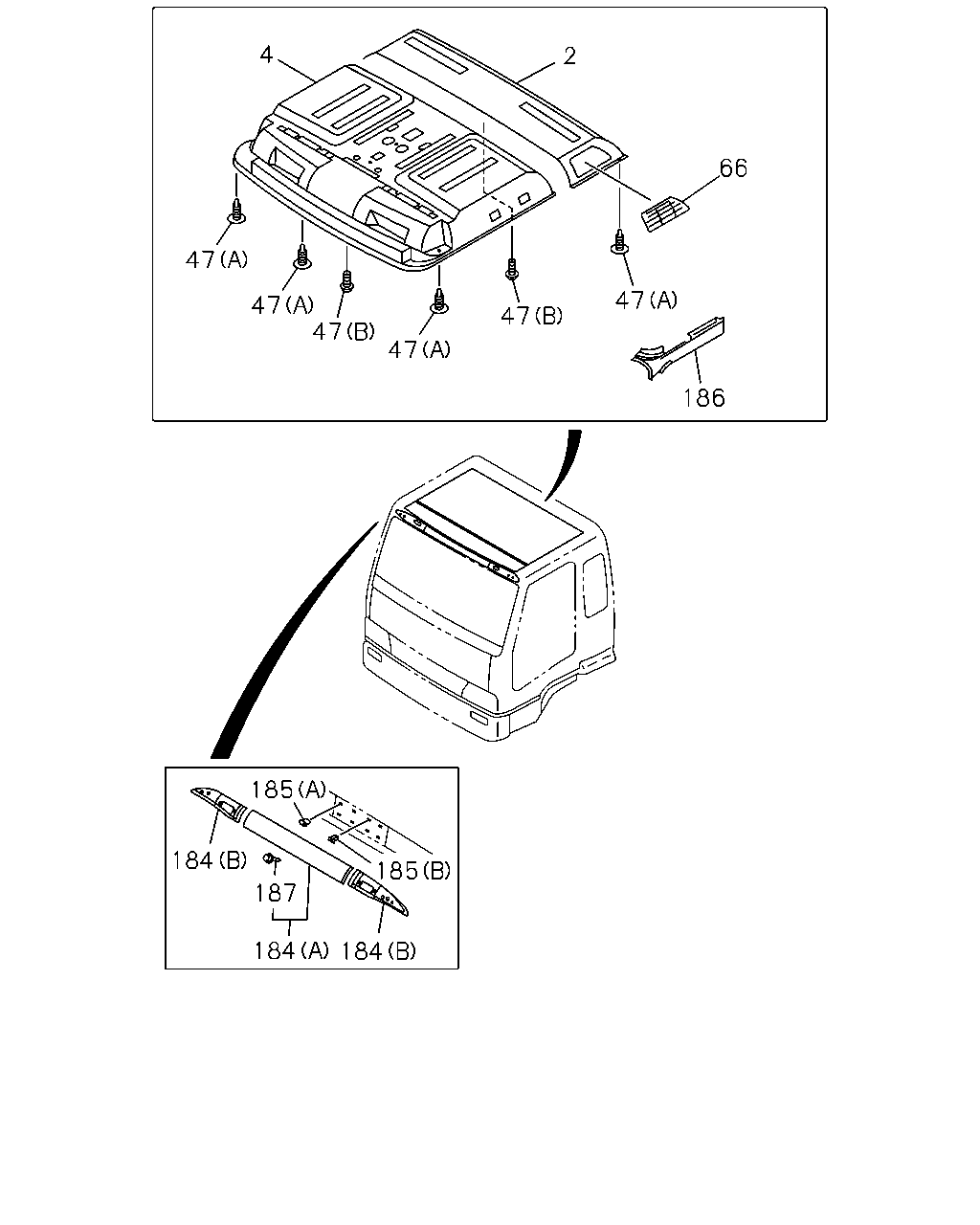

çizim 42887
4 2 66 47 47 47 47 47 47 186 185 184 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING; HD,ROOF RR 1-73318-598-3 01 1 0011- ● ●
4 LINING; ROOF,FRT 8-97865-178-3 01 1 0011- ● ●
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY 		1-73318-629-0 13 1 0011- ● ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (B) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0011- ● ●
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 0011- ● ●
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 0011- ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0011- ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 02 1 0011- ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 02 1 0011- ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0011- ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0011- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0011- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0011- ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 16 1 0011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
