Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#67349) — 311 parça

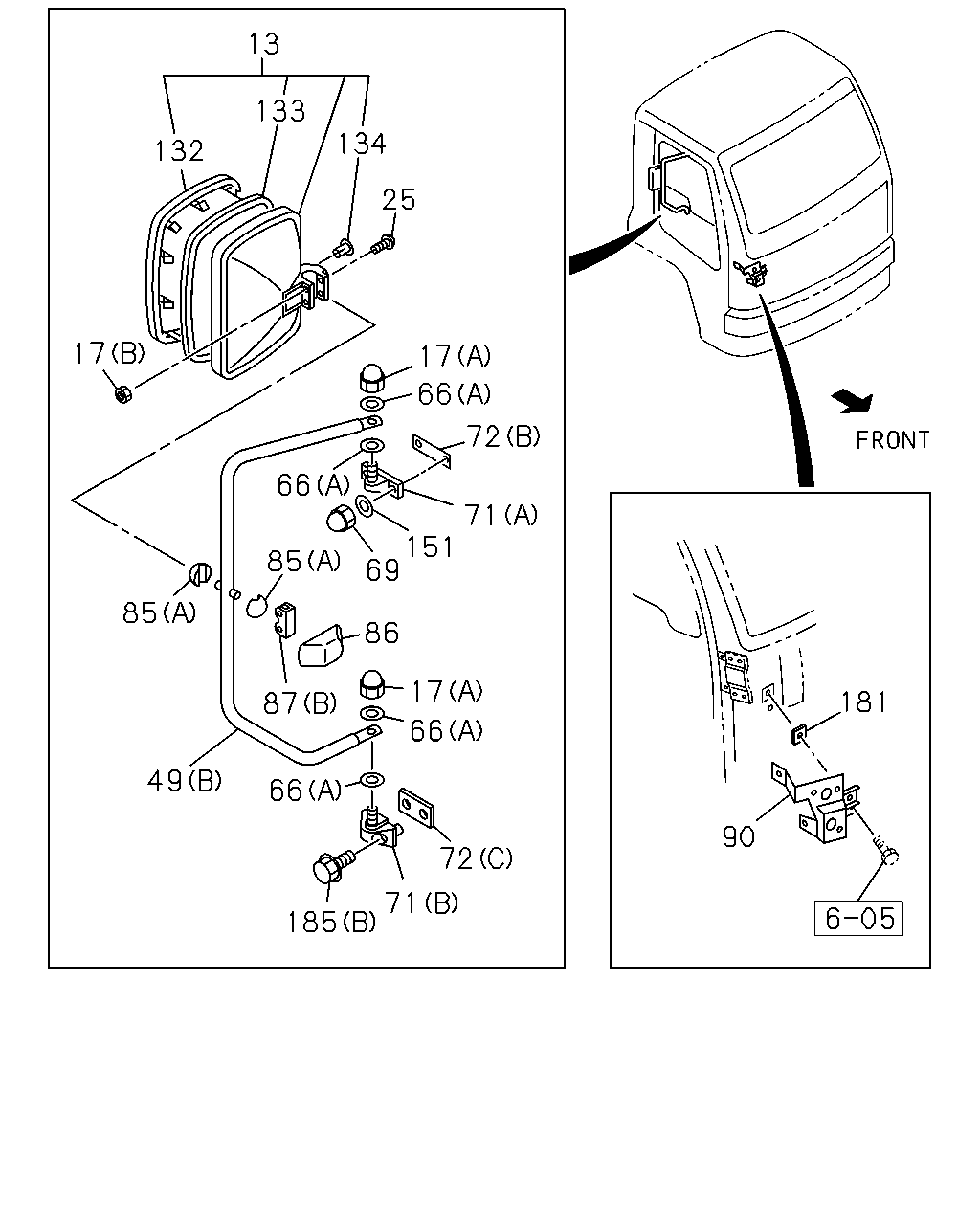

13 133 134 132 25 17 17 66 72 66 71 151 69 85 85 86 17 181 87 66 49 66 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW CHEAPER CAB(WY1)	1-71737-918-3	02	1	1111-
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (B) M5	1-09984-124-0	06	1	1111-
17	NUT; CAP,MIRROR STAY EXC. CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	07	1	1111-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0710-1110
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	02	1	1111-
25	SCREW; OUTSIDE MIRROR CHEAPER CAB(WY1)	1-09981-541-0	04	1	1111-
49	STAY; MIRROR SIDE CHEAPER CAB(WY1) (A)	1-71797-856-2	01	1	1111-
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0710-1110
49	STAY; MIRROR SIDE EXC. CHEAPER CAB(WY1) (C)	1-71798-491-3	01	1	1111-1309
49	STAY; MIRROR SIDE (B)	1-71798-490-3	01	1	0710-1309
49	STAY; MIRROR SIDE CHEAPER CAB(WY1) (B)	1-71798-490-3	01	1	1310-
66	WASHER; PL EXC. CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	1111-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0710-1110
66	WASHER; PL CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1111-
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0710-
69	NUT; CAP EXC. CHEAPER CAB(WY1) M8 CAP NUT	8-98059-914-0	04	1	1111-
69	NUT; CAP M8	1-09984-187-0	04	1	0710-0809
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-1110
69	NUT; CAP CHEAPER CAB(WY1) M8 CAP NUT	8-98059-914-0	02	1	1111-
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (G)	1-71798-581-3	01	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (A)	1-71798-484-1	02	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (B)	1-71798-486-2	02	1	1111-
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (F)	8-98099-810-0	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	03	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0804-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (A)	1-71798-484-1	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0710-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (B)	1-71798-486-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (C)	1-71707-255-2	01	1	0710-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (C)	1-71707-255-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (E)	8-98167-111-0	01	1	1111-
72	SHEET EXC. CHEAPER CAB(WY1) (B)	1-71798-487-3	02	1	1111-
72	SHEET EXC. CHEAPER CAB(WY1) (B)	1-71798-488-1	02	1	1111-
72	SHEET (B)	1-71798-487-3	03	1	0710-0803
72	SHEET (B)	1-71798-487-3	02	1	0804-1110
72	SHEET CHEAPER CAB(WY1) (B)	1-71798-487-3	01	1	1111-
72	SHEET (C)	1-71798-488-1	02	1	0710-1110
72	SHEET CHEAPER CAB(WY1) (C)	1-71798-488-1	01	1	1111-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0710-
85	PIVOT; MAIN MIRROR CHEAPER CAB(WY1) (B) ID=22.2	1-71736-489-2	02	1	1111-
85	PIVOT; MAIN MIRROR CHEAPER CAB(WY1) (A) ID=19.1	1-71737-633-2	02	1	1111-
86	COVER; STAY,OUTSIDE MIRROR CHEAPER CAB(WY1) BLACK	1-71737-760-1	02	1	1111-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	0710-1110
86	COVER; STAY,OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) BLACK	1-71737-649-1	01	1	1111-
87	SPACER CHEAPER CAB(WY1) (B)	1-71737-704-0	02	1	1111-
87	SPACER (A)	1-71737-646-2	01	1	0710-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0710-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0710-
132	RING; MIRROR CHEAPER CAB(WY1)	1-71737-934-0	02	1	1111-
133	LENS; MIRROR,OUTSIDE CHEAPER CAB(WY1)	1-71737-927-0	02	1	1111-
134	CLIP; MIRROR LENS CHEAPER CAB(WY1)	1-71737-936-0	02	1	1111-
151	WASHER; PL,MIRROR EXC. CHEAPER CAB(WY1) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1111-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0710-1110
151	WASHER; PL,MIRROR CHEAPER CAB(WY1) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1111-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0710-
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (B) M8X35 FLANGE	8-98046-876-0	04	1	1111-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	0710-1110
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (A) M5X16	1-71707-259-0	02	1	1111-
185	BOLT; BRKT (B) M8X35 FLANGE	8-98046-876-0	04	1	0710-1110
185	BOLT; BRKT CHEAPER CAB(WY1) (B) M8X35 FLANGE	8-98046-876-0	02	1	1111-
185	BOLT; BRKT (C) M6X16 FLANGE	0-28660-616-0	01	1	0710-1110
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (C) M6X16 FLANGE	0-28660-616-0	01	1	1111-

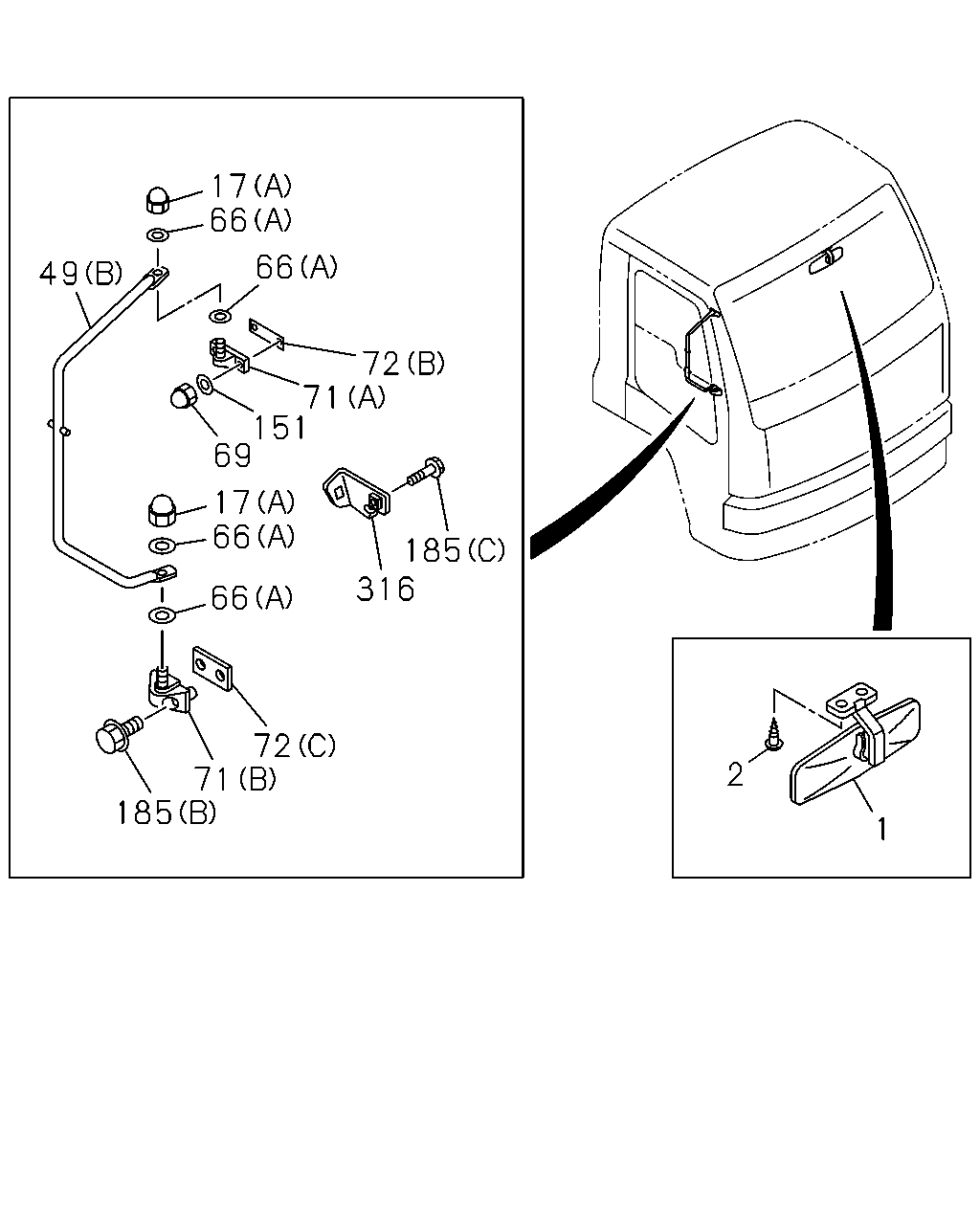

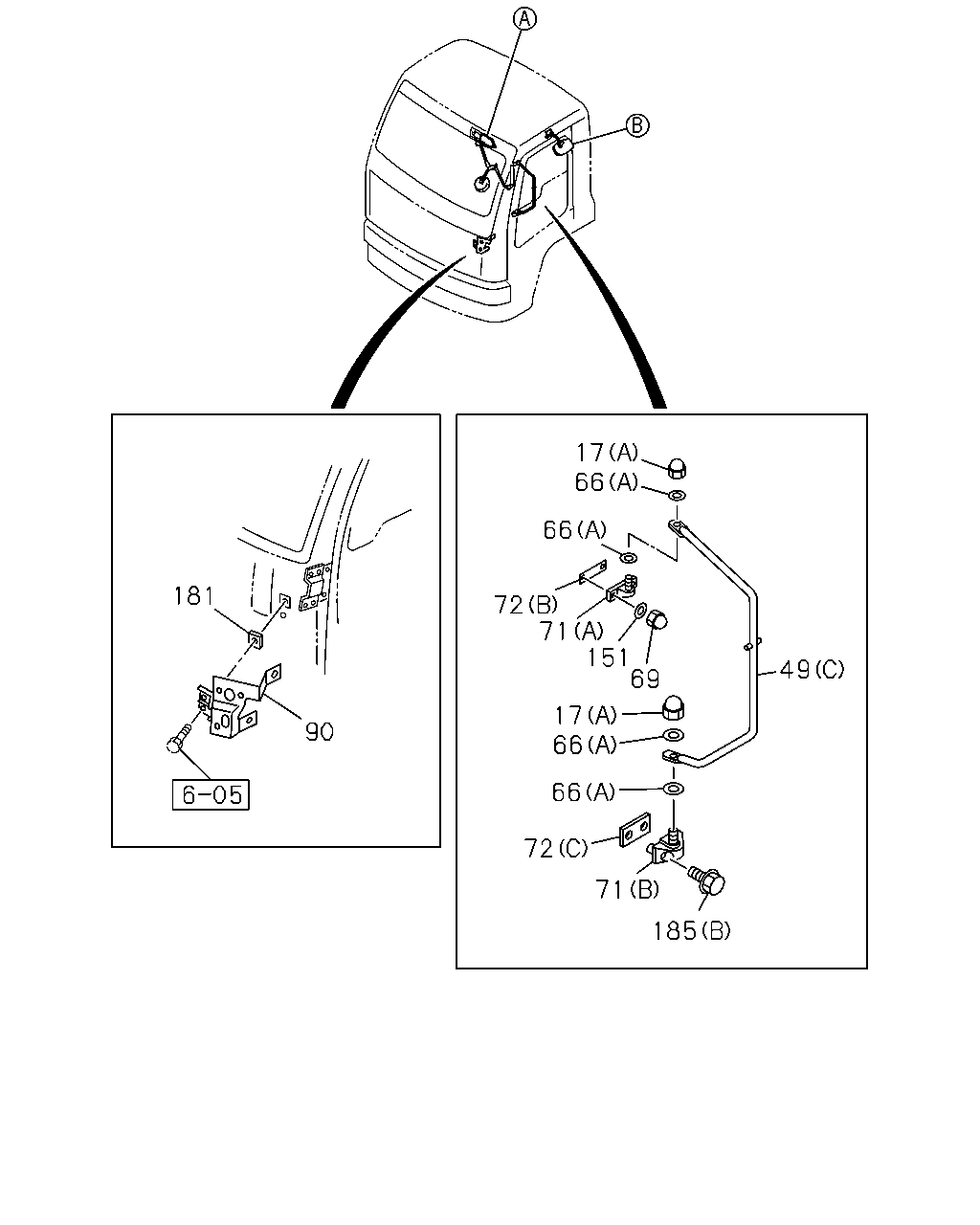

17 66 66 181 72 71 151 69 49 17 66 90 66 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (B) M5	1-09984-124-0	06	1	1111-
17	NUT; CAP,MIRROR STAY EXC. CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	07	1	1111-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0710-1110
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	02	1	1111-
49	STAY; MIRROR SIDE CHEAPER CAB(WY1) (A)	1-71797-856-2	01	1	1111-
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0710-1110
49	STAY; MIRROR SIDE EXC. CHEAPER CAB(WY1) (C)	1-71798-491-3	01	1	1111-1309
49	STAY; MIRROR SIDE (B)	1-71798-490-3	01	1	0710-1309
49	STAY; MIRROR SIDE CHEAPER CAB(WY1) (B)	1-71798-490-3	01	1	1310-
66	WASHER; PL EXC. CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	1111-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0710-1110
66	WASHER; PL CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1111-
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0710-
69	NUT; CAP EXC. CHEAPER CAB(WY1) M8 CAP NUT	8-98059-914-0	04	1	1111-
69	NUT; CAP M8	1-09984-187-0	04	1	0710-0809
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-1110
69	NUT; CAP CHEAPER CAB(WY1) M8 CAP NUT	8-98059-914-0	02	1	1111-
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (G)	1-71798-581-3	01	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (A)	1-71798-484-1	02	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (B)	1-71798-486-2	02	1	1111-
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (F)	8-98099-810-0	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	03	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0804-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (A)	1-71798-484-1	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0710-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (B)	1-71798-486-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (C)	1-71707-255-2	01	1	0710-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (C)	1-71707-255-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (E)	8-98167-111-0	01	1	1111-
72	SHEET EXC. CHEAPER CAB(WY1) (B)	1-71798-487-3	02	1	1111-
72	SHEET EXC. CHEAPER CAB(WY1) (B)	1-71798-488-1	02	1	1111-
72	SHEET (B)	1-71798-487-3	03	1	0710-0803
72	SHEET (B)	1-71798-487-3	02	1	0804-1110
72	SHEET CHEAPER CAB(WY1) (B)	1-71798-487-3	01	1	1111-
72	SHEET (C)	1-71798-488-1	02	1	0710-1110
72	SHEET CHEAPER CAB(WY1) (C)	1-71798-488-1	01	1	1111-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0710-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0710-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0710-
151	WASHER; PL,MIRROR EXC. CHEAPER CAB(WY1) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1111-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0710-1110
151	WASHER; PL,MIRROR CHEAPER CAB(WY1) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1111-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0710-
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (B) M8X35 FLANGE	8-98046-876-0	04	1	1111-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	0710-1110
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (A) M5X16	1-71707-259-0	02	1	1111-
185	BOLT; BRKT (B) M8X35 FLANGE	8-98046-876-0	04	1	0710-1110
185	BOLT; BRKT CHEAPER CAB(WY1) (B) M8X35 FLANGE	8-98046-876-0	02	1	1111-
185	BOLT; BRKT (C) M6X16 FLANGE	0-28660-616-0	01	1	0710-1110
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (C) M6X16 FLANGE	0-28660-616-0	01	1	1111-

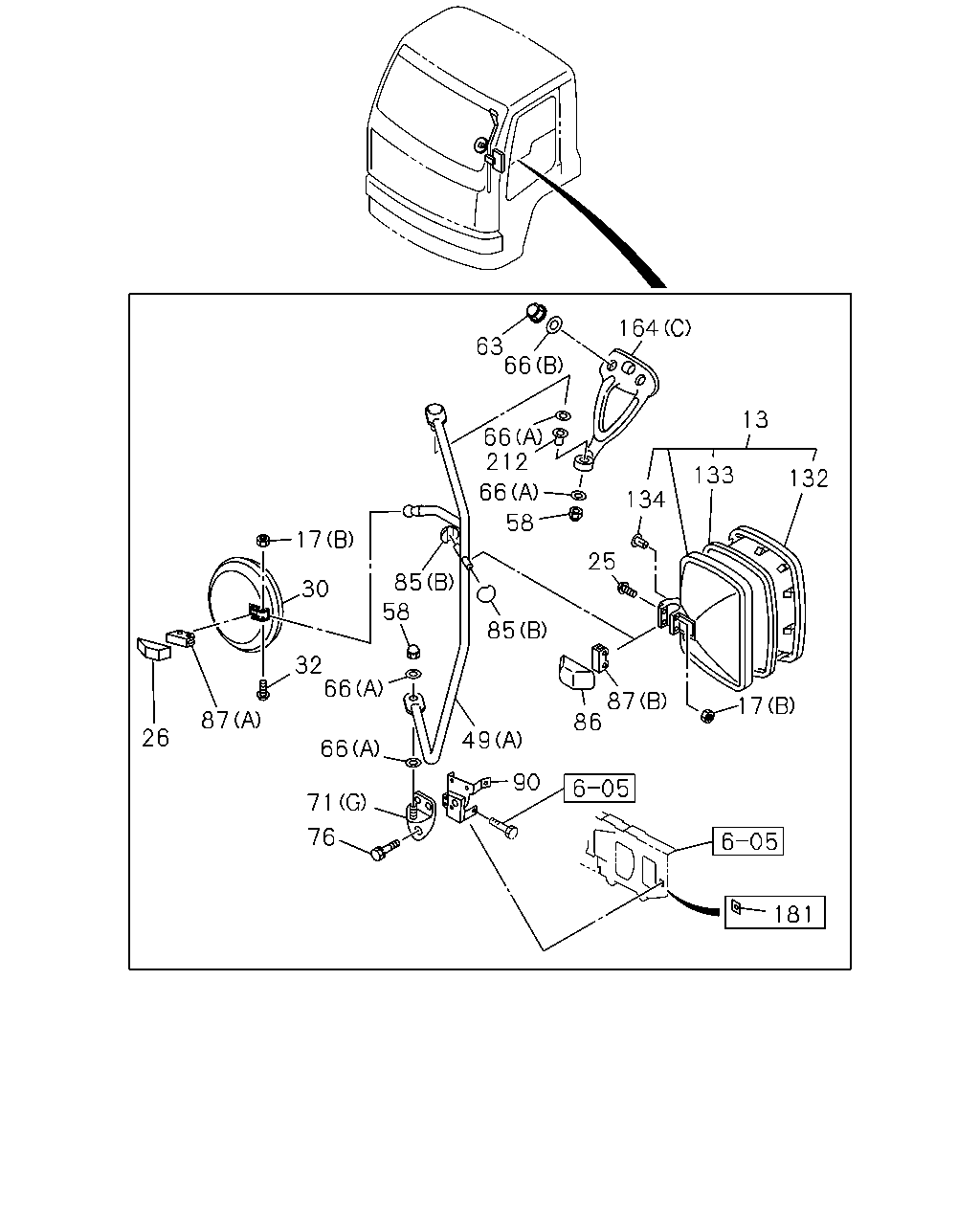

164 63 66 13 66 212 133 132 66 134 58 17 25 85 30 58 85 32 66 87 86 17 87 26 49 66 90 71 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW CHEAPER CAB(WY1)	1-71737-918-3	02	1	1111-
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (B) M5	1-09984-124-0	06	1	1111-
17	NUT; CAP,MIRROR STAY EXC. CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	07	1	1111-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0710-1110
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	02	1	1111-
25	SCREW; OUTSIDE MIRROR CHEAPER CAB(WY1)	1-09981-541-0	04	1	1111-
26	COVER; OUTSIDE MIRROR CHEAPER CAB(WY1) BLACK	1-71737-649-1	01	1	1111-
30	MIRROR; UNDER	1-71798-591-1	01	1	0710-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	0710-
49	STAY; MIRROR SIDE CHEAPER CAB(WY1) (A)	1-71797-856-2	01	1	1111-
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0710-1110
49	STAY; MIRROR SIDE EXC. CHEAPER CAB(WY1) (C)	1-71798-491-3	01	1	1111-1309
49	STAY; MIRROR SIDE (B)	1-71798-490-3	01	1	0710-1309
49	STAY; MIRROR SIDE CHEAPER CAB(WY1) (B)	1-71798-490-3	01	1	1310-
58	NUT; MIRROR STAY CHEAPER CAB(WY1) M10	1-09985-342-0	02	1	1111-
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	0710-1110
58	NUT; MIRROR STAY EXC. CHEAPER CAB(WY1) M10	1-09984-183-0	01	1	1111-
63	NUT; STAY M8	1-09984-187-0	03	1	0710-
66	WASHER; PL EXC. CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	1111-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0710-1110
66	WASHER; PL CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1111-
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0710-
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (G)	1-71798-581-3	01	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (A)	1-71798-484-1	02	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (B)	1-71798-486-2	02	1	1111-
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (F)	8-98099-810-0	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	03	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0804-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (A)	1-71798-484-1	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0710-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (B)	1-71798-486-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (C)	1-71707-255-2	01	1	0710-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (C)	1-71707-255-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (E)	8-98167-111-0	01	1	1111-
76	BOLT; STAY BRKT CHEAPER CAB(WY1) M8X30 W/LK WASHER	8-94279-183-1	03	1	1111-
85	PIVOT; MAIN MIRROR CHEAPER CAB(WY1) (B) ID=22.2	1-71736-489-2	02	1	1111-
85	PIVOT; MAIN MIRROR CHEAPER CAB(WY1) (A) ID=19.1	1-71737-633-2	02	1	1111-
86	COVER; STAY,OUTSIDE MIRROR CHEAPER CAB(WY1) BLACK	1-71737-760-1	02	1	1111-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	0710-1110
86	COVER; STAY,OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) BLACK	1-71737-649-1	01	1	1111-
87	SPACER CHEAPER CAB(WY1) (B)	1-71737-704-0	02	1	1111-
87	SPACER (A)	1-71737-646-2	01	1	0710-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0710-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0710-
132	RING; MIRROR CHEAPER CAB(WY1)	1-71737-934-0	02	1	1111-
133	LENS; MIRROR,OUTSIDE CHEAPER CAB(WY1)	1-71737-927-0	02	1	1111-
134	CLIP; MIRROR LENS CHEAPER CAB(WY1)	1-71737-936-0	02	1	1111-
164	STAY; ROOF CHEAPER CAB(WY1) (C)	1-71798-299-4	01	1	1111-
164	STAY; ROOF (A)	1-71707-248-2	01	1	0710-1110
164	STAY; ROOF EXC. CHEAPER CAB(WY1) (A)	1-71707-248-2	01	1	1111-
164	STAY; ROOF (B)	1-71707-266-1	01	1	0710-1110
164	STAY; ROOF EXC. CHEAPER CAB(WY1) (B)	1-71707-266-1	01	1	1111-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0710-
212	BUSHING; MIRROR CHEAPER CAB(WY1)	1-09983-175-1	01	1	1111-

17 66 66 49 72 71 151 69 17 66 185 316 66 72 71 185 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	0710-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0710-
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (B) M5	1-09984-124-0	06	1	1111-
17	NUT; CAP,MIRROR STAY EXC. CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	07	1	1111-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0710-1110
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	02	1	1111-
49	STAY; MIRROR SIDE CHEAPER CAB(WY1) (A)	1-71797-856-2	01	1	1111-
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0710-1110
49	STAY; MIRROR SIDE EXC. CHEAPER CAB(WY1) (C)	1-71798-491-3	01	1	1111-1309
49	STAY; MIRROR SIDE (B)	1-71798-490-3	01	1	0710-1309
49	STAY; MIRROR SIDE CHEAPER CAB(WY1) (B)	1-71798-490-3	01	1	1310-
66	WASHER; PL EXC. CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	1111-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0710-1110
66	WASHER; PL CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1111-
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0710-
69	NUT; CAP EXC. CHEAPER CAB(WY1) M8 CAP NUT	8-98059-914-0	04	1	1111-
69	NUT; CAP M8	1-09984-187-0	04	1	0710-0809
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-1110
69	NUT; CAP CHEAPER CAB(WY1) M8 CAP NUT	8-98059-914-0	02	1	1111-
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (G)	1-71798-581-3	01	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (A)	1-71798-484-1	02	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (B)	1-71798-486-2	02	1	1111-
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (F)	8-98099-810-0	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	03	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0804-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (A)	1-71798-484-1	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0710-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (B)	1-71798-486-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (C)	1-71707-255-2	01	1	0710-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (C)	1-71707-255-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (E)	8-98167-111-0	01	1	1111-
72	SHEET EXC. CHEAPER CAB(WY1) (B)	1-71798-487-3	02	1	1111-
72	SHEET EXC. CHEAPER CAB(WY1) (B)	1-71798-488-1	02	1	1111-
72	SHEET (B)	1-71798-487-3	03	1	0710-0803
72	SHEET (B)	1-71798-487-3	02	1	0804-1110
72	SHEET CHEAPER CAB(WY1) (B)	1-71798-487-3	01	1	1111-
72	SHEET (C)	1-71798-488-1	02	1	0710-1110
72	SHEET CHEAPER CAB(WY1) (C)	1-71798-488-1	01	1	1111-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0710-
151	WASHER; PL,MIRROR EXC. CHEAPER CAB(WY1) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1111-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0710-1110
151	WASHER; PL,MIRROR CHEAPER CAB(WY1) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1111-
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (B) M8X35 FLANGE	8-98046-876-0	04	1	1111-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	0710-1110
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (A) M5X16	1-71707-259-0	02	1	1111-
185	BOLT; BRKT (B) M8X35 FLANGE	8-98046-876-0	04	1	0710-1110
185	BOLT; BRKT CHEAPER CAB(WY1) (B) M8X35 FLANGE	8-98046-876-0	02	1	1111-
185	BOLT; BRKT (C) M6X16 FLANGE	0-28660-616-0	01	1	0710-1110
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (C) M6X16 FLANGE	0-28660-616-0	01	1	1111-
316	BRACKET; CONNECTOR	1-71798-896-1	01	1	0710-1110
316	BRACKET; CONNECTOR EXC. CHEAPER CAB(WY1)	1-71798-896-1	01	1	1111-

17 66 66 17 66 99 66 72 164 66 63 29 71 164 32 17 86 87 66 21 66 185 135 30 116 116 58 188 22 71 14 72 71 77 163 71 71 77 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE	1-71798-861-1	01	1	0710-1103
14	MIRROR ASM; OUTSIDE	1-71798-895-0	01	1	1104-1110
14	MIRROR ASM; OUTSIDE EXC. CHEAPER CAB(WY1)	1-71798-895-0	01	1	1111-
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (B) M5	1-09984-124-0	06	1	1111-
17	NUT; CAP,MIRROR STAY EXC. CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	07	1	1111-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0710-1110
17	NUT; CAP,MIRROR STAY CHEAPER CAB(WY1) (A) M10 CAP NUT	1-09984-134-0	02	1	1111-
21	NUT; MIRROR M5	1-09984-124-0	02	1	0710-1110
21	NUT; MIRROR EXC. CHEAPER CAB(WY1) M5	1-09984-124-0	02	1	1111-
22	STAY; OUTSIDE MIRROR	1-71798-663-1	01	1	0710-1110
22	STAY; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1)	1-71798-663-1	01	1	1111-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	0710-1110
29	MIRROR ASM; UNDER EXC. CHEAPER CAB(WY1)	1-71798-422-0	01	1	1111-
30	MIRROR; UNDER	1-71798-591-1	01	1	0710-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	0710-
58	NUT; MIRROR STAY CHEAPER CAB(WY1) M10	1-09985-342-0	02	1	1111-
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	0710-1110
58	NUT; MIRROR STAY EXC. CHEAPER CAB(WY1) M10	1-09984-183-0	01	1	1111-
63	NUT; STAY M8	1-09984-187-0	03	1	0710-
66	WASHER; PL EXC. CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	1111-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0710-1110
66	WASHER; PL CHEAPER CAB(WY1) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1111-
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0710-
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (G)	1-71798-581-3	01	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (A)	1-71798-484-1	02	1	1111-
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (B)	1-71798-486-2	02	1	1111-
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (F)	8-98099-810-0	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	03	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0804-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (A)	1-71798-484-1	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0710-1110
71	BRACKET; OUTSIDE MIRROR CHEAPER CAB(WY1) (B)	1-71798-486-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (C)	1-71707-255-2	01	1	0710-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (C)	1-71707-255-2	01	1	1111-
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0710-0803
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-1110
71	BRACKET; OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) (E)	8-98167-111-0	01	1	1111-
72	SHEET EXC. CHEAPER CAB(WY1) (B)	1-71798-487-3	02	1	1111-
72	SHEET EXC. CHEAPER CAB(WY1) (B)	1-71798-488-1	02	1	1111-
72	SHEET (B)	1-71798-487-3	03	1	0710-0803
72	SHEET (B)	1-71798-487-3	02	1	0804-1110
72	SHEET CHEAPER CAB(WY1) (B)	1-71798-487-3	01	1	1111-
72	SHEET (C)	1-71798-488-1	02	1	0710-1110
72	SHEET CHEAPER CAB(WY1) (C)	1-71798-488-1	01	1	1111-
72	SHEET HIGH ROOF<S2F> (A)	1-71797-799-1	01	1	0710-
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0710-1110
77	WASHER; PL,BRKT,STAY EXC. CHEAPER CAB(WY1) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1111-
86	COVER; STAY,OUTSIDE MIRROR CHEAPER CAB(WY1) BLACK	1-71737-760-1	02	1	1111-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	0710-1110
86	COVER; STAY,OUTSIDE MIRROR EXC. CHEAPER CAB(WY1) BLACK	1-71737-649-1	01	1	1111-
87	SPACER CHEAPER CAB(WY1) (B)	1-71737-704-0	02	1	1111-
87	SPACER (A)	1-71737-646-2	01	1	0710-
99	STAY; MAIN UNDER MIRROR	1-71707-265-1	01	1	0710-1110
99	STAY; MAIN UNDER MIRROR EXC. CHEAPER CAB(WY1)	1-71707-265-1	01	1	1111-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0710-1110
116	WASHER; PL,STAY,MIRROR EXC. CHEAPER CAB(WY1) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1111-
135	LENS; MIRROR,SIDE UNDER	1-71798-838-0	01	1	0710-1110
135	LENS; MIRROR,SIDE UNDER EXC. CHEAPER CAB(WY1)	1-71798-838-0	01	1	1111-
163	NUT; MIRROR BRKT M8	1-09984-187-0	02	1	0710-0910
163	NUT; MIRROR BRKT M8 CAP NUT	8-98059-914-0	02	1	0911-1110
163	NUT; MIRROR BRKT EXC. CHEAPER CAB(WY1) M8 CAP NUT	8-98059-914-0	02	1	1111-
164	STAY; ROOF CHEAPER CAB(WY1) (C)	1-71798-299-4	01	1	1111-
164	STAY; ROOF (A)	1-71707-248-2	01	1	0710-1110
164	STAY; ROOF EXC. CHEAPER CAB(WY1) (A)	1-71707-248-2	01	1	1111-
164	STAY; ROOF (B)	1-71707-266-1	01	1	0710-1110
164	STAY; ROOF EXC. CHEAPER CAB(WY1) (B)	1-71707-266-1	01	1	1111-
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (B) M8X35 FLANGE	8-98046-876-0	04	1	1111-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	0710-1110
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (A) M5X16	1-71707-259-0	02	1	1111-
185	BOLT; BRKT (B) M8X35 FLANGE	8-98046-876-0	04	1	0710-1110
185	BOLT; BRKT CHEAPER CAB(WY1) (B) M8X35 FLANGE	8-98046-876-0	02	1	1111-
185	BOLT; BRKT (C) M6X16 FLANGE	0-28660-616-0	01	1	0710-1110
185	BOLT; BRKT EXC. CHEAPER CAB(WY1) (C) M6X16 FLANGE	0-28660-616-0	01	1	1111-
188	SEAL; PROTECTOR	1-72497-049-0	01	1	0710-0803

2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73117-033-1	01	1	0710-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
