◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#67348) — 19 parça

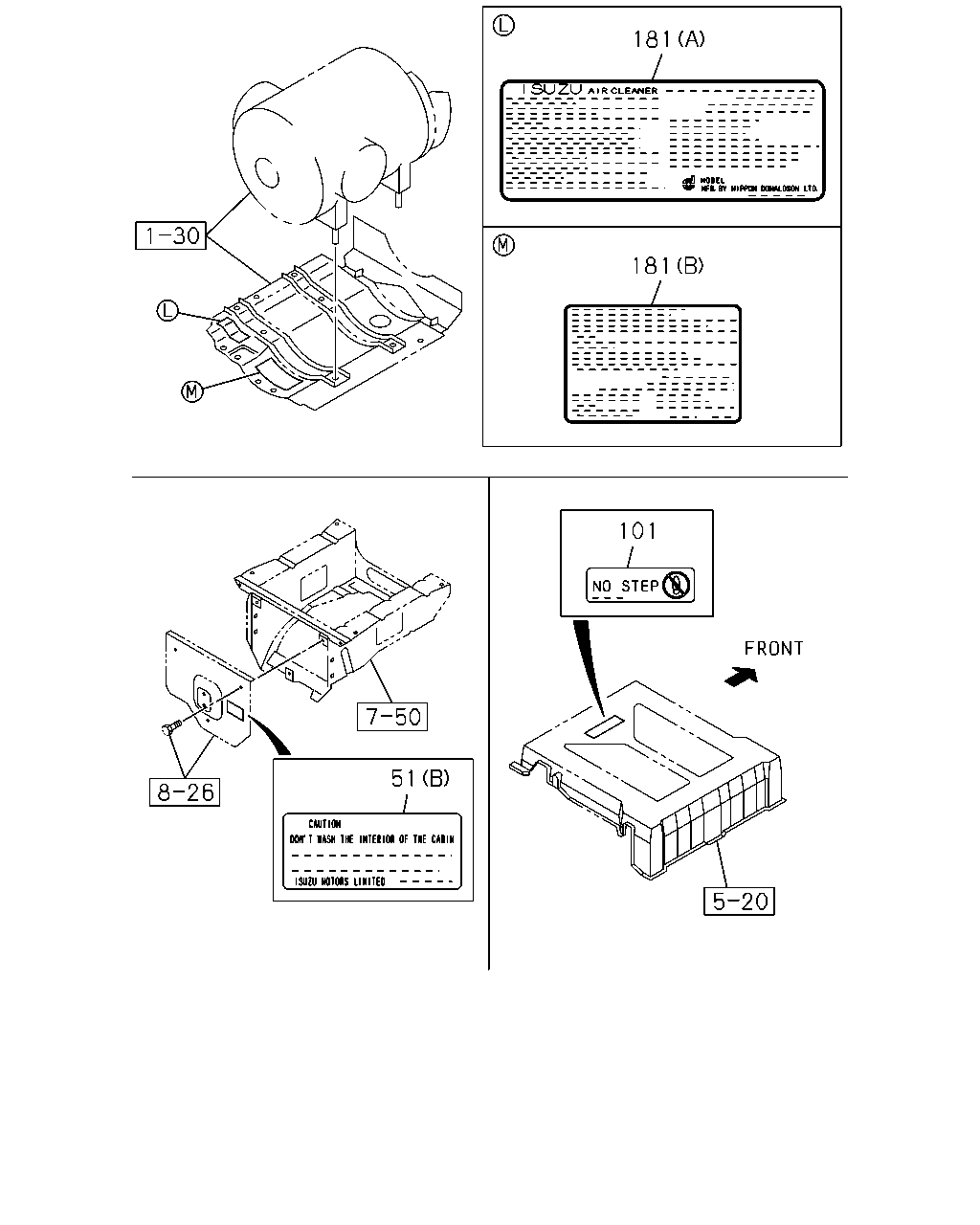

çizim 132730
181 181 101 51
BalonParca AdiParca NoAdetTipApplied Date
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-
101 PLATE; CAUTION,NO STEP 8-97624-096-0 01 1 0710-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0710-
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0710-

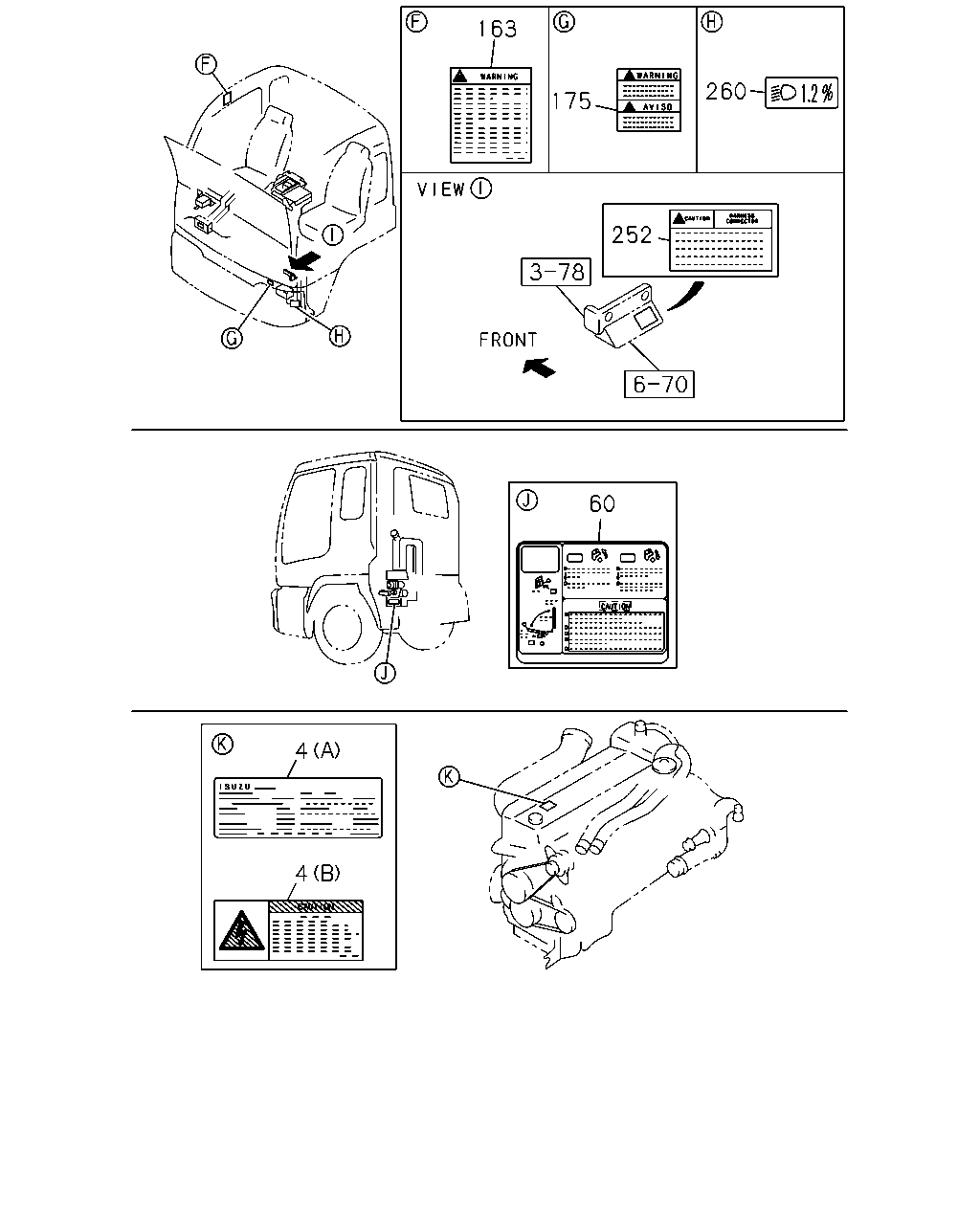

çizim 132912
163 260 175 252 60 4 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0710-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0710-
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 0710-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0710-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0710-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0710-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0710-

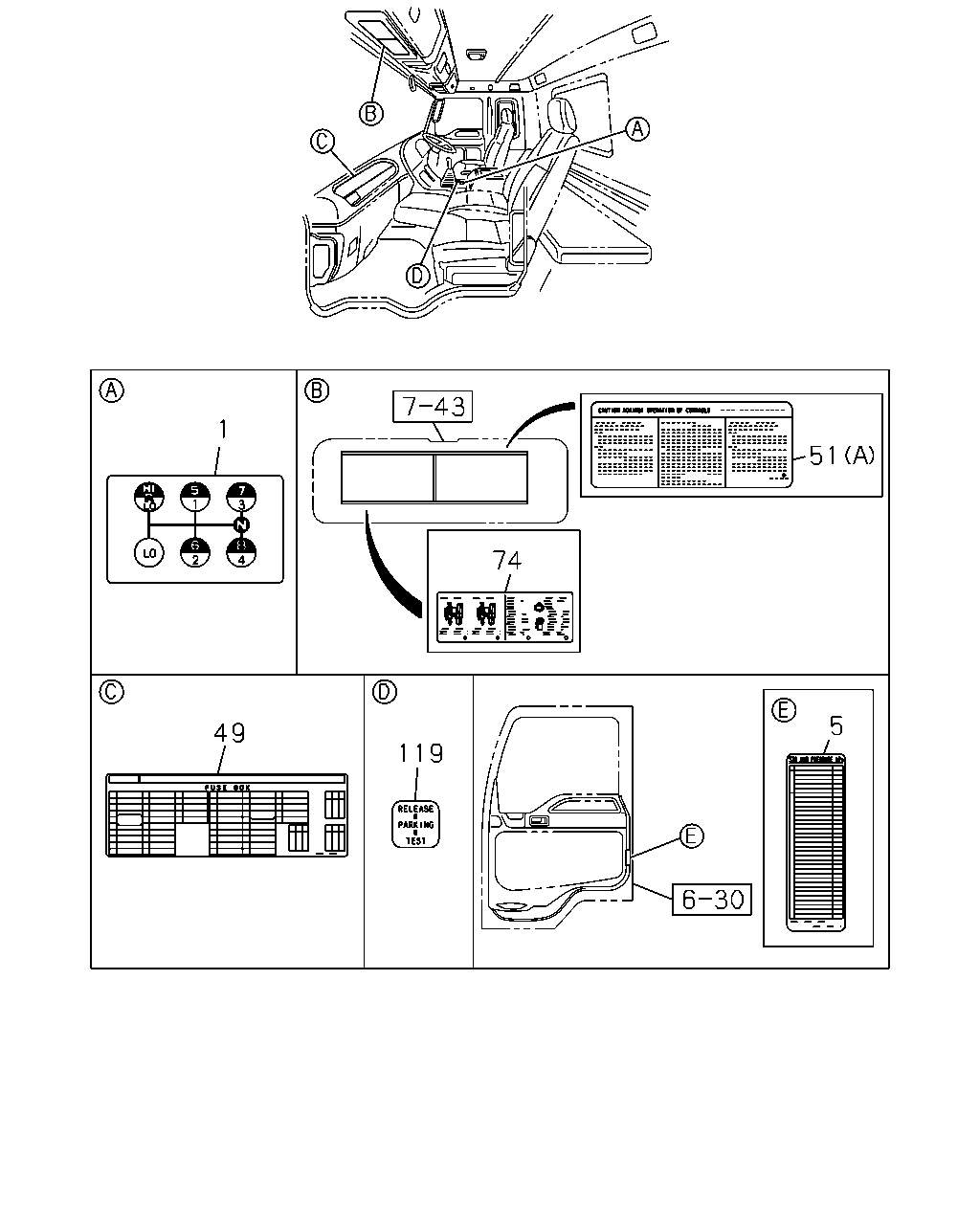

çizim 133086
1 74 119 49 51 5
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN 1-85881-519-0 01 1 0710-
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0710-
49 PLATE; CAUTION,FUSE BOX 8-97623-001-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-
74 PLATE; CAUTION,CHANGE LEV 1-85881-786-0 01 1 0710-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
