◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#67334) — 12 parça

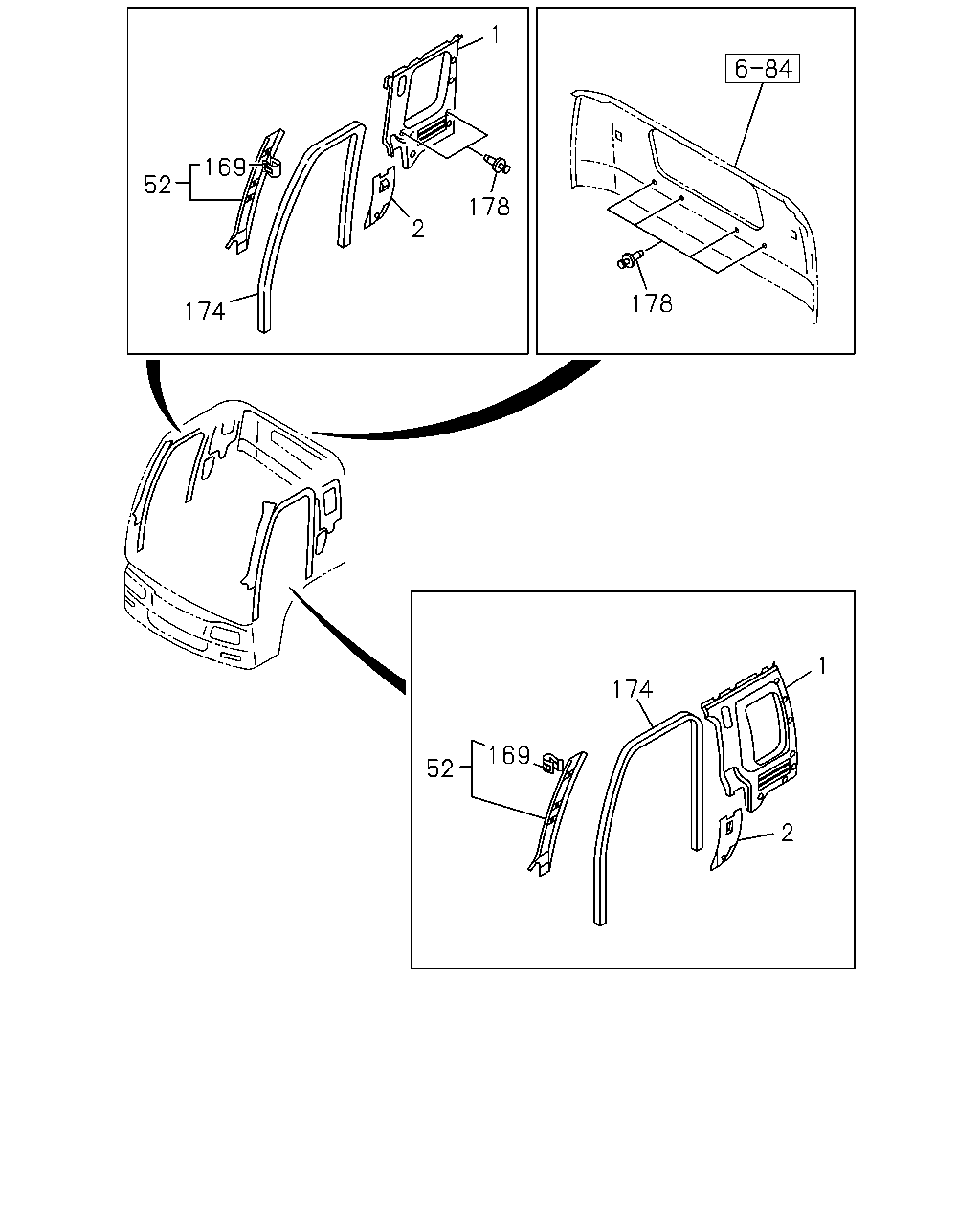

çizim 130974
52 169 174 2 178 1 178 174 169 52 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-899-3 01 1 0710-
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-903-4 01 1 0710-
2 TRIM; ROOM,QUARTER WINDOW LWR
CHEAPER CAB(WY1) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73346-022-1 01 1 1111-
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-023-1 01 1 0710-
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-024-1 01 1 0710-1109
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73346-024-1 01 1 1110-1110
2 TRIM; ROOM,QUARTER WINDOW LWR
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CHEAPER CAB(WY1) 		1-73346-024-1 01 1 1111-
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0710-
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0710-
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0710-
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0710-
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 07 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
