Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11115 - EXZ NZ JAPAN NEW SHORT TERM 2004
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

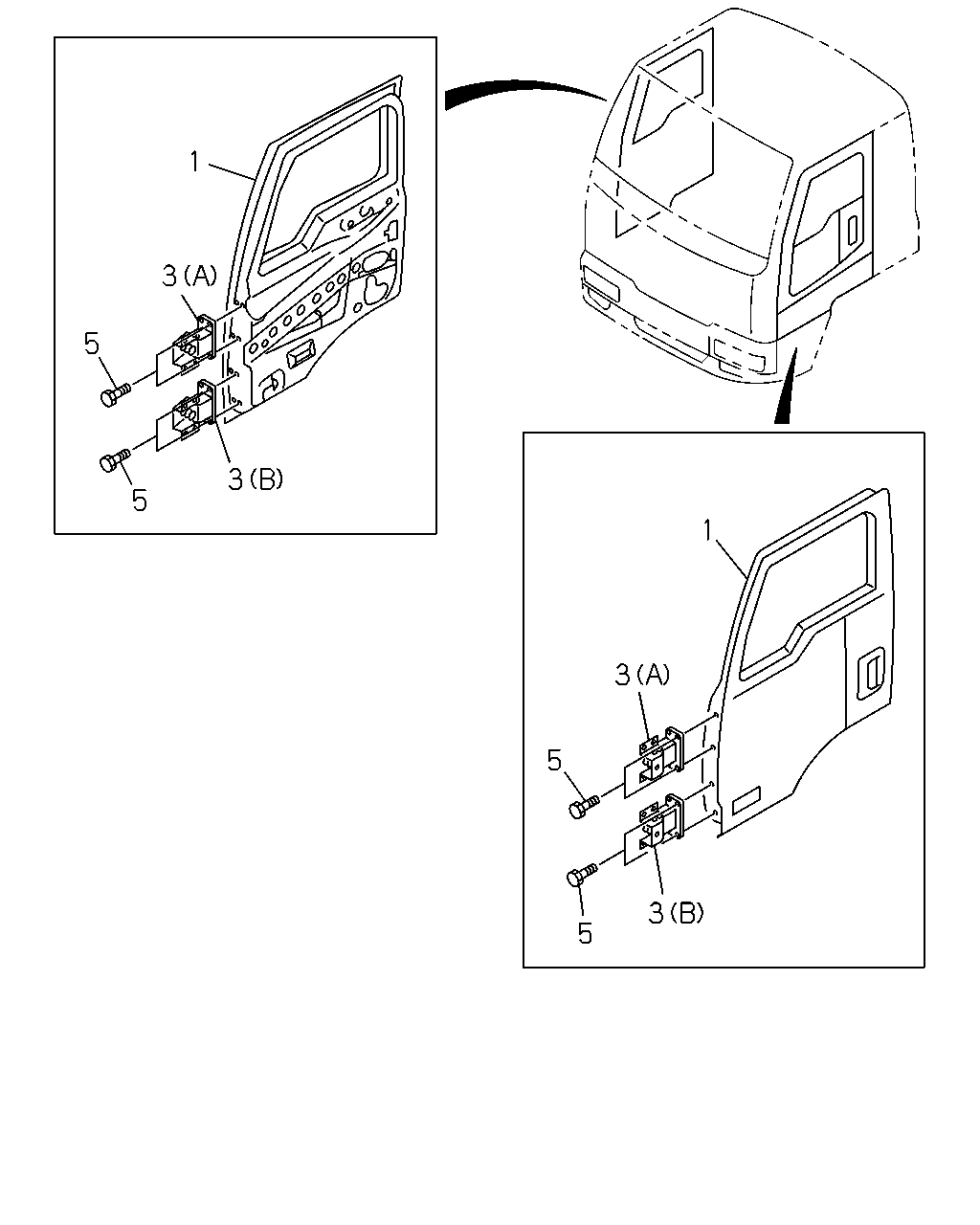

6-30 — FRONT DOOR AND HINGE
(#67329) — 16 parça
1
3
5
5
3
3
5
5
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
CHEAPER CAB(WY1)
1-64080-390-2
01
1
1111-
1
DOOR ASM; FRT,WO/TRIM
CHEAPER CAB(WY1)
1-64080-392-2
01
1
1111-
1
DOOR ASM; FRT,WO/TRIM
1-64080-394-2
01
1
0710-1110
1
DOOR ASM; FRT,WO/TRIM
EXC. CHEAPER CAB(WY1)
1-64080-394-2
01
1
1111-
1
DOOR ASM; FRT,WO/TRIM
1-64080-395-2
01
1
0710-1110
1
DOOR ASM; FRT,WO/TRIM
EXC. CHEAPER CAB(WY1)
1-64080-395-2
01
1
1111-
3
HINGE; DOOR FRT
CHEAPER CAB(WY1) (A) UPPER
1-64780-097-1
01
1
1111-
3
HINGE; DOOR FRT
CHEAPER CAB(WY1) (B) LOWER
1-64780-098-2
01
1
1111-
3
HINGE; DOOR FRT
EXC. CHEAPER CAB(WY1) (A) UPPER
1-64780-088-3
02
1
1111-
3
HINGE; DOOR FRT
EXC. CHEAPER CAB(WY1) (B) LOWER
1-64780-089-4
02
1
1111-
3
HINGE; DOOR FRT
(A) UPPER
1-64780-088-3
02
1
0710-1110
3
HINGE; DOOR FRT
CHEAPER CAB(WY1) (A) UPPER
1-64780-088-3
01
1
1111-
3
HINGE; DOOR FRT
(B) LOWER
1-64780-089-4
02
1
0710-1110
3
HINGE; DOOR FRT
CHEAPER CAB(WY1) (B) LOWER
1-64780-089-4
01
1
1111-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
32
1
0710-1110
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
1111-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
