11115 - EXZ NZ JAPAN NEW SHORT TERM 2004
▶
5 - Frame, Cab Mounting
▶

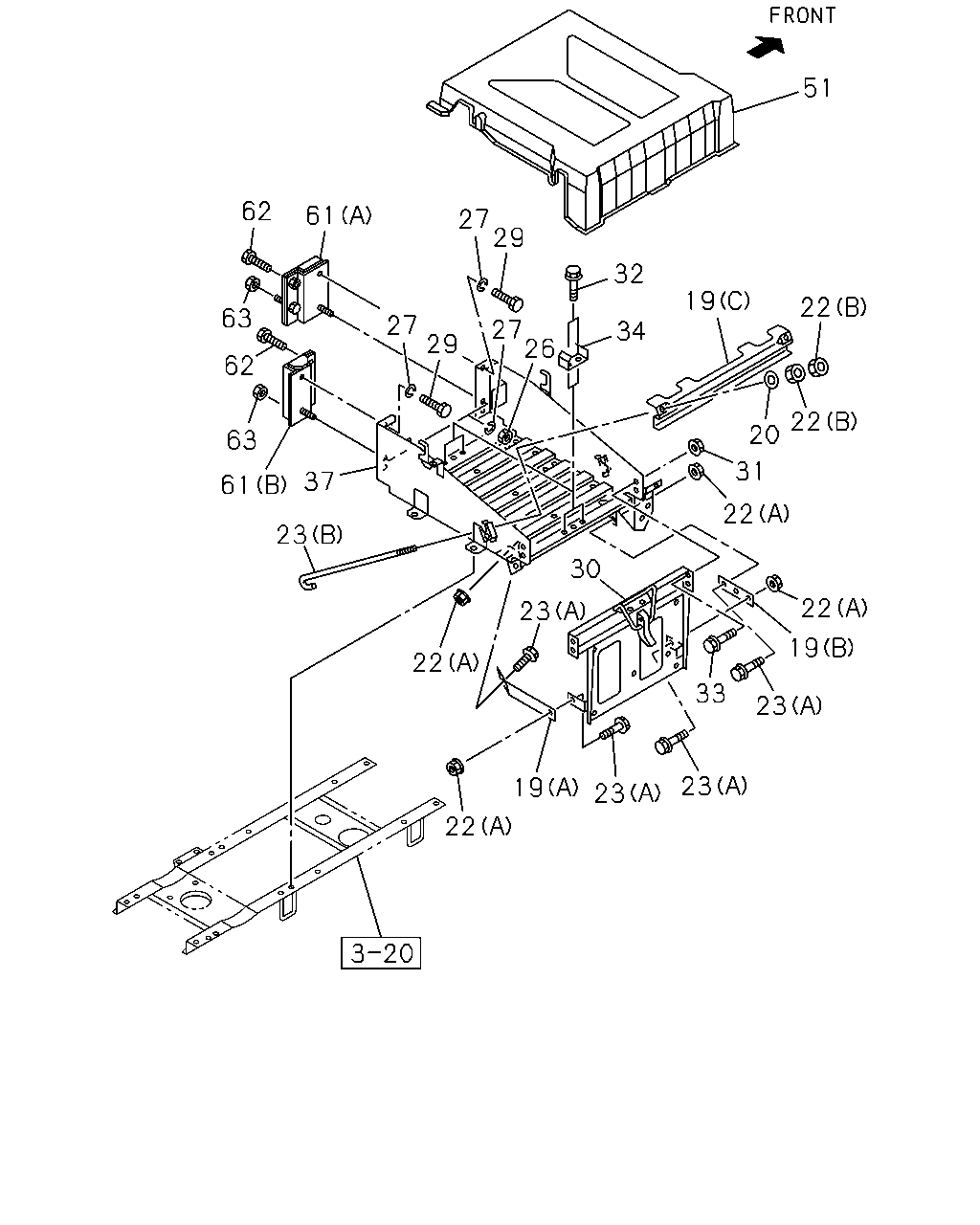

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#67323) — 25 parça
51
32
29
27
61
62
63
62
63
61
37
27
29
27
34
19
22
22
20
31
22
26
30
23
22
23
19
22
23
23
33
23
19
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0710-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0710-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0710-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0710-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0710-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0710-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0710-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0710-
26
NUT; BRKT
M14
0-91110-514-0
02
1
0710-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0710-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
08
1
0710-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
0710-
30
PLATE; BATTERY
1-53619-148-1
01
1
0710-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0710-
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0710-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0710-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0710-
37
BRACKET; BATTERY
1-53610-159-2
01
1
0710-
51
COVER; BATTERY
1-53612-068-0
01
1
0710-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-504-0
01
1
0710-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
0710-
62
BOLT; DIST TO FRAME,BATTERY
M14X45
1-09000-764-0
02
1
0710-
62
BOLT; DIST TO FRAME,BATTERY
M14X60
1-09000-778-0
02
1
0710-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0710-
