5-01 — FRAME AND OTHER PARTS (#67318) — 72 parça

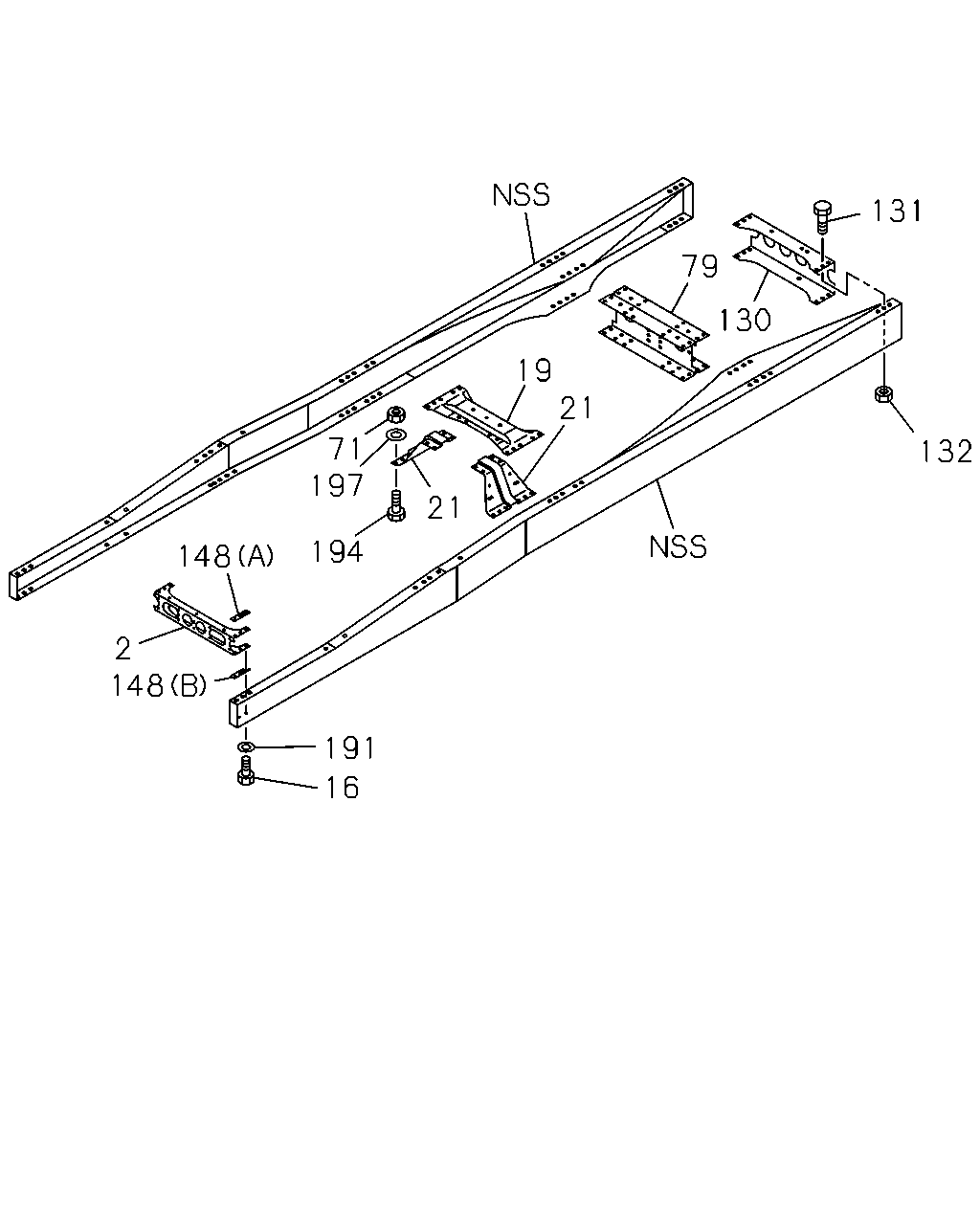

çizim 125397
131 132 130 79 19 21 21 71 197 194 148 2 148 191 16
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 8-97604-960-3 01 1 0710-
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20951-640-0 02 1 0710-1110
16 BOLT; 1ST C/MBR TO S/MBR
EXC. RADIATOR GUARD<WV1> M16X40 		0-20951-640-0 02 1 1111-
19 MEMBER; CROSS,2ND 1-53174-265-0 01 1 0710-
21 GUSSET; 2ND CROSS 1-53164-226-1 01 1 0710-
21 GUSSET; 2ND CROSS 1-53164-227-1 01 1 0710-
71 NUT; 2ND C/MBR
M14 		0-91110-514-0 08 1 0710-
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 0710-
130 MEMBER; CROSS,END 1-53181-646-8 01 1 0710-
131 BOLT; END C/MBR
M12X40 FLANGE 		0-28661-240-0 04 1 0710-
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0710-
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 0710-
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 0710-
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-223-0 02 1 0710-1110
191 WASHER; PL,1ST C/MBR TO S/MBR
EXC. RADIATOR GUARD<WV1> ID=16.2 		1-09503-223-0 02 1 1111-
194 BOLT; 2ND C/MBR
M14X60 		0-20951-460-0 08 1 0710-
197 WASHER; PL,2ND C/MBR
RADIATOR GUARD<WV1> ID=15 		8-98010-627-1 08 1 1111-1201
197 WASHER; PL,2ND C/MBR
ID=15 		8-98010-627-1 08 1 1202-
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 0710-1110
197 WASHER; PL,2ND C/MBR
EXC. RADIATOR GUARD<WV1> ID=15 		9-09651-069-0 08 1 1111-1201

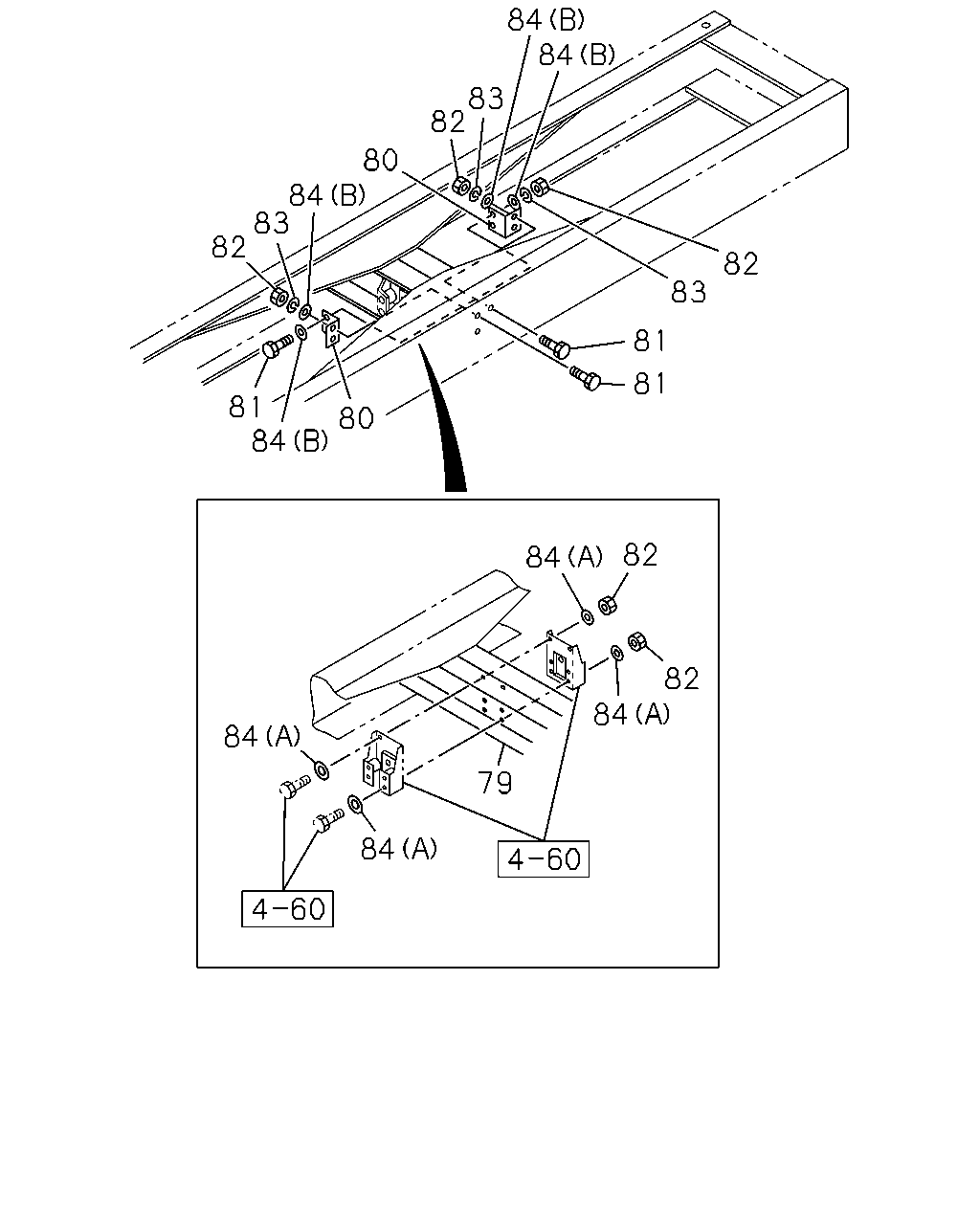

çizim 125544
84 84 83 82 80 84 83 82 81 84 80 81 81 83 82 84 82 82 84 79 84 84
BalonParca AdiParca NoAdetTipApplied Date
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 0710-
80 BRACKET; C/MBR 1-53167-610-0 04 1 0710-
81 BOLT; BRKT
M14X40 		0-20951-440-0 08 1 0710-
81 BOLT; BRKT
M14X60 		0-20951-460-0 04 1 0710-
82 NUT; BRKT
M14 		0-91110-514-0 04 1 0710-
82 NUT; BRKT
M14 		0-91110-514-0 12 1 0710-
83 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 12 1 0710-
84 WASHER; PL,BRKT
RADIATOR GUARD<WV1> (A) ID=15 		8-98010-627-1 08 1 1111-1201
84 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 08 1 1202-
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		9-09164-514-0 16 1 0710-1104
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		0-91614-514-0 16 1 1105-
84 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 08 1 0710-1110
84 WASHER; PL,BRKT
EXC. RADIATOR GUARD<WV1> (A) ID=15 		9-09651-069-0 08 1 1111-1201

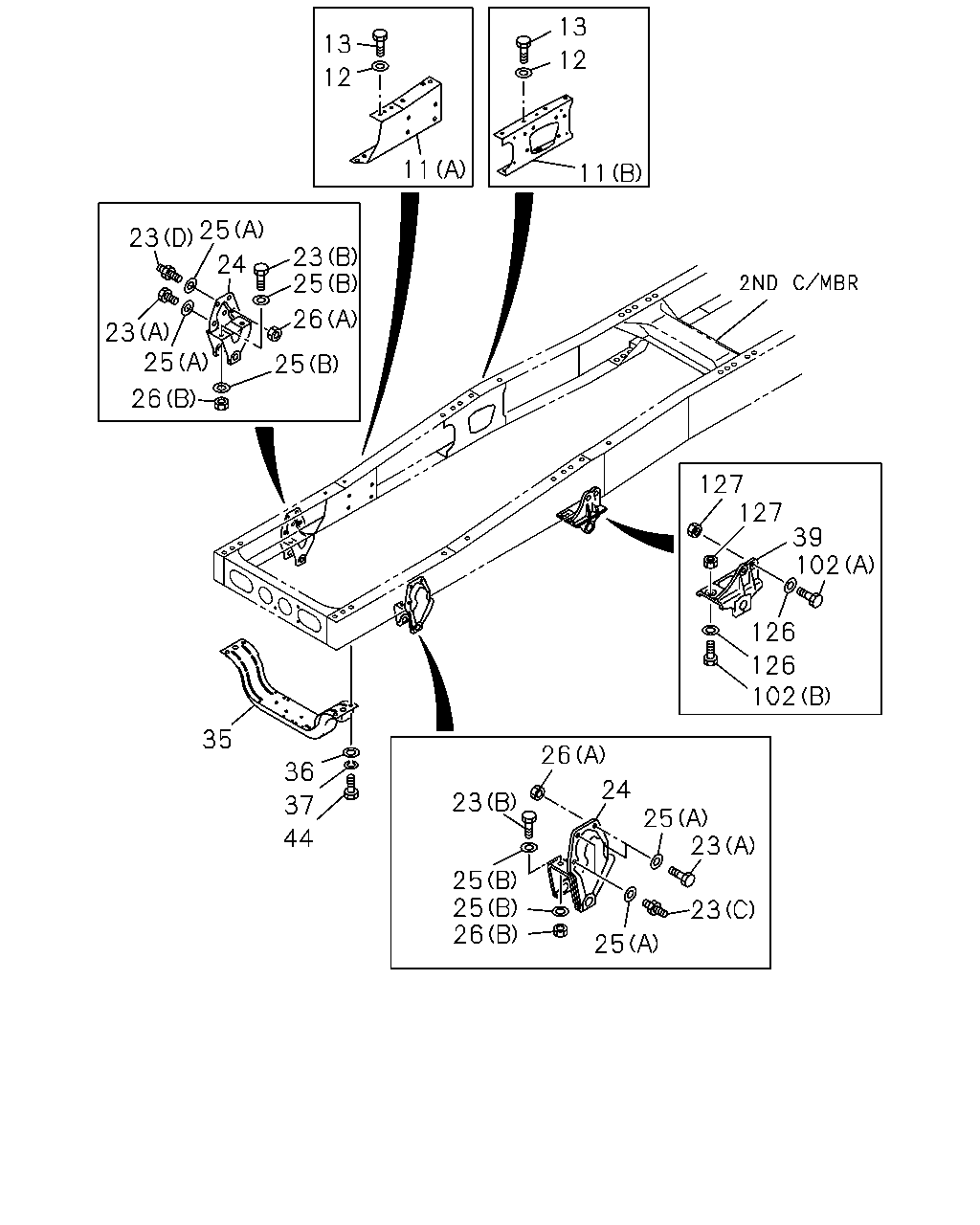

çizim 192900
13 12 11 11 12 13 25 23 23 25 24 26 25 25 23 26 35 36 37 44 23 26 24 25 23 23 25 25 25 26 127 127 39 102 126 126 102
BalonParca AdiParca NoAdetTipApplied Date
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 0710-
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 0710-
11 BRACKET; ENG MTG
(B) 		1-53221-230-4 01 1 0710-0805
11 BRACKET; ENG MTG
(B) 		8-98056-611-1 01 1 0806-
11 BRACKET; ENG MTG
(B) 		1-53221-231-4 01 1 0710-0805
11 BRACKET; ENG MTG
(B) 		8-98056-612-0 01 1 0806-
12 WASHER; PL,BRKT,ENG MTG
RADIATOR GUARD<WV1> ID=15 		8-98010-627-1 04 1 1111-1201
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 04 1 1202-
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 04 1 0710-1110
12 WASHER; PL,BRKT,ENG MTG
EXC. RADIATOR GUARD<WV1> ID=15 		9-09651-069-0 04 1 1111-1201
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 04 1 0710-
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 0710-
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0710-
23 BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100 		1-09029-075-0 01 1 0710-
23 BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81 		1-09029-103-0 02 1 0710-
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0710-
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0710-
25 WASHER; PL,BRKT
RADIATOR GUARD<WV1> (B) ID=16.2 		1-09503-316-0 08 1 1111-
25 WASHER; PL,BRKT
RADIATOR GUARD<WV1> (A) ID=15 		8-98010-627-1 08 1 1111-1201
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 08 1 1202-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0710-1110
25 WASHER; PL,BRKT
EXC. RADIATOR GUARD<WV1> (B) ID=16.2 		1-09503-223-0 08 1 1111-
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 08 1 0710-1110
25 WASHER; PL,BRKT
EXC. RADIATOR GUARD<WV1> (A) ID=15 		9-09651-069-0 08 1 1111-1201
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 0710-
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0710-
35 MEMBER; UNDER 1-53174-263-2 01 1 0710-
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0710-
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 0710-
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 0710-
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 0710-
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 0710-
102 BOLT; BRKT,RR SPR
(A) M14X40 		0-20951-440-0 04 1 0710-
102 BOLT; BRKT,RR SPR
(B) M14X50 		0-20951-450-0 04 1 0710-
126 WASHER; PL,BRKT
RADIATOR GUARD<WV1> ID=15 		8-98010-627-1 08 1 1111-1201
126 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1202-
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 0710-1110
126 WASHER; PL,BRKT
EXC. RADIATOR GUARD<WV1> ID=15 		9-09651-069-0 08 1 1111-1201
127 NUT; BRKT
M14 		0-91110-514-0 04 1 0710-
