◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#67314) — 10 parça

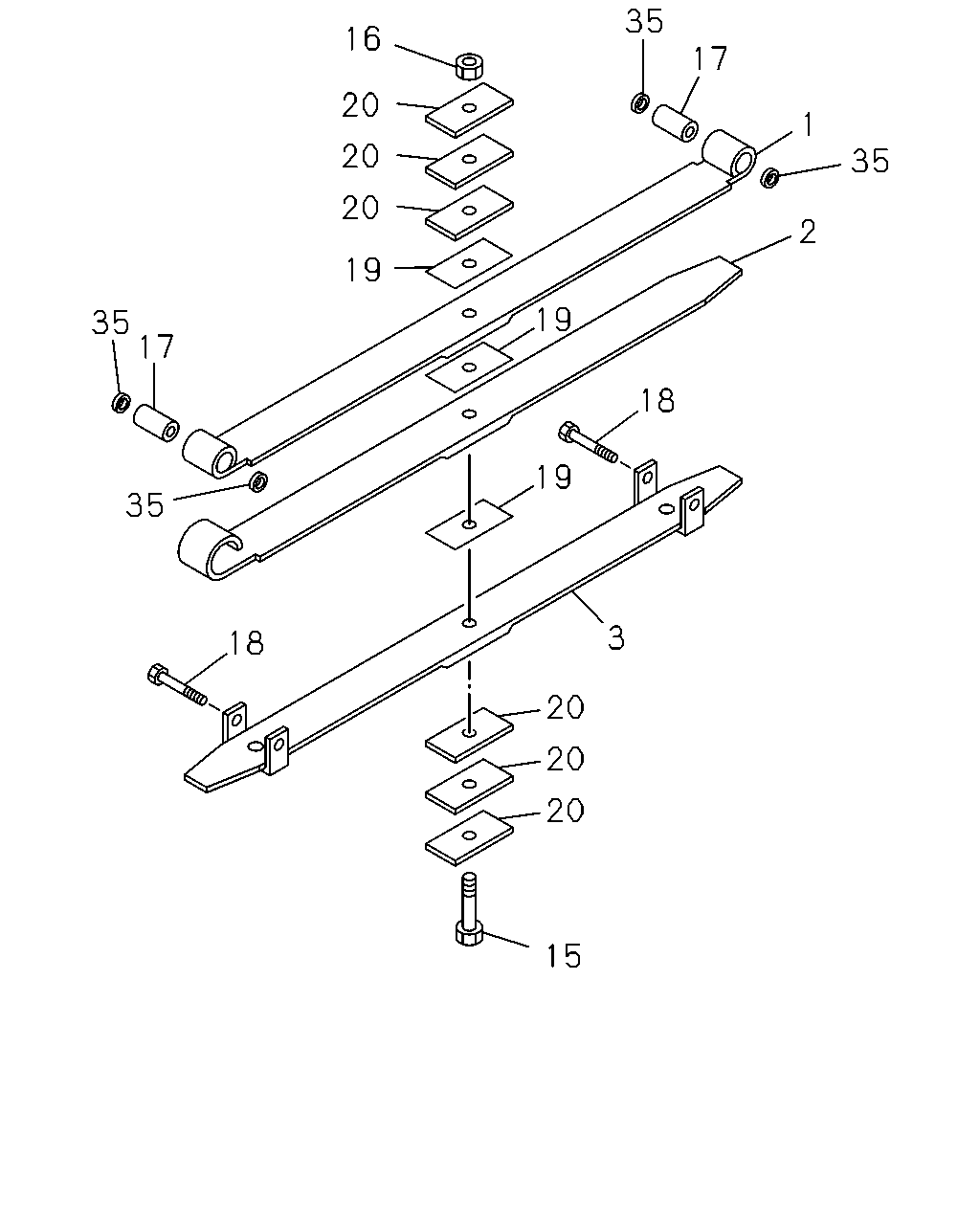

çizim 124851
16 35 17 1 35 2 18 19 20 20 20 19 17 35 35 18 19 3 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-921-0 		1-51131-891-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-921-0 		1-51132-891-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-921-0 		1-51133-891-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=170 ASM PART: A = 1-51130-921-0 		1-51156-305-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-921-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-921-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 1-51130-921-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-921-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
T=13 ASM PART: A = 1-51130-921-0 		1-51177-346-0 06 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-921-0 		1-51177-321-0 04 1 -
