Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11115 - EXZ NZ JAPAN NEW SHORT TERM 2004
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#67313) — 39 parça
◀

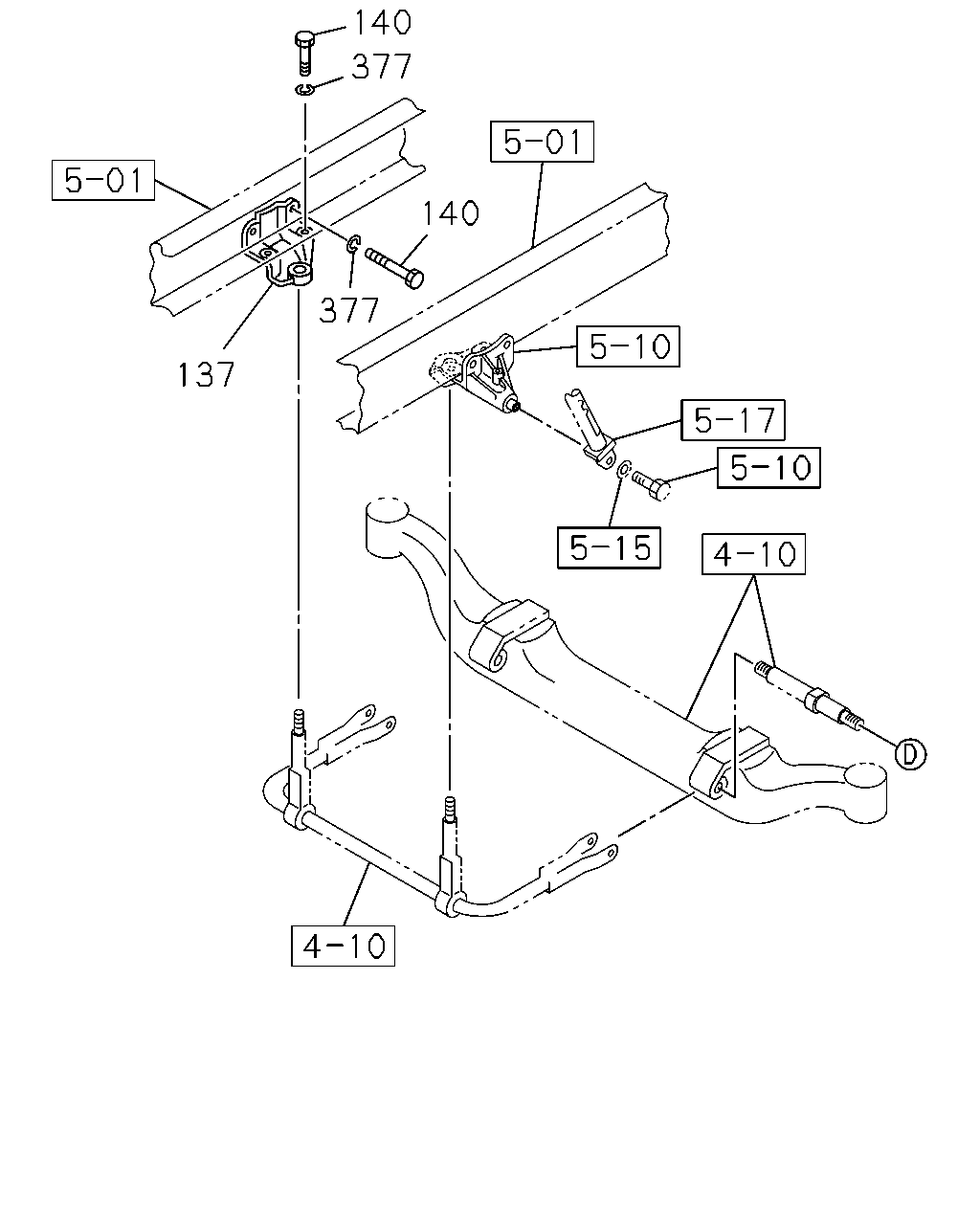

[450A] STABILIZER BRACKET FIXING (6 parça)

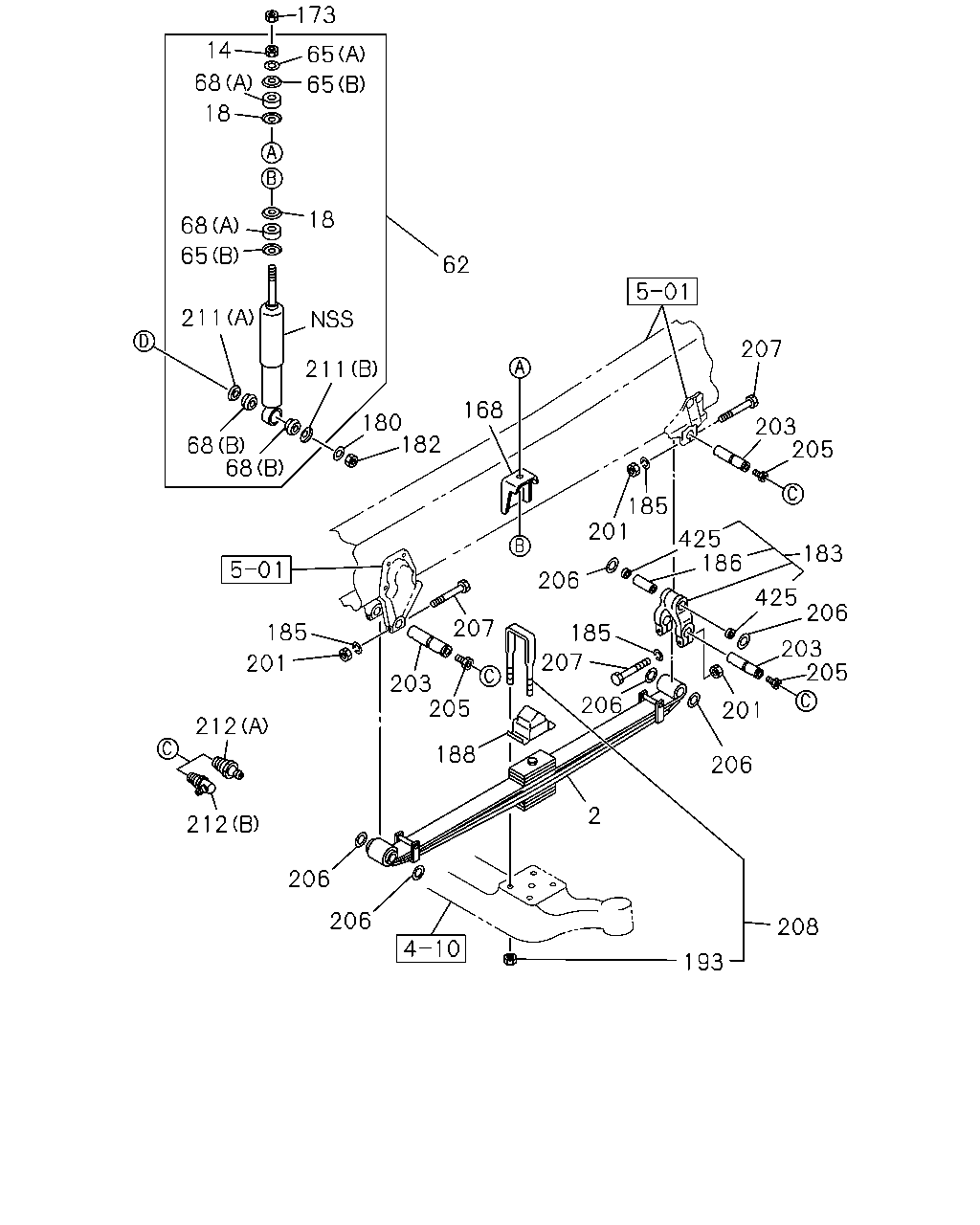

[450A] LEAF SPRING AND SHOCK ABSORBER (33 parça)
▶
140
377
140
377
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
1-51781-111-0
01
1
0710-
140
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0710-
377
WASHER; LK,BRKT
RADIATOR GUARD<WV1> ID=15
8-98010-627-1
04
1
1111-1201
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
04
1
1202-
377
WASHER; LK,BRKT
ID=15
9-09651-069-0
04
1
0710-1110
377
WASHER; LK,BRKT
EXC. RADIATOR GUARD<WV1> ID=15
9-09651-069-0
04
1
1111-1201
173
14
68
65
65
18
18
68
65
211
68
68
211
182
180
168
62
207
203
205
183
206
425
186
425
185
201
206
185
207
206
203
205
201
206
208
193
2
203
205
188
207
185
201
212
212
206
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
1-51130-921-0
02
1
0710-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0710-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
0710-
62
ABSORBER ASM; SHOCK,FRT
1-51630-833-0
02
1
0710-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
0710-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
0710-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
0710-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0710-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0710-
173
NUT; S/ABS
M14
0-91111-514-0
02
1
0710-
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
0710-
182
NUT; S/ABS LWR
M20
0-91110-520-0
02
1
0710-
183
SHACKLE; FRT SUSP
1-51162-071-0
02
1
0710-1005
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1006-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0710-
186
BUSHING; SHACKLE
OD=42
1-51351-044-0
02
1
0710-1005
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1006-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-085-2
02
1
0710-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0710-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0710-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
0710-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0710-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0710-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0710-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-269-2
04
1
0710-0711
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-1
04
1
0712-0712
208
U-BOLT SET; FRT SPRING
L=240
1-87870-376-2
04
1
0801-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0710-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0710-
212
NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
0710-
212
NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW
0-90301-610-0
04
1
0710-
425
SEAL; DUST
1-51177-321-0
04
1
0710-1005
