◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11115 - EXZ NZ JAPAN NEW SHORT TERM 2004 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#67306) — 50 parça

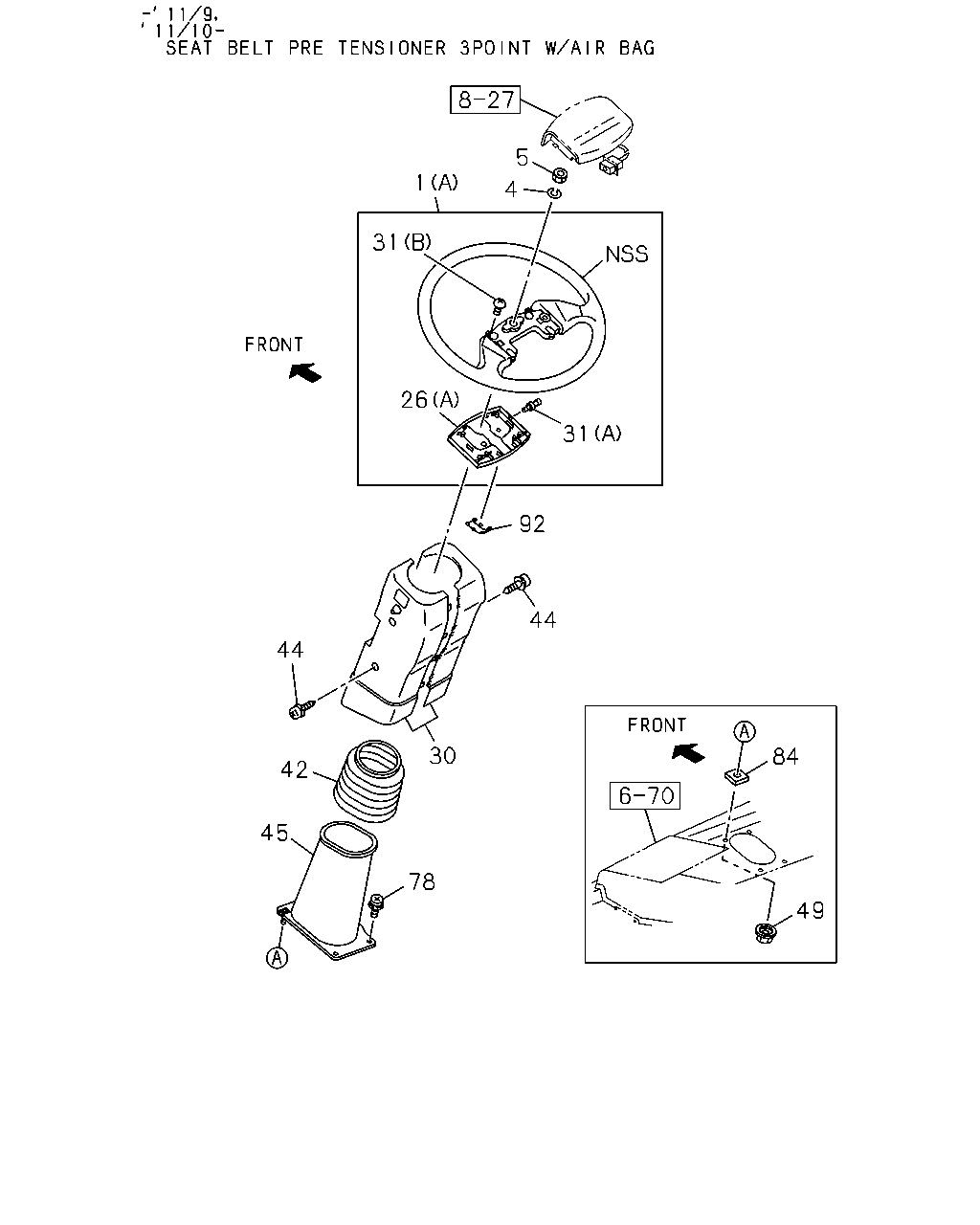

çizim 122980
5 1 4 31 26 31 92 44 44 30 84 42 45 78 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44110-157-1 01 1 1111-
1 WHEEL; STRG
(A) 		1-44110-167-2 01 1 0710-1109
1 WHEEL; STRG
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44110-167-2 01 1 1110-
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0710-
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0710-
26 COVER; STRG WHEEL,LWR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44129-050-0 01 1 1111-
26 COVER; STRG WHEEL,LWR
(A) 		1-44129-057-1 01 1 0710-1109
26 COVER; STRG WHEEL,LWR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44129-057-1 01 1 1110-
30 COWL; STEERING
EXC. AIR BAG(TFQ) 		1-79998-932-0 01 1 1111-
30 COWL; STEERING
AIR BAG(TFQ) 		1-79907-142-2 01 1 0710-1109
30 COWL; STEERING
AIR BAG(TFQ) 		1-79907-142-2 01 1 1110-
31 SCREW; BOSS TO COVER
(A) 		1-09169-005-0 02 1 0710-1109
31 SCREW; BOSS TO COVER
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-09169-005-0 02 1 1110-
31 SCREW; BOSS TO COVER
(B) M4X14 TAPPING 		9-07066-414-0 04 1 0710-1109
31 SCREW; BOSS TO COVER
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) M4X14 TAPPING 		9-07066-414-0 04 1 1110-
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0710-
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0710-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0710-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0710-1205
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206-
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0710-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0710-1205
92 LID; WHEEL COVER 1-44119-001-1 01 1 0710-1109
92 LID; WHEEL COVER
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-44119-001-1 01 1 1110-

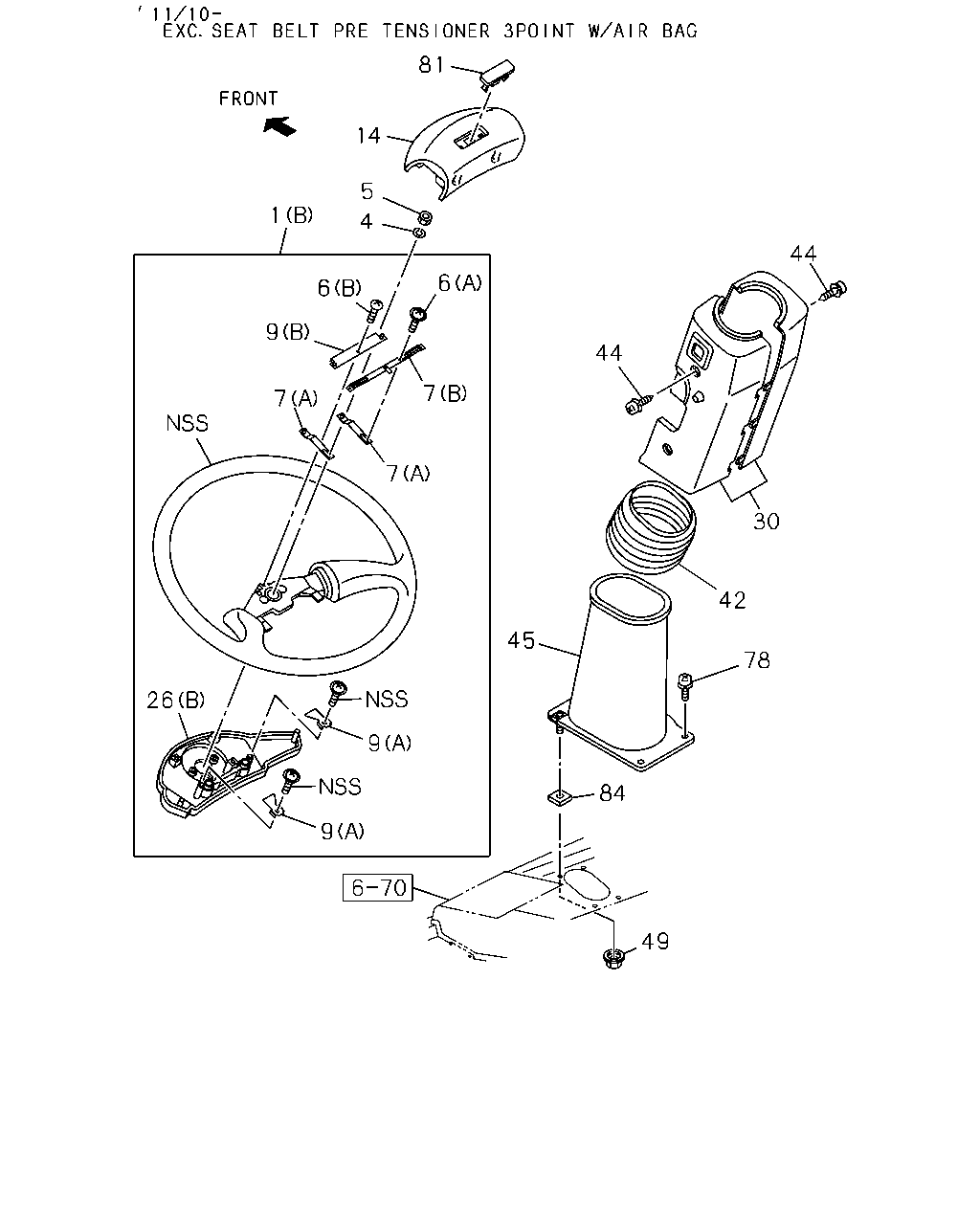

çizim 123083
81 14 5 1 4 44 6 6 9 44 7 7 7 30 42 45 78 26 9 84 9 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44110-157-1 01 1 1111-
1 WHEEL; STRG
(A) 		1-44110-167-2 01 1 0710-1109
1 WHEEL; STRG
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44110-167-2 01 1 1110-
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0710-
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0710-
6 SCREW; HORN SPR CONTACT
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) M4X16 		1-44129-036-0 04 1 1111-
6 SCREW; HORN SPR CONTACT
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) M5X10 		1-44129-049-0 01 1 1111-
7 SPRING; HORN CONTACT
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44129-033-0 02 1 1111-
7 SPRING; HORN CONTACT
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44129-060-0 01 1 1111-
9 PLATE; HORN CONTACT
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44129-048-0 02 1 1111-
9 PLATE; HORN CONTACT
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44129-059-0 01 1 1111-
14 BUTTON; HORN,STRG WHEEL
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-44120-045-2 01 1 1111-
26 COVER; STRG WHEEL,LWR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44129-050-0 01 1 1111-
26 COVER; STRG WHEEL,LWR
(A) 		1-44129-057-1 01 1 0710-1109
26 COVER; STRG WHEEL,LWR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44129-057-1 01 1 1110-
30 COWL; STEERING
EXC. AIR BAG(TFQ) 		1-79998-932-0 01 1 1111-
30 COWL; STEERING
AIR BAG(TFQ) 		1-79907-142-2 01 1 0710-1109
30 COWL; STEERING
AIR BAG(TFQ) 		1-79907-142-2 01 1 1110-
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0710-
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0710-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0710-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0710-1205
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206-
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0710-
81 EMBLEM; STRG WHEEL
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-76210-638-1 01 1 1111-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0710-1205
